FIFO Monorail Rail 40
0,00 €
Número de producto:
02082PO.1200
Cantidad por Paquete:

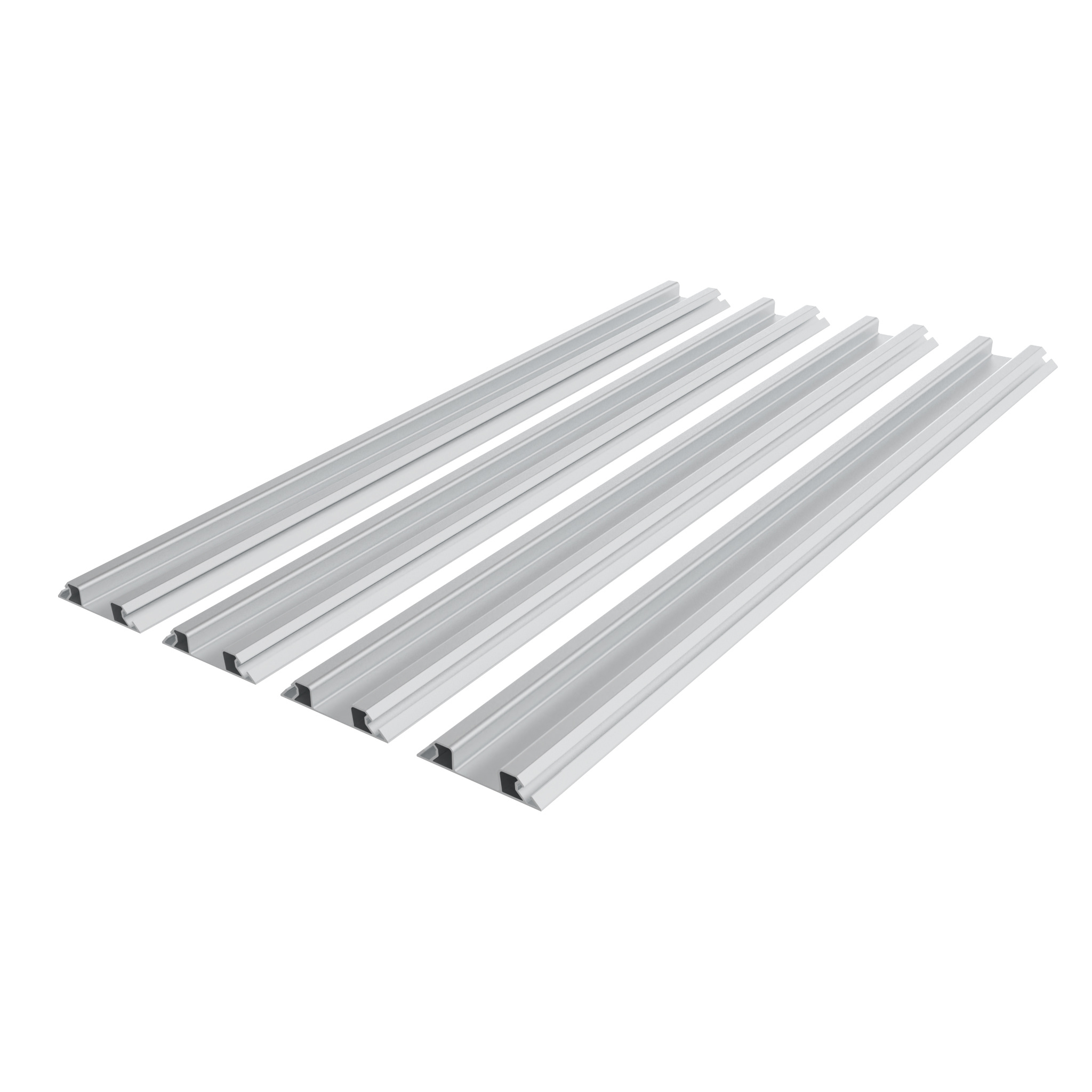

1 juego (= 4 piezas)
Información sobre el producto "FIFO Monorail Rail 40"
Países de Entrega:
En todo el mundo
Description:
For guiding floor dollies on one side in FIFO stations, with a wheel width of up to 40 mm

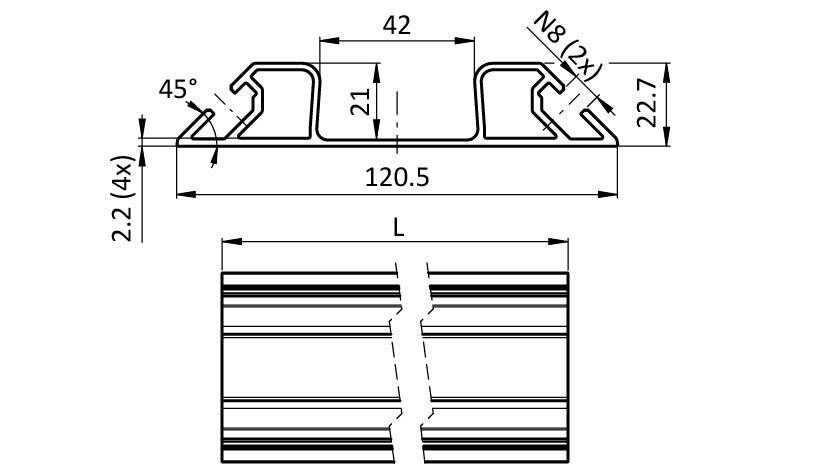

2 slots at the top, set at 45°; closed back side for optional full-surface adhesion to the floor
To extend two guiding rails, connect them face to face with connecting strip in the slots;
Posts can be mounted in the slot from above;
To securely fix to the floor, use the optional mounting set;
Mounting of a brush brake or an end stop with 2 optional mounting sets as a support base
Material:
Aluminio
Superficie:
Anodizado
Tip:
Compatible Connecting Strip see 096010S61
Compatible Infeed Cap for FIFO Monorail Rail (Set) see 02082CCS02
Compatible Monorail Angle Connector for Post see 093WS30145S01
Compatible Mounting Set for Posts Support Struts see 093WS30145S02
Compatible Cover Profiles see 092050;
Compatible Mounting for FIFO Monorail Rail 40 and 55 (Set) see 02082MB
En todo el mundo
Description:
For guiding floor dollies on one side in FIFO stations, with a wheel width of up to 40 mm
2 slots at the top, set at 45°; closed back side for optional full-surface adhesion to the floor
To extend two guiding rails, connect them face to face with connecting strip in the slots;
Posts can be mounted in the slot from above;
To securely fix to the floor, use the optional mounting set;
Mounting of a brush brake or an end stop with 2 optional mounting sets as a support base
Material:
Aluminio
Superficie:
Anodizado
Tip:
Compatible Connecting Strip see 096010S61
Compatible Infeed Cap for FIFO Monorail Rail (Set) see 02082CCS02
Compatible Monorail Angle Connector for Post see 093WS30145S01
Compatible Mounting Set for Posts Support Struts see 093WS30145S02
Compatible Cover Profiles see 092050;
Compatible Mounting for FIFO Monorail Rail 40 and 55 (Set) see 02082MB
| Model: | Aluminio anodizado |
|---|---|
| Cantidad por Paquete: | 1 juego (= 4 piezas) |
| Número de Arancel Aduanero de Exportación: | 76042990 |
| Peso (g): | 6996.0 |
| (ECLASS 6.0): | 21070390 |
| (ECLASS 7.0): | 21079290 |
| (ECLASS 8.0): | 21079290 |
| (ECLASS 9.0): | 21079290 |
| (ECLASS 10.0): | 21079290 |
| (ECLASS 11.0): | 21070490 |
| (ECLASS 12.0): | 21070490 |
| (ECLASS 13.0): | 21070490 |
| Numero de ERP: | 170736 |
| Zolltarifnummer: | 76042990900 |
