New Products

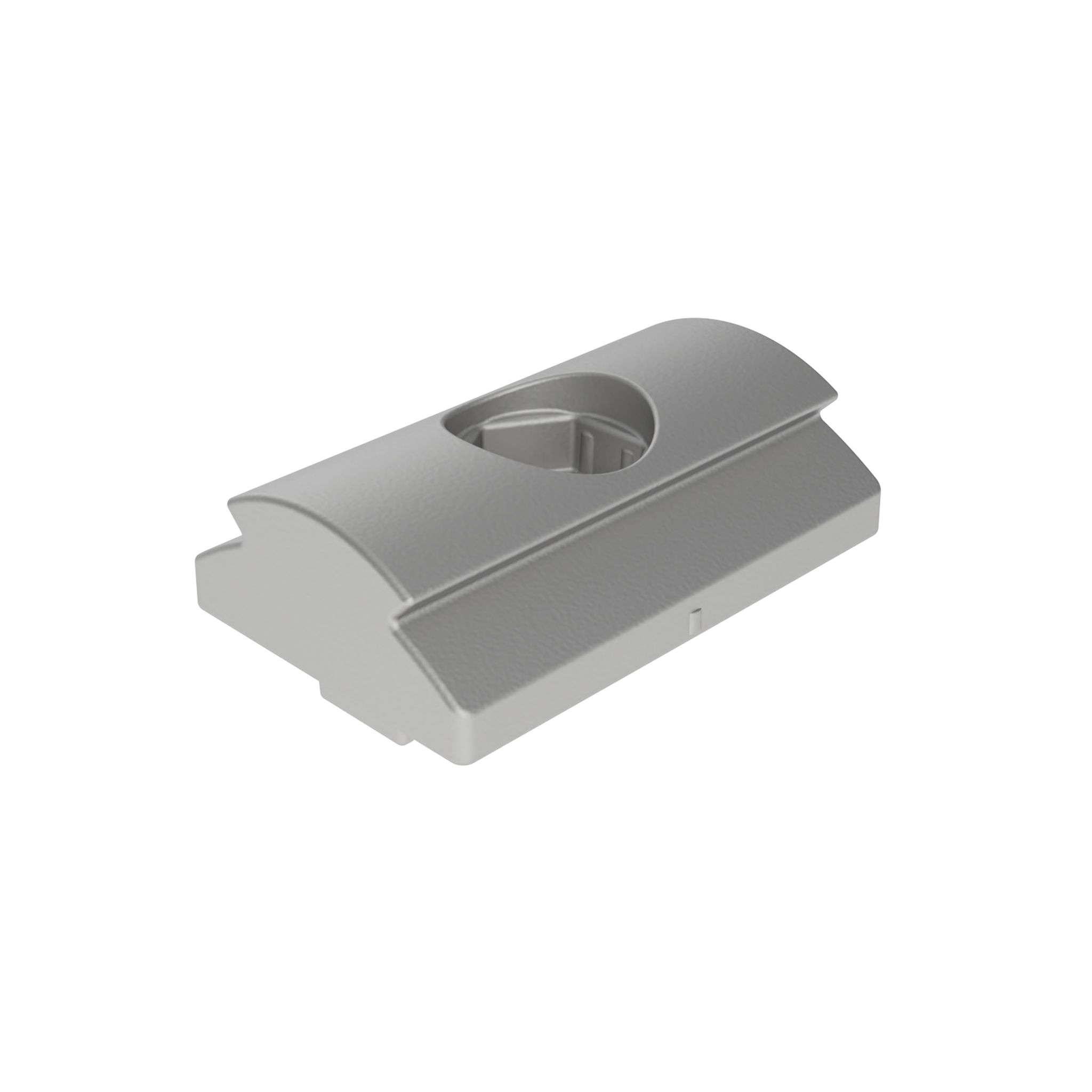

Adapter Piece D30, Slot 8
Color:V_PlainPaíses de Entrega:En todo el mundoDescription:To connect tubular frame profiles with slot 8 aluminum profilesMaterial:Aluminio fundido a presiónTip:Compatible Outer Ball Connector D30 (Set) see 099RV30KS01 Compatible Outer T-Connector D30 (Set) see 099RV3090LS01 Compatible Cross Ball Connector D30 (Set) see 099RV30KS04 Compatible Cross Connector D30 (Set) see 099RV30XS01 Compatible Parallel Connector D30 (Set) see 099RV30PS02 Compatible Angle Connector 2D30 (Set) see 099RV3090QS01 Compatible Angle Connector D30, 45° (Set) see 099RV3045S01 Compatible T-slot Nut see 096006
Alu Connection Angle 20
Assembly Set 1:2 hammer nuts - slot 6 - M4, 2 screws DIN 7984 - M4 x 8Assembly Set 2:4 hammer nuts - slot 6 - M4, 4 screws DIN EN ISO 7380-1 (DIN 34805-1) - M4 x 8Color:Angle: Alu colorPaíses de Entrega:En todo el mundoDescription:To connect two aluminum profiles or panels at right angles; the connection angle can be closed with the cover capMaterial:Angle: Aluminum die-cast Assembly set: SteelEspeciales:Otras superficies, otros colores bajo pedidoSurface:Angle: Plain / Powder coated Assembly set: Zinc platedTip:Compatible Cover Cap see 093WA203
Angle Element T1 40, 45°
Color:Color aluPaíses de Entrega:En todo el mundoDescription:To mount a profile as bracing at a 45° angle without miter cutMaterial:AluminioSuperficie:AnodizadoTip:Compatible Cover Cap 40 x 40 45° see 091048 (black) / 091048S01 (gray)
Angle Element T1 80 x 40, 45°
Color:Color aluPaíses de Entrega:En todo el mundoDescription:To mount a profile as bracing at a 45° angle without miter cutMaterial:AluminioSuperficie:AnodizadoTip:Compatible Cover Cap 40 x 40 45° see 091048 (black) / 091048S01 (gray)
Angle Element T2 40, 45°
Color:Color aluPaíses de Entrega:En todo el mundoDescription:To mount two profiles as bracing at a 45° angle without miter cutMaterial:AluminioSuperficie:AnodizadoTip:Compatible Cover Cap 40 x 40 45° see 091048 (black) / 091048S01 (gray)
Angle Element T2 80 x 40, 45°
Color:Color aluPaíses de Entrega:En todo el mundoDescription:To mount two profiles as bracing at a 45° angle without miter cutMaterial:AluminioSuperficie:AnodizadoTip:Compatible Cover Cap 40 x 40 45° see 091048 (black) / 091048S01 (gray)
Bag Cutter FX for Square Holes 9 x 9 (8.7 x 8.7)
Color:Holder: Black Bag cutter: BlackPaíses de Entrega:En todo el mundoDescription:Ready to use bag cutter, changeable blade, 360° turnable, for perforated metals up to 1.4 mm thick; To organize workstations, with labeling area for standard labelsMaterial:Holder ESD electrostatical discharging version: Plastic PA, carbon fiber reinforced Bag cutter ESD electrostatical discharging version: Plastic PA, glass ball reinforced with carbon Trapezoidal blade: Carbon steel Spring: Spring steel SS313 Countersunk screw: Brass Sleeve nut: Brass Screw: Steel Nut: SteelSpecials:Other colors on request, For other sheet metal thicknesses on requestSurface:Screw: Zinc plated Nut: Zinc platedTip:For profiles 40 / 45, slot 8 / 10 see 6TM840NF91S01 For round tubes D28 / D30 see 6TM8D283F91ESDS01
Ball Insert D24
Países de Entrega:En todo el mundoDescription:Low-wear, low friction ball caster for flexible movements in two directions, for example at track switches and material locks; for roller tracks AL, can also be used in panels, e.g. on table tops; version with attachement clip prevents rotation of the ball housingMaterial:Ball: Steel, stainless steel Ball housing: Steel Housing Attachment Clip: SteelEspeciales:Otros materiales, otras superficies bajo pedidoSurface:Ball steel: Chrome plated / Ball stainless steel: Plain Ball housing: Chrome plated Housing Attachment Clip: Zinc platedTip:Compatible Cage for Ball / Bush Insert D24 see 062ACD2491ESD.50;

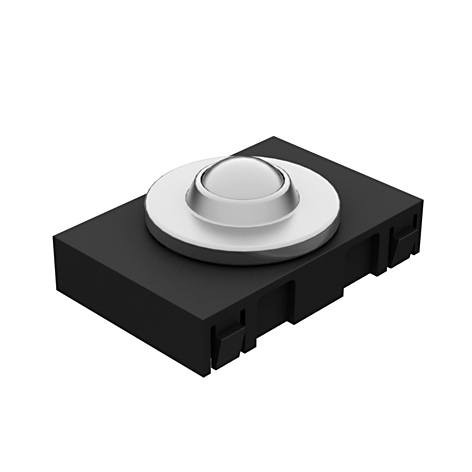

Ball Unit
Color:Jaula: NegroPaíses de Entrega:En todo el mundoDescription:A preassembled ball unit for roller track profiles AL, with low-wear, low friction ball caster for flexible movements in two directions, for example at track switches and material locksMaterial:Ball: Steel, stainless steel Ball chassis: Steel Cage: Plastic PA, carbon fiber reinforcedEspeciales:Otros materiales, otras superficies bajo pedidoSurface:Ball steel: Chrome plated / Ball stainless steel: Plain Ball housing: Chrome plated Housing Attachment Clip: Zinc platedTip:Brush unit consisting of: – Ball insert, see 062AQ; – Cage for ball insert, see 062ACD2491ESD.50; Compatible Slide Rail AL see 062AS91ESD.2000

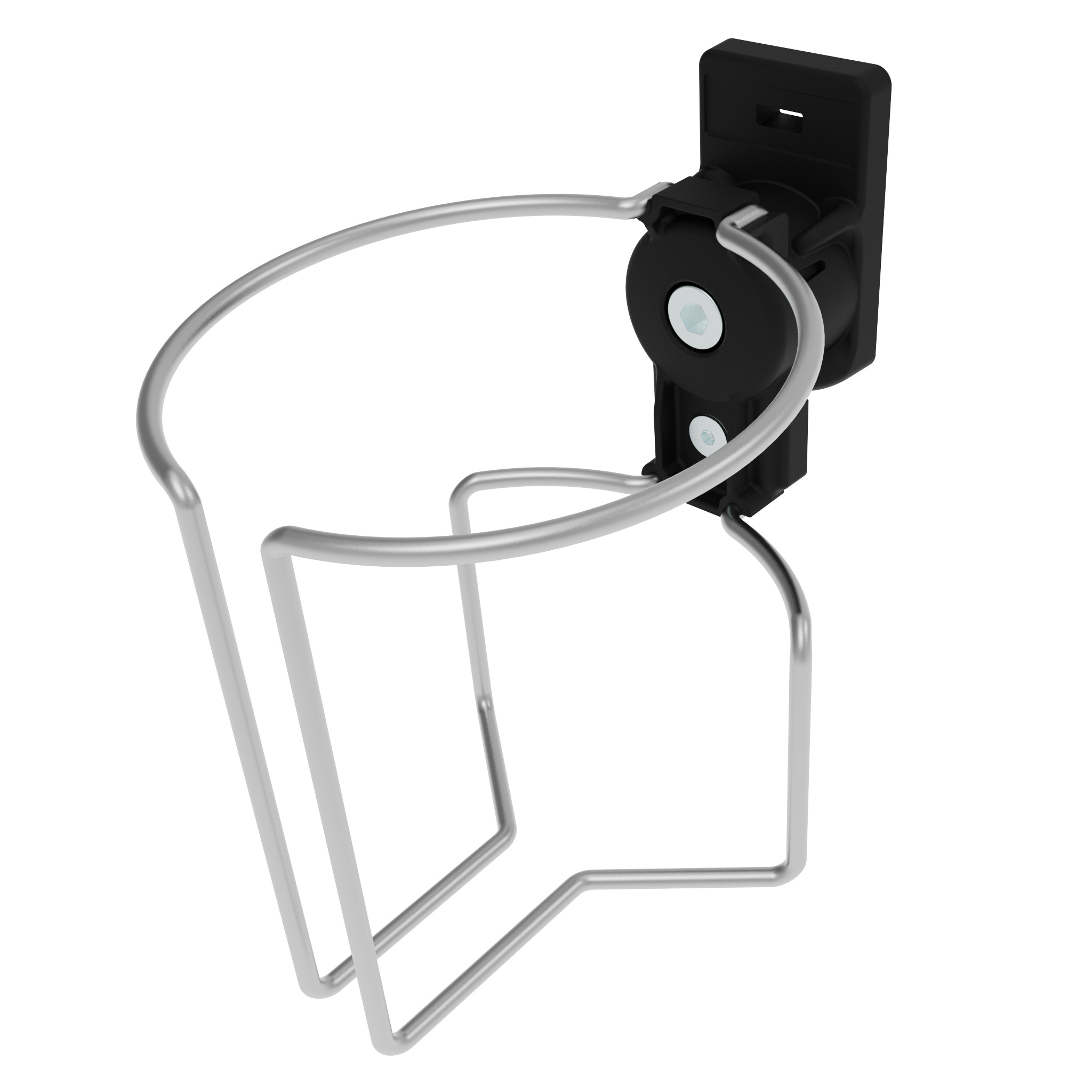

Bottle Holder FX for Square Holes 9 x 9 (8.7 x 8.7)
Color:Rear mounting holder: Black Front locking holder: BlackPaíses de Entrega:En todo el mundoDescription:Ready to use bottle holder, 360° turnable, for perforated metals up to 1.4 mm thick; To organize workstations, with labeling area for standard labelsMaterial:Rear mounting holder: Plastic PA, carbon fiber reinforced Front locking holder: Plastic PA, glass ball reinforced Wire: Stainless steel SS304 Spring: Spring steel SS313 Screw: Steel Nut: SteelSpecials:Other colors on request, For other sheet metal thicknesses on requestSurface:Screw: Zinc plated Nut: Zinc platedTip:For profiles 40 / 45, slot 8 / 10 see 6TM840ND100S01 For round tubes D28 / D30 see 6TM8D283D100S01

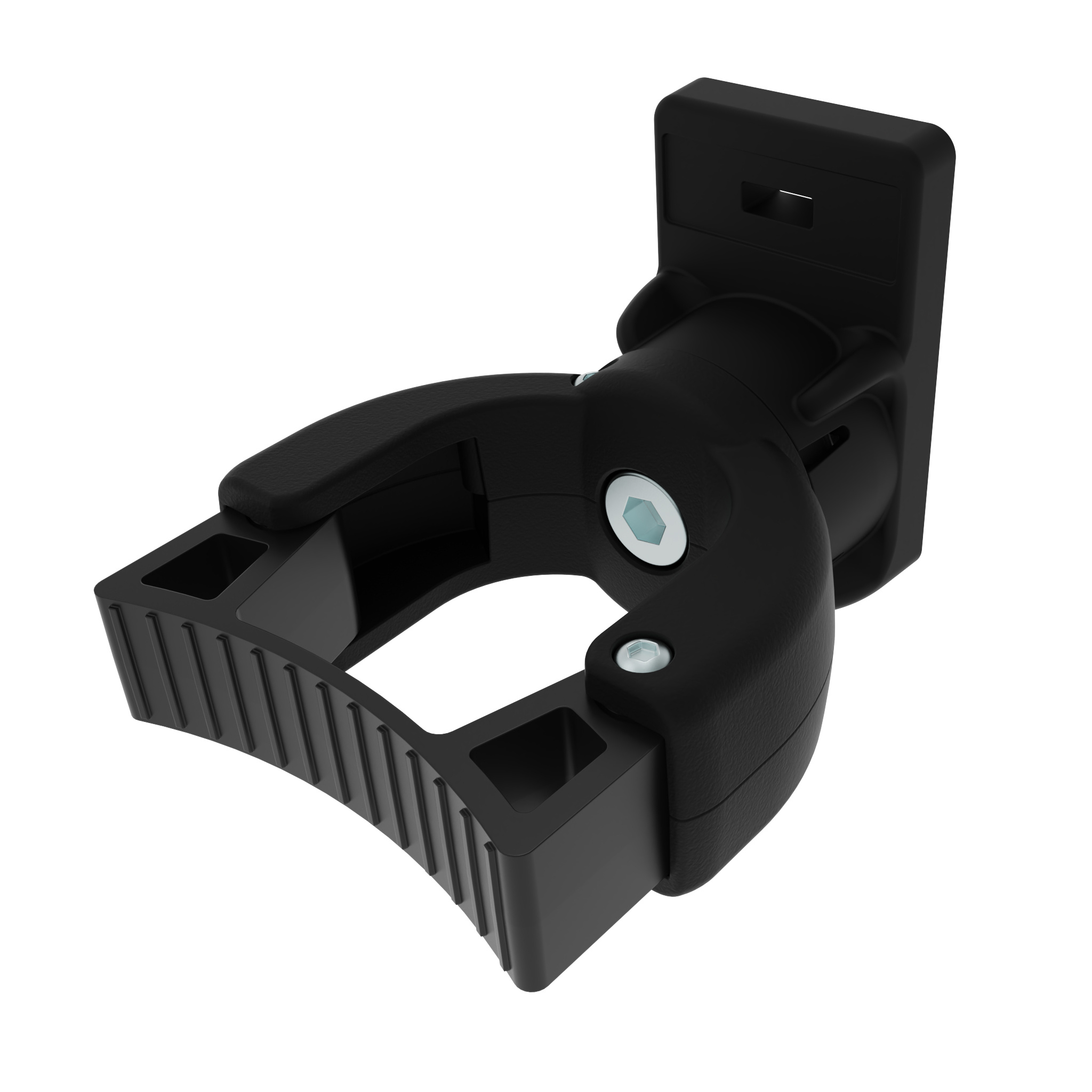

Broom Holder FLEX FX 20 - 30 for Square Holes 9 x 9 (8.7 x 8.7)
Color:Holder: Black Broom holder: Black Retaining strap: BlackPaíses de Entrega:En todo el mundoDescription:Ready to use broom holder to hang up tools with Ø 20 up to 30 mm diameter, 360° turnable, for perforated metals up to 1.4 mm thick; To organize workstations, with labeling area for standard labelsMaterial:Holder: Plastic PA, carbon fiber reinforced Broom holder: Plastic PA, glass ball reinforced Retaining strap FLEX: Plastic TPE Bushings: Steel Screws for retaining strap: Steel Spring: Spring steel SS313 Screw: Steel Nut: SteelSpecials:Other colors on request, For other sheet metal thicknesses on requestSurface:Screw: Zinc plated Nut: Zinc platedTip:For profiles 40 / 45, slot 8 / 10 see 6TM840NX2030S01 For round tubes D28 / D30 see 6TM8D283X2030S01

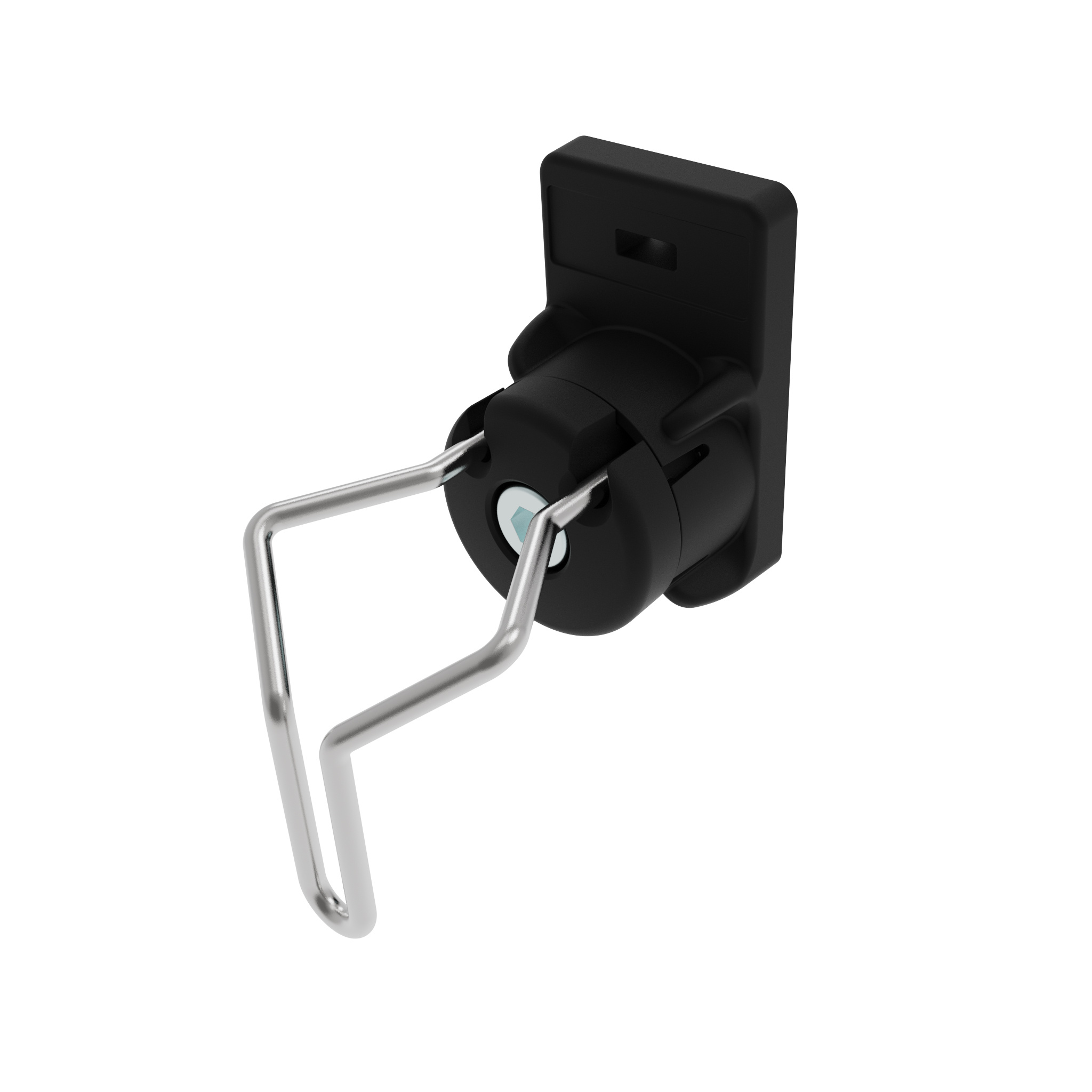

Cloth Clip FX for Square Holes 9 x 9 (8.7 x 8.7)
Color:Rear mounting holder: Black Front locking holder: BlackPaíses de Entrega:En todo el mundoDescription:Ready to use cloth clip, 360° turnable, for perforated metals up to 1.4 mm thick; To organize workstations, with labeling area for standard labelsMaterial:Rear mounting holder ESD electrostatical discharging version: Plastic PA, carbon fiber reinforced Front locking holder ESD electrostatical discharging: Plastic PA, glass ball reinforced with carbon Wire: Stainless steel SS304 Spring: Spring steel SS313 Screw: Steel Nut: SteelSpecials:Other colors on request, For other sheet metal thicknesses on requestSurface:Screw: Zinc plated Nut: Zinc platedTip:For profiles 40 / 45, slot 8 / 10 see 6TH240NG5050S01 For round tubes D28 / D30 see 6TH2D283G5050EDS1-

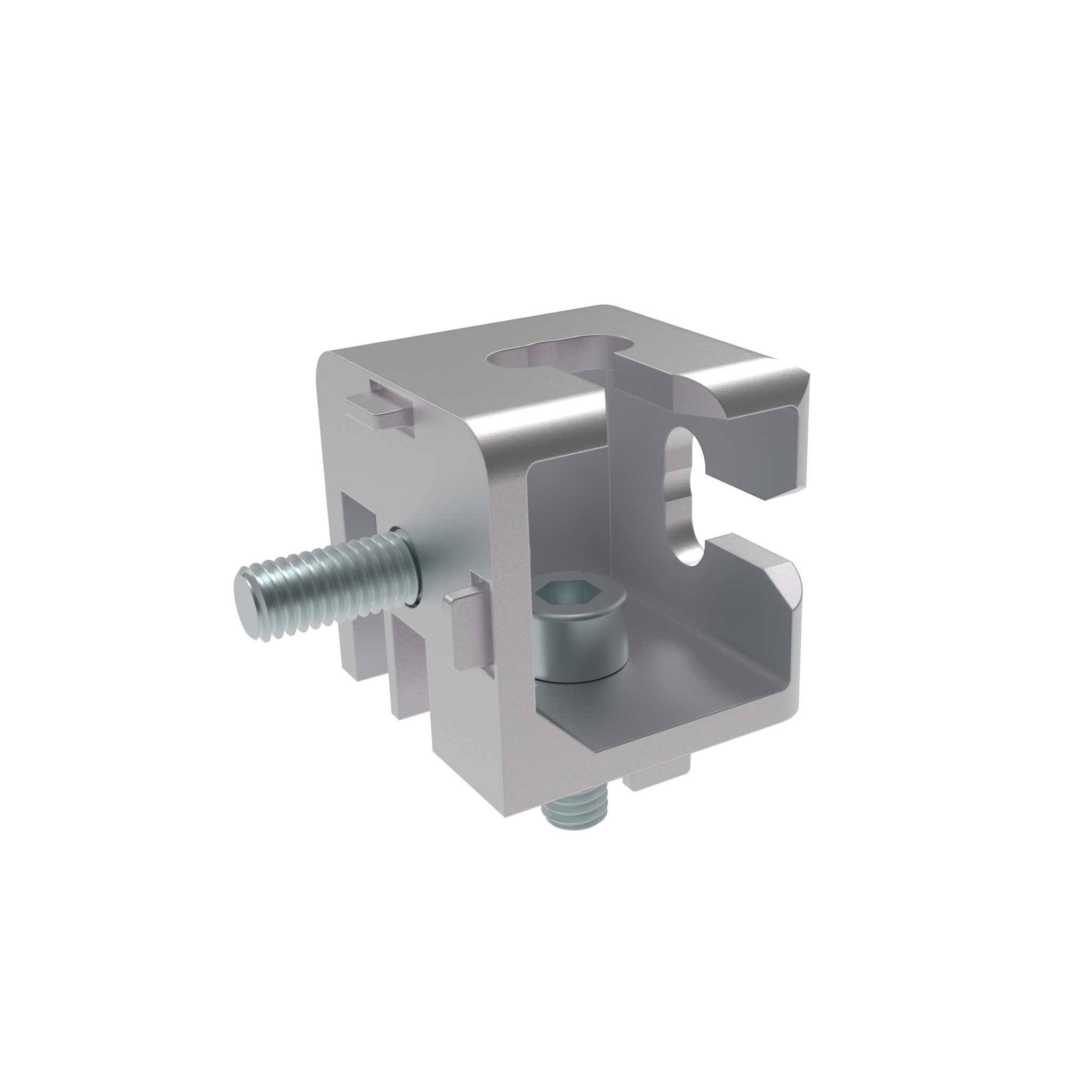

Conector abrazadera para perfil 30 (Juego)
Color:Clamp profile connector: Alu colorPaíses de Entrega:En todo el mundoDescription:To connect two aluminum profiles at right angles and to attach a frame element to a frame structure by means of a suitable mounting; the upper monting defines the position in the structure, by shifting the lower mouting afterwards the frame can be fixed and lockedMaterial:Clamp profile connector: Zinc die-cast Screws: SteelSet:1 clamp profile connector, 2 screws DIN EN ISO 7380 (DIN 34805) - M6 x 16Surface:Clamp profile connector: Powder coated Screws: Zinc platedTip:Compatible Mounting for Clamp Profile Connector 30 (Set) see 093XWWC301N06

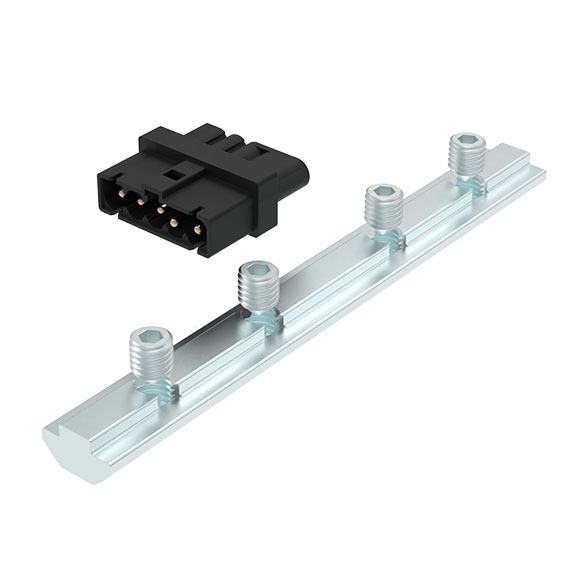

Connection Coupling GST15i5 for Module F Line (Set)
Color:Connection coupling: BlackPaíses de Entrega:En todo el mundoDescription:5 pole coupling piece to directly connect LED lamps and power strips Module F LineMaterial:Connection coupling: Plastic PA Connector T-slot nut: SteelSet:1 connection coupling 1 connector T-slot nut 4 grub screws M8 x 10 mmSurface:Connector T-slot nut: Zinc-platedTip:Compatible Power Strip see 6SBEU24DI.370 Compatible LED Lamp see 6SL0040RI.476Tip 2:Please note: Chaining of max. 6 modules (LED lamps / power strips), cable length max. 15 m for main power cable, connection cables and modules Connected load max. 3500 watts

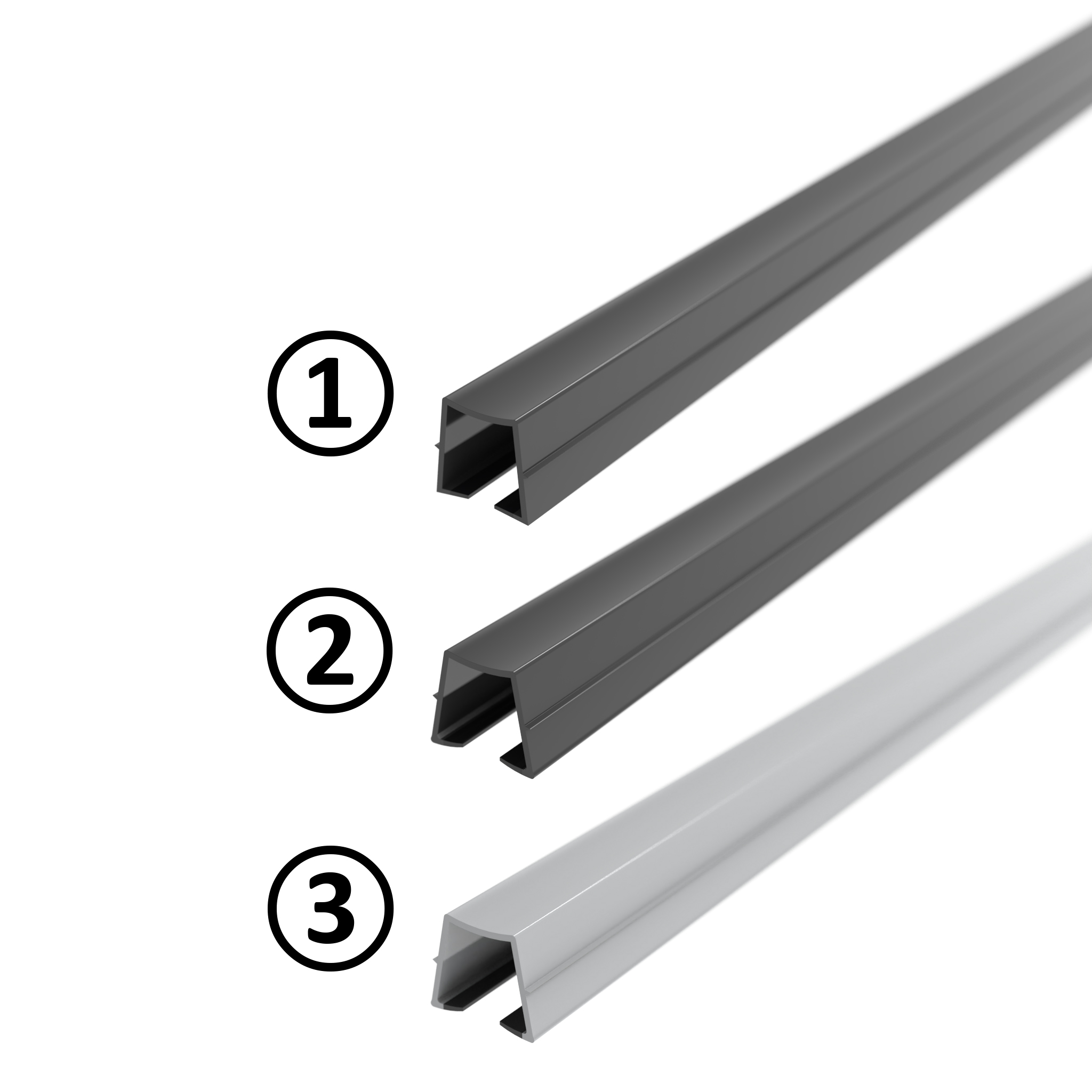

Cover and Reduction Profile B Slot 10 deep
Color:Profile: Black, gray Sealing lip: Black, grayPaíses de Entrega:En todo el mundoDescription:To cover size 10 profile slots or to secure panelsMaterial:Profile: Plastic PP Sealing lip: Plastic TPEEspeciales:Otros colores bajo pedidoConsejo:Observación: ¡Está realizando el pedido en metros!Consejo 2:*Montaje solo posible con un ajuste holgado **Lo mejor es humedecerlo con agua jabonosa antes del montaje

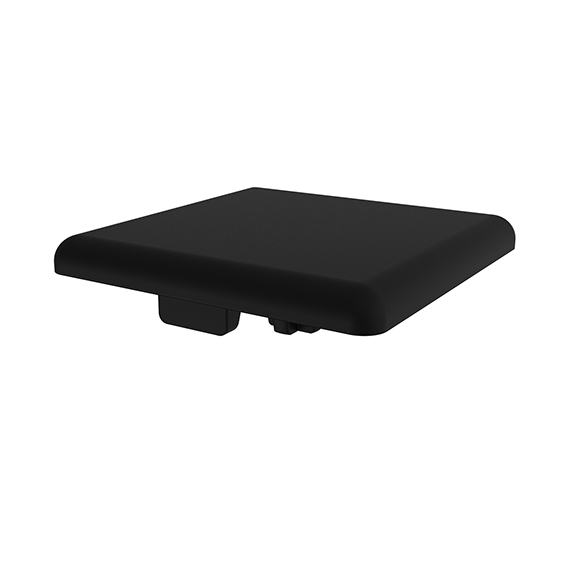

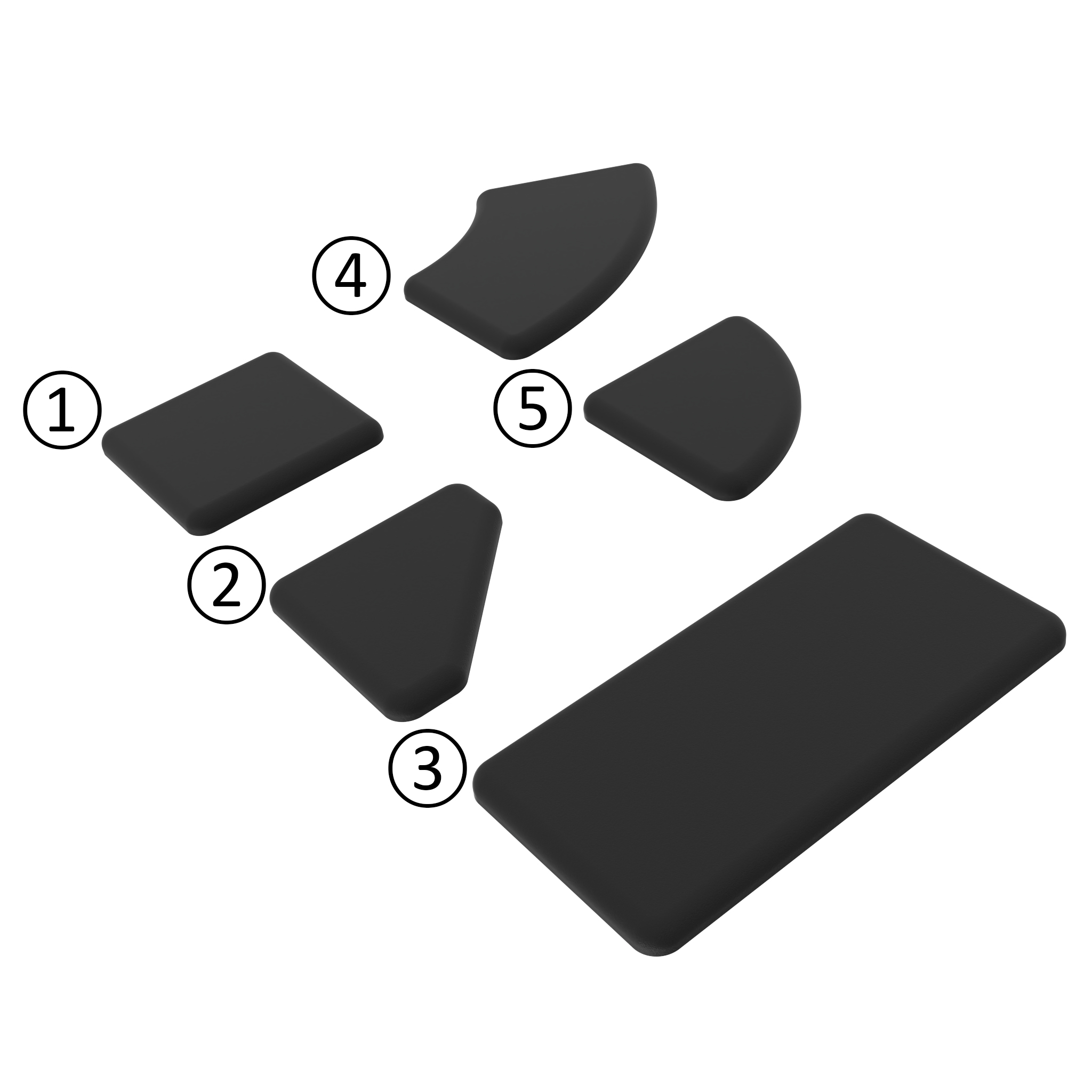

Cover Cap for 40 mm Modular Dimension
Color:Negro, grisPaíses de Entrega:En todo el mundoDescription:To cover the end of the profileMaterial:Plastic PA, glass fiber reinforced, *glass ball reinforcedEspeciales:Descarga electrostática ESD, otros tamaños, otros colores bajo pedido
Cover Cap for Zinc Connection Angle I 40
Color:Negro, grisPaíses de Entrega:En todo el mundoDescription:To cover the open side of the connection angleMaterial:Plástico PA, reforzado con fibra de vidrioTip:Compatible Zinc Connection Angle I 40 see 093W407N08R

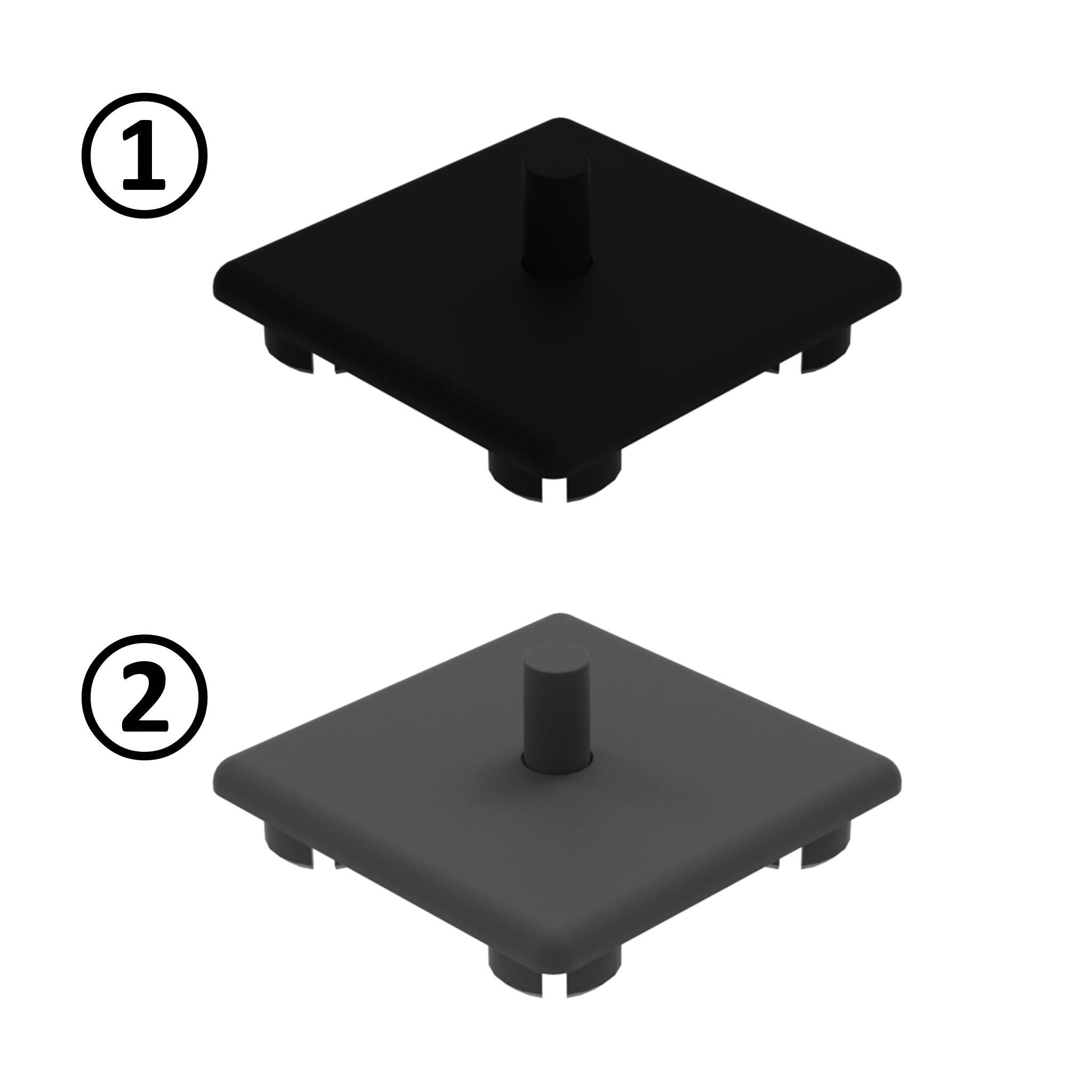

Cover Cap, with Locking Pin
Color:Negro, grisPaíses de Entrega:En todo el mundoDescription:To cover the end of the profileFastening:Insert the locking pin flat into the profile using the plastic hammer. To remove the cover cap, punch through the locking pin with a 4 mm pin.Material:Plástico PA, bola de vidrio reforzadoEspeciales:Descarga electrostática ESD, otros tamaños, otros colores bajo pedido
Cover Profile Slot 8 - 2.2
Color:Negro, amarillo, rojo, azul, gris, natural, color aluPaíses de Entrega:En todo el mundoDescription:To cover T-Slots with 8 width and a 2.2 mm profile webMaterial:Plástico PPEspeciales:Otros colores bajo pedidoTip:ESD electrostatical discharging version: Notch at the bottom side
Direct Connector I 90°, Slot 8
Países de Entrega:En todo el mundoDescription:To connect two aluminum profiles at right angles, before the application one core hole must be M8 threaded (min. 18 mm deep)Material:Acero inoxidable
Double Bearing Unit 2 Rollers Centric Shaft Ø 14
Países de Entrega:En todo el mundoDescription:To build sliding carriages To linearly guide loads, steel roller with ball bearings runs directly on shaft Ø 14 mm Completely pre-assembled from roller profile I slot 8Material:Roller: Steel Screws: Steel Washers: Steel Tension pins: Steel Profile: AluminumSurface:Roller: Zinc plated Screws: Zinc plated Washers: Zinc plated Tension pins: Zinc plated Profile: AnodizedTip:Compatible Wiper and Lubricator Ø 14 for Roller Profile I Slot 8 (Set) see 091381S01
Double Bearing Unit 2 Rollers Eccentric Shaft Ø 14
Países de Entrega:En todo el mundoDescription:To build sliding carriages To linearly guide loads, steel roller with ball bearings runs directly on shaft Ø 14 mm Completely pre-assembled from roller profile I slot 8 To tighten the eccentric screw, a pin spanner is needed for the four holes of the adjusting washerMaterial:Roller: Steel Screws: Steel Excentric screw: Steel Adjusting washer: Steel Washers: Steel Tension pins: Steel Profile: AluminumSurface:Roller: Zinc plated Screws: Zinc plated Excentric screw: Zinc plated Adjusting washer: Zinc plated Washers: Zinc plated Tension pins: Zinc plated Profile: AnodizedTip:Compatible Wiper and Lubricator Ø 14 for Roller Profile I Slot 8 (Set) see 091381S01

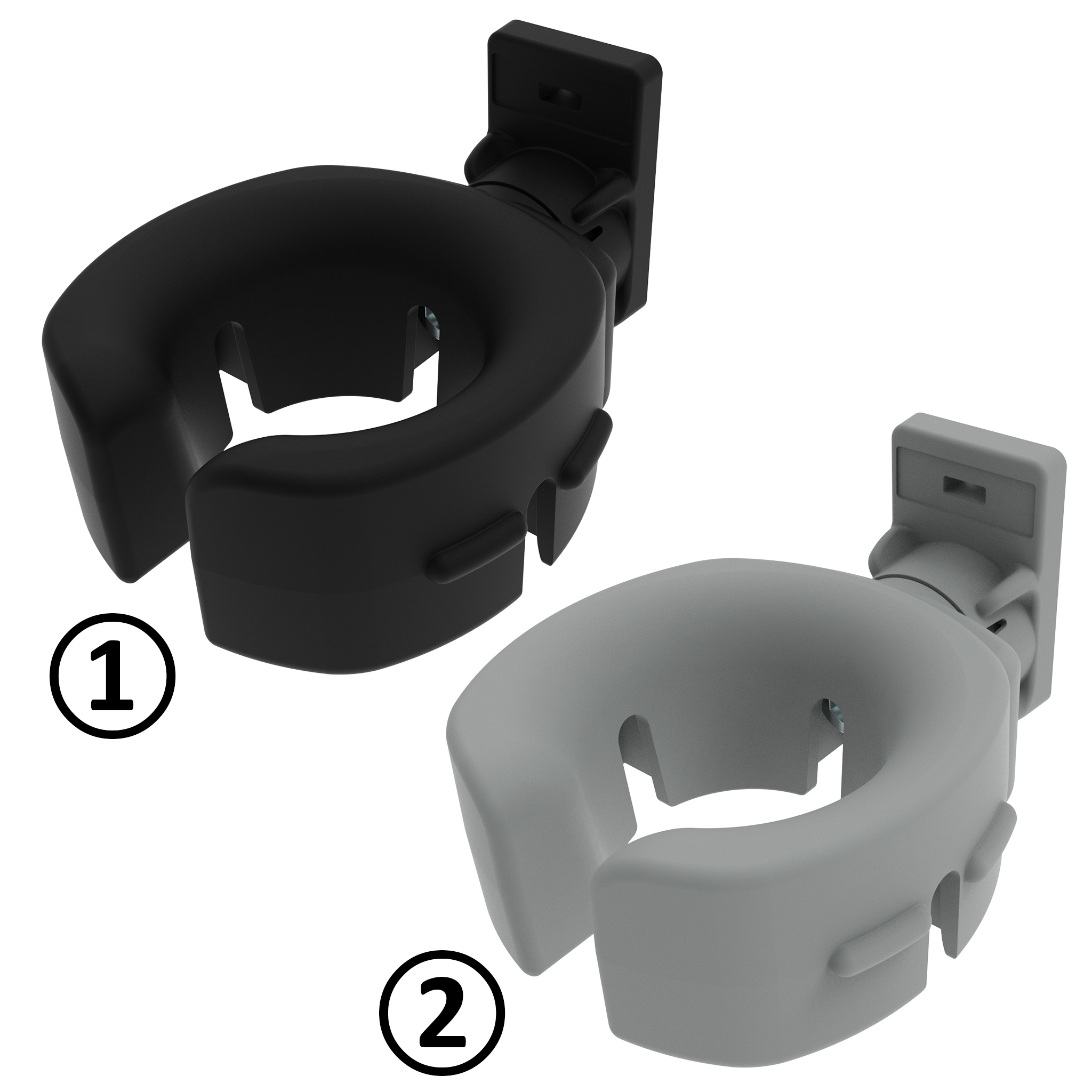

Drill / Driver Holder FX D50 for Square Holes 9 x 9 (8.7 x 8.7)
Color:Rear mounting holder: Black, gray Front locking adapter: Black, gray Drill / driver holder: Black, grayPaíses de Entrega:En todo el mundoDescription:Ready to use Tool Drill / Driver Holder for a wide range of standard cordless screwdrivers, 360° turnable, for perforated metals up to 1.4 mm thick; To organize workstations, with labeling area for standard labelsMaterial:Rear mounting holder black version: Plastic PA, carbon fiber reinforced Rear mounting holder gray version: Plastic PA, glass fiber reinforced Front locking adapter: Plastic PA, glass ball reinforced Drill / driver holder: Plastic PA, glass ball reinforced Spring: Spring steel SS313 Screw: Steel Nut: SteelSpecials:Other colors on request, For other sheet metal thicknesses on requestSurface:Screw: Zinc plated Nut: Zinc platedTip:For profiles 40 / 45, slot 8 / 10 see 6TM840NL12591S01 For round tubes D28 / D30 see 6TM8D283L12591S01

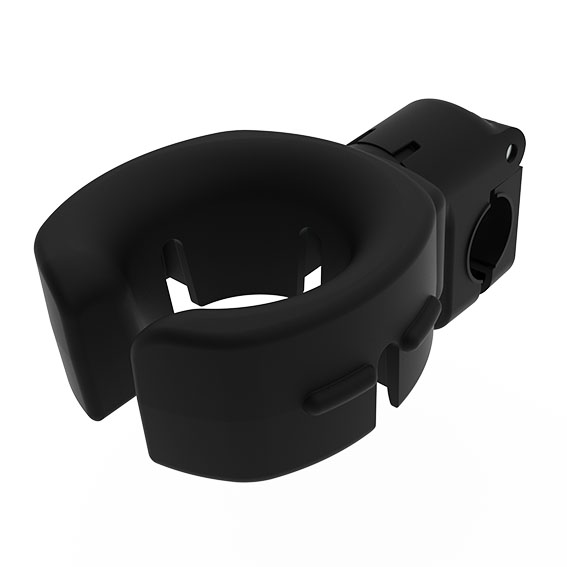

Drill / Driver Holder FX D50 for Tubes D28 / D30
Color:Holder: Black, grayPaíses de Entrega:En todo el mundoDescription:Ready to use Tool Drill / Driver Holder for a wide range of standard cordless screwdrivers, 360° turnable, for aluminum profiles; To organize workstationsMaterial:Holder: Plastic PA, glass ball reinforced Spring: Spring steel SS313 Screw: Steel Nut: SteelEspeciales:Otros colores bajo pedidoSurface:Screw: Zinc plated Nut: Zinc plated
