Keyboard Arm I40L 370 (Set)

Novedad

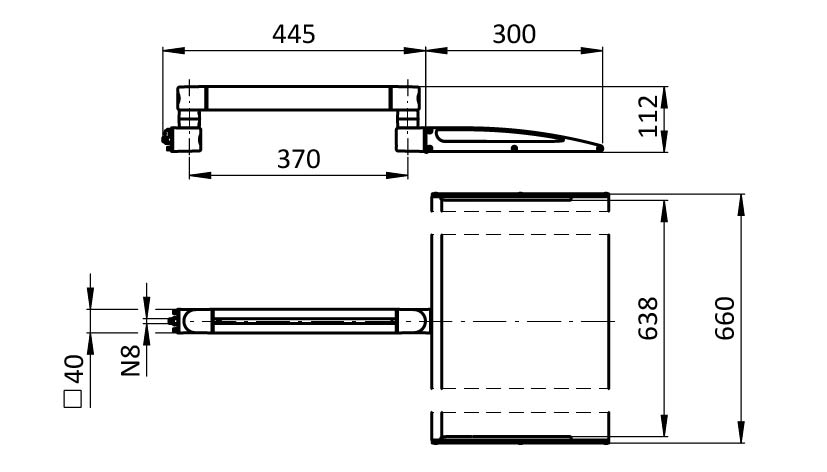

Keyboard Arm I40L 370 (Set) – plano técnico

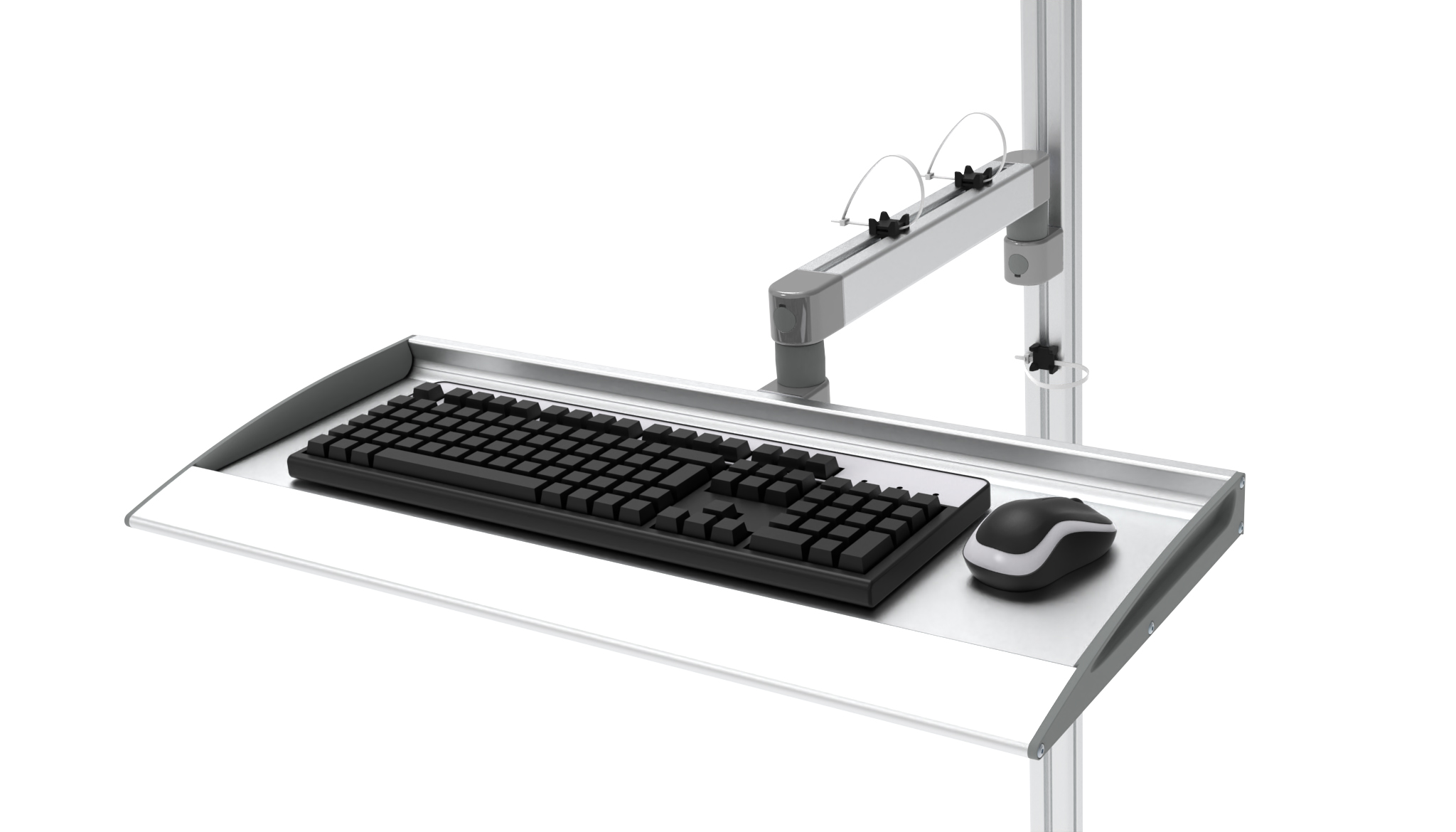

Keyboard Arm I40L 370 (Set) – ejemplo de aplicación

0,00 €

Profile

I

Ranura N (mm)

8

Número de producto: 6SKS40NLN08370

Cantidad por paquete: 1 pieza

Información sobre el producto "Keyboard Arm I40L 370 (Set)"

Color:
Keyboard holder: Alu color
Arm: Alu color
Housing: Alu color
Cover ring: Gray ≈ RAL 7042
Cover caps: Gray ≈ RAL 7042
Centering plates: Alu color
Cable binding blocks: Black

Países de Entrega:
En todo el mundo

Description:
Stable keyboard arm with a reach of approximately 370 mm and various connection options; pivotable 360°; pre-assembled
For placing the keyboard and mouse, with wrist rest
Keyboard arm can be attached lateral, transverse, or on the face of the profile; if attached on the front face, the core hole of the respective profile must be M8 threaded (min. 15 mm deep)

Material:
Keyboard holder: Aluminum
Arm: Aluminum
Housing: Aluminum die-cast
Cover ring: Plastic
Inserts: Steel
Friction shaft: Steel
Cover caps keyboard holder: Plastic PA, glass ball reinforced
Cover caps arm: Plastic
Screws: Steel
Washers: Steel
Centering plates: Aluminum die-cast
T-slot nuts: Steel
Cable binding blocks: Plastic PA, glass fiber reinforced

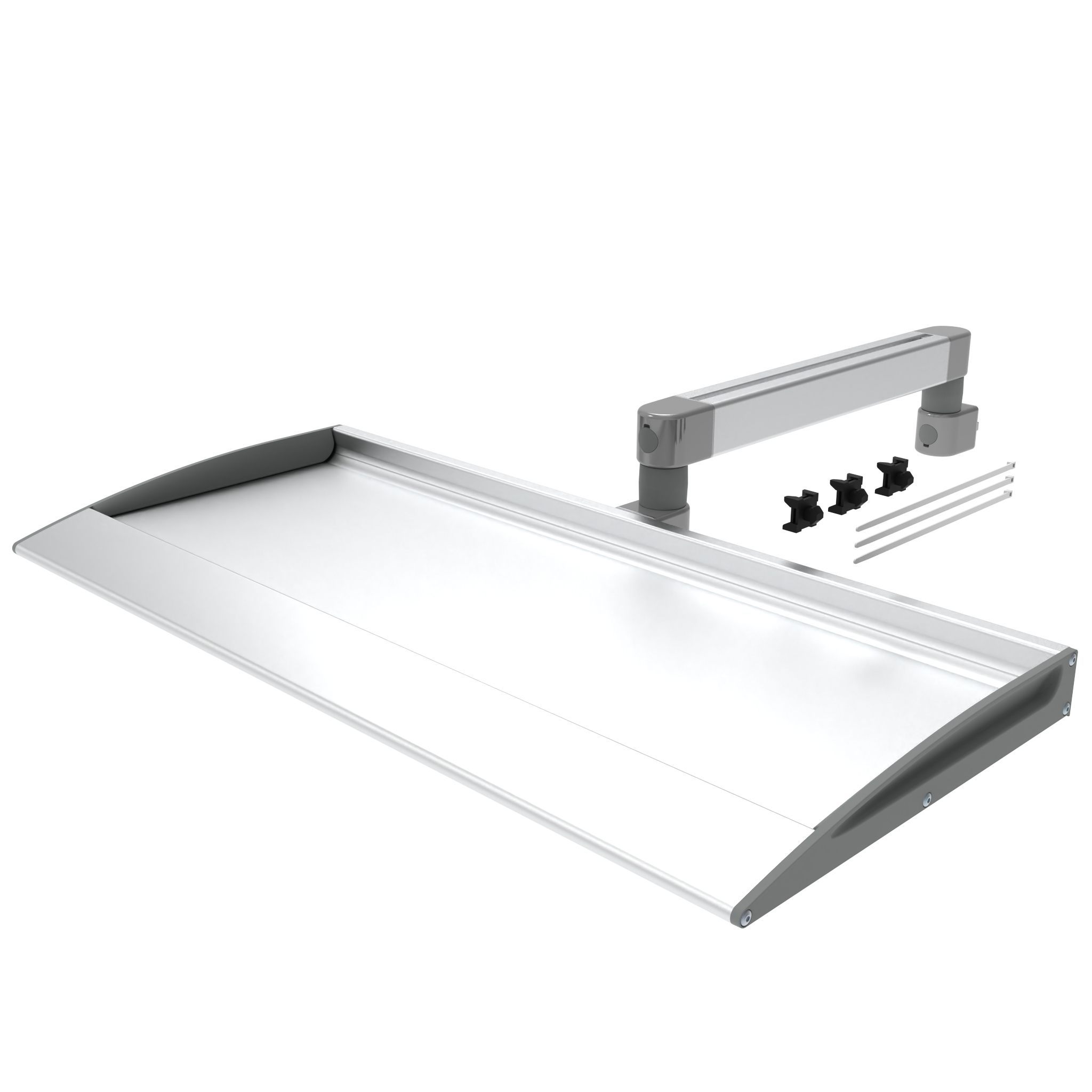

Set:
1 system arm I40L 370 (Set) with friction joint,
1 keyboard holder AL, slot 8,
3 cross cable binder blocks, slot 8
3 cable binder T40R

Surface:
Keyboard holder: Anodized
Arm: Anodized
Housing: Powder coated
Screws: Zinc plated
Washers: Zinc plated
Centering plates: Powder coated
T-slot nuts: Zinc plated

Cantidad por paquete:	1 pieza
Model:	pre-ensamblado, perfil 40 y hasta
Peso (g):	4600.2
Numero de ERP:	172254

Palabras clave / etiquetas globales:

Tipo de perfil	Tipo de perfil I
Forma de perfil	Perfiles de ranura en T
Área de aplicación	Construcción de maquinaria e instalaciones, Puestos de trabajo industriales, Shopfloor
