Marcos para señalización

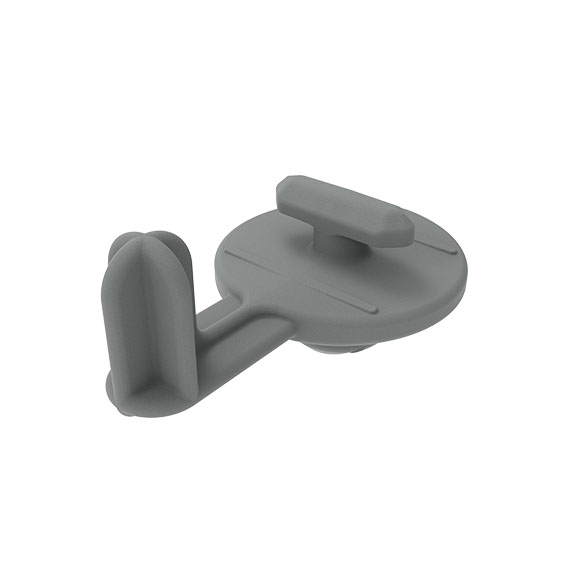

Slot-on-Slot Connector SOS I8 360°
Color:PA, grisPaíses de Entrega:En todo el mundoDescription:To cross or parallel connect two aluminum profiles at various angles; fast, tool-free assembly without machiningMaterial:Plástico PA, reforzado con fibra de vidrioSpecials:Customized hammer, other colors on requestTip:Compatible Power Strip see 6SBEU04I.264 Compatible LED Lamp see 6SL0040I.953 Compatible Shelf Board AL see 061AS300N08.788Tip 2:For one connection at least two Slot-on-Slot connectors SOS 360° are required

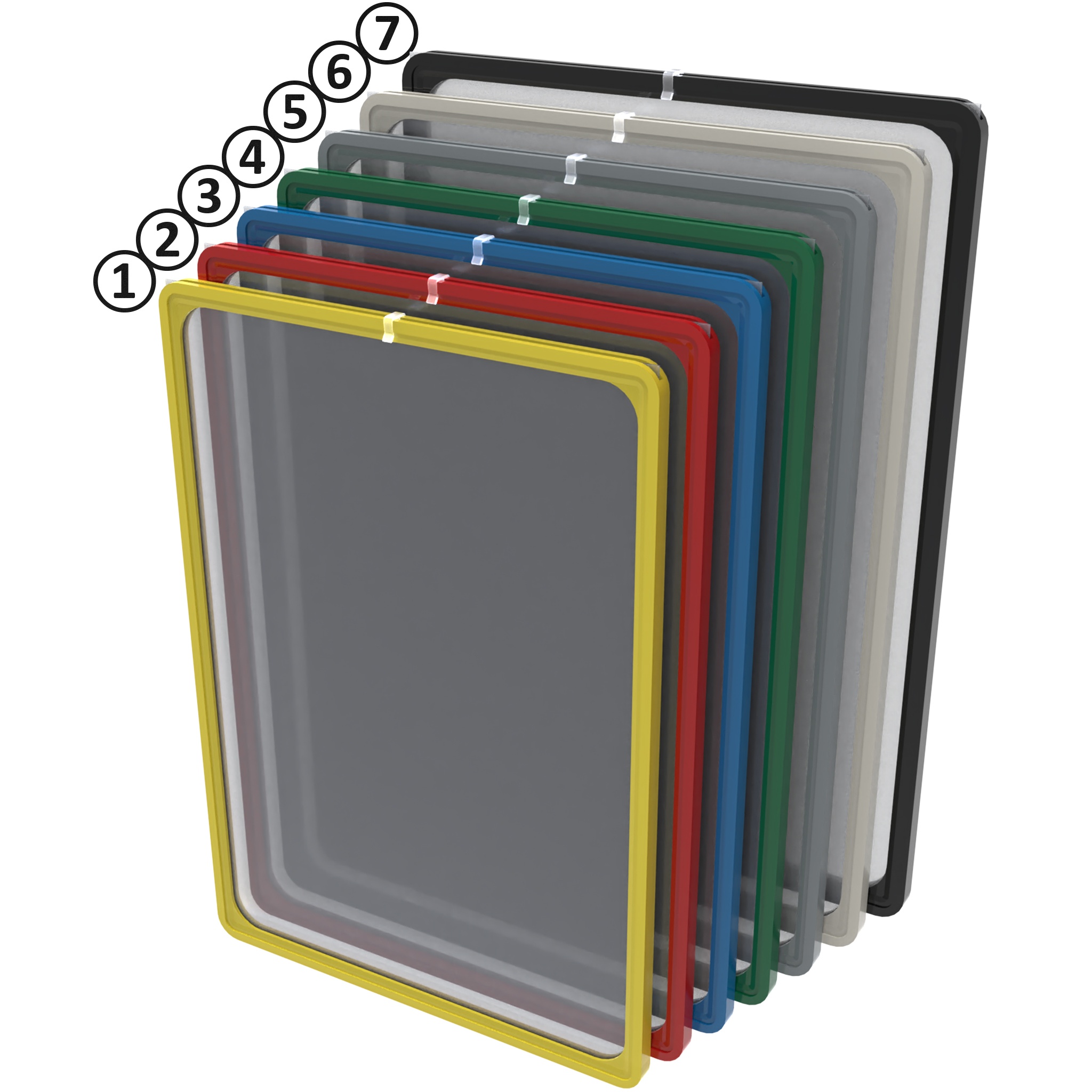

Message Frame DIN A3 - 11.7" x 16.5" (Set)
Color:Frame: Yellow, red, blue, green, gray, white, black Transparent foil: Transparent (colorless) Clip: Transparent (colorless)Países de Entrega:En todo el mundoDescription:For well visible labeling of shelves and storage spaces Usable from both sides due to transparent foil; Scanner friendly due to antireflective foil Diverse frame colors for individual visualization Applicable in portrait or landscape formatMaterial:Frame: Plastic PS Transparent foil: Plastic PET Clip: Plastic PCSet:1 frame 1 transparent foil 1 clipTip:Compatible Closing Clip see 02042CC Compatible Hanging Hook see 02042HH Compatible Swivel Loop see 02042SE Compatible Tube Clamp see 02042PC Compatible Swivel Magnet Holder see 02042MH

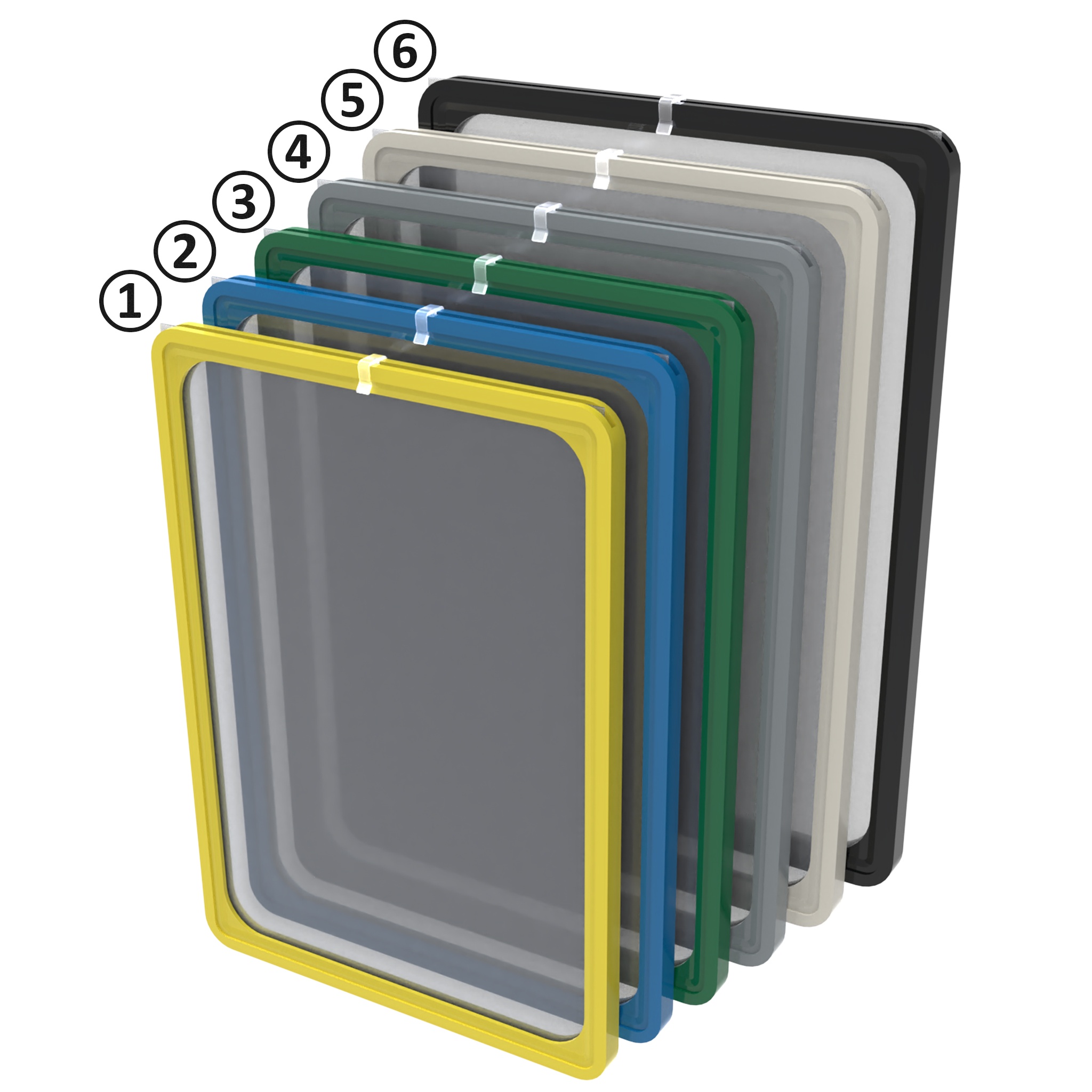

Message Frame DIN A4 - 8.3" x 11.7" (Set)
Color:Frame: Yellow, blue, green, gray, white, black Transparent foil: Transparent (colorless) Clip: Transparent (colorless)Países de Entrega:En todo el mundoDescription:For well visible labeling of shelves and storage spaces Usable from both sides due to transparent foil; Scanner friendly due to antireflective foil Diverse frame colors for individual visualization Applicable in portrait or landscape formatMaterial:Frame: Plastic PS Transparent foil: Plastic PET Clip: Plastic PCSet:1 frame 1 transparent foil 1 clipEspeciales:Otros colores bajo pedidoTip:Compatible Closing Clip see 02042CC Compatible Hanging Hook see 02042HH Compatible Swivel Loop see 02042SE Compatible Tube Clamp see 02042PC Compatible Swivel Magnet Holder see 02042MH

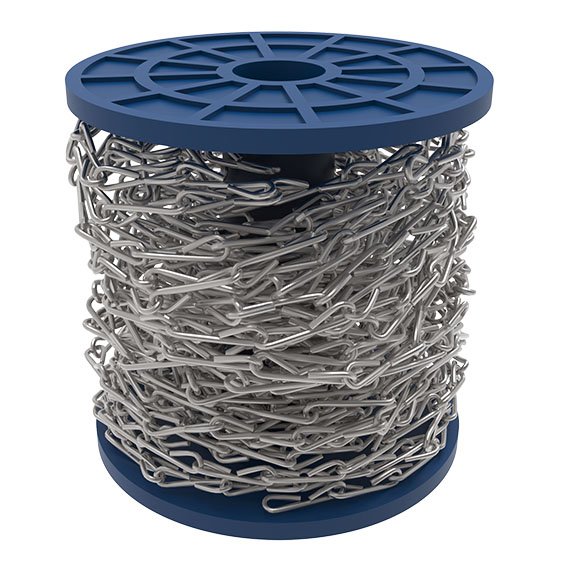

Knotted Chain
Países de Entrega:En todo el mundoDescription:Durable and easy hanging of message frames; Easy shortening of the chainMaterial:AceroSuperficie:GalvanizadoTip:Compatible Ceiling Magnet with hook see 02042CM Compatible S-hook see 02042SH Compatible Message Frame DIN A4 - 8.3" x 11.7" see 02041A415 Compatible Message Frame DIN A3 - 11.7" x 16.5" see 02041A315

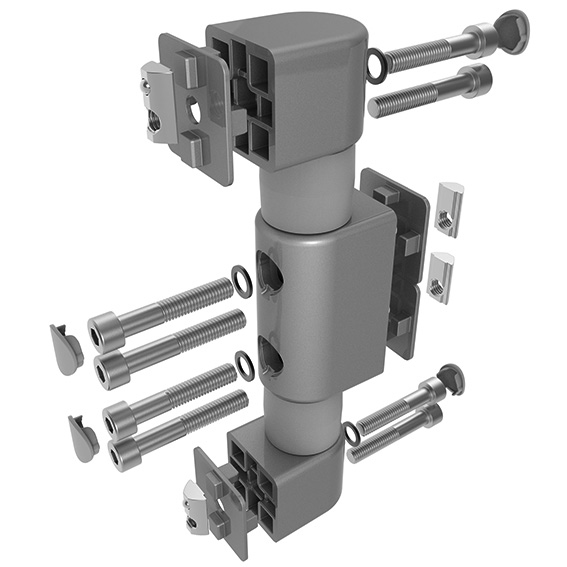

Friction Joint I80H for System Arm (Set)
Color:Housing: Alu color Cover ring: Gray ≈ RAL 7042 Cover caps: Gray ≈ RAL 7042 Centering plates: Alu colorPaíses de Entrega:En todo el mundoDescription:Connection joint with friction for the creation of system arms using profile pieces; pivotable 360°; Friction joint can be attached lateral, transverse, or on the face of the profile; if attached on the front face, the core hole of the respective profile must be M8 threaded (min. 15 mm deep)Material:Housing: Aluminum die-cast Cover ring: Plastic Inserts: Steel Friction shaft: Steel Cover caps: Plastic Screws: Steel Washers: Steel Centering plates: Aluminum die-cast T-slot nuts: SteelSet:1 friction joint 4 cover caps 4 screws DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut) 4 screws DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole) 4 washers 8-FSt 4 centering plates 4 T-slot nuts - slot 8 - M8Surface:Housing: Powder coated Centering plates: Powder coated Screws: Zinc plated Washers: Zinc plated T-slot nuts: Zinc plated

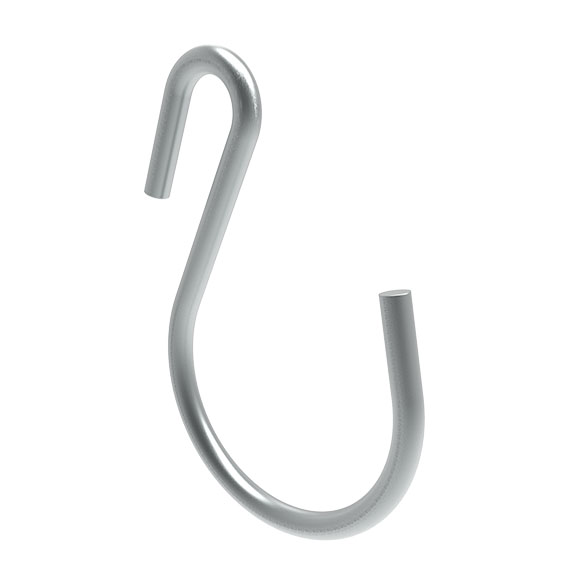

S-hook
Países de Entrega:En todo el mundoDescription:Fast and easy hanging of message framesMaterial:AceroSuperficie:GalvanizadoTip:Compatible Knotted Chain see 02042KC Compatible Message Frame DIN A4 - 8.3" x 11.7" see 02041A415 Compatible Message Frame DIN A3 - 11.7" x 16.5" see 02041A315

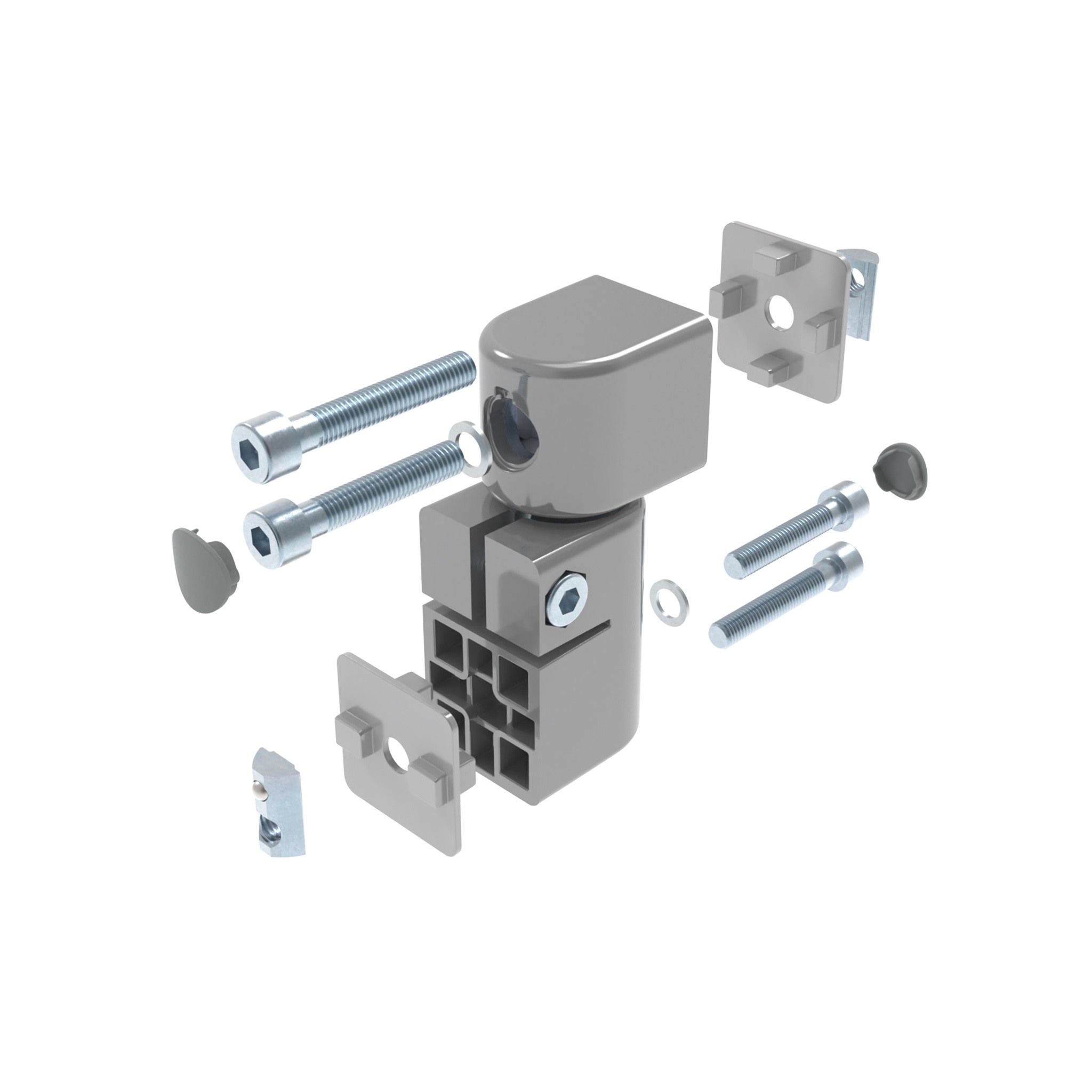

Adjustable Friction Joint I40L for System Arm (Set)
Color:Housing: Alu color Cover ring: Gray ≈ RAL 7042 Cover caps: Gray ≈ RAL 7042 Centering plates: Alu colorPaíses de Entrega:En todo el mundoDescription:Connection joint with friction for the creation of system arms using profile pieces; pivotable 360°, friction is continuously adjustable via clamping screw (or optional locking lever); End side can be attached lateral or transverse on the profile slot, friction axis is positioned at right angles to the profile; Friction joint side can be attached lateral, transverse, or on the face of the profile; if attached on the front face, the core hole of the respective profile must be M8 threaded (min. 15 mm deep)Material:Housing: Aluminum die-cast Cover ring: Plastic Inserts: Steel Friction shaft: Steel Cover caps: Plastic Screws: Steel Washers: Steel Centering plates: Aluminum die-cast T-slot nuts: SteelSet:1 friction joint 2 cover caps 2 screws DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut) 2 screws DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole) 2 screws DIN EN ISO 4762 (DIN 912) - M8 x 35 (for clamping 2 washers 8-FSt 2 centering plates 2 T-slot nuts - slot 10 - M8Surface:Housing: Powder coated Centering plates: Powder coated Screws: Zinc plated Washers: Zinc plated T-slot nuts: Zinc platedTip:Compatible Locking Lever for Adjustable Friction Joint see 041LL065K91M840M1-

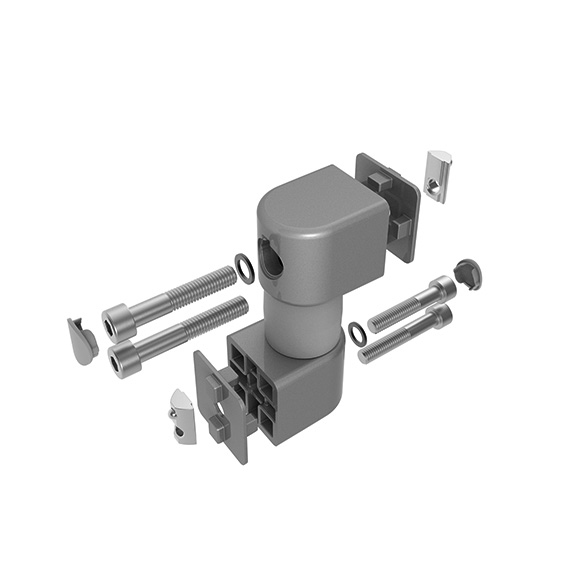

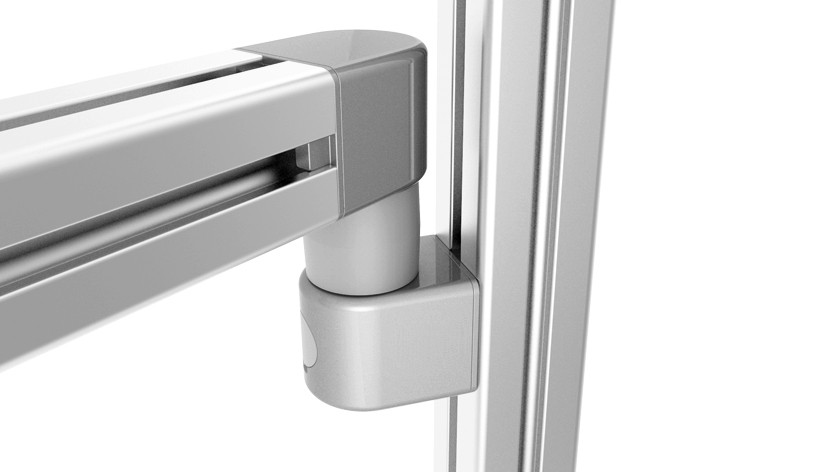

Friction Joint I40L for System Arm (Set)
Color:Housing: Alu color Cover ring: Gray ≈ RAL 7042 Cover caps: Gray ≈ RAL 7042 Centering plates: Alu colorPaíses de Entrega:En todo el mundoDescription:Connection joint with friction for the creation of system arms using profile pieces; pivotable 360°; Friction joint can be attached lateral, transverse, or on the face of the profile; if attached on the front face, the core hole of the respective profile must be M8 threaded (min. 15 mm deep)Material:Housing: Aluminum die-cast Cover ring: Plastic Inserts: Steel Friction shaft: Steel Cover caps: Plastic Screws: Steel Washers: Steel Centering plates: Aluminum die-cast T-slot nuts: SteelSet:1 friction joint 2 cover caps 2 screws DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut) 2 screws DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole) 2 washers 8-FSt 2 centering plates 2 T-slot nuts - slot 8 - M8Surface:Housing: Powder coated Centering plates: Powder coated Screws: Zinc plated Washers: Zinc plated T-slot nuts: Zinc plated

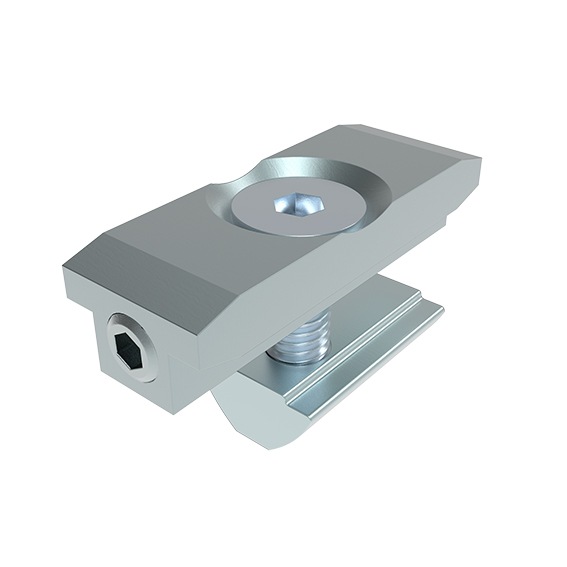

Direct Connector I, Slot 8
Países de Entrega:En todo el mundoDescription:To cross or parallely connect two aluminum profiles; assembly without machiningMaterial:AceroSuperficie:Galvanizado

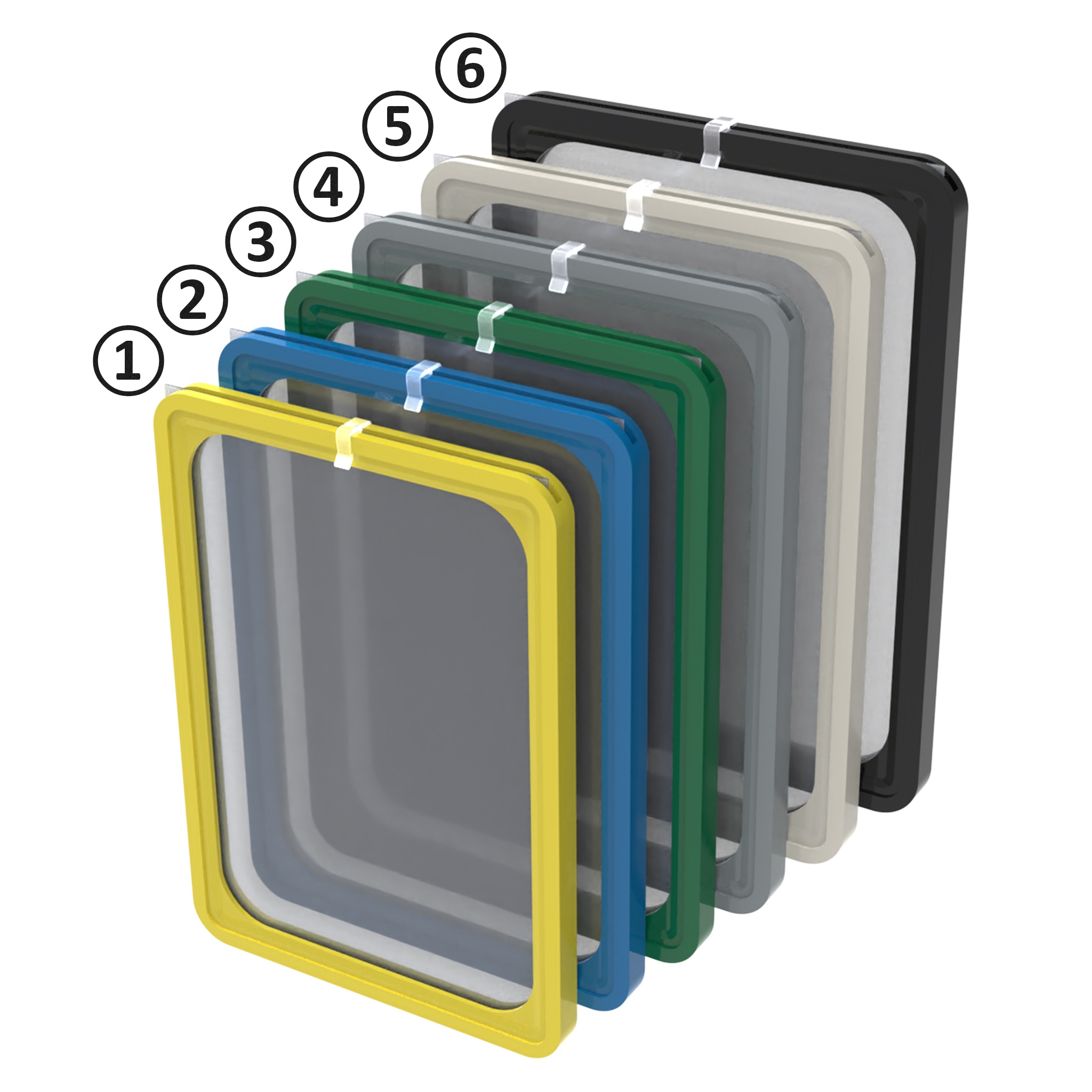

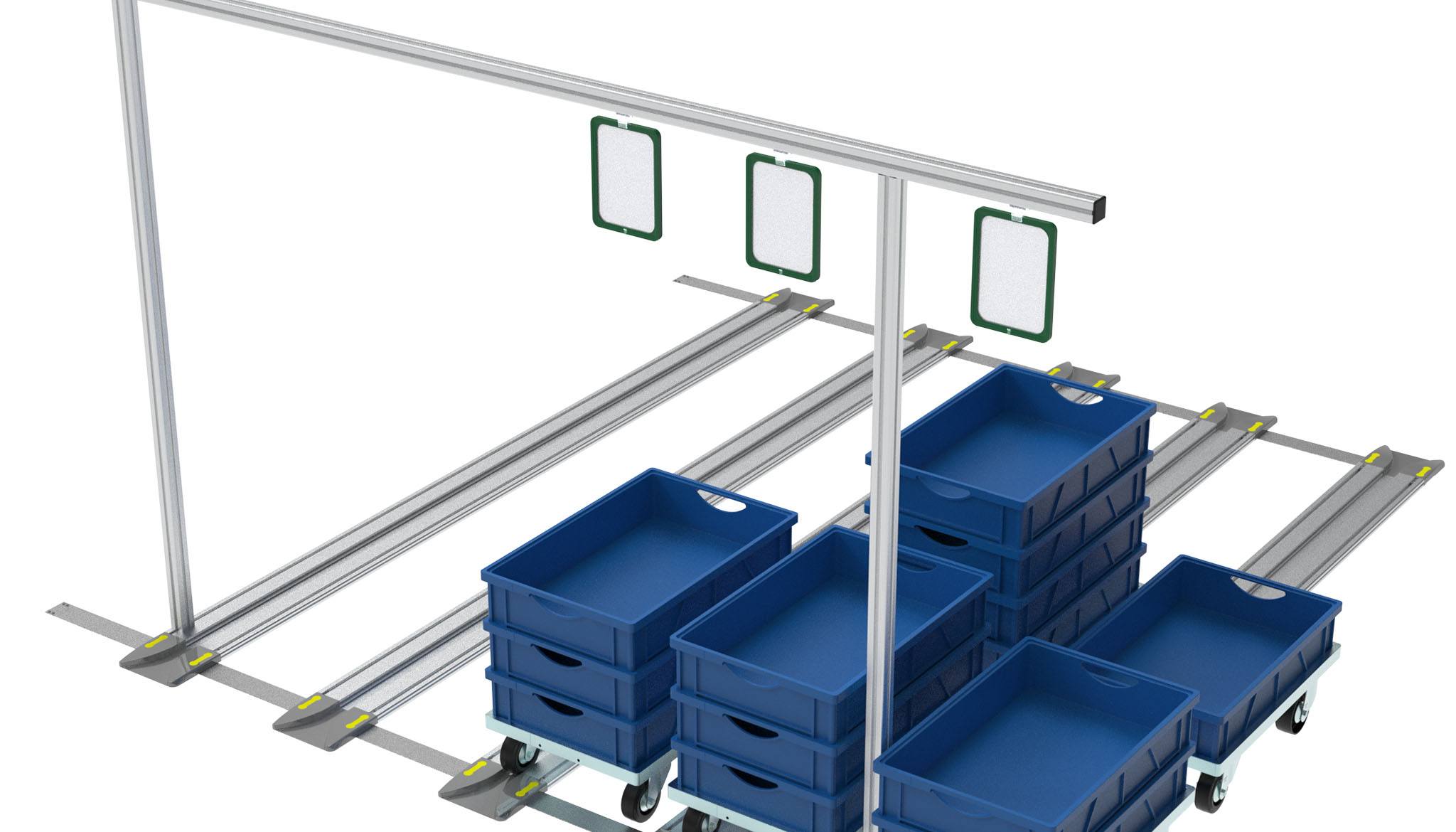

Message Frame DIN A5 - 5.8" x 8.3" (Set)
Color:Frame: Yellow, blue, green, gray, white, black Transparent foil: Transparent (colorless) Clip: Transparent (colorless)Países de Entrega:En todo el mundoDescription:For well visible labeling of shelves and storage spaces Usable from both sides due to transparent foil; Scanner friendly due to antireflective foil Diverse frame colors for individual visualization Applicable in portrait or landscape formatMaterial:Frame: Plastic PS Transparent foil: Plastic PET Clip: Plastic PCSet:1 frame 1 transparent foil 1 clipEspeciales:Clips personalizados, otros colores bajo pedidoTip:Compatible Closing Clip see 02042CC Compatible Hanging Hook see 02042HH Compatible Swivel Loop see 02042SE Compatible Tube Clamp see 02042PC Compatible Swivel Magnet Holder see 02042MH

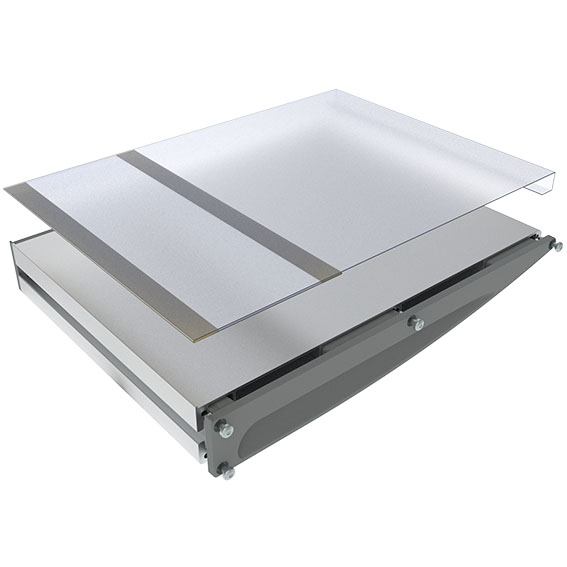

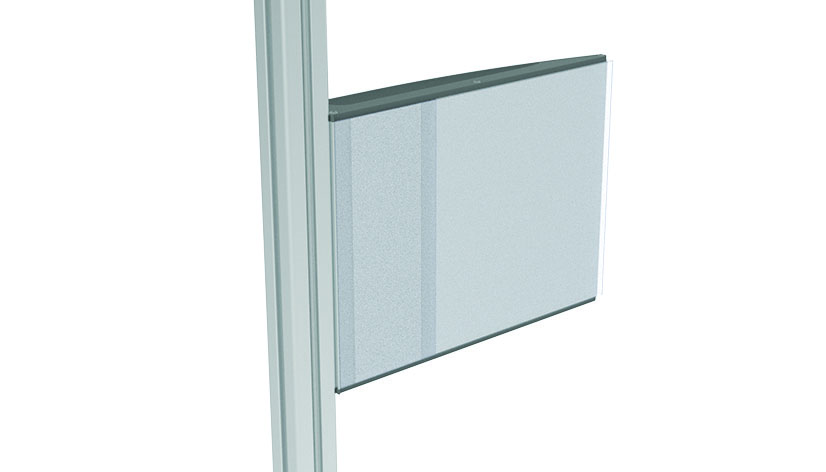

Sign Holder AL (Set)
Color:Cover Caps: GrayPaíses de Entrega:En todo el mundoDescription:Durable mounting of signsMaterial:Sign holder: Aluminum Sign foil: Plastic PET Cover caps: Plastic PA, glass ball reinforced Screws: SteelSet:1 Sign Holder 1 Sign foil 2 Cover Caps 8 Screws 3.9 x 16Surface:Sign holder: Anodized Screws: Zinc platedTip:Compatible Direct Connector I, see 099DC084040N08 et sq., Compatible T-connector Plate see 093VAD28V Compatible Friction Joints I40H see 061FGZ40LN08 Compatible Friction Joints I80H see 061FGZ80HN08

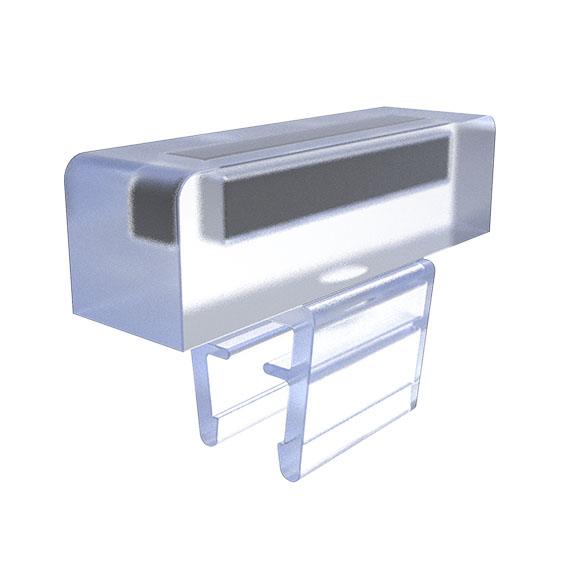

Swivel Magnet Holder
Color:Transparente (incoloro)Países de Entrega:En todo el mundoDescription:For hanging message frames Fast and easy mounting with integrated magnet 360° rotatableMaterial:Plástico PATip:Compatible Message Frame DIN A4 - 8.3" x 11.7" see 02041A415 Compatible Message Frame DIN A3 - 11.7" x 16.5" see 02041A315

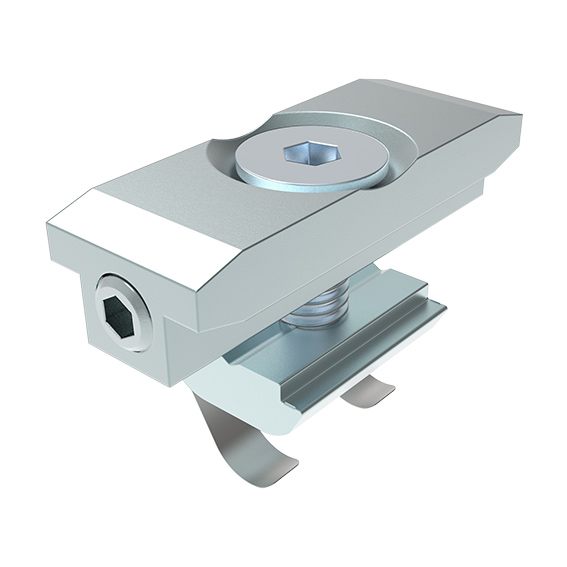

Direct Connector I / B, Slot 8 / 10
Países de Entrega:En todo el mundoDescription:To cross or parallely connect two aluminum profiles slot 8 with slot 10; assembly without machiningMaterial:AceroSuperficie:Galvanizado

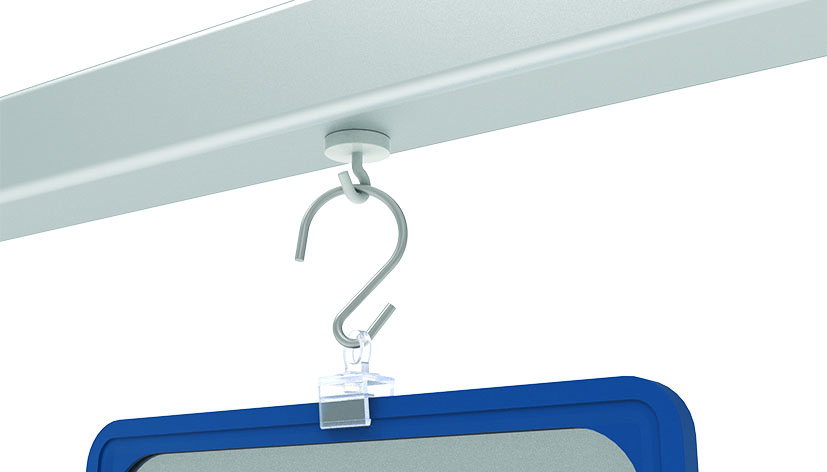

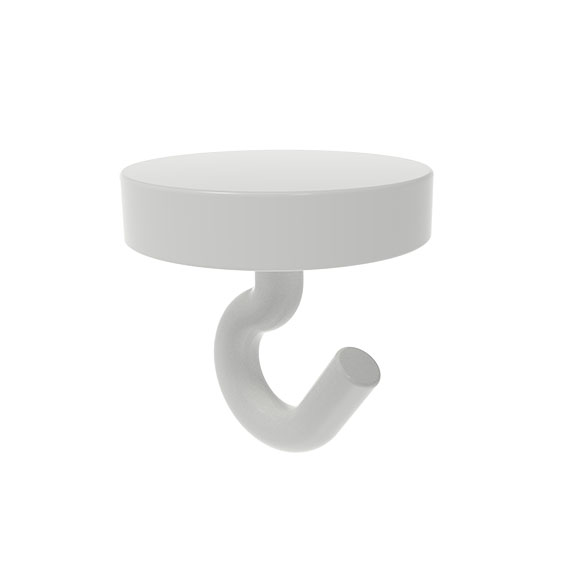

Ceiling Magnet with Hook
Color:BlancoPaíses de Entrega:En todo el mundoDescription:For hanging message frames Fast and easy mounting with integrated magnetMaterial:Casing: Plastic PA Magnet: NeodymiumTip:Compatible Knotted Chain see 02042KC

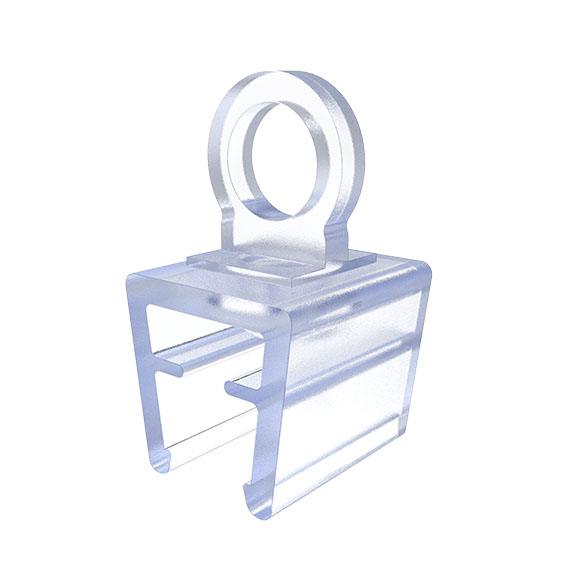

Swivel Loop
Color:Transparente (incoloro)Países de Entrega:En todo el mundoDescription:Fast and easy hanging of message frames, Secure hanging due to closed loop 360° rotatableMaterial:Plástico PATip:Compatible Hanging Hook see 02042HH Compatible S-Hook see 02042SH Compatible Knotted Chain see 02042KC Compatible Message Frame DIN A4 - 8.3" x 11.7" see 02041A415 Compatible Message Frame DIN A3 - 11.7" x 16.5" see 02041A315

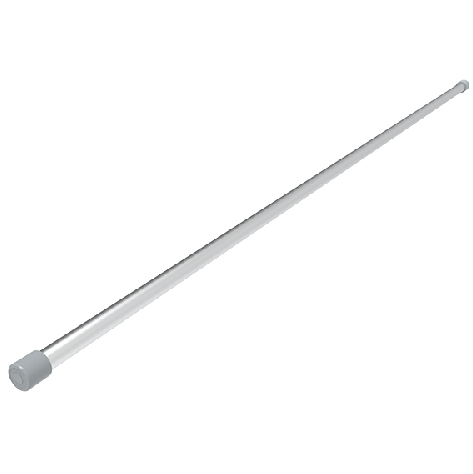

Aluminum Tube (Set)
Color:Cover caps: Gray ≈ RAL 7042Países de Entrega:En todo el mundoDescription:To hang up message frames with pipe clamps, several message frames can be attached next to another Helpful visualization even in greater hightsMaterial:Tube: Aluminum Cover caps: Plastic TPESet:1 aluminum tube 2 cover capsSurface:Tube: AnodizedTip:Compatible Tube Clamp see 02042PC Compatible Knotted Chain 02042KC

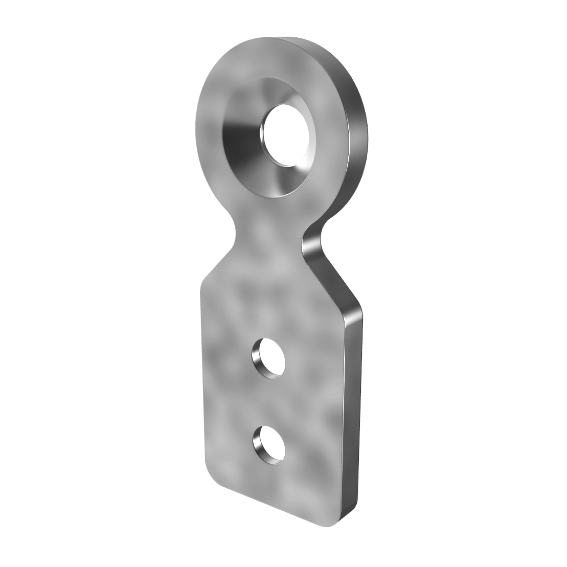

T-connector Plate D28
Países de Entrega:En todo el mundoDescription:To connect a tubular frame profile with Ø 28 mm outer diameter with an aluminum profile at right angles; screw connetion to the core hole of the Ø 28 mm profile or to the threaded sleeve for D28 M8 for Ø 28 mm tubular profilesPFA_Fastening:Con tornillos avellanados 1x M8 y 2 x M6Material:AceroSuperficie:GalvanizadoTip:Compatible Threaded Sleeve D28 M8 see 099RV28AS02

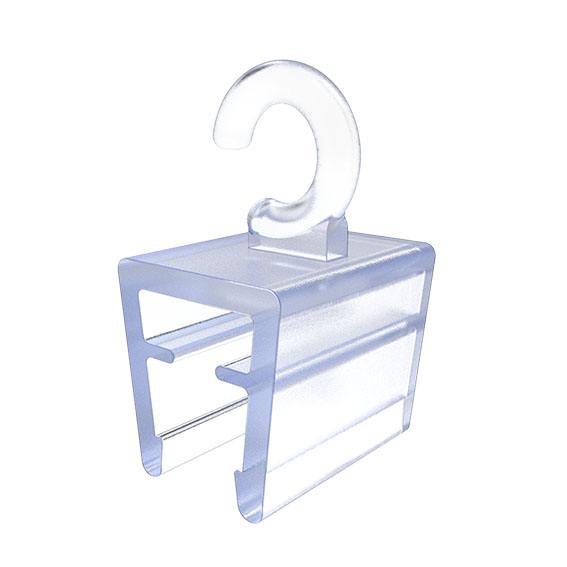

Hanging Hook
Color:Transparente (incoloro)Países de Entrega:En todo el mundoDescription:Fast and easy hanging of message frames, Easy swap of message frames due to open hooksMaterial:Plástico PCTip:Compatible Swivel Loop see 02042SE Compatible S-hook see 02042SH Compatible Knotted Chain see 02042KC Compatible Message Frame DIN A4 - 8.3" x 11.7" see 02041A415 Compatible Message Frame DIN A3 - 11.7" x 16.5" see 02041A315

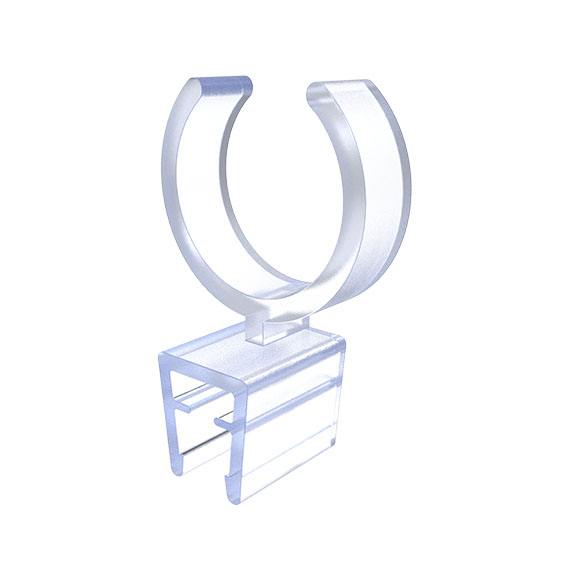

Tube Clamp
Color:Transparente (incoloro)Países de Entrega:En todo el mundoDescription:Durable mounting of message frames, Easy to attach to tubes and tubular frame profiles with Ø 28 mm - 30 mm outer diameterMaterial:Plástico PATip:Compatible Aluminum Tube (set) see 02042AT Compatible Message Frame DIN A4 - 8.3" x 11.7" see 02041A415 Compatible Message Frame DIN A3 - 11.7" x 16.5" see 02041A315

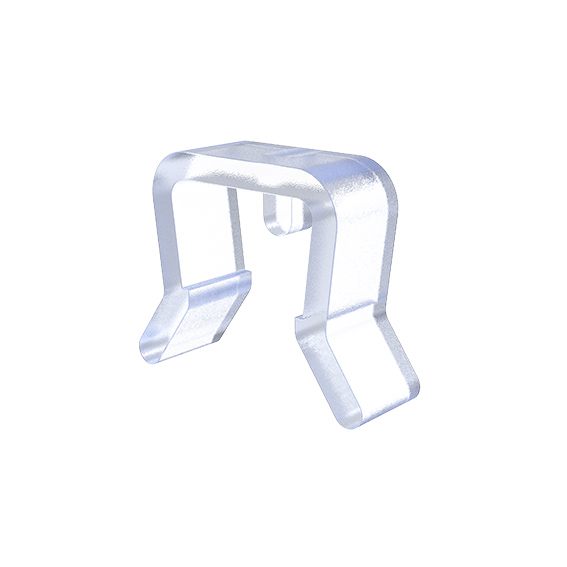

Closing Clip
Color:Transparente (incoloro)Países de Entrega:En todo el mundoDescription:For closing message frames, prevents transparent foil from falling outMaterial:Plástico PCEspeciales:Otros colores bajo pedidoTip:Compatible Message Frame DIN A4 - 8.3" x 11.7" see 02041A415 Compatible Message Frame DIN A3 - 11.7" x 16.5" see 02041A315
