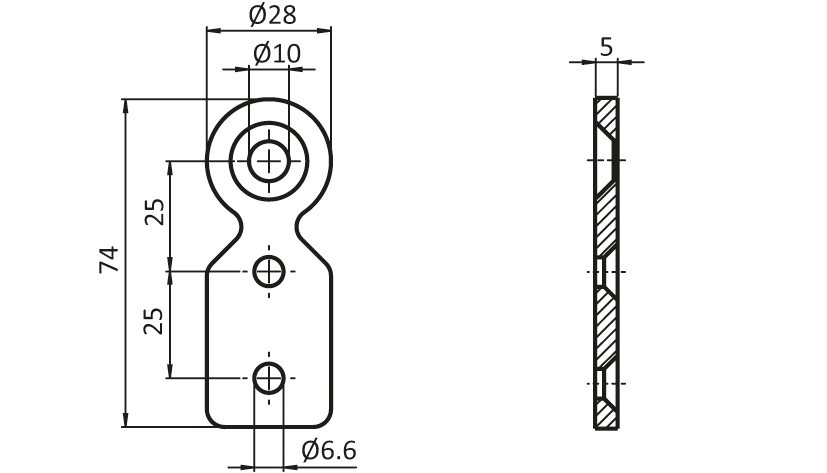

T-connector Plate D28

Información sobre el producto "T-connector Plate D28"

Países de Entrega:
En todo el mundo

Description:

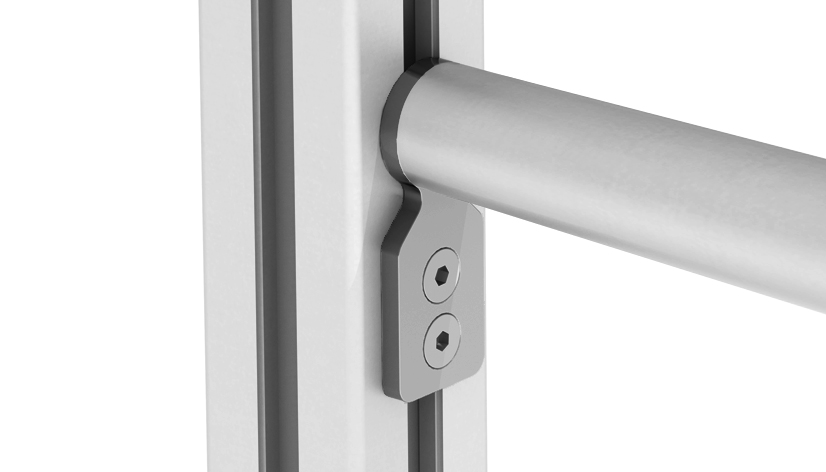

To connect a tubular frame profile with Ø 28 mm outer diameter with an aluminum profile at right angles; screw connetion to the core hole of the Ø 28 mm profile or to the threaded sleeve for D28 M8 for Ø 28 mm tubular profiles

Material:
Acero

Superficie:
Galvanizado

Tip:
Compatible Threaded Sleeve D28 M8 see 099RV28AS02

Zolltarifnummer:
73269098900
(ECLASS 6.0): 23360290
(ECLASS 7.0): 23360290
(ECLASS 8.0): 23360290
(ECLASS 9.0): 23360290
(ECLASS 10.0): 23360290
(ECLASS 11.0): 23360290
(ECLASS 12.0): 23360290
(ECLASS 13.0): 23360290
Cantidad por Paquete: 10 piezas
Fastening: Con tornillos avellanados 1x M8 y 2 x M6
Model: For tubular frame profiles
Peso (g): 52.3

Variantes

ID de producto
093VAD28V
