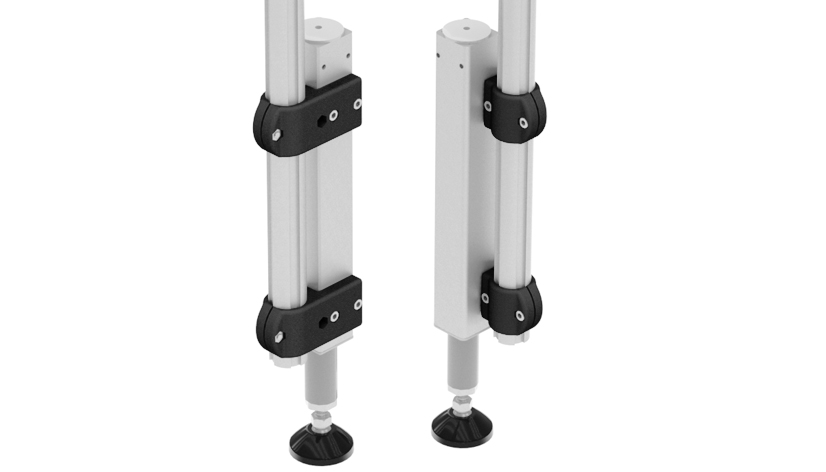

D28, Tubular Frame Components

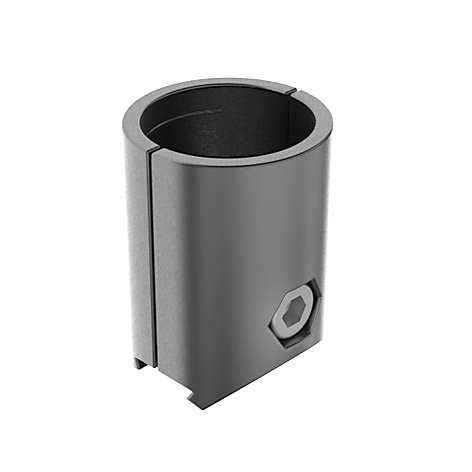

Outer T-Connector D28 (Set)
Description:To connect two tubular frame profiles with Ø 28 mm outer diameter at right anglesMaterial:Connector: Aluminum die-cast Assembly set: SteelSurface:Connector: Plain Assembly set: Zinc platedSet:2 components for outer T-connector D28, 1 screw DIN EN ISO 4762 (DIN 912) - M6 x 25, 1 self-locking nut DIN EN ISO 10511 (DIN 985) - M6Países de Entrega:En todo el mundo

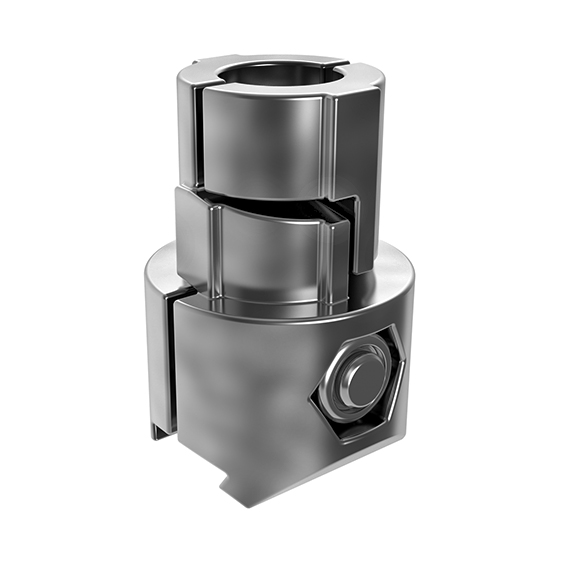

Inner T-Connector D28 (Set)
Description:To connect two tubular frame profiles with Ø 28 mm outer diameter at right anglesMaterial:Connector: Aluminum die-cast Assembly set: SteelSurface:Connector: Plain Assembly set: Zinc platedSet:2 components for inner T-connector D28, 1 screw DIN EN ISO 4762 (DIN 912) - M6 x 20, 1 self-locking nut DIN EN ISO 10511 (DIN 985) - M6Países de Entrega:En todo el mundo

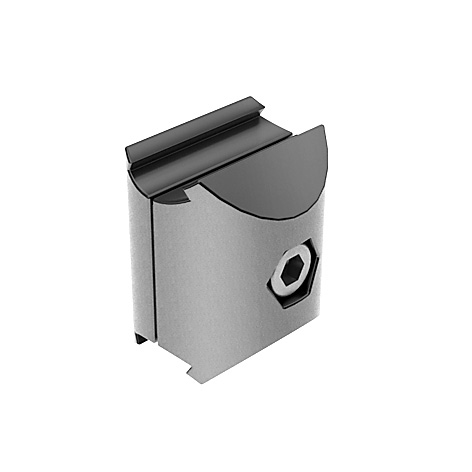

Parallel Connector D28 (Set)
Description:To parallelly connect two tubular frame profileswith Ø 28 mm outer diameter; with pre-centering; completely pre-assembled setMaterial:Connector: Aluminum die-cast Assembly set: SteelSurface:Connector: Plain Assembly set: Zinc platedSet:2 components for parallel connector D28, 1 screw DIN EN ISO 4762 (DIN 912) - M6 x 25, 1 self-locking nut DIN EN ISO 10511 (DIN 985) - M6Países de Entrega:En todo el mundo

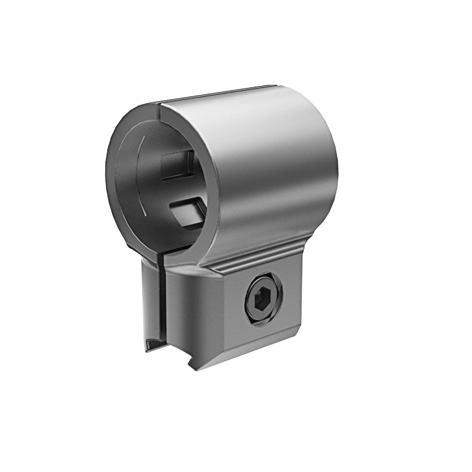

Parallel Clamp D28 (Set)
Description:To parallelly connect a tube or a tubular frame profile to a tubular frame profile with Ø 28 mm outer diameter; with pre-centering; completely pre-assembled setMaterial:Connector: Aluminum die-cast Assembly set: SteelSurface:Connector: Plain Assembly set: Zinc platedSet:2 components for parallel clamp D28, 1 screw DIN EN ISO 4762 (DIN 912) - M6 x 25, 1 self-locking nut DIN EN ISO 10511 (DIN 985) - M6Países de Entrega:En todo el mundo

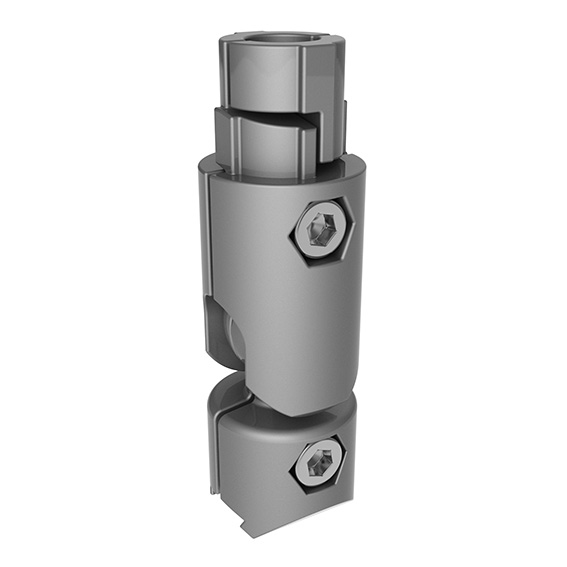

Inner Ball Connector D28 (Set)
Description:To connect two tubular frame profiles with Ø 28 mm outer diameter at variable angles, with pre-centering; completely pre-assembled setMaterial:Connector: Aluminum die-cast Assembly set: SteelSurface:Connector: Plain Assembly set: Zinc platedSet:4 components for inner ball butt T-connector D28, 2 screws DIN EN ISO 4762 (DIN 912) - M6 x 20, 2 self-locking nuts DIN EN ISO 10511 (DIN 985) - M6Países de Entrega:En todo el mundo
Angle Connector D28, 45° (Set)
Description:To connect two tubular frame profileswith Ø 28 mm outer diameterat 45°; with pre-centering; completely pre-assembled setMaterial:Connector: Aluminum die-cast Assembly set: SteelSurface:Connector: Plain Assembly set: Zinc platedSet:2 components for angle connector D28 ,45°, 1 screw DIN EN ISO 4762 (DIN 912) - M6 x 25, 1 self-locking nut DIN EN ISO 10511 (DIN 985) - M6Países de Entrega:En todo el mundo
Angle Connector 2D28 (Set)
Description:To connect two tubular frame profiles with Ø 28 mm outer diameterat right angles; with pre-centering; completely pre-assembled setMaterial:Connector: Aluminum die-cast Assembly set: SteelSurface:Connector: Plain Assembly set: Zinc platedSet:2 components for angle connector 2D28, 2 screws DIN EN ISO 4762 (DIN 912) - M6 x 25, 2 self-locking nuts DIN EN ISO 10511 (DIN 985) - M6Países de Entrega:En todo el mundo

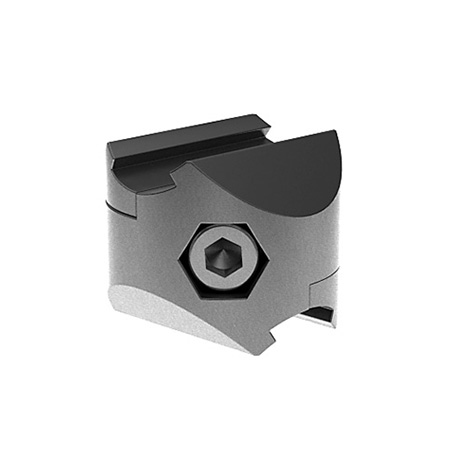

Cross Connector D28 (Set)
Description:To cross connect two tubular frame profileswith Ø 28 mm outer diameter; completely pre-assembled setMaterial:Connector: Aluminum die-cast Assembly set: SteelSurface:Connector: Plain Assembly set: Zinc platedSet:2 components for cross connector D28, 1 screw DIN EN ISO 4762 (DIN 912) - M6 x 30, 1 self-locking nut DIN EN ISO 10511 (DIN 985) - M6Países de Entrega:En todo el mundo

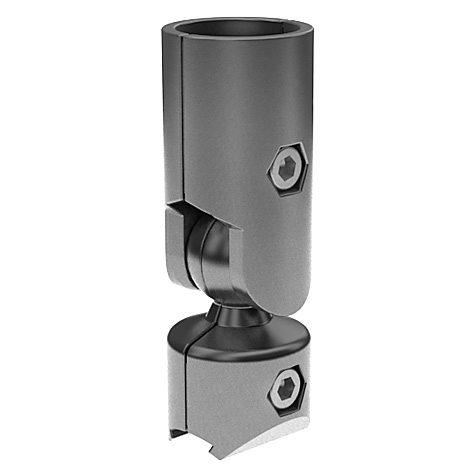

Outer Ball Connector D28 (Set)
Description:To connect two tubular frame profiles with Ø 28 mm outer diameter at variable angles, with pre-centering; completely pre-assembled setMaterial:Connector: Aluminum die-cast Assembly set: SteelSurface:Connector: Plain Assembly set: Zinc platedSet:4 components for outer ball connector D28, 2 screws DIN EN ISO 4762 (DIN 912) - M6 x 25, 2 self-locking nuts DIN EN ISO 10511 (DIN 985) - M6Países de Entrega:En todo el mundo

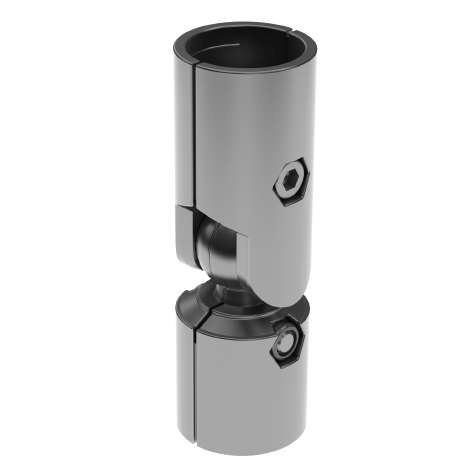

Outer Ball Butt Connector D28 (Set)
Description:To connect two tubular frame profiles with Ø 28 mm outer diameter at variable angles, with pre-centering; completely pre-assembled setMaterial:Connector: Aluminum die-cast Assembly set: SteelSurface:Connector: Plain Assembly set: Zinc platedSet:4 components for outer ball butt connector D28, 2 screws DIN EN ISO 4762 (DIN 912) - M6 x 25, 2 self-locking nuts DIN EN ISO 10511 (DIN 985) - M6Países de Entrega:En todo el mundo

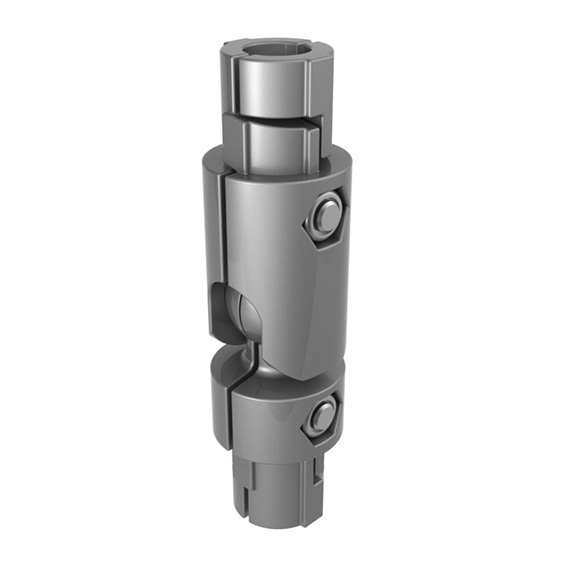

Inner Ball Butt Connector D28 (Set)
Description:To connect two tubular frame profiles with Ø 28 mm outer diameter at variable angles, with pre-centering; completely pre-assembled setMaterial:Connector: Aluminum die-cast Assembly set: SteelSurface:Connector: Plain Assembly set: Zinc platedSet:4 components for inner ball butt connector D28, 2 screws DIN EN ISO 4762 (DIN 912) - M6 x 20, 2 self-locking nuts DIN EN ISO 10511 (DIN 985) - M6Países de Entrega:En todo el mundo
Corner Connector 2D28 (Set)
Description:To connect two tubular frame profiles with Ø 28 mm outer diameterat right angles; with pre-centering; completely pre-assembled setMaterial:Connector: Aluminum die-cast Assembly set: SteelSurface:Connector: Plain Assembly set: Zinc platedSet:2 components for corner connector 2D28, 1 screw DIN EN ISO 4762 (DIN 912) - M6 x 25, 1 self-locking nut DIN EN ISO 10511 (DIN 985) - M6Países de Entrega:En todo el mundo
Adapter Plate D28 (Set)
Description:To connect tubular frame profiles with slot 8 or 10 aluminum profilesMaterial:Adapter plates: Aluminum die-cast Centering piece: Zinc die-castSuperficie:LisoFastening:With pan-head-screw DIN EN ISO 7380 (DIN 34805) - M8Set:1 adapter plate, 2 locating pins for slot 8 and 10Tip:Compatible Connector see 099RV2890LS01, 099RV28KS01, 099RV2845S01 - 099RV2890QS01 *Compatible Cutting Bush for the reduction of the Ø 10.2 mm core hole to thread size M8 see 09308801Países de Entrega:En todo el mundo

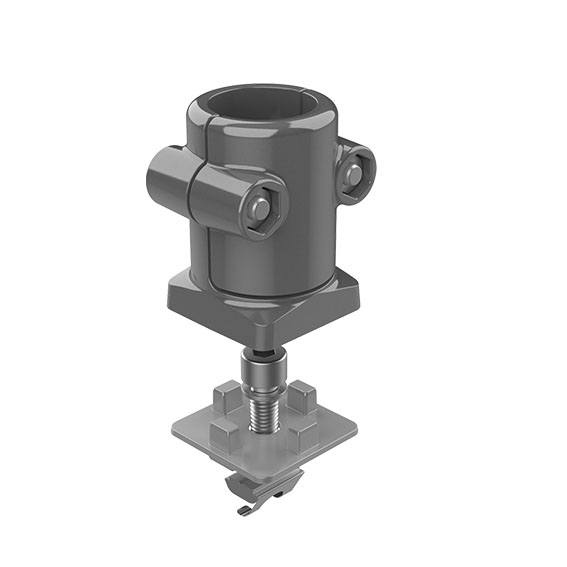

Pieza de adaptación D28 - 40 M8 (Juego)
Description:To connect a tubular frame profile with Ø 28 mm outer diameter with a slot 10 aluminum profile; Adapter piece can be attached lateral or on the face of the profile; if attached on the front face, the core hole of the respective profile must be M8 threaded (min. 20 mm deep)Material:Adapter piece: Alu die-cast Centering plate: Alu die-cast Screws: Steel Washer: Steel T-slot nut: SteelSurface:Adapter piece: Laquered Centering plate: Laquered Screws: Zinc plated Washer: Zinc plated T-slot nut: Zinc platedColor:Adapter piece: Alu color Centering plate: Alu colorSet:1 adapter piece 1 centering plate 1 screw DIN EN ISO 4762 (DIN 912) - M8 x 25 (for T-slot nut) 1 screw DIN EN ISO 4762 (DIN 912) - M8 x 30 (for core hole) 1 washer 8-FSt 1 T-slot nut - slot 10 - M8Tip:Cutting bush for the reduction of the Ø 10.2 mm core hole to thread size M8 see 09308801Países de Entrega:En todo el mundo

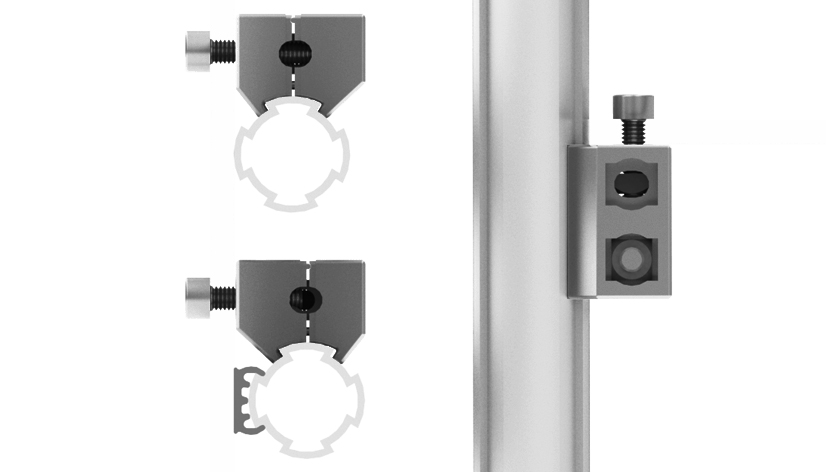

Vario Block D28 (Set)
Description:To attach panels safely to tubular frame profiles with Ø 28 mm outer diameter; optional screwless mounting with clip clampMaterial:Block: Plastic PA, carbon fiber reinforced Screws and Nut: SteelSurface:Screws and Nut: Zinc platedColor:Bloque: NegroSet:1 vario block AL - 2-part, 1 screw DIN EN ISO 7049 (DIN 7981) - 4.2 x 9.5, 2 screws DIN EN ISO 4762 (DIN 912) - M6 x 16, 1 square nut DIN 557 - M6Tip:Compatible Clip clamp see 09452RA20Especiales:Otros colores bajo pedidoPaíses de Entrega:En todo el mundo
Clip clamp , for Vario Clamping Blocks
Description:For height adjustment of the contact surfaces, for flush mounting of panelsMaterial:Plástico PCColor:Transparente (incoloro)Tip:Compatible Vario Clamping Blocks see 094523M6, 094522M6CS and 094524M6Países de Entrega:En todo el mundo
Vario Block AL D28 (Set)
Description:To attach panels firmly to tubular frame profiles with Ø 28 mm outer diameter, ESD electrostatical dischargingMaterial:AluminioSuperficie:LisoSet:1 vario block AL - 2-part, 1 screw DIN EN ISO 4762 (DIN 912) - M6 x 30, 2 screws DIN EN ISO 4762 (DIN 912) - M6 x 22, 2 square nuts DIN 557 - M6Tip:Compatible Slide Rail D28 see 092060S01Especiales:Otras superficies, otros colores bajo pedidoPaíses de Entrega:En todo el mundo

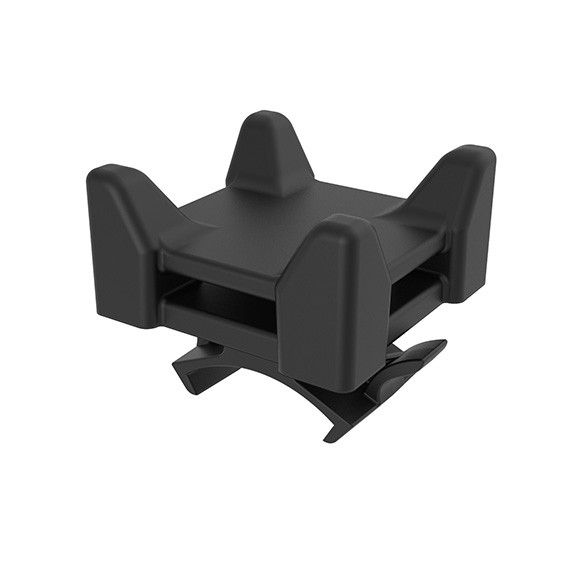

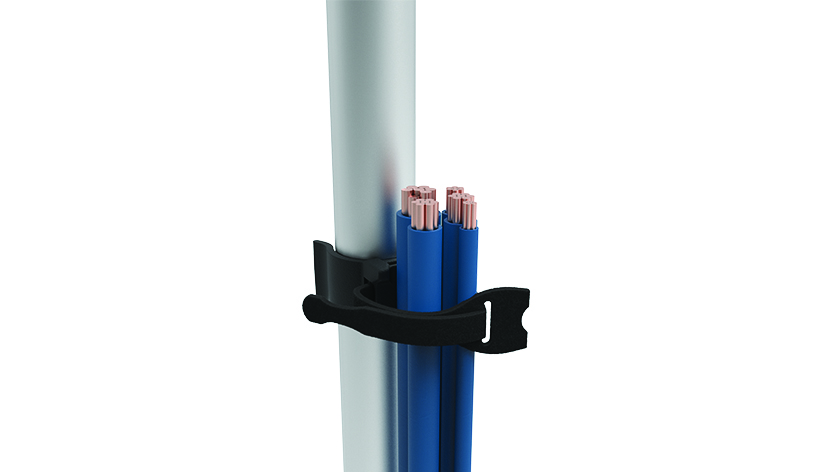

Cross Cable Binder Block D28
Description:To fasten cables and tubes parallel to the slot, simple click-in assemblyMaterial:Plástico PA, reforzado con fibra de vidrioColor:NegroTip:Compatible Velcro® strap for Cross Cable Binder Block D28 see 340ME8200KLPaíses de Entrega:En todo el mundo
Velcro® strap for Cross Cable Binder Block D28
Description:To fasten cables and tubes parallel to the slotMaterial:Velcro® strap: Plastic PE (hook), Plastic PA (loop)Color:NegroTip:Compatible Cross Cable Binder Block D28 see 093291Países de Entrega:En todo el mundo

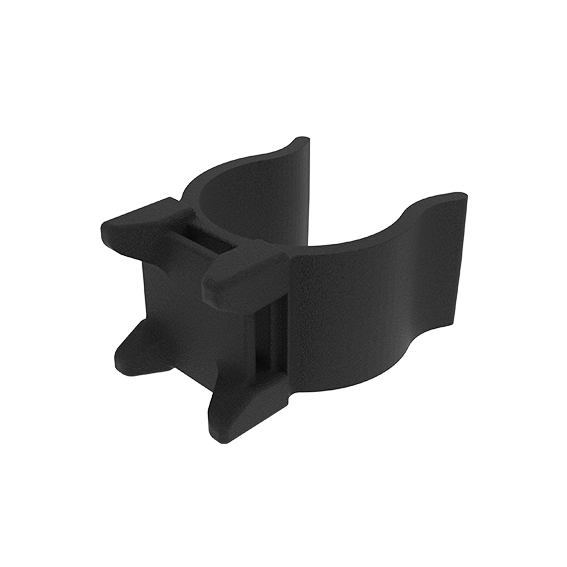

Cross Cable Binder Block D28 Universal
Description:To fix cables along and across aluminum profiles; can be clipped on the tubular frame profileMaterial:Plastic PA, carbon fiber reinforcedColor:NegroPaíses de Entrega:En todo el mundo

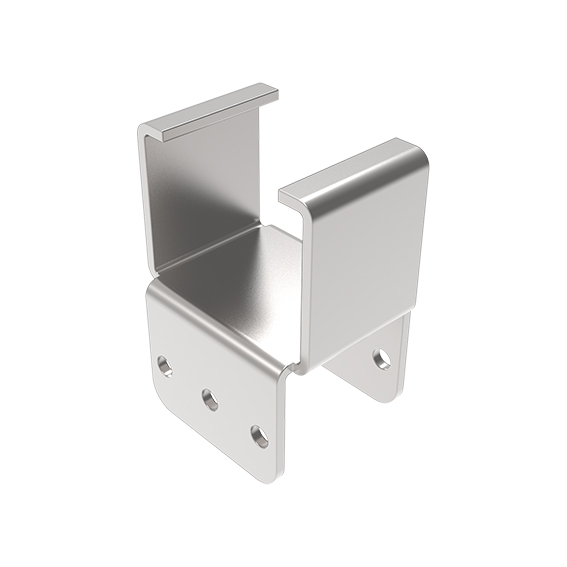

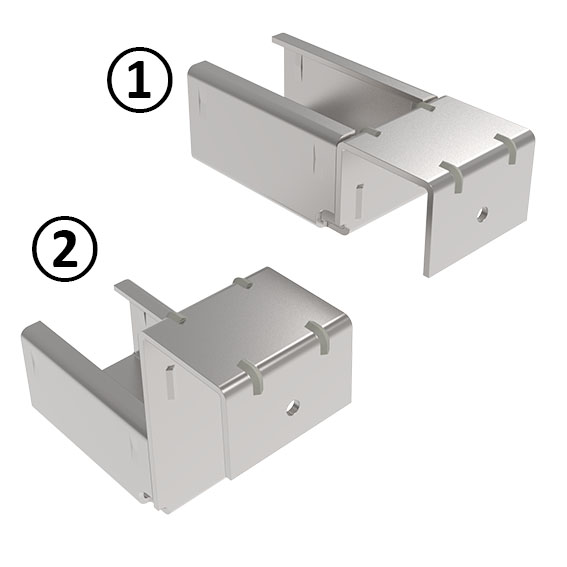

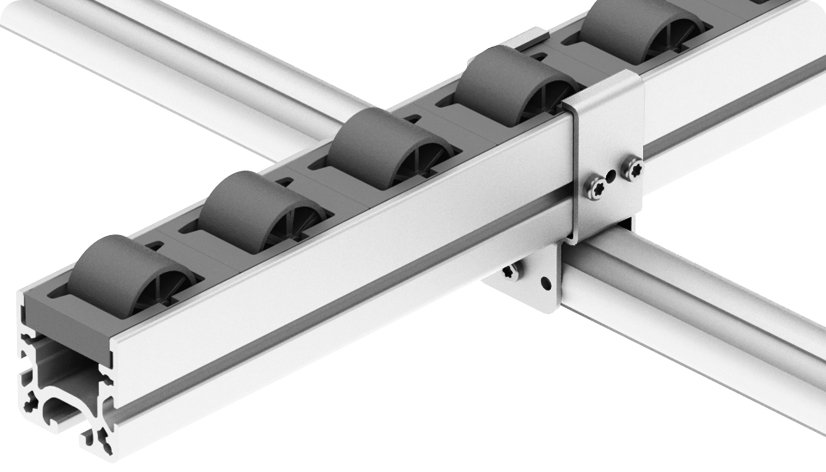

Holding Bracket XST D28
Description:To mount roller tracks XST and guiding rails XST central to tubular frame profiles with Ø 28 mm outer diameter, preventing inserts from slipping outMaterial:AceroSuperficie:GalvanizadoEspeciales:Otras superficies, otros colores bajo pedidoPaíses de Entrega:En todo el mundo

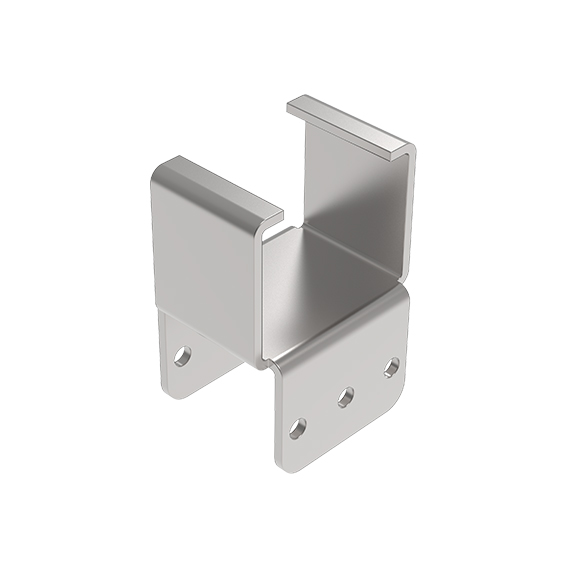

Holding Bracket AL D28
Description:To mount AL roller track profiles to tubular frame profiles with Ø 28 mm outer diameter, preventing inserts from slipping outMaterial:AceroSuperficie:GalvanizadoAssembly Set:5 self-drilling screws DIN EN ISO 15481 (DIN 7504) - 3.9 x 16Especiales:Otras superficies, otros colores bajo pedidoPaíses de Entrega:En todo el mundo
Variable Holding Bracket XST D28
Description:Transition between roller tracks with varying inclination, to mount roller tracks XST and guiding rails XST central, at different angles, to tubular frame profiles with Ø 28 mm outer diameter, preventing inserts from slipping outMaterial:AceroSuperficie:GalvanizadoFastening:With 3 or 4 self-drilling screws DIN EN ISO 15481 (DIN 7504) - 3.9 x 16Especiales:Otras superficies, otros colores bajo pedidoPaíses de Entrega:En todo el mundo
Variable Holding Bracket AL D28
Description:Transition between roller track profiles with varying inclination, to mount roller track profiles AL at different angles to tubular frame profiles with Ø 28 mm outer diameter, preventing inserts from slipping outMaterial:AceroSuperficie:GalvanizadoAssembly Set 1:5 self-drilling screws DIN EN ISO 15481 (DIN 7504) - 3.9 x 16Assembly Set 2:6 self-drilling screws DIN EN ISO 15481 (DIN 7504) - 3.9 x 16Especiales:Otras superficies, otros colores bajo pedidoPaíses de Entrega:En todo el mundo
