Parallel Clamp D28 (Set)
Precio normal:
0,00 €
Número de producto:
099RV28180S01
Cantidad por paquete:
10 piezas
Descripción:

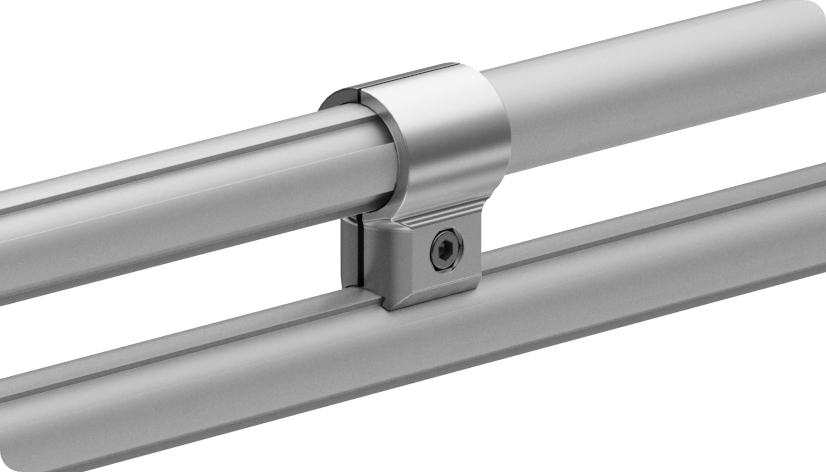

To parallelly connect a tube or a tubular frame profile to a tubular frame profile with Ø 28 mm outer diameter; with pre-centering; completely pre-assembled set
To parallelly connect a tube or a tubular frame profile to a tubular frame profile with Ø 28 mm outer diameter; with pre-centering; completely pre-assembled set
Material:
Connector: Aluminum die-cast
Assembly set: Steel
Surface:
Connector: Plain
Assembly set: Zinc plated
Set:
2 components for parallel clamp D28,
1 screw DIN EN ISO 4762 (DIN 912) - M6 x 25,
1 self-locking nut DIN EN ISO 10511 (DIN 985) - M6
Países de Entrega:
En todo el mundo
Connector: Aluminum die-cast
Assembly set: Steel
Surface:
Connector: Plain
Assembly set: Zinc plated
Set:
2 components for parallel clamp D28,
1 screw DIN EN ISO 4762 (DIN 912) - M6 x 25,
1 self-locking nut DIN EN ISO 10511 (DIN 985) - M6
Países de Entrega:
En todo el mundo
| Cantidad por paquete: | 10 piezas |
|---|---|
| Model: | For tubular frame profiles |
| Peso (g): | 80.3 |
| Numero de ERP: | 125772 |
