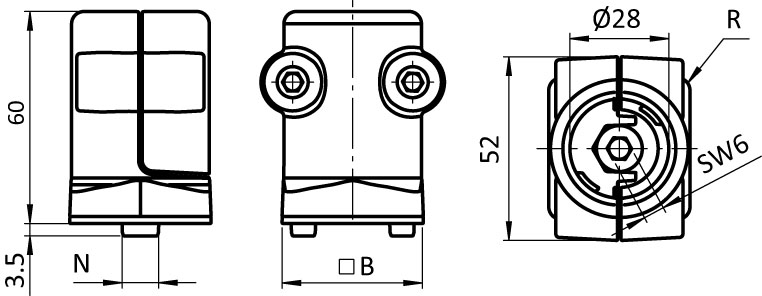

Pieza de adaptación D28 - 40 M8 (Juego)
Número de producto:
061FA40S01
Información sobre el producto "Pieza de adaptación D28 - 40 M8 (Juego)"
Color:
Adapter piece: Alu color
Centering plate: Alu color
Países de Entrega:
En todo el mundo
Description:

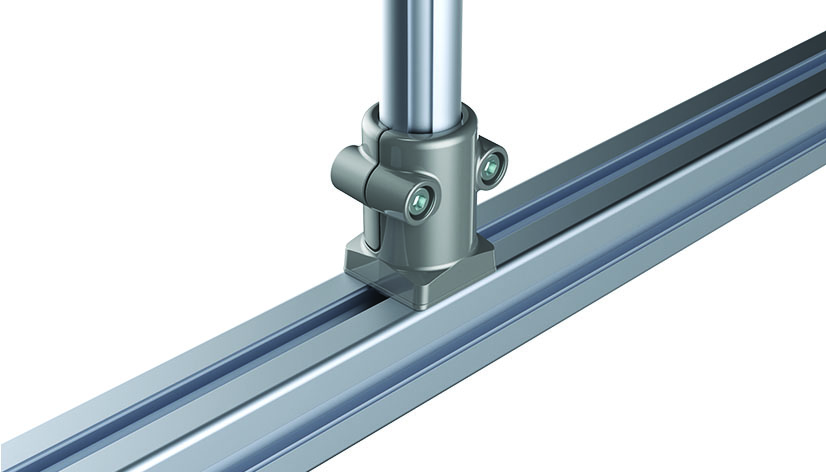

To connect a tubular frame profile with Ø 28 mm outer diameter with a slot 10 aluminum profile;
Adapter piece can be attached lateral or on the face of the profile; if attached on the front face, the core hole of the respective profile must be M8 threaded (min. 20 mm deep)
Material:
Adapter piece: Alu die-cast
Centering plate: Alu die-cast
Screws: Steel
Washer: Steel
T-slot nut: Steel
Set:
1 adapter piece
1 centering plate
1 screw DIN EN ISO 4762 (DIN 912) - M8 x 25 (for T-slot nut)
1 screw DIN EN ISO 4762 (DIN 912) - M8 x 30 (for core hole)
1 washer 8-FSt
1 T-slot nut - slot 10 - M8
Surface:
Adapter piece: Laquered
Centering plate: Laquered
Screws: Zinc plated
Washer: Zinc plated
T-slot nut: Zinc plated
Tip:
Cutting bush for the reduction of the Ø 10.2 mm core hole to thread size M8 see 09308801
Adapter piece: Alu color
Centering plate: Alu color
Países de Entrega:
En todo el mundo
Description:
To connect a tubular frame profile with Ø 28 mm outer diameter with a slot 10 aluminum profile;
Adapter piece can be attached lateral or on the face of the profile; if attached on the front face, the core hole of the respective profile must be M8 threaded (min. 20 mm deep)
Material:
Adapter piece: Alu die-cast
Centering plate: Alu die-cast
Screws: Steel
Washer: Steel
T-slot nut: Steel
Set:
1 adapter piece
1 centering plate
1 screw DIN EN ISO 4762 (DIN 912) - M8 x 25 (for T-slot nut)
1 screw DIN EN ISO 4762 (DIN 912) - M8 x 30 (for core hole)
1 washer 8-FSt
1 T-slot nut - slot 10 - M8
Surface:
Adapter piece: Laquered
Centering plate: Laquered
Screws: Zinc plated
Washer: Zinc plated
T-slot nut: Zinc plated
Tip:
Cutting bush for the reduction of the Ø 10.2 mm core hole to thread size M8 see 09308801
| (ECLASS 6.0): | 23360290 |
|---|---|
| (ECLASS 7.0): | 23360290 |
| (ECLASS 8.0): | 23360290 |
| (ECLASS 9.0): | 23360290 |
| (ECLASS 10.0): | 23360290 |
| (ECLASS 11.0): | 23360290 |
| (ECLASS 12.0): | 23360290 |
| (ECLASS 13.0): | 23360290 |
| Cantidad por Paquete: | 10 conjuntos |
| Model: | For tubular frame profiles |
| Numero de ERP: | 149316 |
| Número de Arancel Aduanero de Exportación: | 76169990 |
| Peso (g): | 208.5 |
| Zolltarifnummer: | 76169990990 |
