Outer Ball Butt Connector D28 (Set)
Precio normal:
0,00 €
Número de producto:
099RV28KS02
Cantidad por paquete:
10 piezas
Descripción:

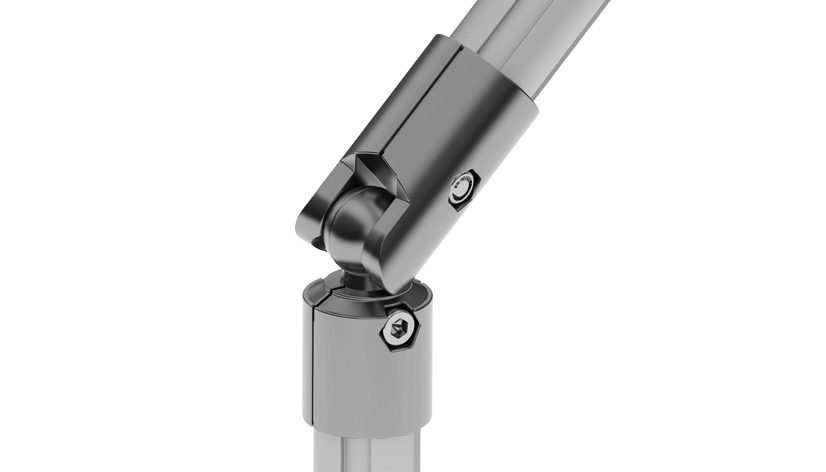

To connect two tubular frame profiles with Ø 28 mm outer diameter at variable angles, with pre-centering; completely pre-assembled set
To connect two tubular frame profiles with Ø 28 mm outer diameter at variable angles, with pre-centering; completely pre-assembled set
Material:
Connector: Aluminum die-cast
Assembly set: Steel
Surface:
Connector: Plain
Assembly set: Zinc plated
Set:
4 components for outer ball butt connector D28,
2 screws DIN EN ISO 4762 (DIN 912) - M6 x 25,
2 self-locking nuts DIN EN ISO 10511 (DIN 985) - M6
Países de Entrega:
En todo el mundo
Connector: Aluminum die-cast
Assembly set: Steel
Surface:
Connector: Plain
Assembly set: Zinc plated
Set:
4 components for outer ball butt connector D28,
2 screws DIN EN ISO 4762 (DIN 912) - M6 x 25,
2 self-locking nuts DIN EN ISO 10511 (DIN 985) - M6
Países de Entrega:
En todo el mundo
| Cantidad por paquete: | 10 piezas |
|---|---|
| Model: | For tubular frame profiles |
| Peso (g): | 150.0 |
| Numero de ERP: | 140156 |
Retratos de productos
Clasificación
- ECLASS 6.0
- 23360302
- ECLASS 7.0
- 23360302
- ECLASS 8.0
- 23360302
- ECLASS 9.0
- 23360302
- ECLASS 10.0
- 23360302
- ECLASS 11.0
- 23360302
- ECLASS 12.0
- 23360302
- ECLASS 13.0
- 23360302
- Zolltarifnummer
- 76169910990
- Número de Arancel Aduanero de Exportación
- 76169910
