D30, Tubular Frame Components

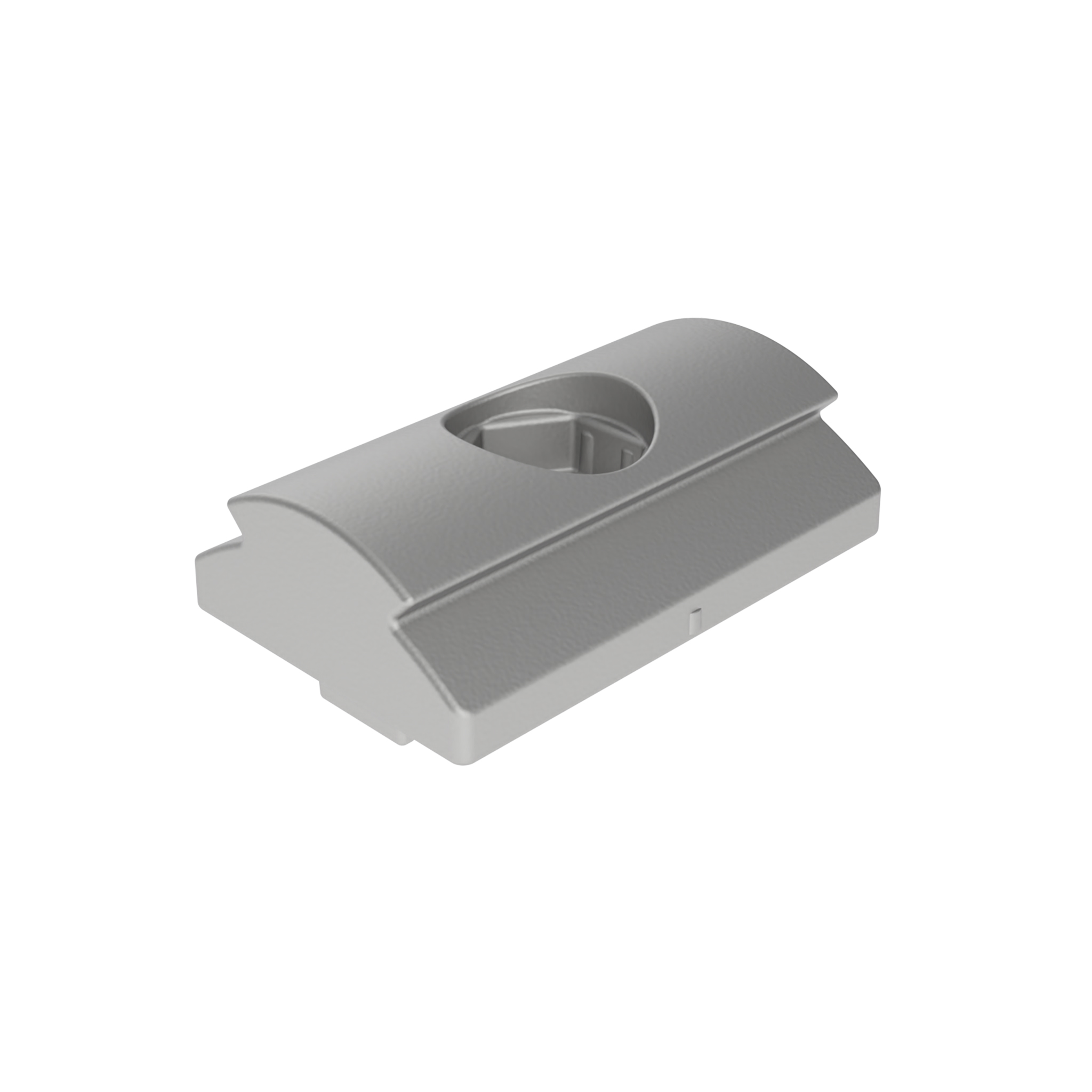

Adapter Piece D30, Slot 8
Color:V_PlainPaíses de Entrega:En todo el mundoDescription:To connect tubular frame profiles with slot 8 aluminum profilesMaterial:Aluminio fundido a presiónTip:Compatible Outer Ball Connector D30 (Set) see 099RV30KS01 Compatible Outer T-Connector D30 (Set) see 099RV3090LS01 Compatible Cross Ball Connector D30 (Set) see 099RV30KS04 Compatible Cross Connector D30 (Set) see 099RV30XS01 Compatible Parallel Connector D30 (Set) see 099RV30PS02 Compatible Angle Connector 2D30 (Set) see 099RV3090QS01 Compatible Angle Connector D30, 45° (Set) see 099RV3045S01 Compatible T-slot Nut see 096006

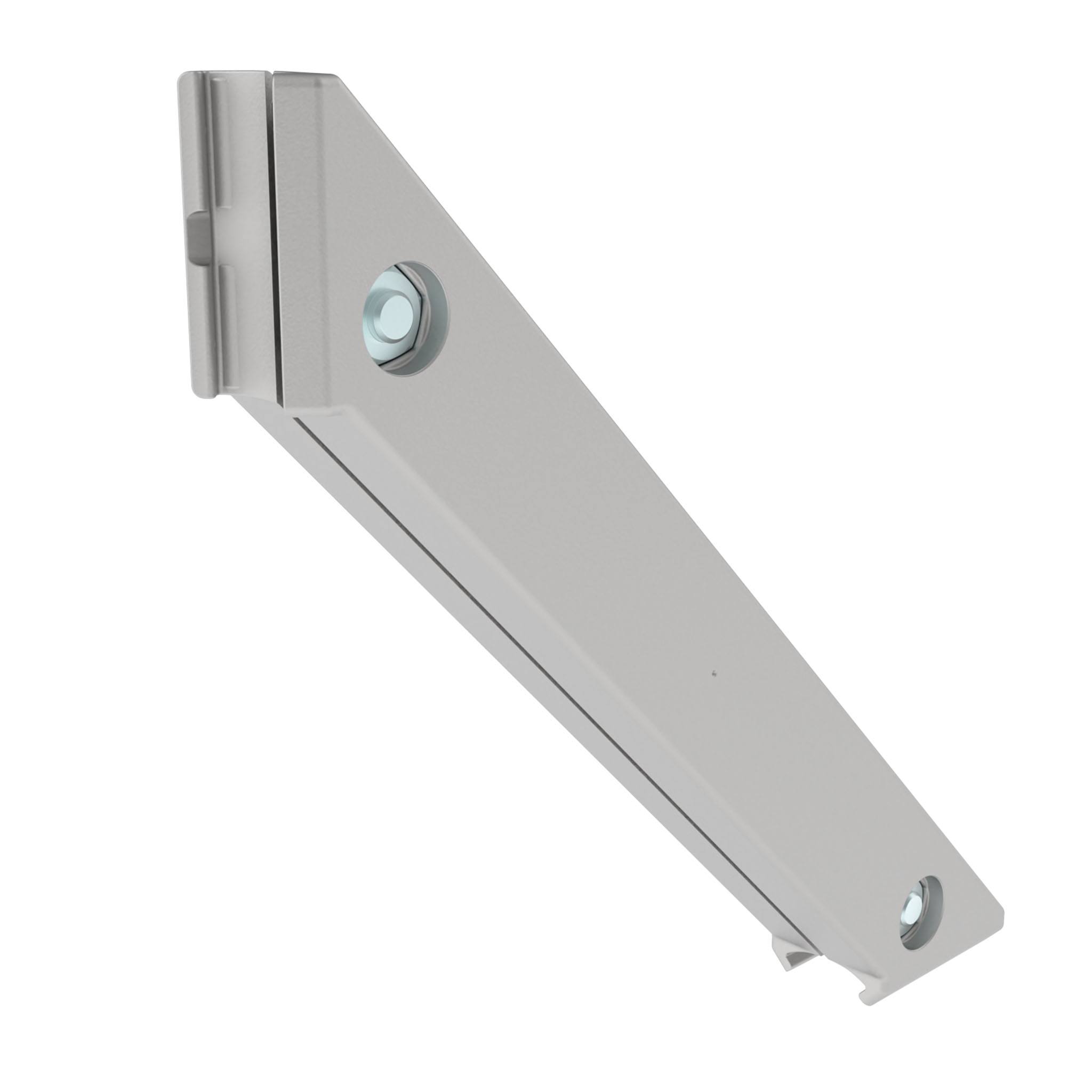

Angle Connector 2D30 (Set)
Países de Entrega:En todo el mundoDescription:To connect two tubular frame profiles with Ø 30 mm outer diameter at right angle; Completely pre-assembled setMaterial:Connector: Aluminum die-cast Assembly set: SteelSet:2 components for angle connector 2D30, 2 screws DIN EN ISO 4762 (DIN 912) - M6 x 14, 2 self-locking nuts DIN EN ISO 4032 (DIN 934) - M6Superficie:Conjunto de montaje: GalvanizadoTip:Compatible Cover Cap for Tubular Frame Connectors D30 see 099RV30CC07

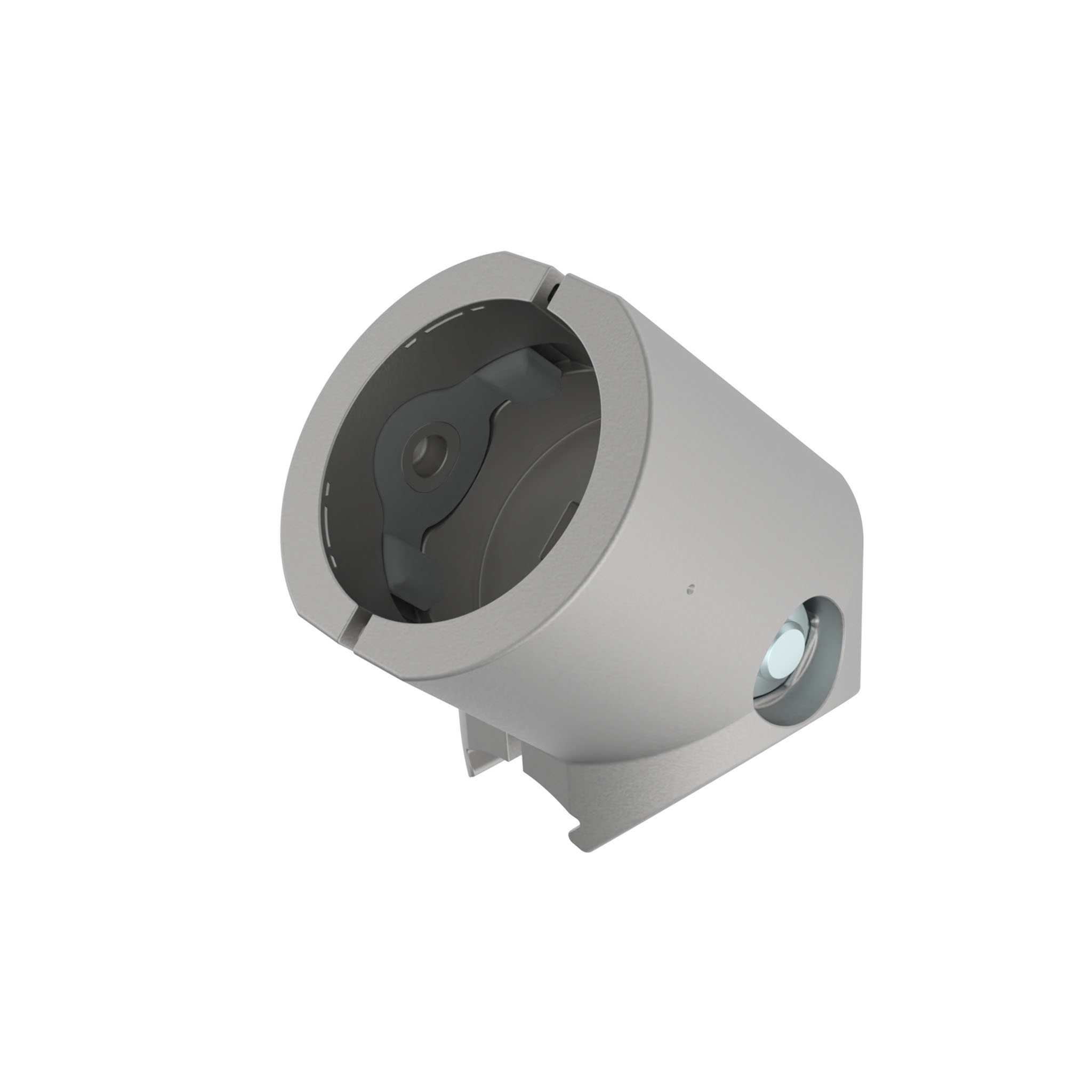

Angle Connector D30, 45° (Set)
Países de Entrega:En todo el mundoDescription:To connect two tubular frame profileswith Ø 30 mm outer diameterat 45°; with pre-centering; completely pre-assembled setMaterial:Connector: Aluminum die-cast Assembly set: SteelSet:2 components for angle connector D30, 45°, 1 screw DIN EN ISO 4762 (DIN 912) - M6 x 28, 1 self-locking nut DIN EN ISO 4032 (DIN 934) - M6Superficie:Conjunto de montaje: GalvanizadoTip:Compatible Cover Cap for Tubular Frame Connectors D30 see 099RV30CC06

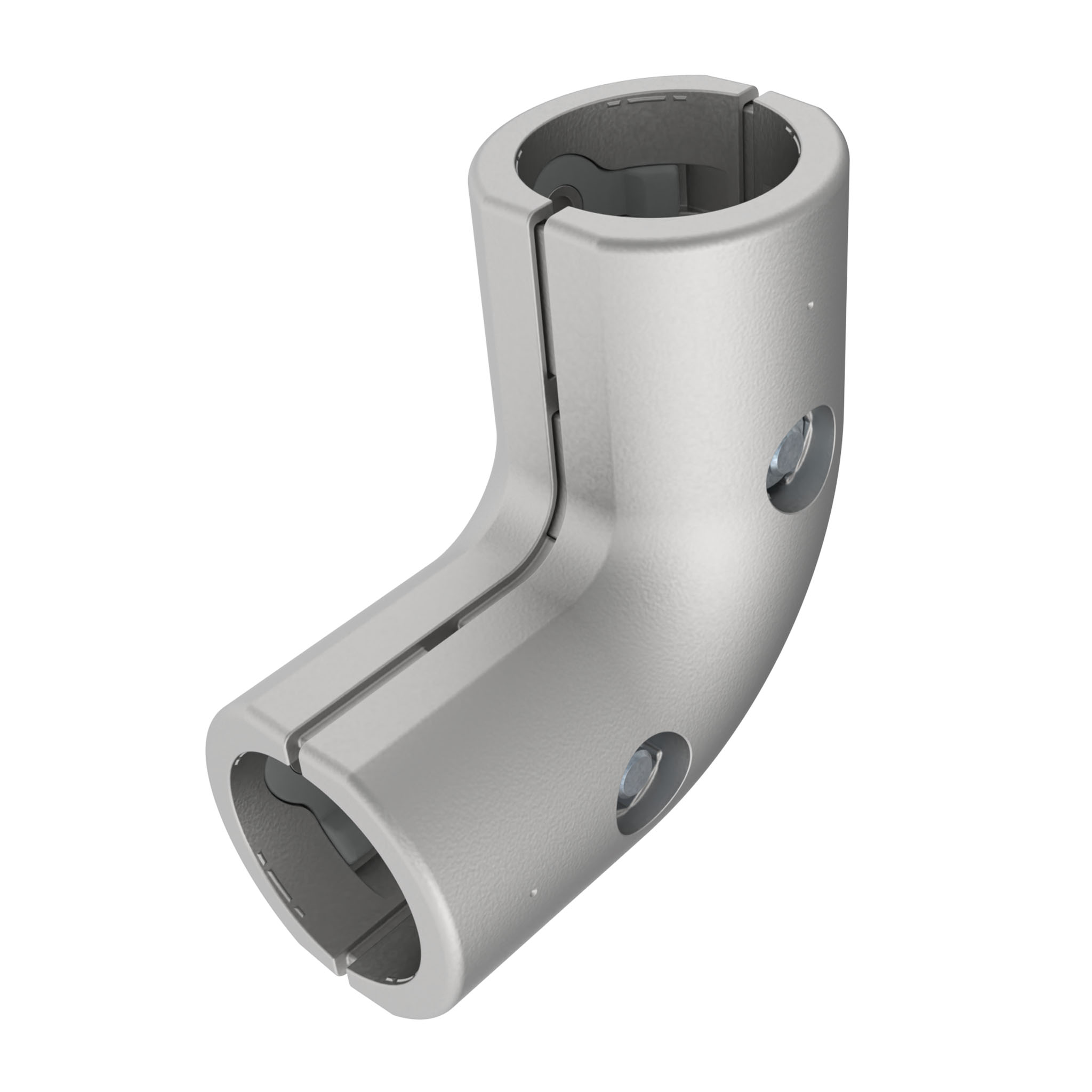

Corner Connector 2D30 (Set)
Países de Entrega:En todo el mundoDescription:To connect two tubular frame profiles with Ø 30 mm outer diameter at right angles; with pre-centering; completely pre-assembled setMaterial:Connector: Aluminum die-cast Assembly set: SteelSet:2 components for corner connector 2D30, 2 screw DIN EN ISO 4762 (DIN 912) - M6 x 25, 2 self-locking nuts DIN EN ISO 4032 (DIN 934) - M6Superficie:Conjunto de montaje: GalvanizadoTip:Compatible Cover Cap for Tubular Frame Profile Connector D30 see 099RV30CC06

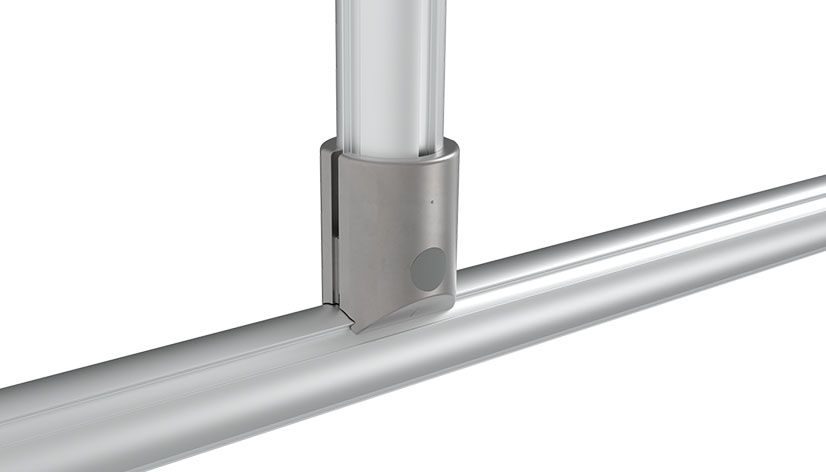

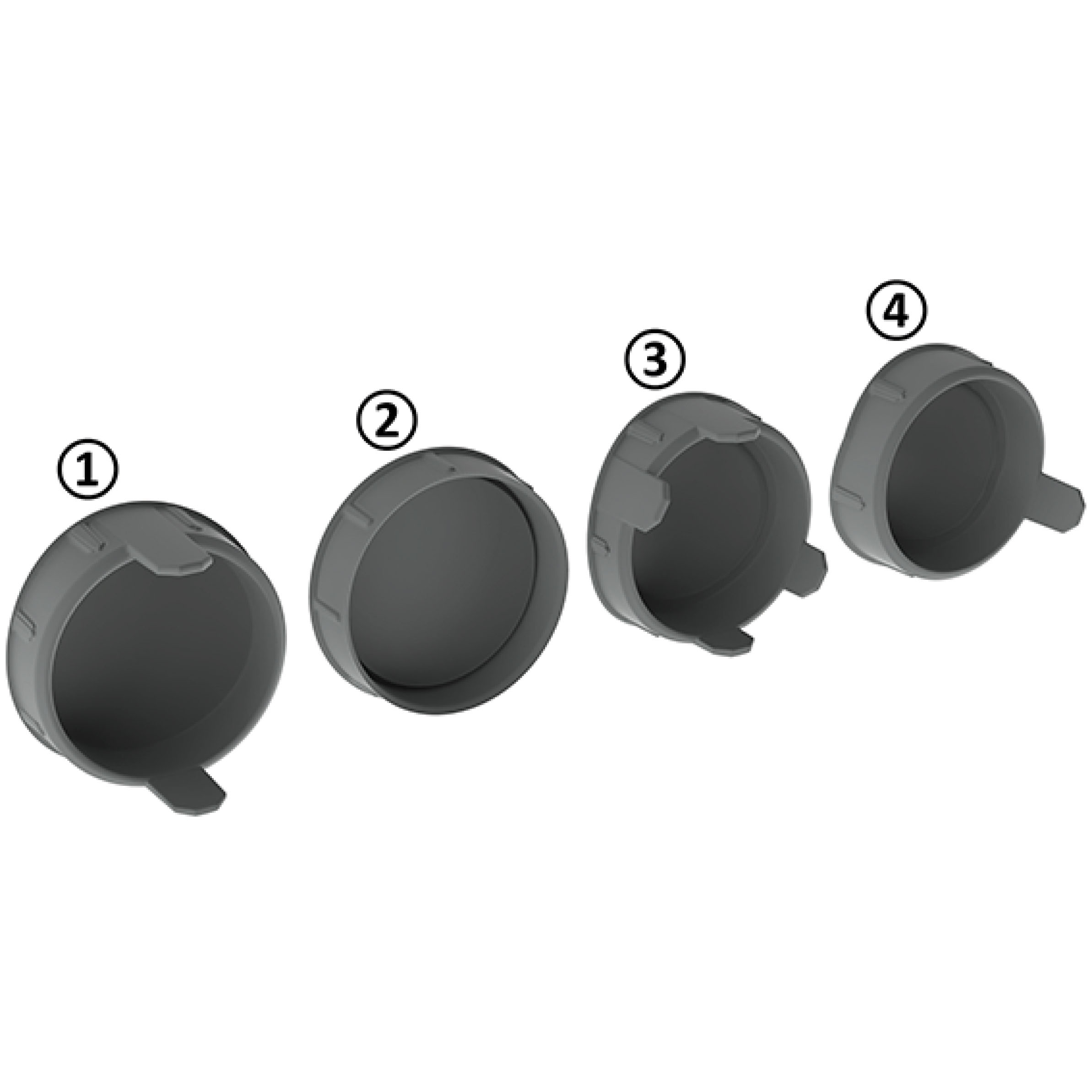

Cover Cap for Tubular Frame Connectors D30
Color:Gris ≈ RAL 7042Países de Entrega:En todo el mundoDescription:To cover the screw hole of connectors for tubular frame profiles with Ø 30 mm outer diameterMaterial:Plástico PA, reforzado con fibra de vidrio

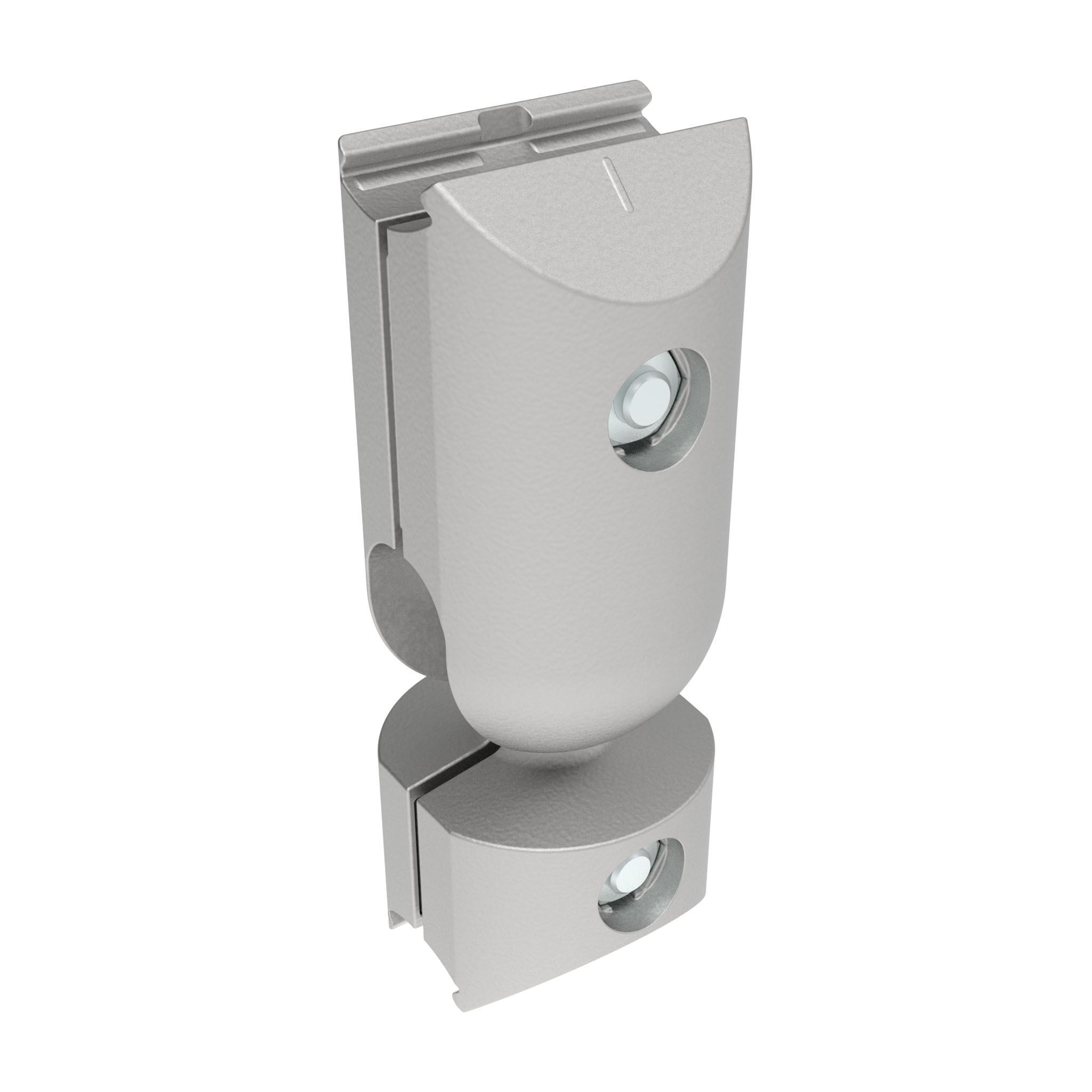

Cross Ball Connector D30 (Set)
Países de Entrega:En todo el mundoDescription:To cross connect two tubular frame profiles with Ø 30 mm outer diameter at variable angles, with pre-centering; completely pre-assembled setMaterial:Connector: Aluminum die-cast Assembly set: SteelSet:4 cross ball connector D30, 2 screws DIN EN ISO 4762 (DIN 912) - M6 x 28, 2 self-locking nuts DIN EN ISO 4032 (DIN 934) - M6Superficie:Conjunto de montaje: GalvanizadoTip:Compatible Cover Cap for Tubular Frame Connectors D30 see 099RV30CC06

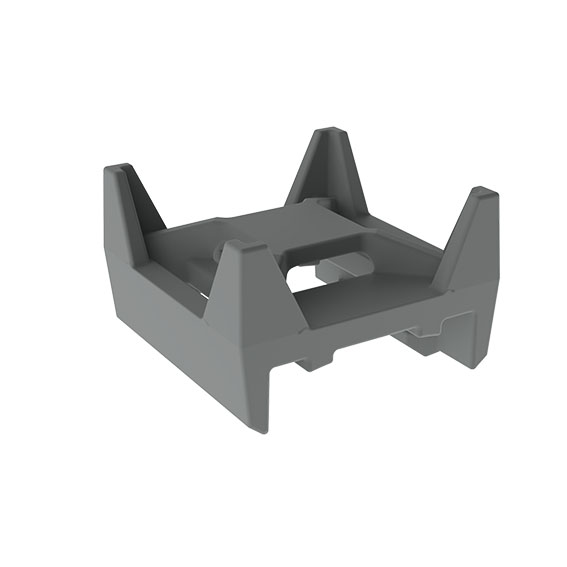

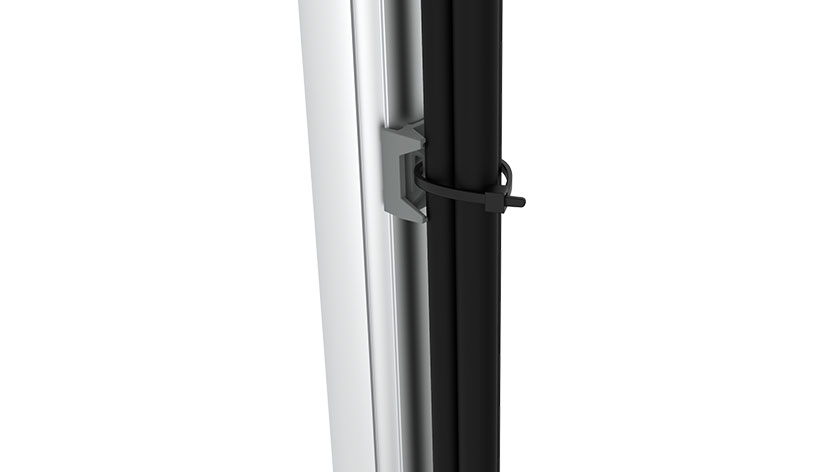

Cross Cable Binder Block D30
Color:Gris ≈ RAL 7042Países de Entrega:En todo el mundoDescription:To fix cables along and across aluminum profiles; can be clipped on the tubular frame profileMaterial:Plástico PP

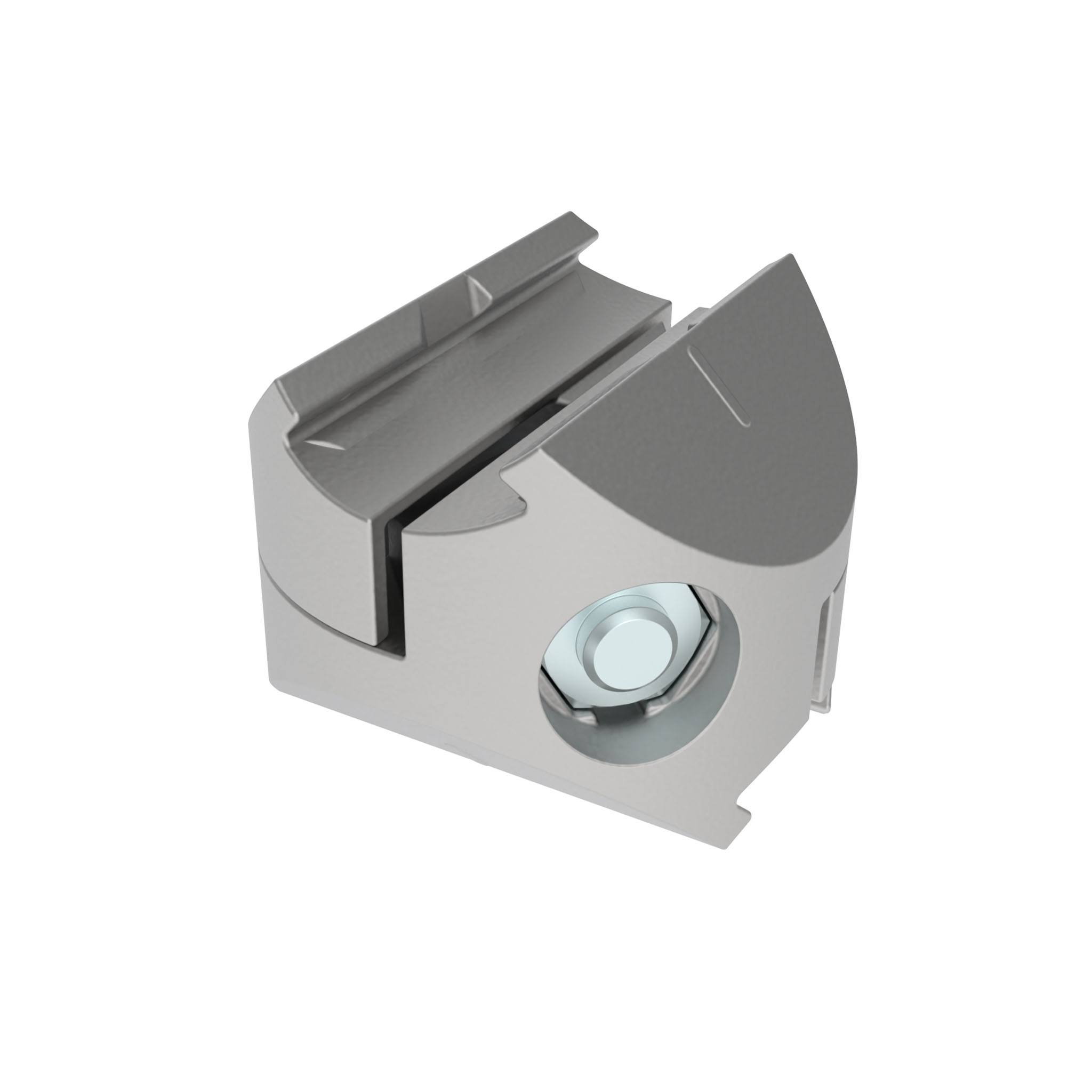

Cross Connector D30 (Set)
Países de Entrega:En todo el mundoDescription:To cross connect two tubular frame profiles with Ø 30 mm outer diameter; Completely pre-assembled setMaterial:Connector: Aluminum die-cast Assembly set: SteelSet:2 components for cross connector D30, 1 screw DIN EN ISO 4762 (DIN 912) - M6 x 30, 1 self-locking nut DIN EN ISO 4032 (DIN 934) - M6Superficie:Conjunto de montaje: GalvanizadoTip:Compatible Cover Cap for Tubular Frame Connectors D30 see 099RV30CC06

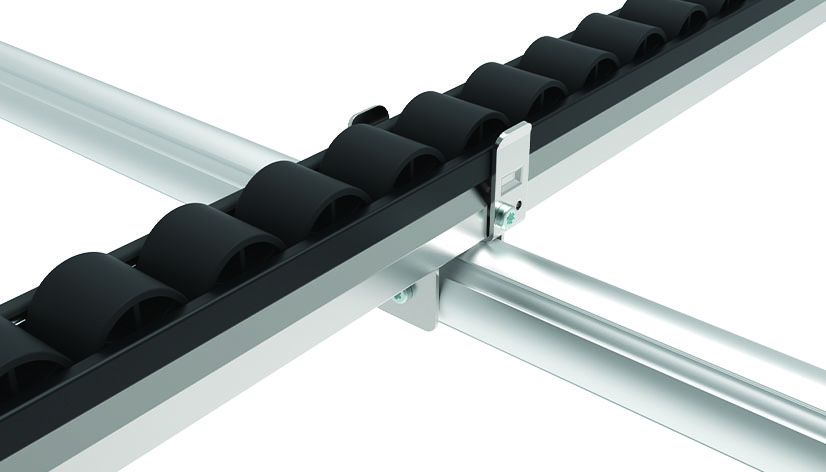

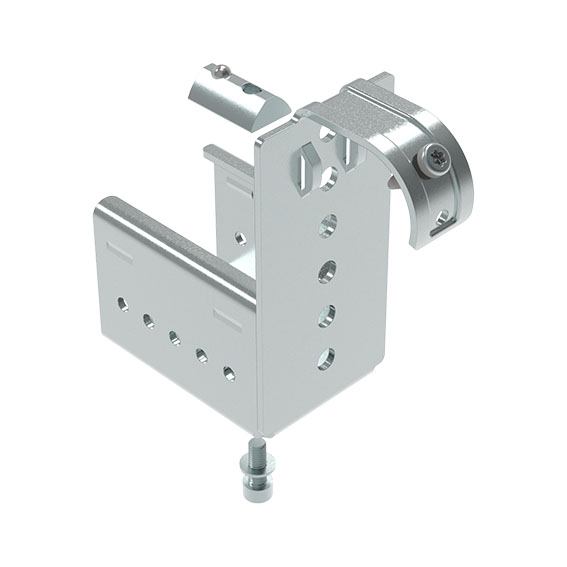

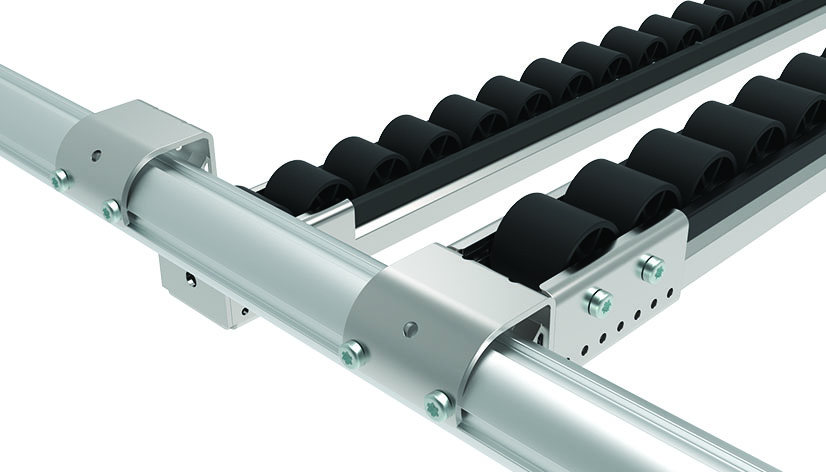

Holding Bracket AL D30
Assembly Set:1 self-drilling screw DIN EN ISO 15481 (DIN 7504) - 3.9 x 16 1 washer DIN EN ISO 7089 (DIN 125) 1 T-slot nut slot 8 - M5 1 screw DIN EN ISO 4762 (DIN 912) - M5 x 14Países de Entrega:En todo el mundoDescription:To mount AL roller track profiles to tubular frame profiles with Ø 30 mm outer diameter, preventing inserts from slipping outMaterial:AceroSuperficie:Galvanizado

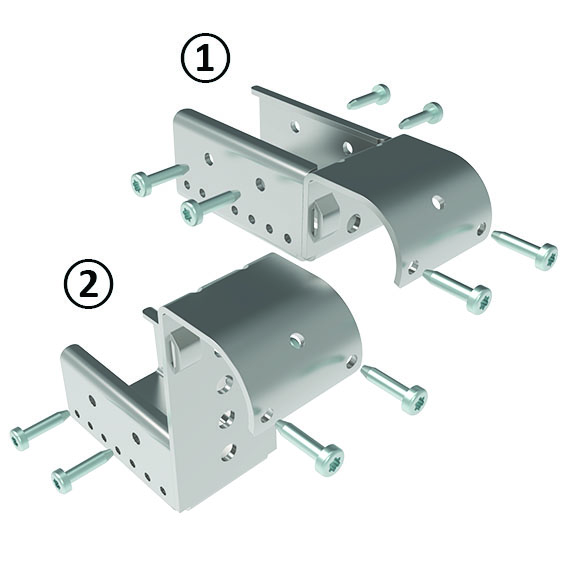

Holding Bracket XST D30
Assembly Set:6 self-drilling screws DIN EN ISO 15481 (DIN 7504) - 3.9 x 16Países de Entrega:En todo el mundoDescription:To mount roller tracks XST and guiding rails XST central to tubular frame profiles with Ø 30 mm outer diameter, preventing inserts from slipping outMaterial:AceroEspeciales:Otras superficies, otros colores bajo pedidoSuperficie:Galvanizado

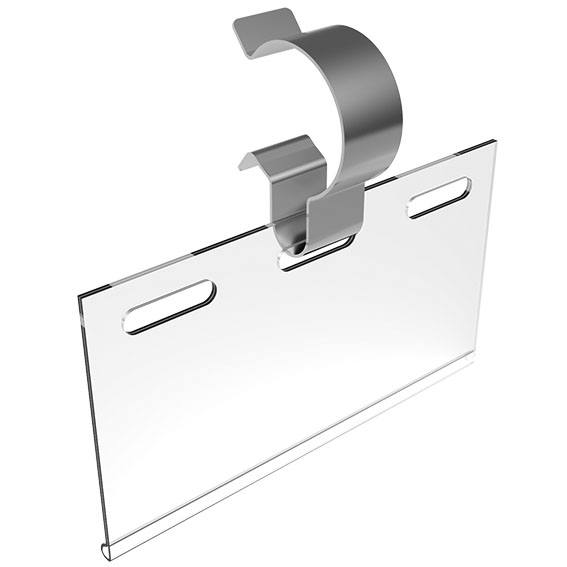

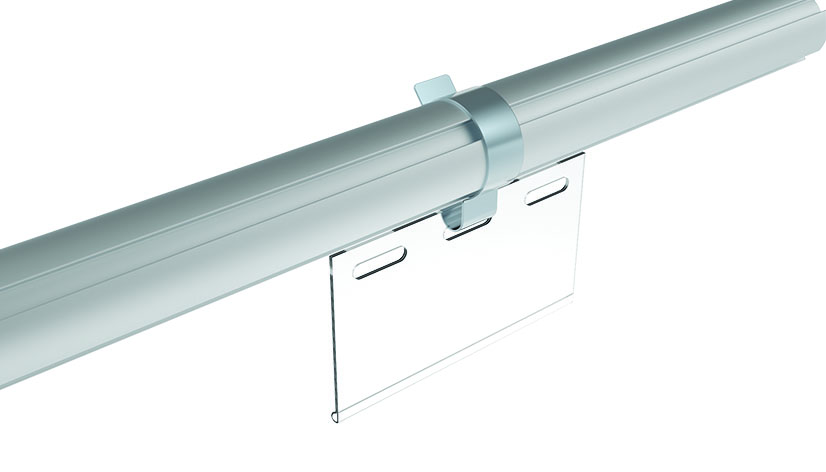

Label Holder D30 (Set)
Color:Label holder: Transparent (colorless)Países de Entrega:En todo el mundoDescription:For labelling on tubular frame profiles with Ø 30 mm outer diameter; For labels with 42 mm height and 100 mm widthMaterial:Label holder: Plastic PET Clip: SteelSet:1 label holder 1 clipSurface:Clip: Zinc plated

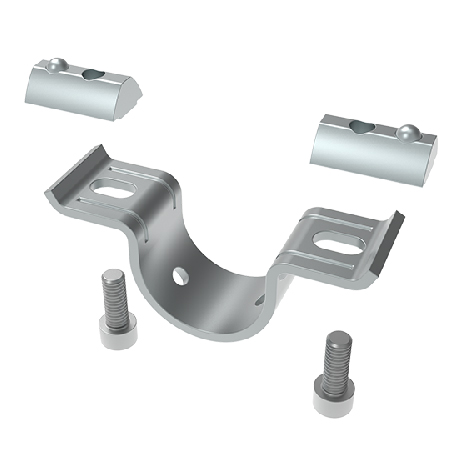

Mounting Bracket D30 (Set)
Países de Entrega:En todo el mundoDescription:To support an roller track AL or a aluminum profile slot 8 on a crossing tubular frame profile with Ø 30 mm outer diameterMaterial:AceroSet:1 mounting bracket, 2 T-slot nuts - slot 8 - M6, 2 screws DIN EN ISO 4762 (DIN 912) - M6 x 16Superficie:Galvanizado

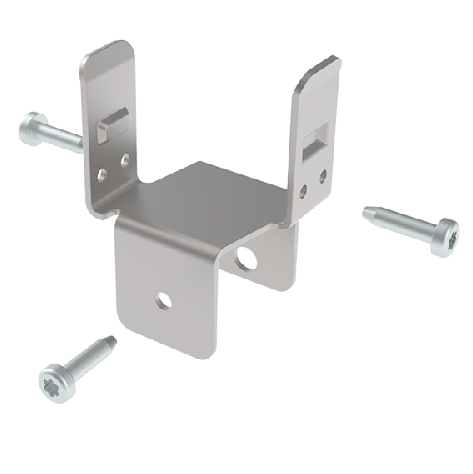

Mounting Bracket XST D30
PFA_AssemblySet:4 tornillos autoperforantes DIN 7504 Forma N - 3,9 x 16Países de Entrega:En todo el mundoDescription:To mount and support an roller track XST or a guiding rail XST central on a crossing tubular frame profile with Ø 30 mm outer diameterMaterial:AceroEspeciales:Otras superficies, otros colores bajo pedidoSuperficie:Galvanizado

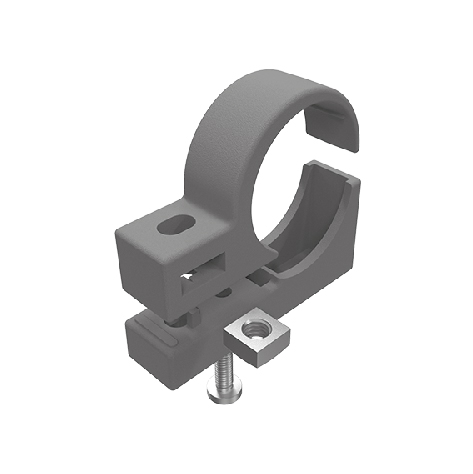

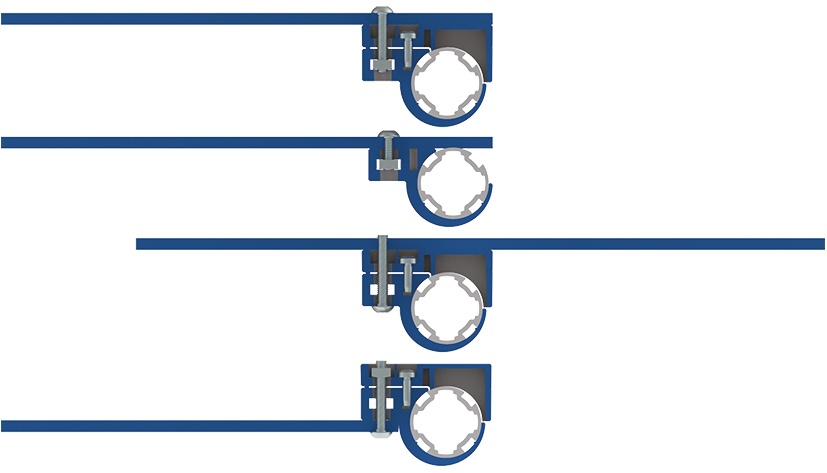

Mounting Clamp D30 (Set)
Color:Mounting clamp: Gray Spacer: GrayPaíses de Entrega:En todo el mundoDescription:To attach panels universally to tubes and tubular frame profiles with Ø 30 mm outer diameter; including spacer to position panels over outer tubular frame connectors D30Material:Mounting clamp: Plastic PA Spacer: Plastic PA Assembly set: SteelSet:1 mounting clamp 1 spacer 1 square nut DIN 557 - M5 1 self-tapping screw SF4 x 12Superficie:Conjunto de montaje: Galvanizado

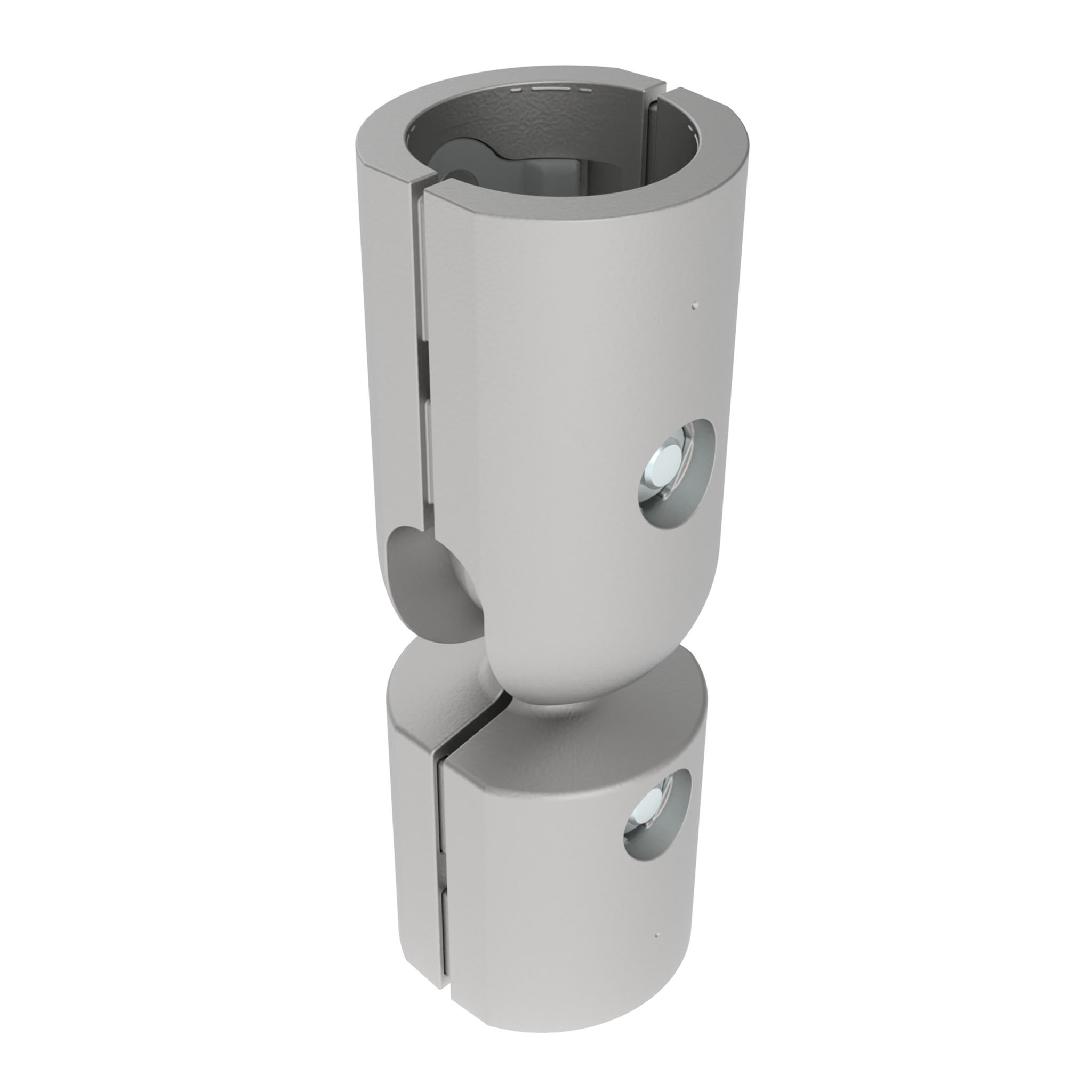

Outer Ball Butt Connector D30 (Set)
Países de Entrega:En todo el mundoDescription:To connect two tubular frame profiles with Ø 30 mm outer diameter at variable angles, with pre-centering; completely pre-assembled setMaterial:Connector: Aluminum die-cast Assembly set: SteelSet:4 components for outer ball butt connector D30, 2 screws DIN EN ISO 4762 (DIN 912) - M6 x 30, 2 self-locking nuts DIN EN ISO 4032 (DIN 934) - M6Superficie:Conjunto de montaje: GalvanizadoTip:Compatible Cover Cap for Tubular Frame Connectors D30 see 099RV30CC06

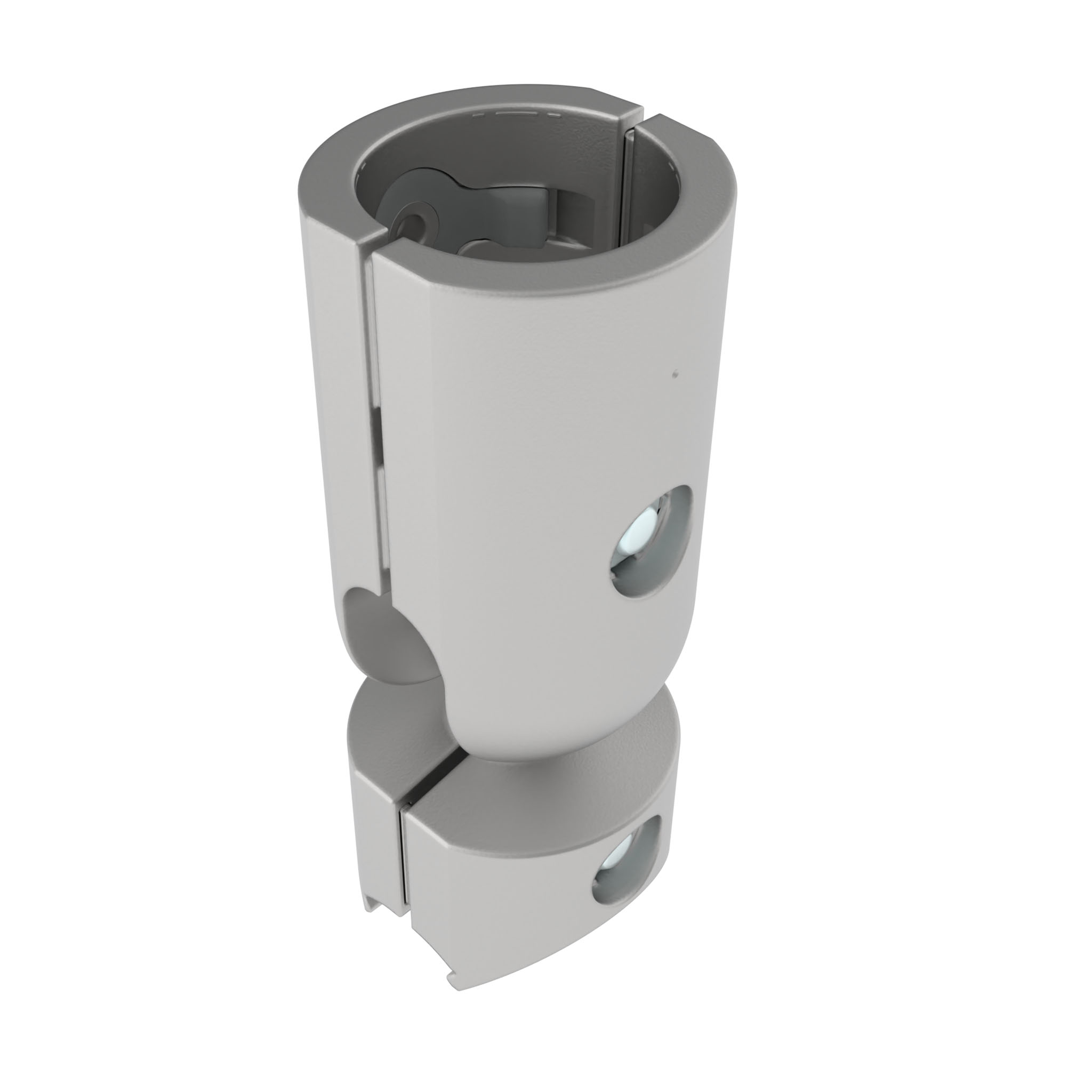

Outer Ball Connector D30 (Set)
Países de Entrega:En todo el mundoDescription:To connect two tubular frame profiles with Ø 30 mm outer diameter at variable angles, with pre-centering; completely pre-assembled setMaterial:Connector: Aluminum die-cast Assembly set: SteelSet:4 components for outer ball connector D30, 2 screws DIN EN ISO 4762 (DIN 912) - M6 x 28, 2 self-locking nuts DIN EN ISO 4032 (DIN 934) - M6Superficie:Conjunto de montaje: GalvanizadoTip:Compatible Cover Cap for Tubular Frame Connectors D30 see 099RV30CC06

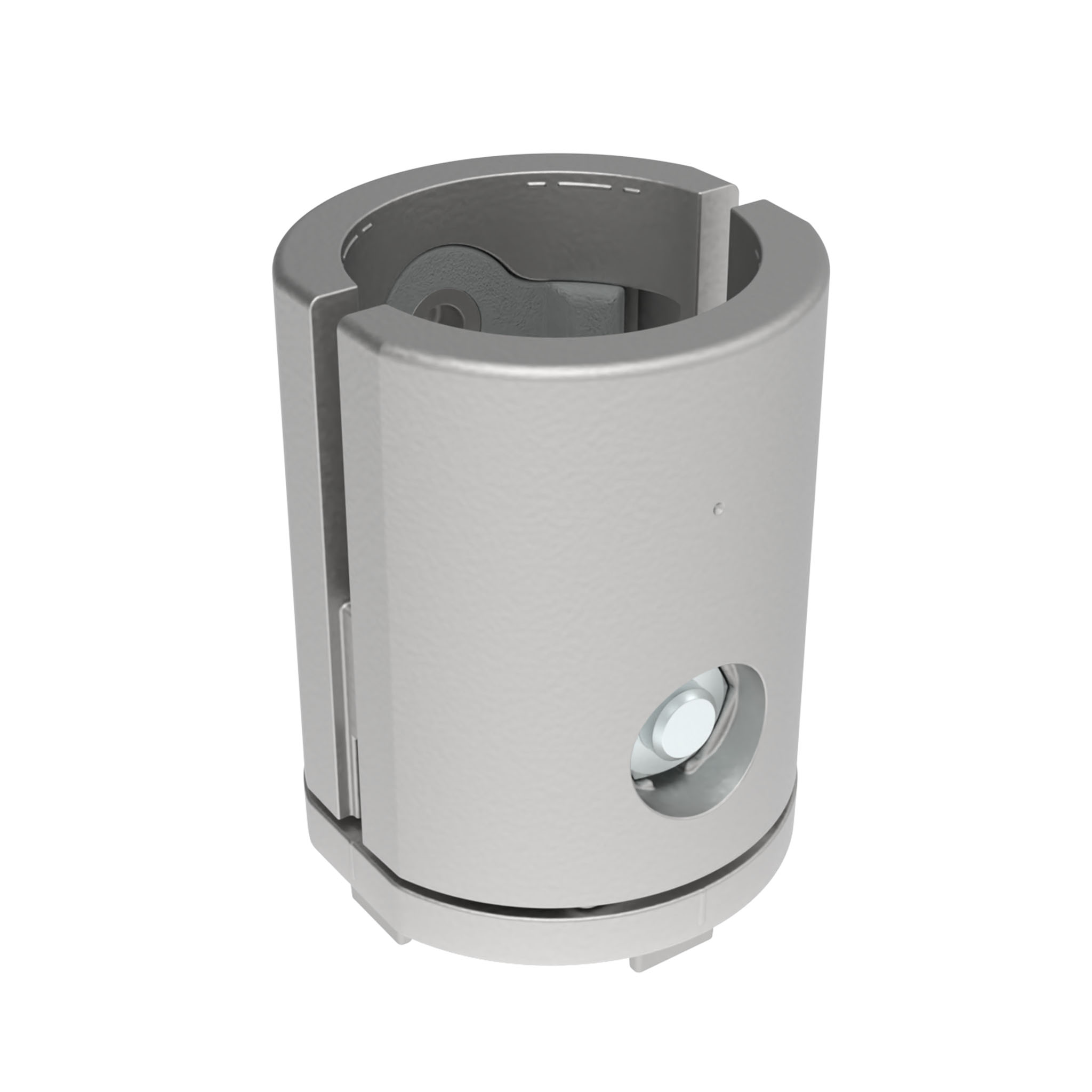

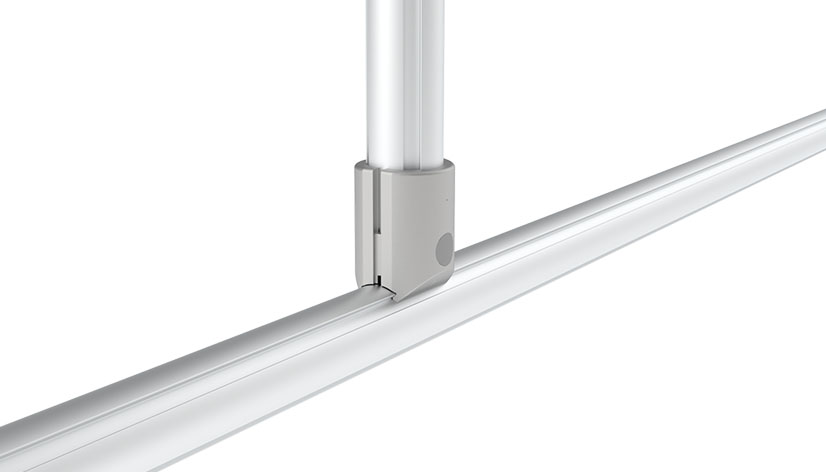

Outer T-connector D30 - Slot 8 (Set)
Países de Entrega:En todo el mundoDescription:To connect a tubular frame profile with Ø 30 mm outer diameter with a slot 8 aluminum profileFastening:On profile I - slot 8 - using screw DIN EN ISO 7380 (DIN 34805) - M6 x 14Material:Connector: Aluminum die-cast Adapter plate: Aluminum die-cast Assembly set: SteelSet:2 components for outer T-connector D30 - slot 8 1 adapter plate 1 screw DIN EN ISO 4762 (DIN 912) - M6 x 28 1 self locking nut DIN EN ISO 4032 (DIN 934) - M6Superficie:Conjunto de montaje: GalvanizadoTip:Compatible Cover Cap for Tubular Frame Connectors D30 see 099RV30CC06

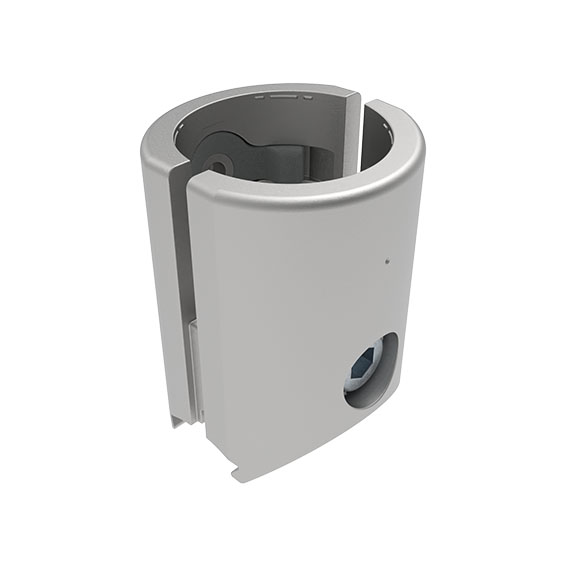

Outer T-Connector D30 (Set)
Países de Entrega:En todo el mundoDescription:To connect two tubular frame profiles with Ø 30 mm outer diameter at right anglesMaterial:Connector: Aluminum die-cast Assembly set: SteelSet:2 components for outer T-connector D30, 1 screw DIN EN ISO 4762 (DIN 912) - M6 x 28, 1 self-locking nut DIN EN ISO 4032 (DIN 934) - M6Superficie:Conjunto de montaje: GalvanizadoTip:Compatible Cover Cap for Tubular Frame Connectors D30 see 099RV30CC06

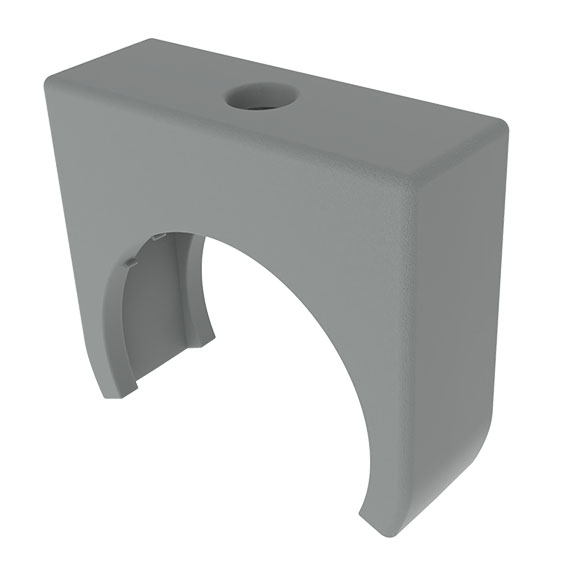

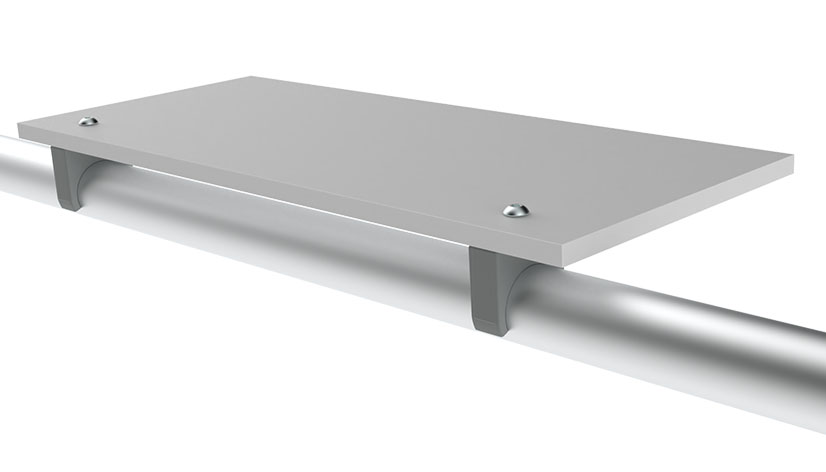

Panel Clip D30
Color:Gris ≈ RAL 7042Países de Entrega:En todo el mundoDescription:To temporarelly attach panels to tubes or tubular frame profiles with Ø 30 mm outer diameter; For screwing the surface element a hexagon nut M5 can be inserted in the panel clip D30Material:Plástico PA, bola de vidrio reforzadoTip:Compatible Hexagon Nuts see 4DIN934M5M

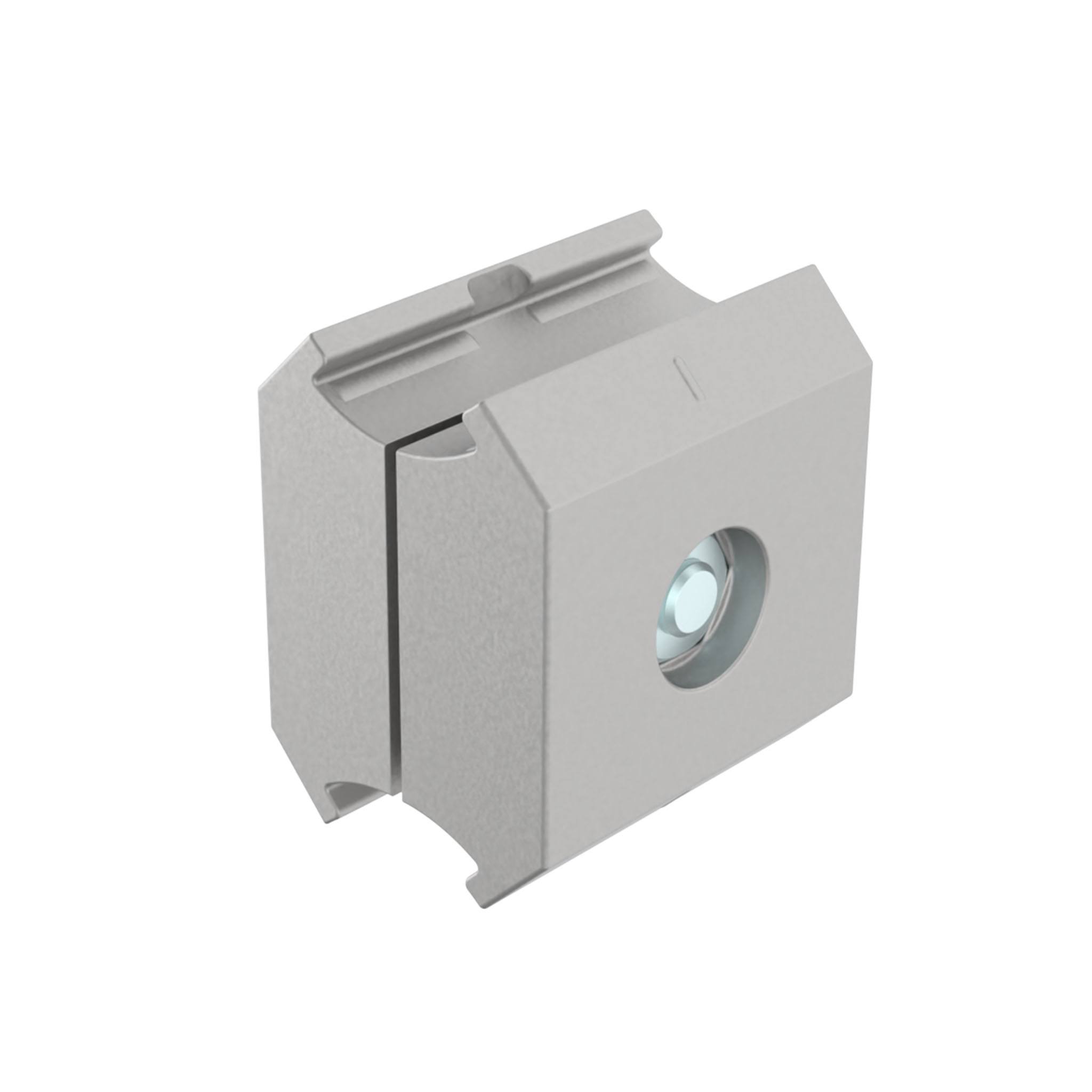

Parallel Connector D30 (Set)
Países de Entrega:En todo el mundoDescription:To parallelly connect two tubular frame profiles with Ø 30 mm outer diameter; with pre-centering; completely pre-assembled setMaterial:Connector: Aluminum die-cast Assembly set: SteelSet:2 components for parallel connector D30, 1 screw DIN EN ISO 4762 (DIN 912) - M6 x 20, 1 self-locking nut DIN EN ISO 4032 (DIN 934) - M6Superficie:Conjunto de montaje: GalvanizadoTip:Compatible Cover Caps for Tubular Frame Connectors D30 see 099RV30CC07

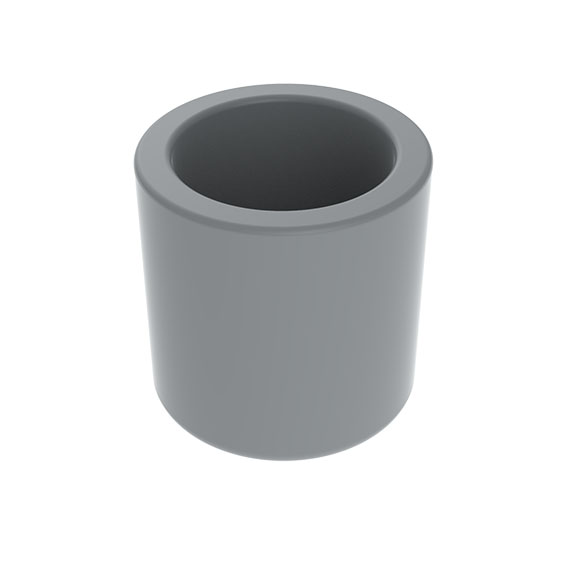

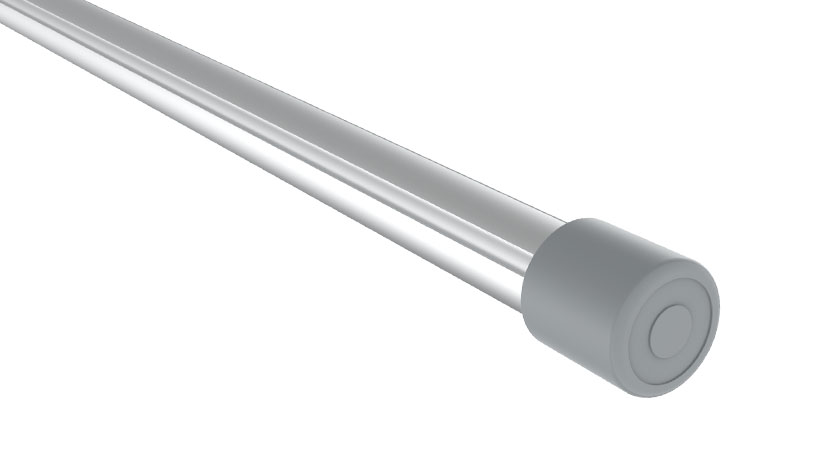

Protection Cap D30
Color:Gris ≈ RAL 7042Países de Entrega:En todo el mundoDescription:To prevent damages, scratches or injuries by the end of tubular frame profiles with Ø 30 mm outer diameter; End-position damping in Karakuri/LCA applications; Prevents movement of tubular frame profiles on slippery surfaces and absorbs some vibration; Punch through safe due to added steel inlay, elastic and surrounding designMaterial:Protection cap: Plastic TPE Inlay: SteelEspeciales:Otros colores, otros tamaños bajo pedidoSurface:Inlay: Zinc plated

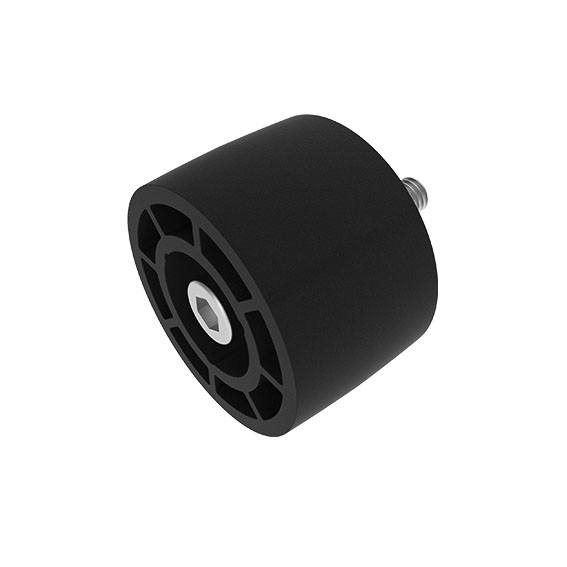

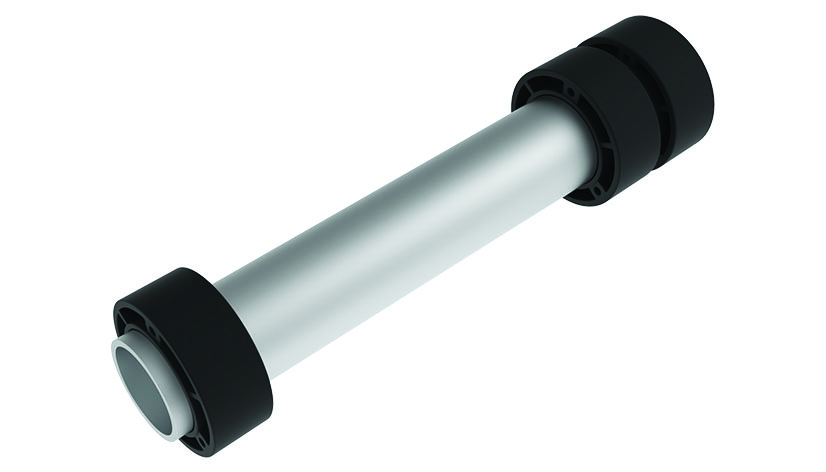

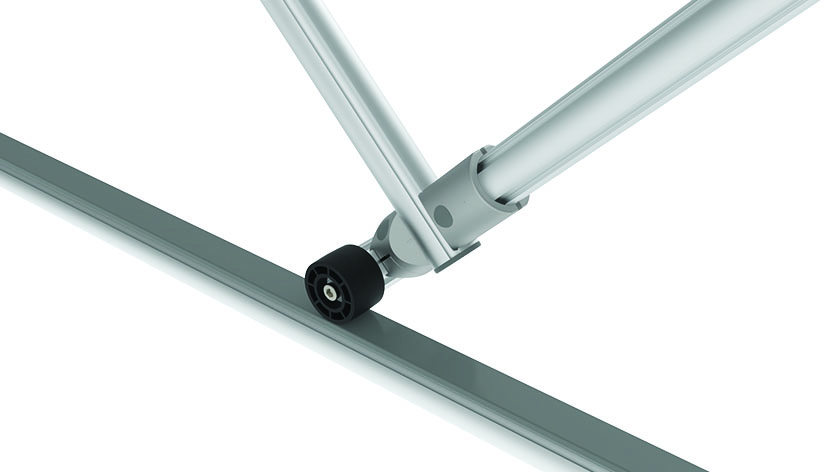

Roller Ø 39.5 for Tubular Frame Profiles (Set)
Color:NegroPaíses de Entrega:En todo el mundoDescription:To guide moving parts on a slide rail attached to the aluminum profile or as lateral guide for moved goods ; With ball bearingMaterial:Plástico PA, bola de vidrio reforzadoSet:1 Roller 1 screw DIN EN ISO 4762 (DIN 912) M6 x 35, zinc plated steel 2 washers DIN EN ISO 7089 (DIN 125) - 6.4

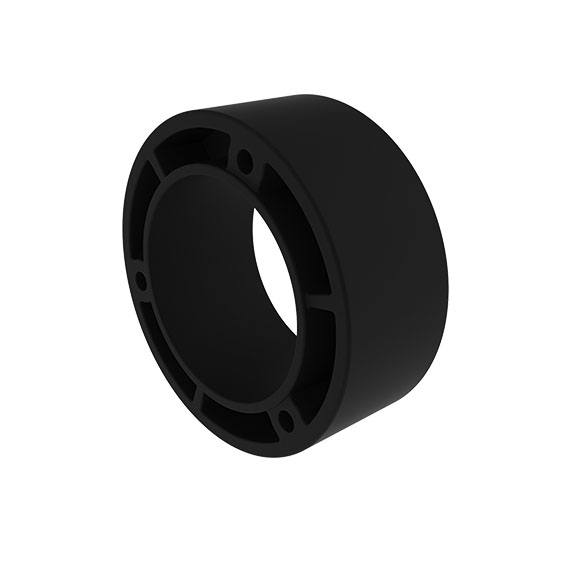

Roller Ø 46.5 for Tubular Frame Profiles
Color:NegroPaíses de Entrega:En todo el mundoDescription:For lateral guiding or supporting at the transition from roller tracksMaterial:Plastic PA, carbon fiber reinforced

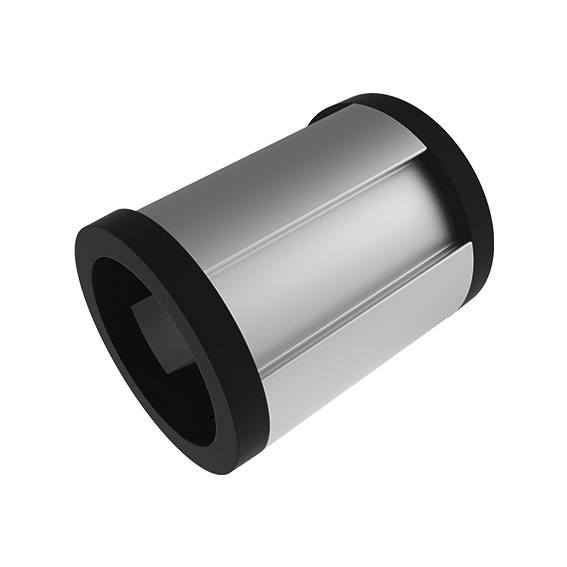

Slide Bearing D40/D30
Países de Entrega:En todo el mundoDescription:For low-friction movement on tubular frame profiles, allows radial and linear movementMaterial:Plástico POM
