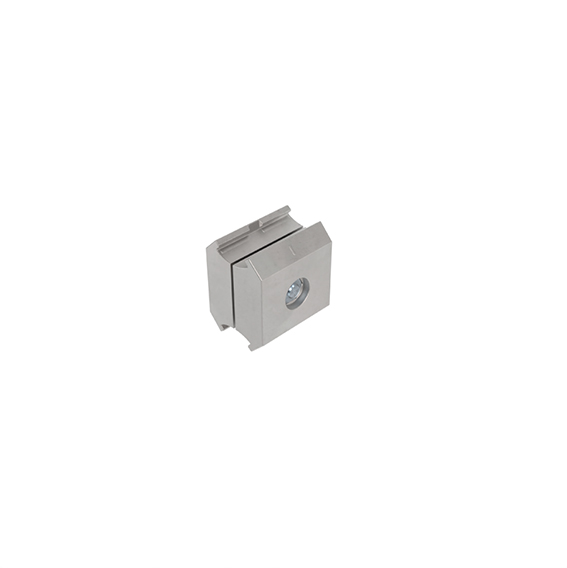

Parallel Connector D30 (Set)
Número de producto:
099RV30PS02
Información sobre el producto "Parallel Connector D30 (Set)"
Países de Entrega:
En todo el mundo
Description:

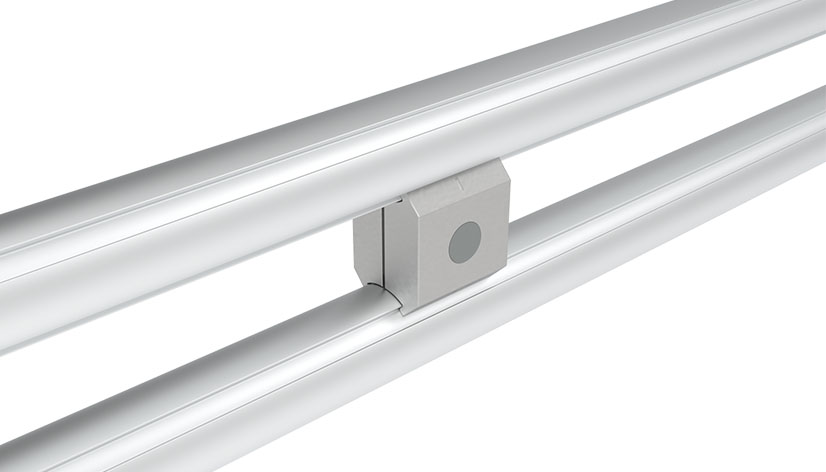

To parallelly connect two tubular frame profiles with Ø 30 mm outer diameter; with pre-centering; completely pre-assembled set
Material:
Connector: Aluminum die-cast
Assembly set: Steel
Set:
2 components for parallel connector D30,
1 screw DIN EN ISO 4762 (DIN 912) - M6 x 20,
1 self-locking nut DIN EN ISO 4032 (DIN 934) - M6
Superficie:
Conjunto de montaje: Galvanizado
Tip:
Compatible Cover Caps for Tubular Frame Connectors D30 see 099RV30CC07
En todo el mundo
Description:
To parallelly connect two tubular frame profiles with Ø 30 mm outer diameter; with pre-centering; completely pre-assembled set
Material:
Connector: Aluminum die-cast
Assembly set: Steel
Set:
2 components for parallel connector D30,
1 screw DIN EN ISO 4762 (DIN 912) - M6 x 20,
1 self-locking nut DIN EN ISO 4032 (DIN 934) - M6
Superficie:
Conjunto de montaje: Galvanizado
Tip:
Compatible Cover Caps for Tubular Frame Connectors D30 see 099RV30CC07
| (ECLASS 6.0): | 23360290 |
|---|---|
| (ECLASS 7.0): | 23360290 |
| (ECLASS 8.0): | 23360290 |
| (ECLASS 9.0): | 23360290 |
| (ECLASS 10.0): | 23360290 |
| (ECLASS 11.0): | 23360290 |
| (ECLASS 12.0): | 23360290 |
| (ECLASS 13.0): | 23360290 |
| Cantidad por Paquete: | 10 conjuntos |
| Model: | For tubular frame profiles |
| Numero de ERP: | 146929 |
| Número de Arancel Aduanero de Exportación: | 76169910 |
| Peso (g): | 79.8 |
| Zolltarifnummer: | 76169910990 |
