Connectors D30

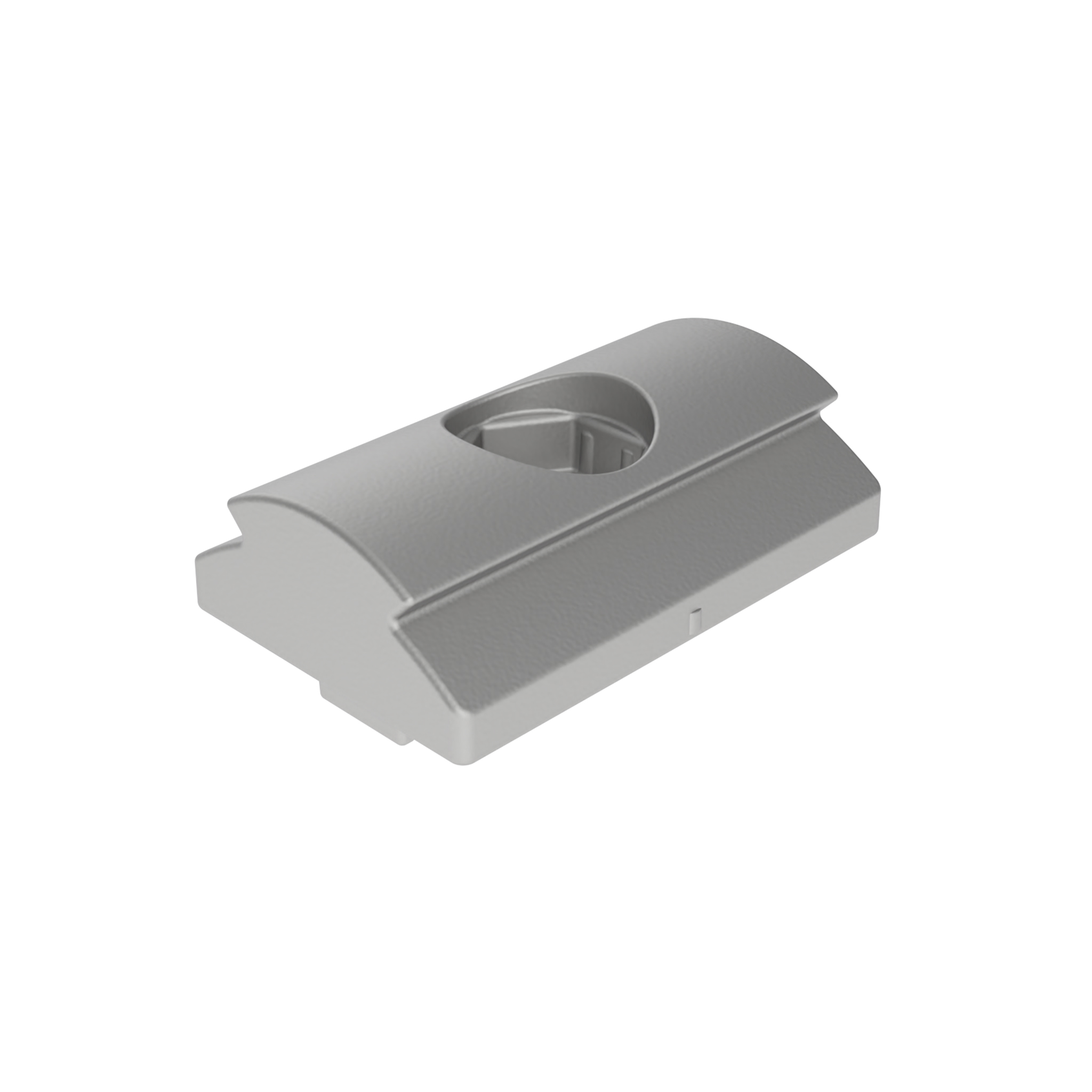

Adapter Piece D30, Slot 8
Color:V_PlainPaíses de Entrega:En todo el mundoDescription:To connect tubular frame profiles with slot 8 aluminum profilesMaterial:Aluminio fundido a presiónTip:Compatible Outer Ball Connector D30 (Set) see 099RV30KS01 Compatible Outer T-Connector D30 (Set) see 099RV3090LS01 Compatible Cross Ball Connector D30 (Set) see 099RV30KS04 Compatible Cross Connector D30 (Set) see 099RV30XS01 Compatible Parallel Connector D30 (Set) see 099RV30PS02 Compatible Angle Connector 2D30 (Set) see 099RV3090QS01 Compatible Angle Connector D30, 45° (Set) see 099RV3045S01 Compatible T-slot Nut see 096006

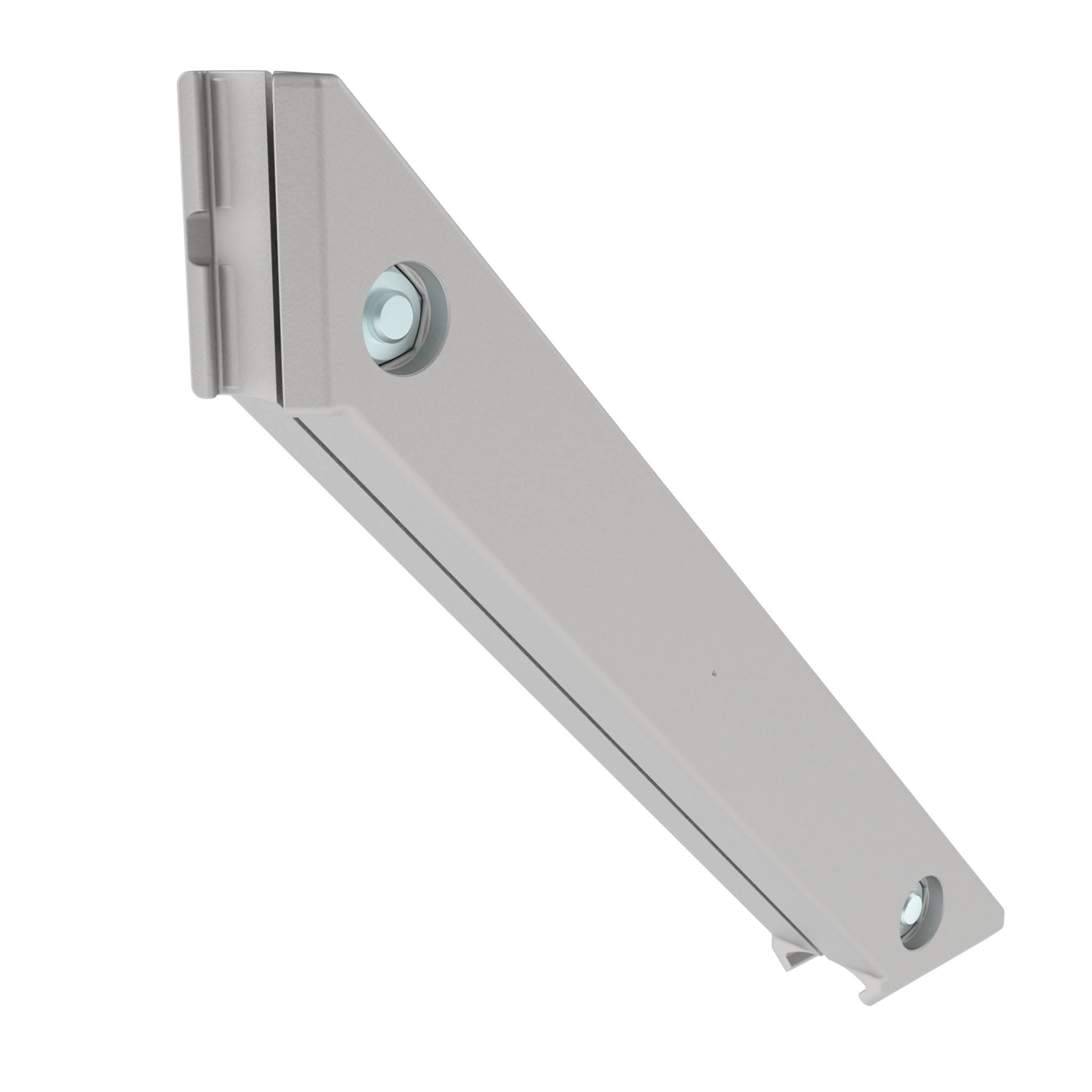

Angle Connector 2D30 (Set)
Países de Entrega:En todo el mundoDescription:To connect two tubular frame profiles with Ø 30 mm outer diameter at right angle; Completely pre-assembled setMaterial:Connector: Aluminum die-cast Assembly set: SteelSet:2 components for angle connector 2D30, 2 screws DIN EN ISO 4762 (DIN 912) - M6 x 14, 2 self-locking nuts DIN EN ISO 4032 (DIN 934) - M6Superficie:Conjunto de montaje: GalvanizadoTip:Compatible Cover Cap for Tubular Frame Connectors D30 see 099RV30CC07

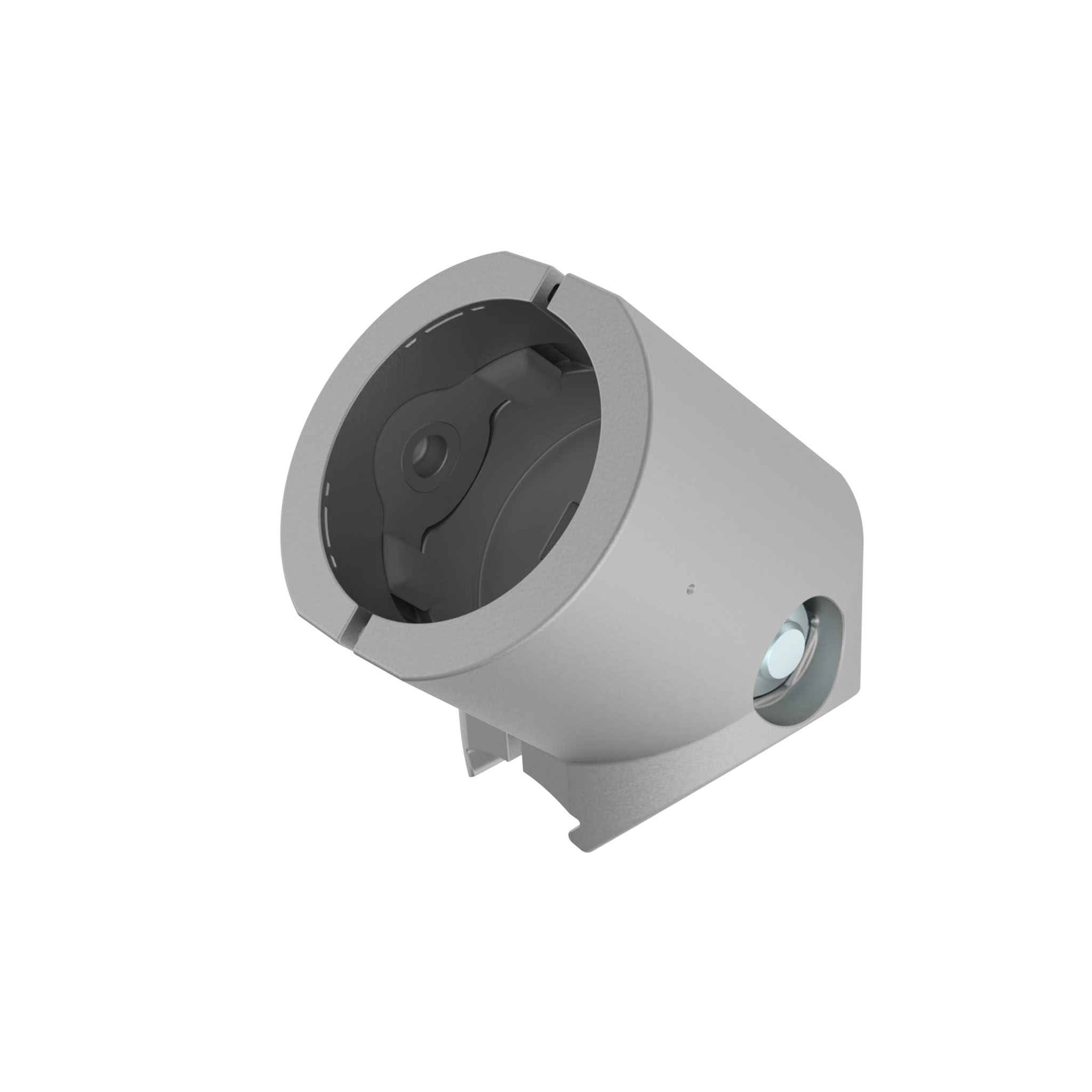

Angle Connector D30, 45° (Set)
Países de Entrega:En todo el mundoDescription:To connect two tubular frame profileswith Ø 30 mm outer diameterat 45°; with pre-centering; completely pre-assembled setMaterial:Connector: Aluminum die-cast Assembly set: SteelSet:2 components for angle connector D30, 45°, 1 screw DIN EN ISO 4762 (DIN 912) - M6 x 28, 1 self-locking nut DIN EN ISO 4032 (DIN 934) - M6Superficie:Conjunto de montaje: GalvanizadoTip:Compatible Cover Cap for Tubular Frame Connectors D30 see 099RV30CC06

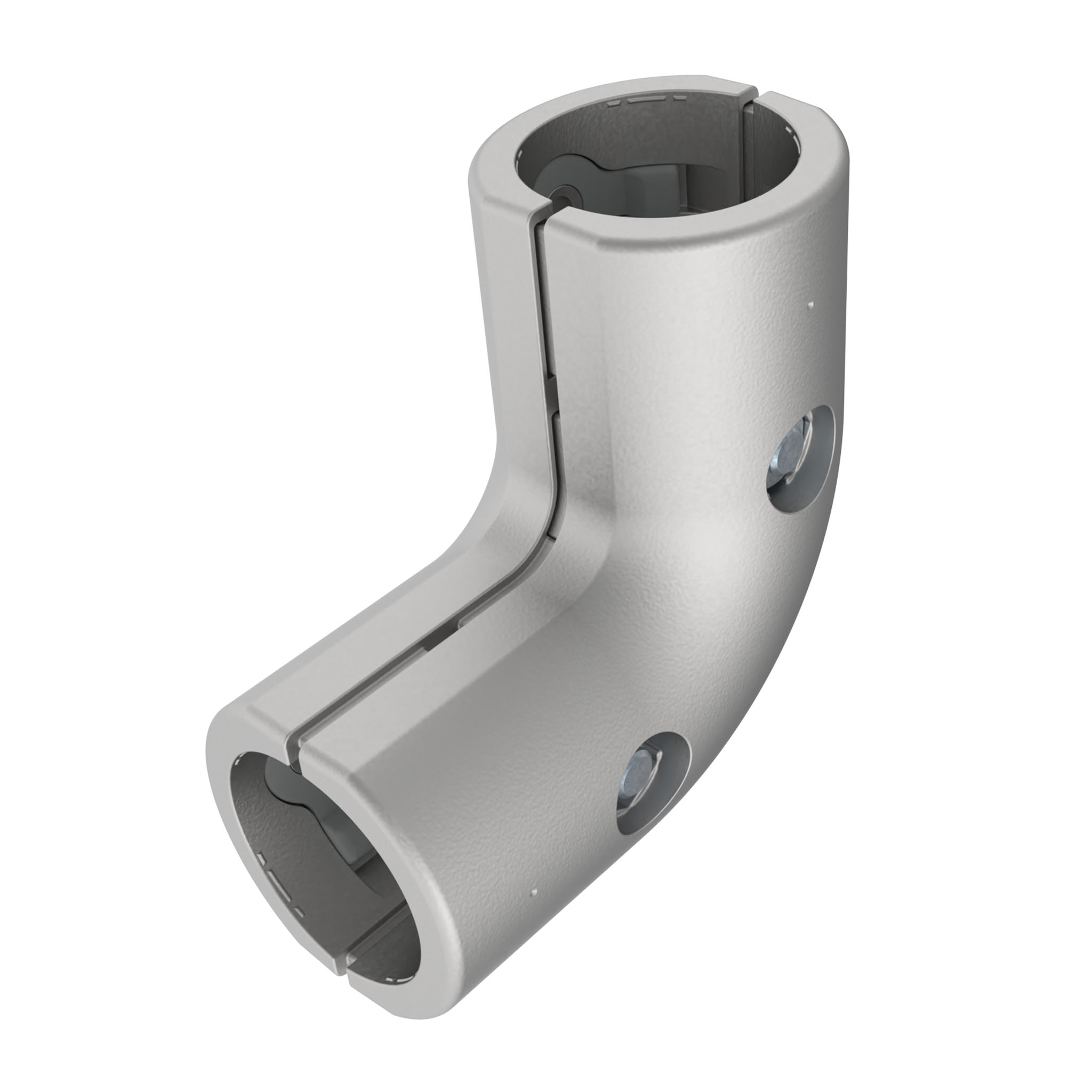

Corner Connector 2D30 (Set)
Países de Entrega:En todo el mundoDescription:To connect two tubular frame profiles with Ø 30 mm outer diameter at right angles; with pre-centering; completely pre-assembled setMaterial:Connector: Aluminum die-cast Assembly set: SteelSet:2 components for corner connector 2D30, 2 screw DIN EN ISO 4762 (DIN 912) - M6 x 25, 2 self-locking nuts DIN EN ISO 4032 (DIN 934) - M6Superficie:Conjunto de montaje: GalvanizadoTip:Compatible Cover Cap for Tubular Frame Profile Connector D30 see 099RV30CC06

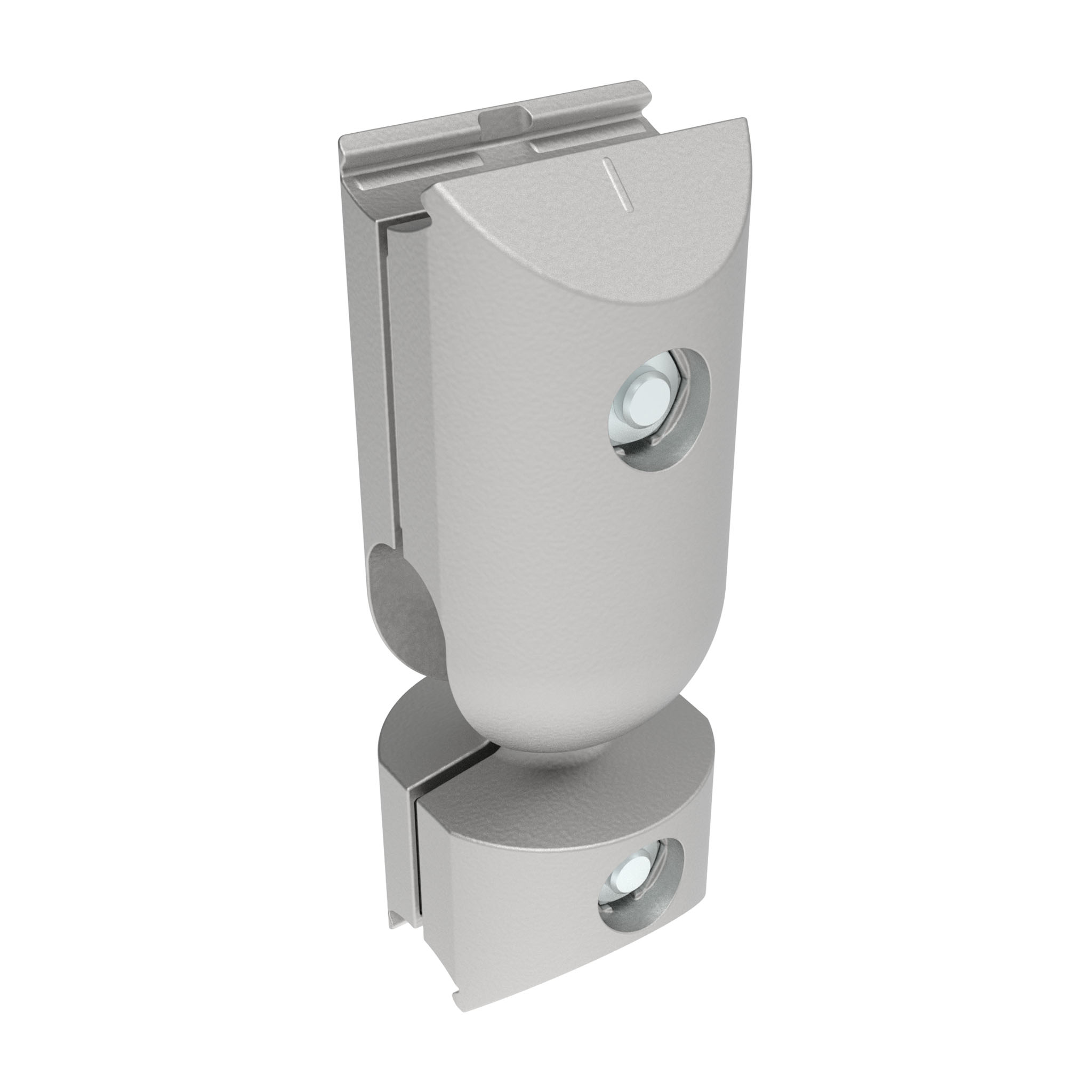

Cross Ball Connector D30 (Set)
Países de Entrega:En todo el mundoDescription:To cross connect two tubular frame profiles with Ø 30 mm outer diameter at variable angles, with pre-centering; completely pre-assembled setMaterial:Connector: Aluminum die-cast Assembly set: SteelSet:4 cross ball connector D30, 2 screws DIN EN ISO 4762 (DIN 912) - M6 x 28, 2 self-locking nuts DIN EN ISO 4032 (DIN 934) - M6Superficie:Conjunto de montaje: GalvanizadoTip:Compatible Cover Cap for Tubular Frame Connectors D30 see 099RV30CC06

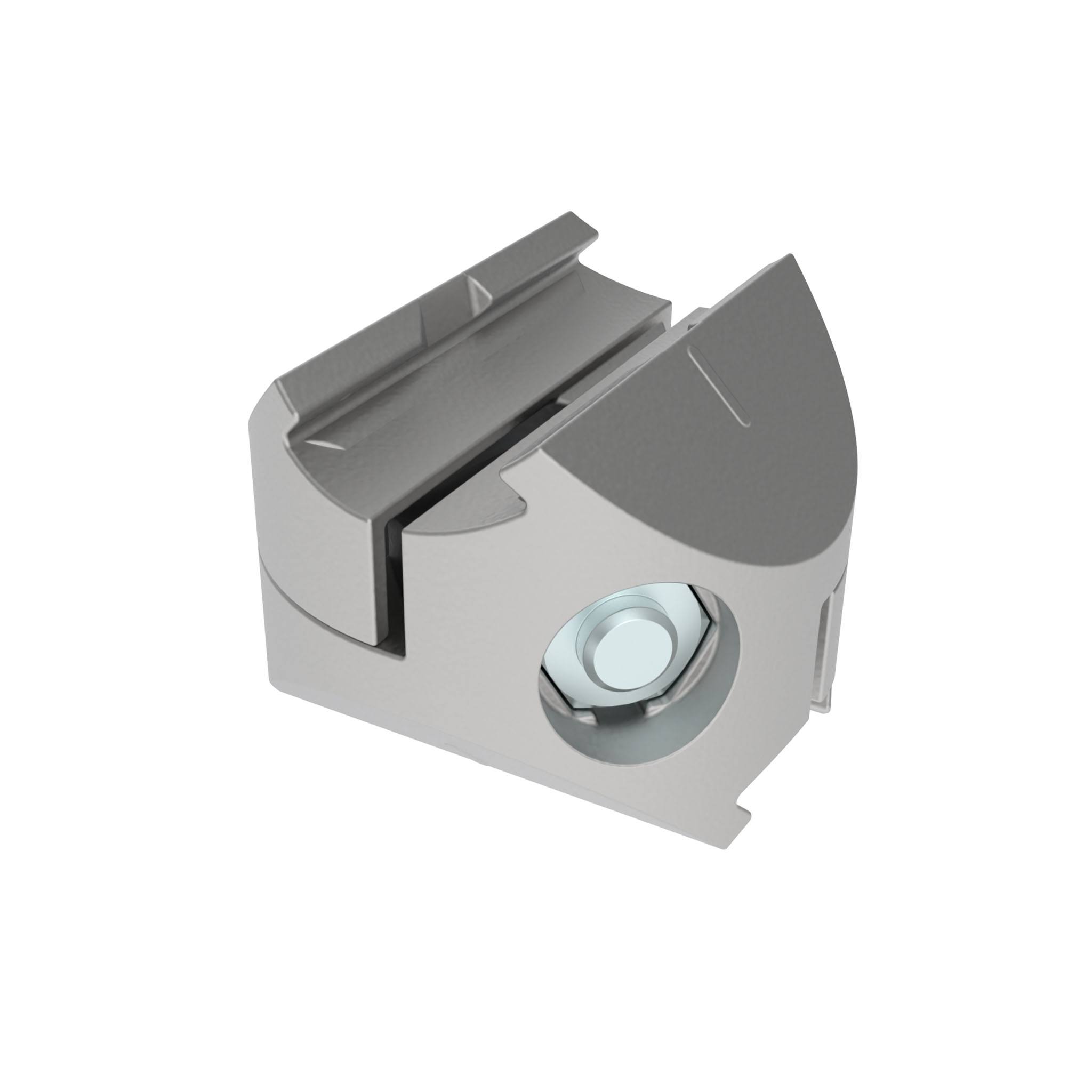

Cross Connector D30 (Set)
Países de Entrega:En todo el mundoDescription:To cross connect two tubular frame profiles with Ø 30 mm outer diameter; Completely pre-assembled setMaterial:Connector: Aluminum die-cast Assembly set: SteelSet:2 components for cross connector D30, 1 screw DIN EN ISO 4762 (DIN 912) - M6 x 30, 1 self-locking nut DIN EN ISO 4032 (DIN 934) - M6Superficie:Conjunto de montaje: GalvanizadoTip:Compatible Cover Cap for Tubular Frame Connectors D30 see 099RV30CC06

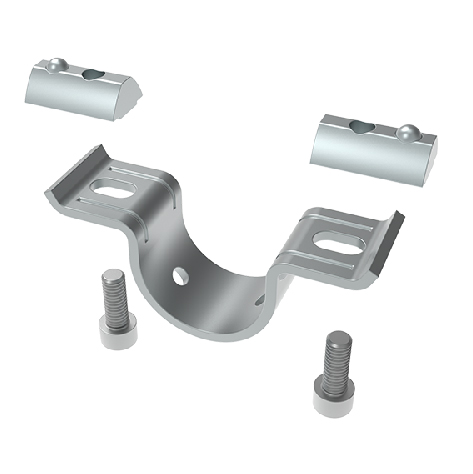

Mounting Bracket D30 (Set)
Países de Entrega:En todo el mundoDescription:To support an roller track AL or a aluminum profile slot 8 on a crossing tubular frame profile with Ø 30 mm outer diameterMaterial:AceroSet:1 mounting bracket, 2 T-slot nuts - slot 8 - M6, 2 screws DIN EN ISO 4762 (DIN 912) - M6 x 16Superficie:Galvanizado

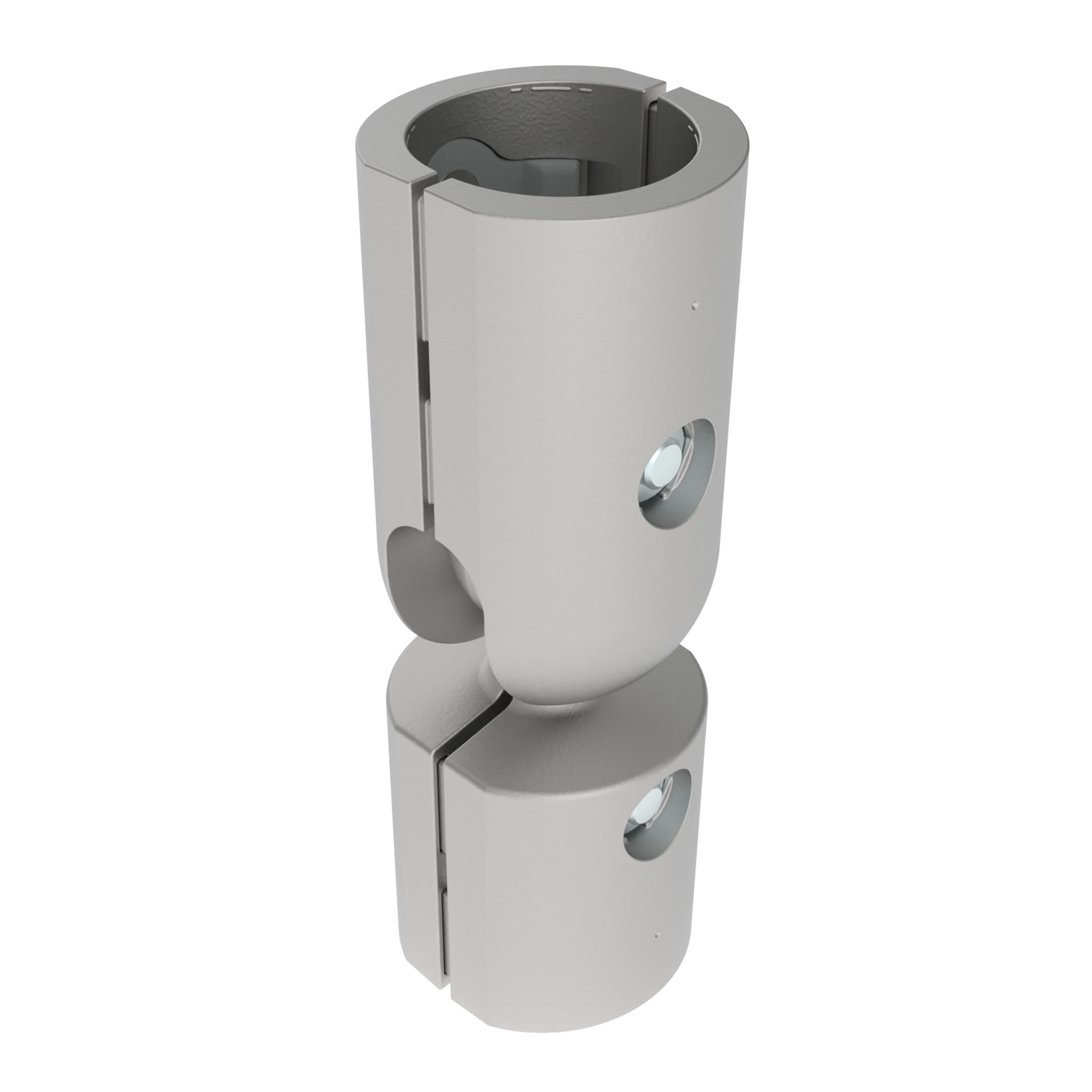

Outer Ball Butt Connector D30 (Set)
Países de Entrega:En todo el mundoDescription:To connect two tubular frame profiles with Ø 30 mm outer diameter at variable angles, with pre-centering; completely pre-assembled setMaterial:Connector: Aluminum die-cast Assembly set: SteelSet:4 components for outer ball butt connector D30, 2 screws DIN EN ISO 4762 (DIN 912) - M6 x 30, 2 self-locking nuts DIN EN ISO 4032 (DIN 934) - M6Superficie:Conjunto de montaje: GalvanizadoTip:Compatible Cover Cap for Tubular Frame Connectors D30 see 099RV30CC06

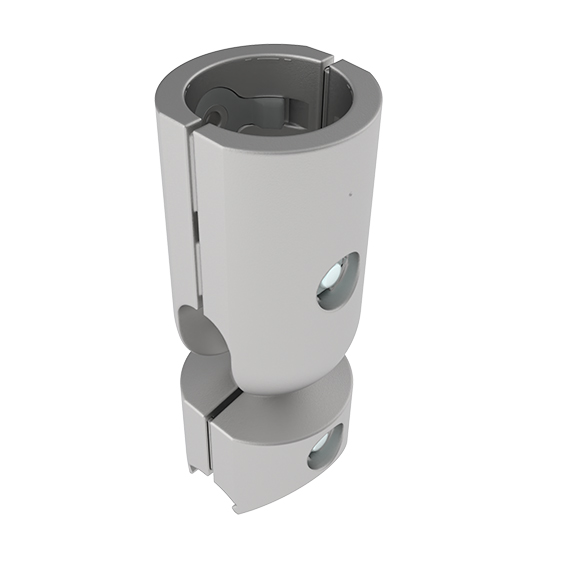

Outer Ball Connector D30 (Set)
Países de Entrega:En todo el mundoDescription:To connect two tubular frame profiles with Ø 30 mm outer diameter at variable angles, with pre-centering; completely pre-assembled setMaterial:Connector: Aluminum die-cast Assembly set: SteelSet:4 components for outer ball connector D30, 2 screws DIN EN ISO 4762 (DIN 912) - M6 x 28, 2 self-locking nuts DIN EN ISO 4032 (DIN 934) - M6Superficie:Conjunto de montaje: GalvanizadoTip:Compatible Cover Cap for Tubular Frame Connectors D30 see 099RV30CC06

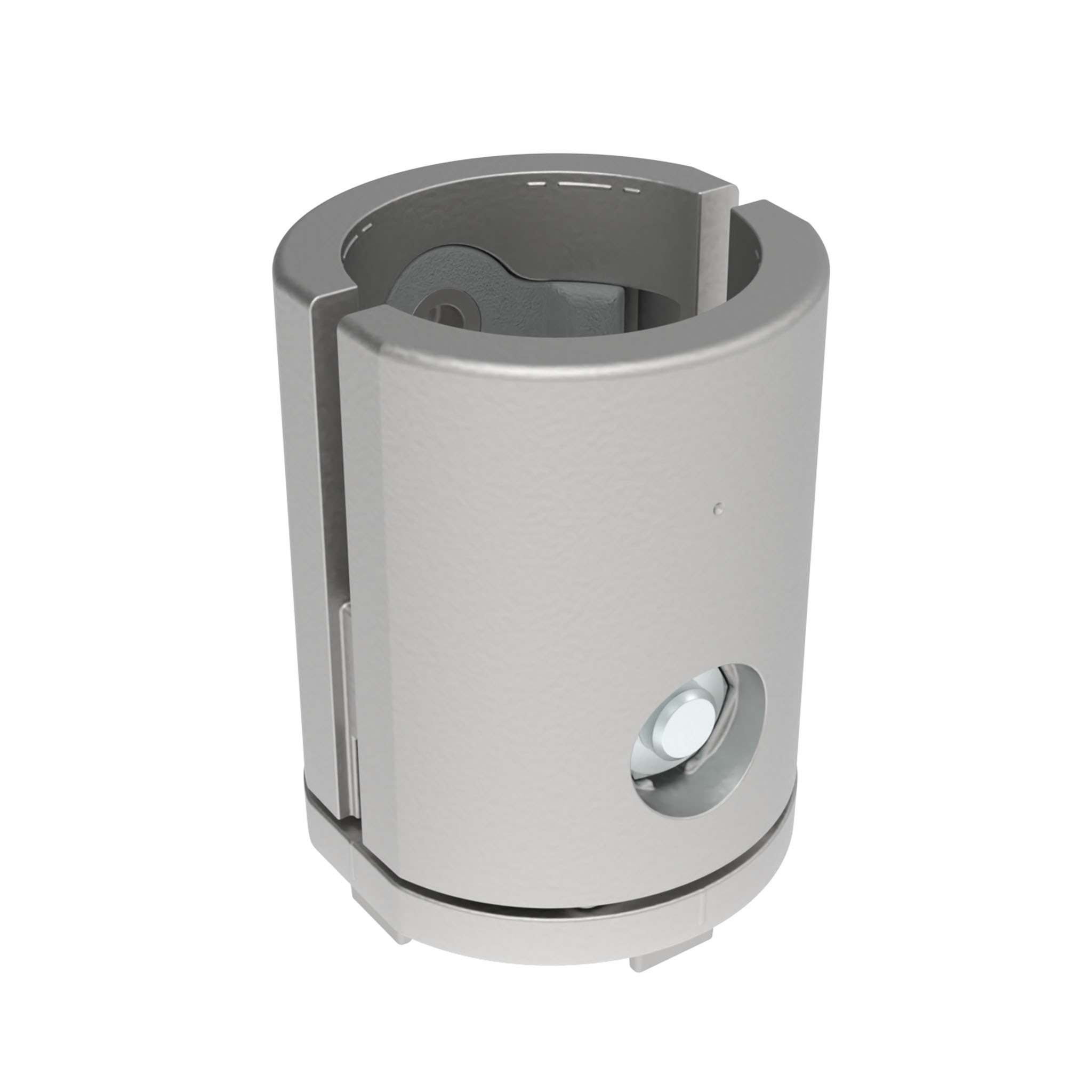

Outer T-connector D30 - Slot 8 (Set)
Países de Entrega:En todo el mundoDescription:To connect a tubular frame profile with Ø 30 mm outer diameter with a slot 8 aluminum profileFastening:On profile I - slot 8 - using screw DIN EN ISO 7380 (DIN 34805) - M6 x 14Material:Connector: Aluminum die-cast Adapter plate: Aluminum die-cast Assembly set: SteelSet:2 components for outer T-connector D30 - slot 8 1 adapter plate 1 screw DIN EN ISO 4762 (DIN 912) - M6 x 28 1 self locking nut DIN EN ISO 4032 (DIN 934) - M6Superficie:Conjunto de montaje: GalvanizadoTip:Compatible Cover Cap for Tubular Frame Connectors D30 see 099RV30CC06

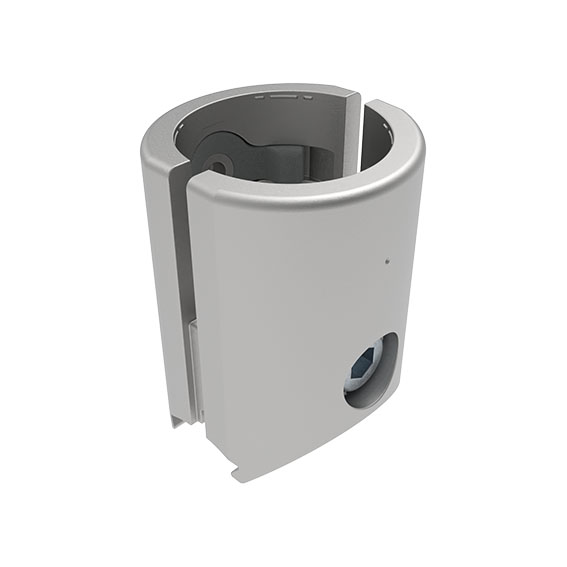

Outer T-Connector D30 (Set)
Países de Entrega:En todo el mundoDescription:To connect two tubular frame profiles with Ø 30 mm outer diameter at right anglesMaterial:Connector: Aluminum die-cast Assembly set: SteelSet:2 components for outer T-connector D30, 1 screw DIN EN ISO 4762 (DIN 912) - M6 x 28, 1 self-locking nut DIN EN ISO 4032 (DIN 934) - M6Superficie:Conjunto de montaje: GalvanizadoTip:Compatible Cover Cap for Tubular Frame Connectors D30 see 099RV30CC06

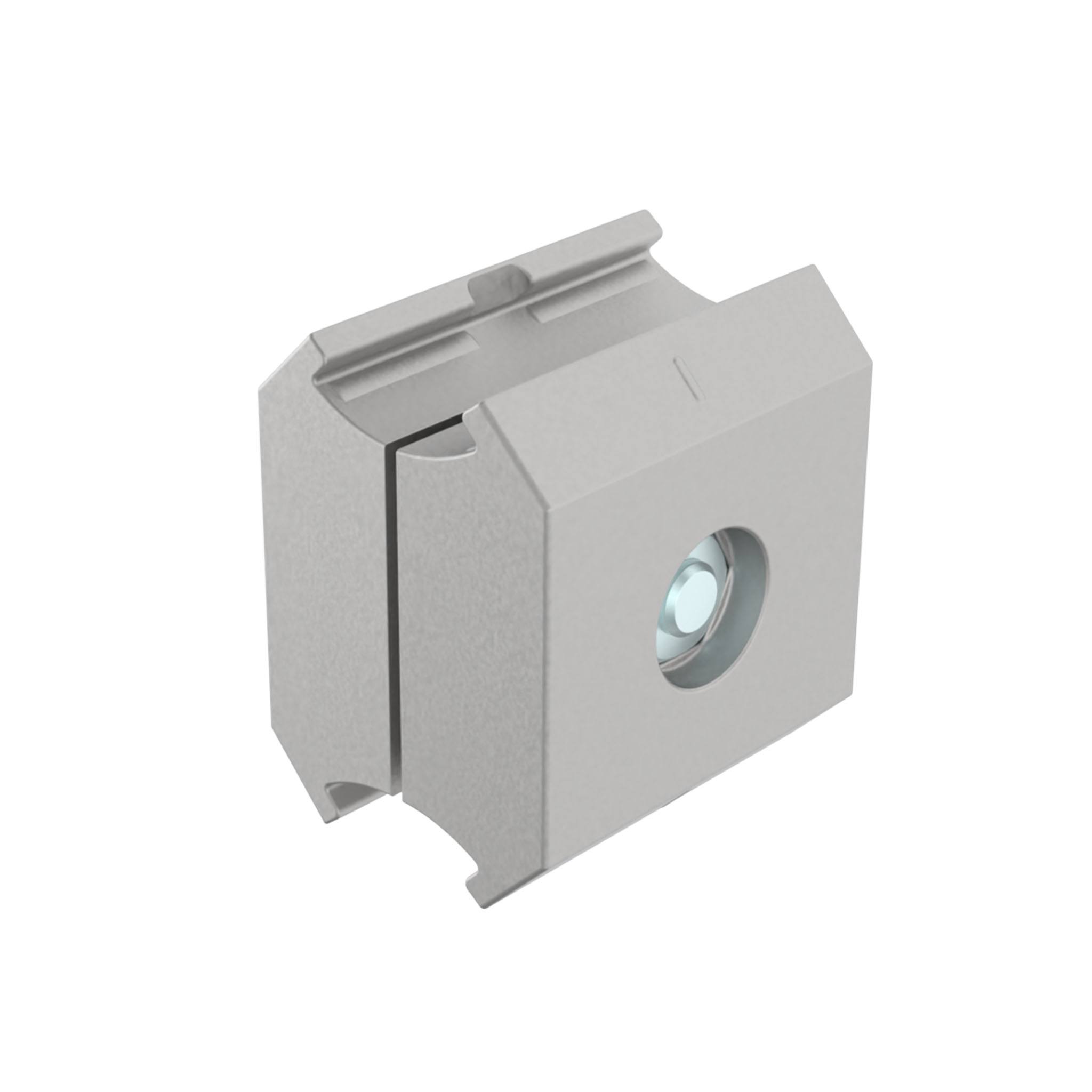

Parallel Connector D30 (Set)
Países de Entrega:En todo el mundoDescription:To parallelly connect two tubular frame profiles with Ø 30 mm outer diameter; with pre-centering; completely pre-assembled setMaterial:Connector: Aluminum die-cast Assembly set: SteelSet:2 components for parallel connector D30, 1 screw DIN EN ISO 4762 (DIN 912) - M6 x 20, 1 self-locking nut DIN EN ISO 4032 (DIN 934) - M6Superficie:Conjunto de montaje: GalvanizadoTip:Compatible Cover Caps for Tubular Frame Connectors D30 see 099RV30CC07
Slide Bearing D40/D30
Países de Entrega:En todo el mundoDescription:For low-friction movement on tubular frame profiles, allows radial and linear movementMaterial:Plástico POM

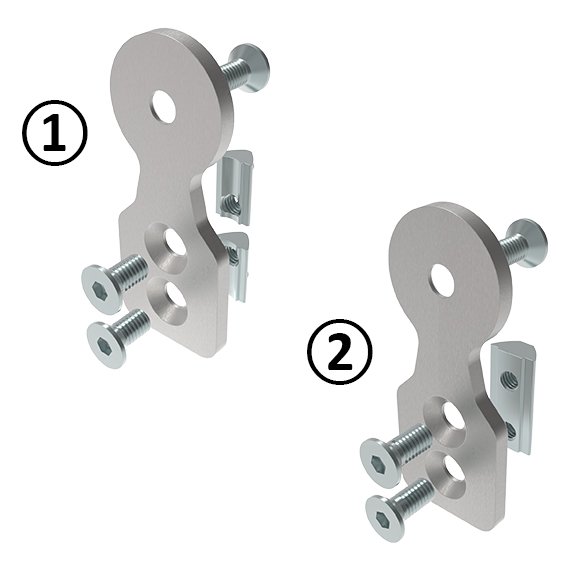

T-Connector Plate D30 (Set)
Países de Entrega:En todo el mundoDescription:To connect a tubular frame profile with Ø 30 mm outer diameter with an aluminum profile at right angles; Screw connetion to the core hole M6 of the tubular frame profile Ø 30 mm or to the threaded sleeve AL D30 M6 for tubular frame profilesMaterial:AceroSet 1:1 T-connector plate, 2 T-slot nuts - slot 6 - M6, 2 screws DIN EN ISO 10642 (DIN 7991) - M6 x 12, 1 screw DIN EN ISO 10642 (DIN 7991) - M6 x 20Set 2:1 T-connector plate, 1 double T-slot nut - slot 8 - 2x M6, 2 screws DIN EN ISO 10642 (DIN 7991) - M6 x 14, 1 screw DIN EN ISO 10642 (DIN 7991) - M6 x 20Superficie:Galvanizado
