Panel Holders D30
Panel Clip D30
Description:To temporarelly attach panels to tubes or tubular frame profiles with Ø 30 mm outer diameter; For screwing the surface element a hexagon nut M5 can be inserted in the panel clip D30Material:Plástico PA, bola de vidrio reforzadoColor:Gris ≈ RAL 7042Tip:Compatible Hexagon Nuts see 4DIN934M5MPaíses de Entrega:En todo el mundo
Top Suspension D30 (Set)
Description:To mount table tops or shelf boards within a frame of tubular frame profiles with Ø 30 mm outer diameterMaterial:AceroSuperficie:GalvanizadoSet:1 top suspension D30 1 self-drilling screws DIN EN ISO 15481 (DIN 7504) - 3.9 x 16Países de Entrega:En todo el mundo
Top Corner Suspension D30 (Set)
Description:For putting in plates, shelf boards or work piece carriers horizontally on tubular frame profiles with Ø 30 mm outer diameter; With holes to screw on tubular frame profile and plateMaterial:Top corner suspension: Steel Screws: SteelSurface:Top corner suspension: Zinc plated; Screws: Zinc platedSet:1 top corner suspension 2 self-drilling screws DIN EN ISO 15481 (DIN 7504) - 3.9 x 16Tip:Please note for cutting table tops to size: Tubular Frame Connectors D30 require a 5 mm gap all the way aroundPaíses de Entrega:En todo el mundo

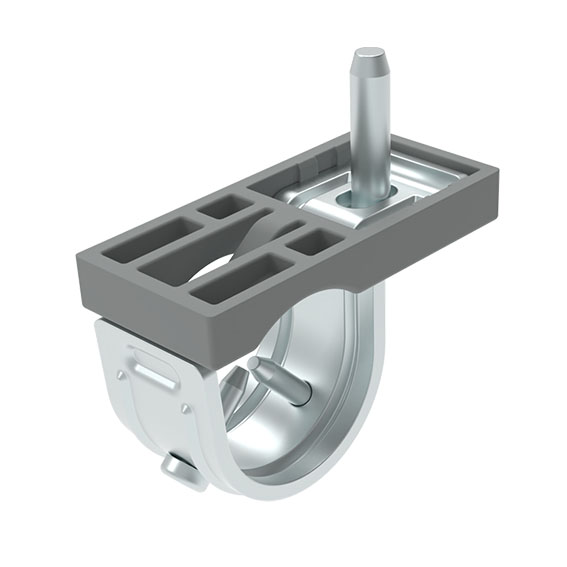

Top Clamp D30 (Set)
Description:To mount wooden table tops or chipboards on a frame of tubular frame profiles with Ø 30 mm outer diameterMaterial:Clamp: Steel Spacer: Plastic PA, glass fiber reinforced Screws: SteelSurface:Clamp: Zinc plated Screws: Zinc platedColor:Spacer: Gray ≈ RAL 7042Set:1 clamp 1 spacer 1 wood screw 6 x 25 2 self-drilling screws DIN EN ISO 15481 (DIN 7504) - 3.9 x 16Países de Entrega:En todo el mundo

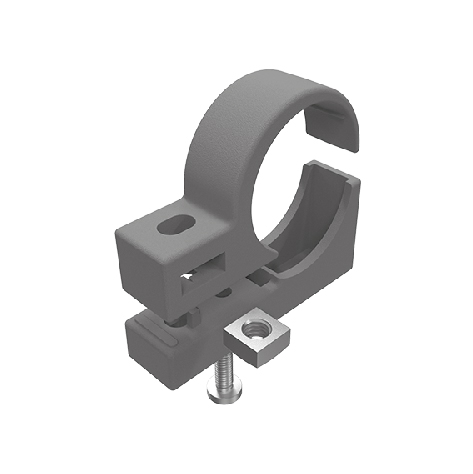

Mounting Clamp D30 (Set)
Description:To attach panels universally to tubes and tubular frame profiles with Ø 30 mm outer diameter; including spacer to position panels over outer tubular frame connectors D30Material:Mounting clamp: Plastic PA Spacer: Plastic PA Assembly set: SteelSuperficie:Conjunto de montaje: GalvanizadoColor:Mounting clamp: Gray Spacer: GraySet:1 mounting clamp 1 spacer 1 square nut DIN 557 - M5 1 self-tapping screw SF4 x 12Países de Entrega:En todo el mundo
