Mounting Clamp D30 (Set)
Número de producto:
093PD30NS01
Información sobre el producto "Mounting Clamp D30 (Set)"
Color:
Mounting clamp: Gray
Spacer: Gray
Países de Entrega:
En todo el mundo
Description:

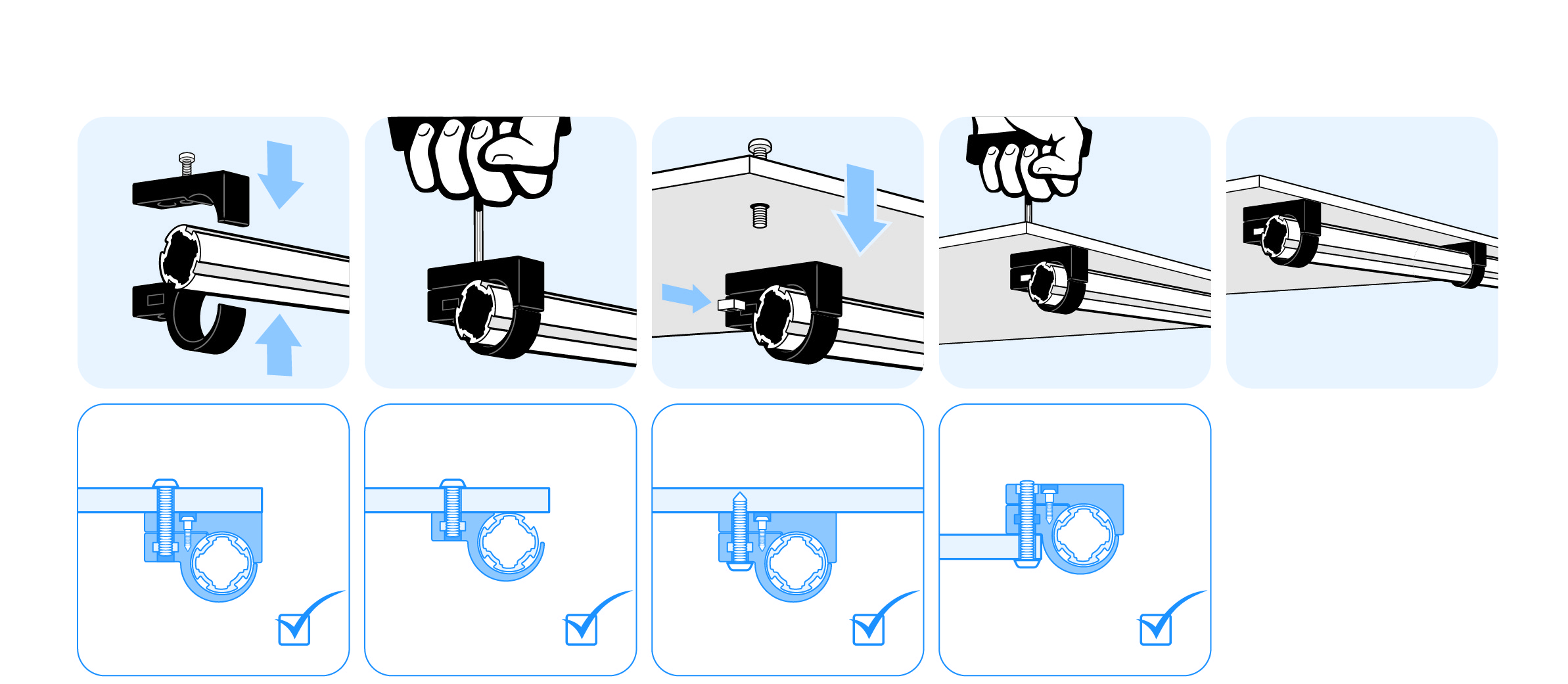

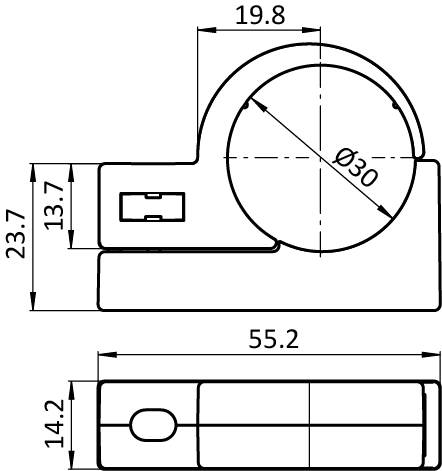

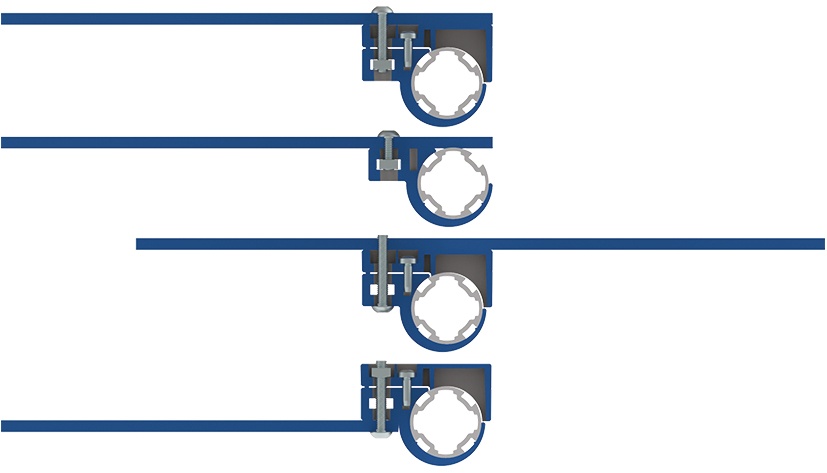

To attach panels universally to tubes and tubular frame profiles with Ø 30 mm outer diameter; including spacer to position panels over outer tubular frame connectors D30
Material:
Mounting clamp: Plastic PA
Spacer: Plastic PA
Assembly set: Steel

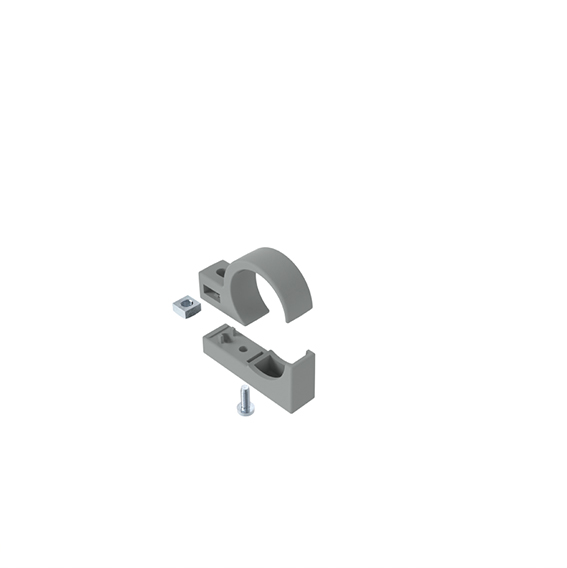

Set:
1 mounting clamp
1 spacer
1 square nut DIN 557 - M5
1 self-tapping screw SF4 x 12
Superficie:
Conjunto de montaje: Galvanizado
Mounting clamp: Gray
Spacer: Gray
Países de Entrega:
En todo el mundo
Description:
To attach panels universally to tubes and tubular frame profiles with Ø 30 mm outer diameter; including spacer to position panels over outer tubular frame connectors D30
Material:
Mounting clamp: Plastic PA
Spacer: Plastic PA
Assembly set: Steel
Set:
1 mounting clamp
1 spacer
1 square nut DIN 557 - M5
1 self-tapping screw SF4 x 12
Superficie:
Conjunto de montaje: Galvanizado
| (ECLASS 6.0): | 23369290 |
|---|---|
| (ECLASS 7.0): | 23369290 |
| (ECLASS 8.0): | 23369290 |
| (ECLASS 9.0): | 23369290 |
| (ECLASS 10.0): | 23369290 |
| (ECLASS 11.0): | 23360492 |
| (ECLASS 12.0): | 23360492 |
| (ECLASS 13.0): | 23360492 |
| Cantidad por Paquete: | 10 conjuntos |
| Model: | For tubular frame profiles |
| Numero de PA: | 147058 |
| Número de Arancel Aduanero de Exportación: | 39269097 |
| Peso (g): | 17.2 |
| Zolltarifnummer: | 39269097900 |
