Brackets D30 for Roller Tracks

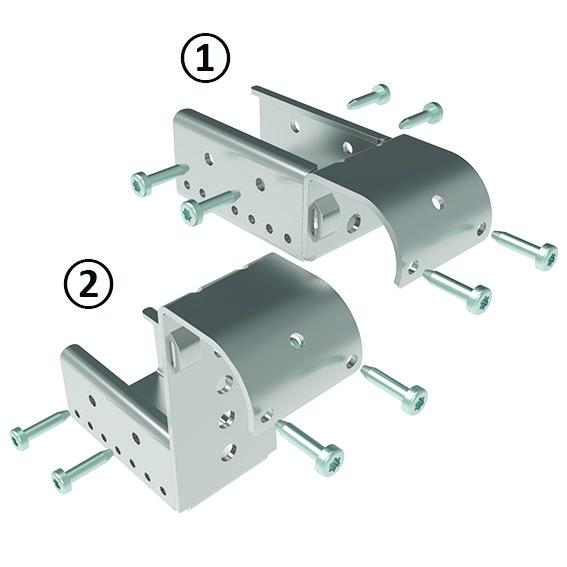

Holding Bracket XST D30
Description:To mount roller tracks XST and guiding rails XST central to tubular frame profiles with Ø 30 mm outer diameter, preventing inserts from slipping outMaterial:AceroSuperficie:GalvanizadoAssembly Set:6 self-drilling screws DIN EN ISO 15481 (DIN 7504) - 3.9 x 16Especiales:Otras superficies, otros colores bajo pedidoPaíses de Entrega:En todo el mundo

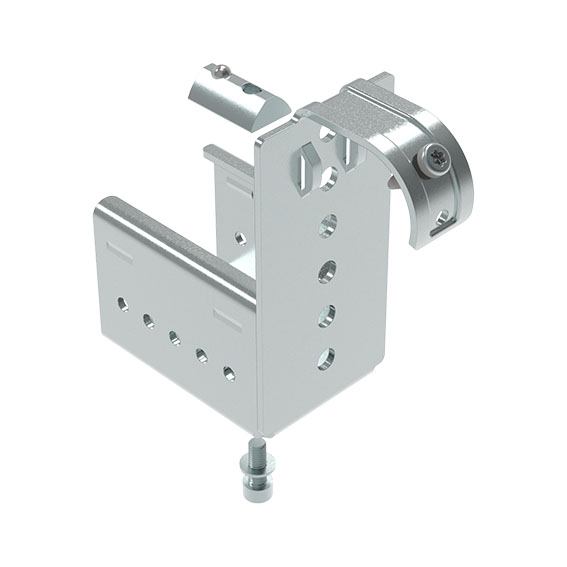

Holding Bracket AL D30
Description:To mount AL roller track profiles to tubular frame profiles with Ø 30 mm outer diameter, preventing inserts from slipping outMaterial:AceroSuperficie:GalvanizadoAssembly Set:1 self-drilling screw DIN EN ISO 15481 (DIN 7504) - 3.9 x 16 1 washer DIN EN ISO 7089 (DIN 125) 1 T-slot nut slot 8 - M5 1 screw DIN EN ISO 4762 (DIN 912) - M5 x 14Países de Entrega:En todo el mundo

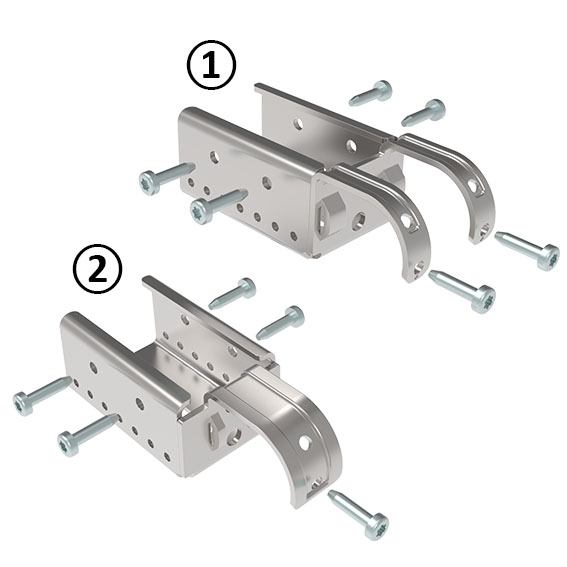

Variable Holding Bracket XST D30
Description:Transition between roller track profiles with varying inclination, to mount roller track profiles XST and guiding rails XST central at different angles to tubular frame profiles with Ø 30 mm outer diameter, preventing inserts from slipping outMaterial:AceroSuperficie:GalvanizadoFastening:with 5 or 6 self-drilling screws DIN EN ISO 15481 (DIN 7504) - 3.9 x 16Especiales:Otras superficies, otros colores bajo pedidoPaíses de Entrega:En todo el mundo

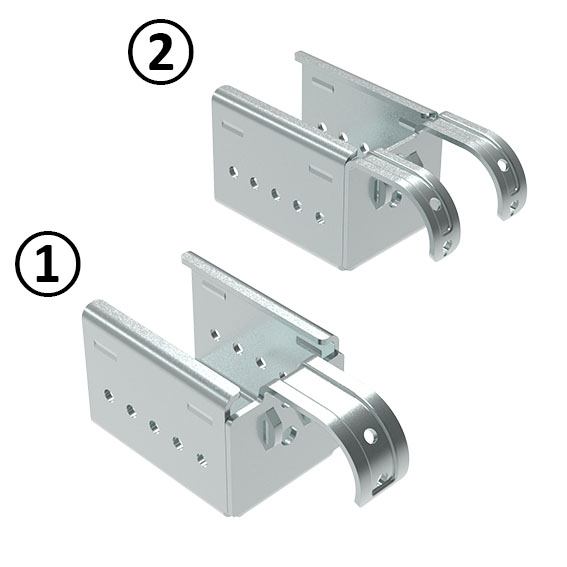

Variable Holding Bracket AL D30
Description:Transition between roller track profiles with varying inclination, to mount roller track profiles AL at different angles to tubular frame profiles with Ø 30 mm outer diameter, preventing inserts from slipping outMaterial:AceroSuperficie:GalvanizadoAssembly Set 1:1 self-drilling screw DIN EN ISO 15481 (DIN 7504) - 3.9 x 16 1 washer DIN EN ISO 7089 (DIN 125) 1 T-slot nut slot 8 - M5 1 screw DIN EN ISO 4762 (DIN 912) - M5 x 14Assembly Set 2:2 self-drilling screw DIN EN ISO 15481 (DIN 7504) - 3.9 x 16 1 washer DIN EN ISO 7089 (DIN 125) 1 T-slot nut slot 8 - M5 1 screw DIN EN ISO 4762 (DIN 912) - M5 x 14Países de Entrega:En todo el mundo

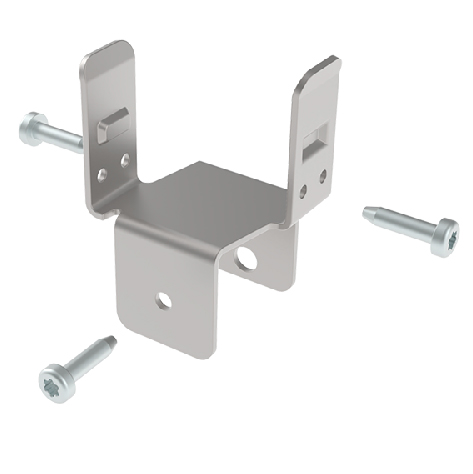

Mounting Bracket XST D30
Description:To mount and support an roller track XST or a guiding rail XST central on a crossing tubular frame profile with Ø 30 mm outer diameterMaterial:AceroSuperficie:GalvanizadoPFA_AssemblySet:4 tornillos autoperforantes DIN 7504 Forma N - 3,9 x 16Especiales:Otras superficies, otros colores bajo pedidoPaíses de Entrega:En todo el mundo
