Variable Holding Bracket XST D30
Precio normal:
0,00 €
Número de producto:
062MYFD30MS01
Cantidad por Paquete:
10 conjuntos
Información sobre el producto "Variable Holding Bracket XST D30"
Países de Entrega:
En todo el mundo
Description:

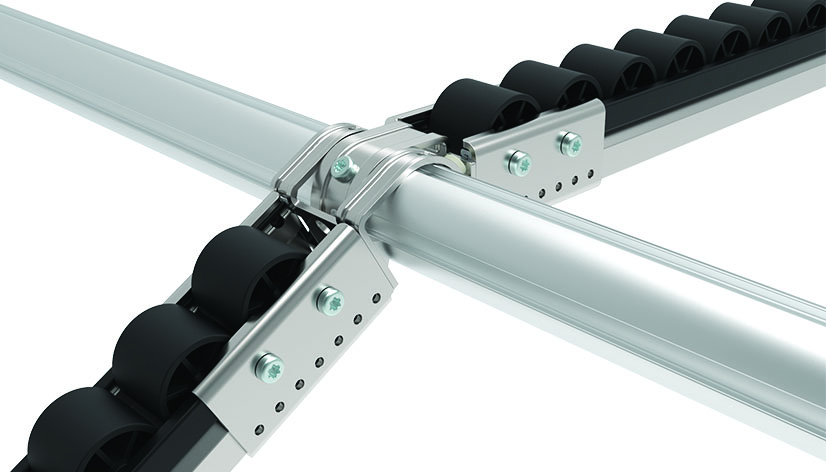

Transition between roller track profiles with varying inclination, to mount roller track profiles XST and guiding rails XST central at different angles to tubular frame profiles with Ø 30 mm outer diameter, preventing inserts from slipping out
Fastening:
with 5 or 6 self-drilling screws DIN EN ISO 15481 (DIN 7504) - 3.9 x 16
Material:
Acero
Especiales:
Otras superficies, otros colores bajo pedido
Superficie:
Galvanizado
En todo el mundo
Description:
Transition between roller track profiles with varying inclination, to mount roller track profiles XST and guiding rails XST central at different angles to tubular frame profiles with Ø 30 mm outer diameter, preventing inserts from slipping out
Fastening:
with 5 or 6 self-drilling screws DIN EN ISO 15481 (DIN 7504) - 3.9 x 16
Material:
Acero
Especiales:
Otras superficies, otros colores bajo pedido
Superficie:
Galvanizado
| Model: | For roller tracks XST |
|---|---|
| Cantidad por Paquete: | 10 conjuntos |
| Número de Arancel Aduanero de Exportación: | 73269098 |
| Peso (g): | 150.0 |
| ECLASS 6.0: | 36120490 |
| ECLASS 7.0: | 36120490 |
| ECLASS 8.0: | 36120490 |
| ECLASS 9.0: | 36120490 |
| ECLASS 10.0: | 36120490 |
| ECLASS 11.0: | 36120492 |
| ECLASS 12.0: | 36120492 |
| ECLASS 13.0: | 36120492 |
| Numero de ERP: | 146912 |
| Zolltarifnummer: | 73269098900 |
