Variable Holding Bracket AL D30
0,00 €
Número de producto:
062AYMD30M
Cantidad por Paquete:
10 piezas
Información sobre el producto "Variable Holding Bracket AL D30"
Assembly Set:
1 self-drilling screw DIN EN ISO 15481 (DIN 7504) - 3.9 x 16
1 washer DIN EN ISO 7089 (DIN 125)
1 T-slot nut slot 8 - M5
1 screw DIN EN ISO 4762 (DIN 912) - M5 x 14
Assembly Set 2:
2 self-drilling screw DIN EN ISO 15481 (DIN 7504) - 3.9 x 16
1 washer DIN EN ISO 7089 (DIN 125)
1 T-slot nut slot 8 - M5
1 screw DIN EN ISO 4762 (DIN 912) - M5 x 14
Países de Entrega:
En todo el mundo
Description:

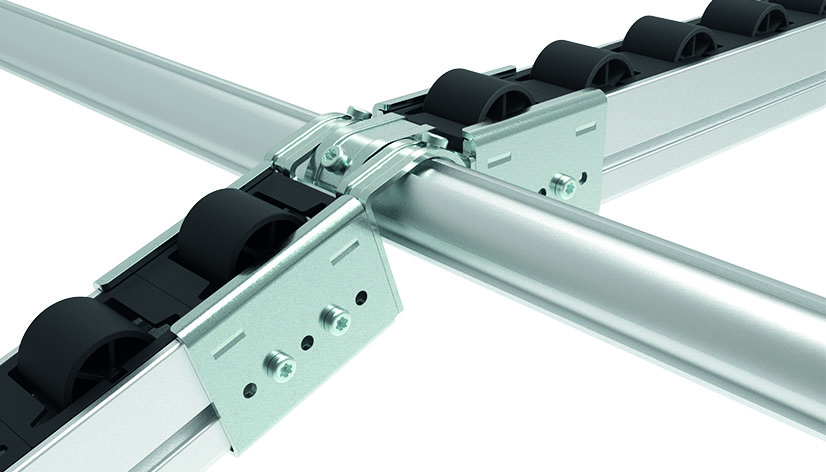

Transition between roller track profiles with varying inclination, to mount roller track profiles AL at different angles to tubular frame profiles with Ø 30 mm outer diameter, preventing inserts from slipping out
Material:
Acero
Superficie:
Galvanizado
1 self-drilling screw DIN EN ISO 15481 (DIN 7504) - 3.9 x 16
1 washer DIN EN ISO 7089 (DIN 125)
1 T-slot nut slot 8 - M5
1 screw DIN EN ISO 4762 (DIN 912) - M5 x 14
Assembly Set 2:
2 self-drilling screw DIN EN ISO 15481 (DIN 7504) - 3.9 x 16
1 washer DIN EN ISO 7089 (DIN 125)
1 T-slot nut slot 8 - M5
1 screw DIN EN ISO 4762 (DIN 912) - M5 x 14
Países de Entrega:
En todo el mundo
Description:
Transition between roller track profiles with varying inclination, to mount roller track profiles AL at different angles to tubular frame profiles with Ø 30 mm outer diameter, preventing inserts from slipping out
Material:
Acero
Superficie:
Galvanizado
| Model: | For roller tracks AL |
|---|---|
| Número de Arancel Aduanero de Exportación: | 73269098 |
| Peso (g): | 161.0 |
| (ECLASS 6.0): | 36120490 |
| (ECLASS 7.0): | 36120490 |
| (ECLASS 8.0): | 36120490 |
| (ECLASS 9.0): | 36120490 |
| (ECLASS 10.0): | 36120490 |
| (ECLASS 11.0): | 36120492 |
| (ECLASS 12.0): | 36120492 |
| (ECLASS 13.0): | 36120492 |
| Numero de ERP: | 148846 |
| Zolltarifnummer: | 73269098900 |
