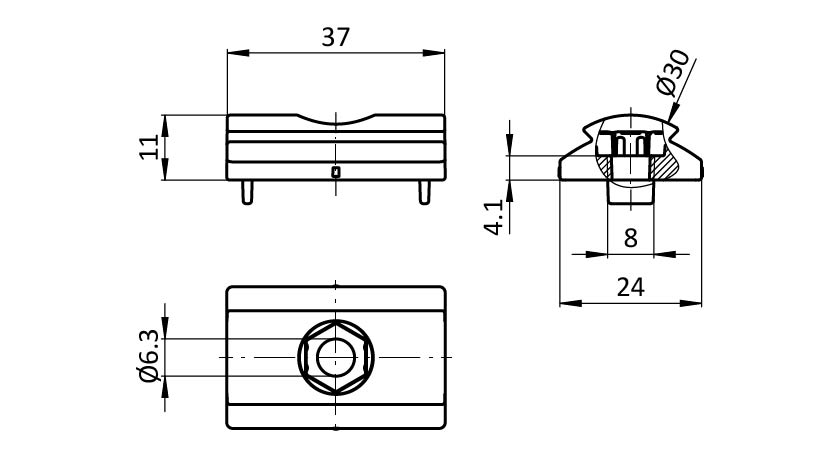

Adapter Piece D30, Slot 8
0,00 €

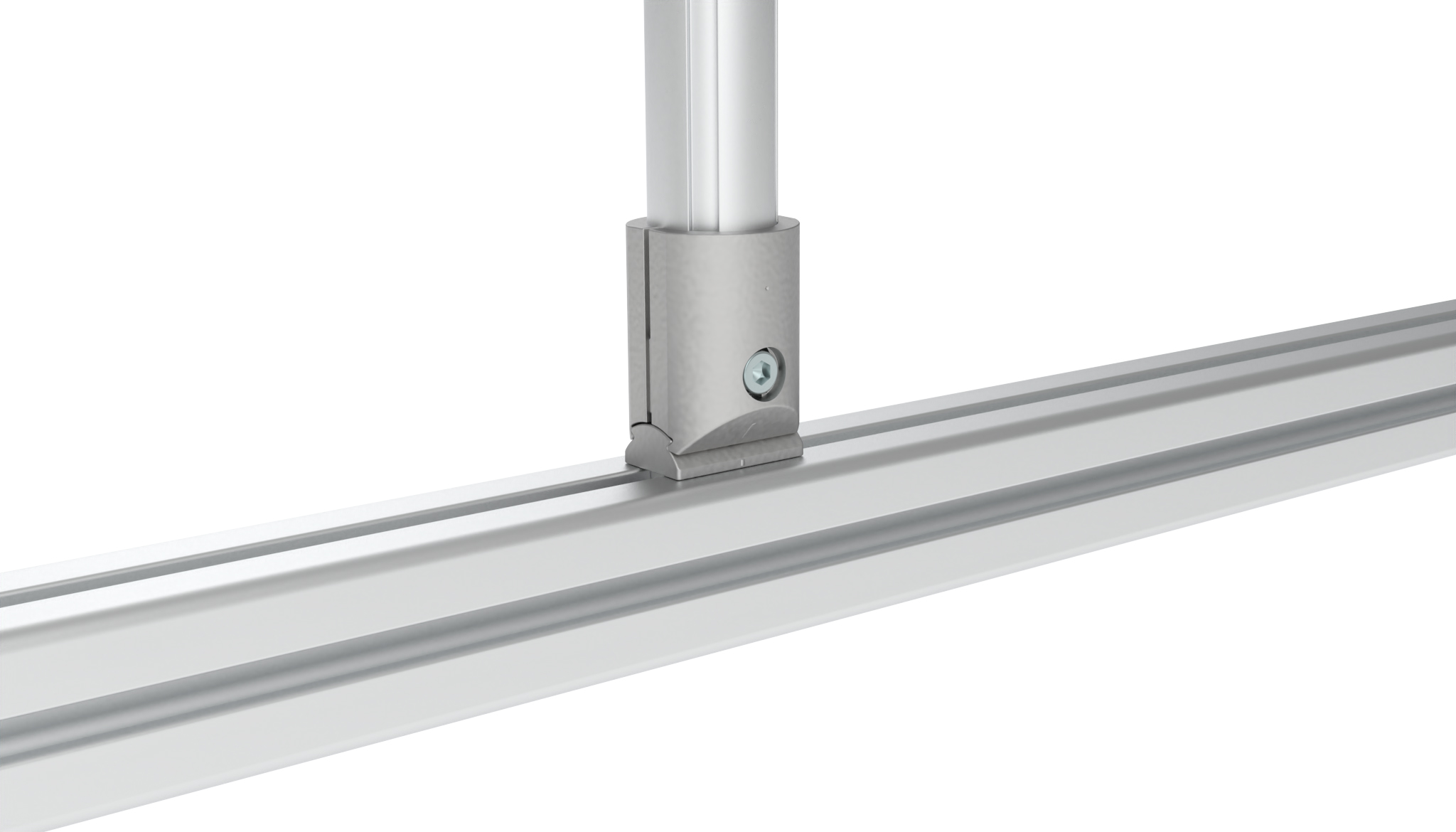

To connect tubular frame profiles with slot 8 aluminum profiles
Aluminio fundido a presión
Color:
V_Plain
Tip:
Compatible Outer Ball Connector D30 (Set) see 099RV30KS01
Compatible Outer T-Connector D30 (Set) see 099RV3090LS01
Compatible Cross Ball Connector D30 (Set) see 099RV30KS04
Compatible Cross Connector D30 (Set) see 099RV30XS01
Compatible Parallel Connector D30 (Set) see 099RV30PS02
Compatible Angle Connector 2D30 (Set) see 099RV3090QS01
Compatible Angle Connector D30, 45° (Set) see 099RV3045S01
Compatible T-slot Nut see 096006
Países de Entrega:
En todo el mundo
| Cantidad por paquete: | 10 piezas |
|---|---|
| Model: | For tubular frame profiles |
| Peso (g): | 17.0 |
| Numero de ERP: | 200252 |
Retratos de productos
Clasificación
- Zolltarifnummer
- 73182900900
- Número de Arancel Aduanero de Exportación
- 73182900
Certificados
Accesorios adecuados
Description:To connect two tubular frame profiles with Ø 30 mm outer diameter at variable angles, with pre-centering; completely pre-assembled setMaterial:Connector: Aluminum die-cast Assembly set: SteelSuperficie:Conjunto de montaje: GalvanizadoSet:4 components for outer ball connector D30, 2 screws DIN EN ISO 4762 (DIN 912) - M6 x 28, 2 self-locking nuts DIN EN ISO 4032 (DIN 934) - M6Tip:Compatible Cover Cap for Tubular Frame Connectors D30 see 099RV30CC06Países de Entrega:En todo el mundo
Description:To connect two tubular frame profiles with Ø 30 mm outer diameter at right anglesMaterial:Connector: Aluminum die-cast Assembly set: SteelSuperficie:Conjunto de montaje: GalvanizadoSet:2 components for outer T-connector D30, 1 screw DIN EN ISO 4762 (DIN 912) - M6 x 28, 1 self-locking nut DIN EN ISO 4032 (DIN 934) - M6Tip:Compatible Cover Cap for Tubular Frame Connectors D30 see 099RV30CC06Países de Entrega:En todo el mundo
Description:To cross connect two tubular frame profiles with Ø 30 mm outer diameter at variable angles, with pre-centering; completely pre-assembled setMaterial:Connector: Aluminum die-cast Assembly set: SteelSuperficie:Conjunto de montaje: GalvanizadoSet:4 cross ball connector D30, 2 screws DIN EN ISO 4762 (DIN 912) - M6 x 28, 2 self-locking nuts DIN EN ISO 4032 (DIN 934) - M6Tip:Compatible Cover Cap for Tubular Frame Connectors D30 see 099RV30CC06Países de Entrega:En todo el mundo
Description:To cross connect two tubular frame profiles with Ø 30 mm outer diameter; Completely pre-assembled setMaterial:Connector: Aluminum die-cast Assembly set: SteelSuperficie:Conjunto de montaje: GalvanizadoSet:2 components for cross connector D30, 1 screw DIN EN ISO 4762 (DIN 912) - M6 x 30, 1 self-locking nut DIN EN ISO 4032 (DIN 934) - M6Tip:Compatible Cover Cap for Tubular Frame Connectors D30 see 099RV30CC06Países de Entrega:En todo el mundo
Description:To parallelly connect two tubular frame profiles with Ø 30 mm outer diameter; with pre-centering; completely pre-assembled setMaterial:Connector: Aluminum die-cast Assembly set: SteelSuperficie:Conjunto de montaje: GalvanizadoSet:2 components for parallel connector D30, 1 screw DIN EN ISO 4762 (DIN 912) - M6 x 20, 1 self-locking nut DIN EN ISO 4032 (DIN 934) - M6Tip:Compatible Cover Caps for Tubular Frame Connectors D30 see 099RV30CC07Países de Entrega:En todo el mundo
Description:To connect two tubular frame profiles with Ø 30 mm outer diameter at right angle; Completely pre-assembled setMaterial:Connector: Aluminum die-cast Assembly set: SteelSuperficie:Conjunto de montaje: GalvanizadoSet:2 components for angle connector 2D30, 2 screws DIN EN ISO 4762 (DIN 912) - M6 x 14, 2 self-locking nuts DIN EN ISO 4032 (DIN 934) - M6Tip:Compatible Cover Cap for Tubular Frame Connectors D30 see 099RV30CC07Países de Entrega:En todo el mundo
Description:To connect two tubular frame profileswith Ø 30 mm outer diameterat 45°; with pre-centering; completely pre-assembled setMaterial:Connector: Aluminum die-cast Assembly set: SteelSuperficie:Conjunto de montaje: GalvanizadoSet:2 components for angle connector D30, 45°, 1 screw DIN EN ISO 4762 (DIN 912) - M6 x 28, 1 self-locking nut DIN EN ISO 4032 (DIN 934) - M6Tip:Compatible Cover Cap for Tubular Frame Connectors D30 see 099RV30CC06Países de Entrega:En todo el mundo
Description:Roll-in T-slot nut with spring loaded ball Version with color code for visual identification of thread sizeMaterial:T-slot nut: Steel / stainless steel Ball standard version: Stainless steel Ball color code version: Plastic POM Spring: Spring steelSurface:T-slot nut: Zinc-plated / plain Ball standard version: Plain Spring: PlainColor:Ball color code version: Yellow, red, blue, green, blackEspeciales:Descarga electrostática ESD, diferentes longitudes con roscas múltiples en diferentes tamaños disponibles bajo pedidoPaíses de Entrega:En todo el mundo / Norteamérica
