Mounting Bracket D30 (Set)

Información sobre el producto "Mounting Bracket D30 (Set)"

Países de Entrega:
En todo el mundo

Description:

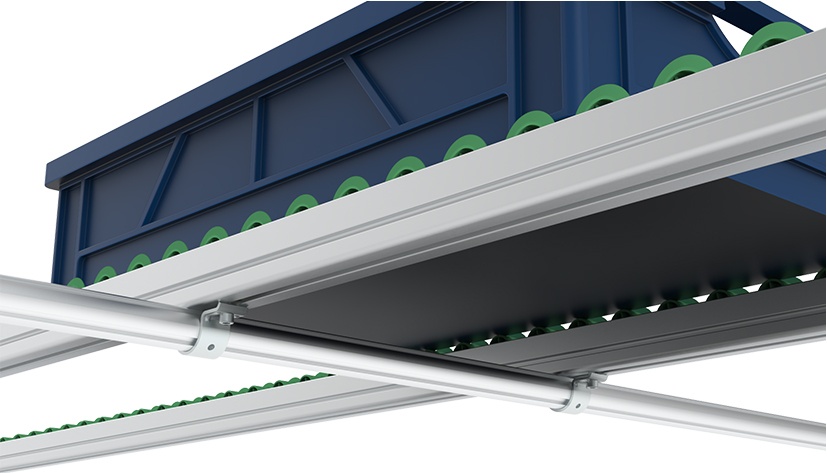

To support an roller track AL or a aluminum profile slot 8 on a crossing tubular frame profile with Ø 30 mm outer diameter

Material:
Acero

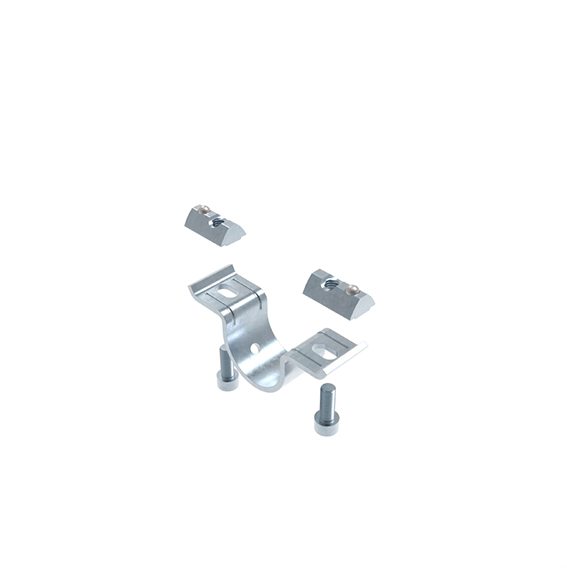

Set:
1 mounting bracket,
2 T-slot nuts - slot 8 - M6,
2 screws DIN EN ISO 4762 (DIN 912) - M6 x 16

Superficie:
Galvanizado

Zolltarifnummer:
73269098900
(ECLASS 6.0): 23360290
(ECLASS 7.0): 23360290
(ECLASS 8.0): 23360290
(ECLASS 9.0): 23360290
(ECLASS 10.0): 23360290
(ECLASS 11.0): 23360290
(ECLASS 12.0): 23360290
(ECLASS 13.0): 23360290
Cantidad por Paquete: 20 conjuntos
Model: For tubular frame profiles
Peso (g): 66.3

Variantes

ID de producto Profile
099RV30HS01 I
