Protection Cap D30

Información sobre el producto "Protection Cap D30"

Color:
Gris ≈ RAL 7042

Países de Entrega:
En todo el mundo

Description:

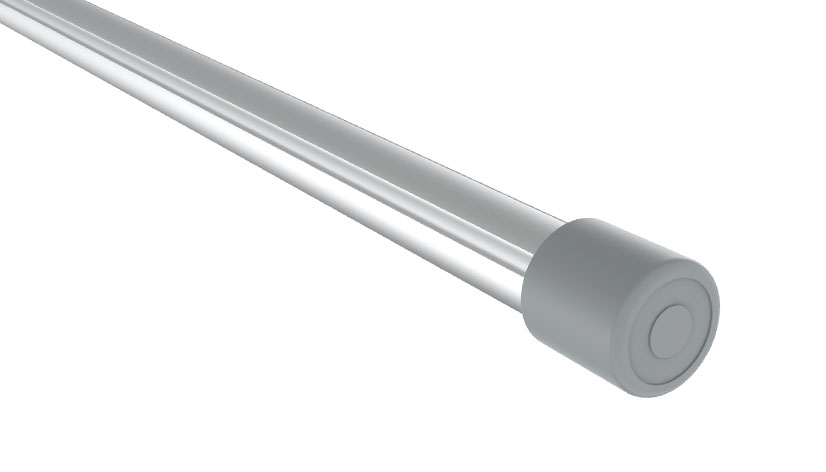

To prevent damages, scratches or injuries by the end of tubular frame profiles with Ø 30 mm outer diameter;
End-position damping in Karakuri/LCA applications;
Prevents movement of tubular frame profiles on slippery surfaces and absorbs some vibration;
Punch through safe due to added steel inlay, elastic and surrounding design

Material:
Protection cap: Plastic TPE
Inlay: Steel

Especiales:
Otros colores, otros tamaños bajo pedido

Surface:
Inlay: Zinc plated
(ECLASS 6.0): 23369290
(ECLASS 7.0): 23369290
(ECLASS 8.0): 23369290
(ECLASS 9.0): 23369290
(ECLASS 10.0): 23369290
(ECLASS 11.0): 23360192
(ECLASS 12.0): 23360192
(ECLASS 13.0): 23360192
Cantidad por Paquete: 10 piezas
Model: For tubular frame profiles
Numero de PA: 146464
Número de Arancel Aduanero de Exportación: 39269097
Peso (g): 37.1
Zolltarifnummer: 39269097900

Variantes

ID de producto Profile
099RV30CC03 I

Descargas CAD

Certificados
