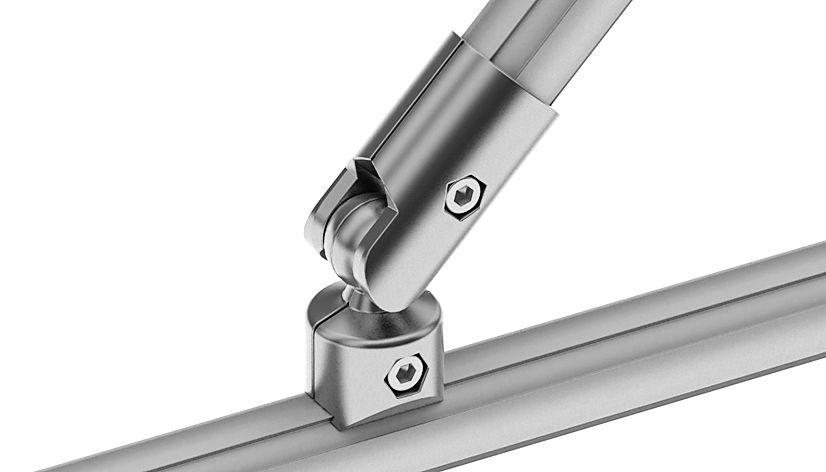

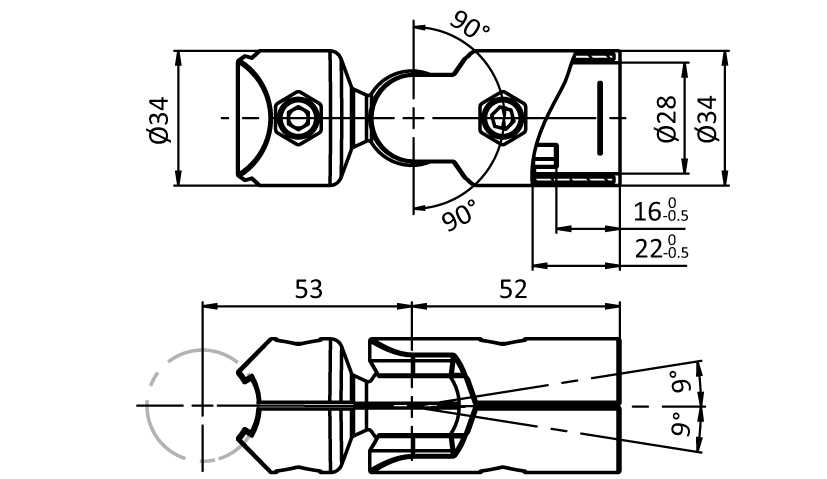

Outer Ball Connector D28 (Set)
Precio normal:
0,00 €
Número de producto:
099RV28KS01
Cantidad por Paquete:
10 conjuntos
Información sobre el producto "Outer Ball Connector D28 (Set)"
Países de Entrega:
En todo el mundo
Description:
To connect two tubular frame profiles with Ø 28 mm outer diameter at variable angles, with pre-centering; completely pre-assembled set
Material:
Connector: Aluminum die-cast
Assembly set: Steel
Set:
4 components for outer ball connector D28,
2 screws DIN EN ISO 4762 (DIN 912) - M6 x 25,
2 self-locking nuts DIN EN ISO 10511 (DIN 985) - M6
Surface:
Connector: Plain
Assembly set: Zinc plated
En todo el mundo
Description:
To connect two tubular frame profiles with Ø 28 mm outer diameter at variable angles, with pre-centering; completely pre-assembled set
Material:
Connector: Aluminum die-cast
Assembly set: Steel
Set:
4 components for outer ball connector D28,
2 screws DIN EN ISO 4762 (DIN 912) - M6 x 25,
2 self-locking nuts DIN EN ISO 10511 (DIN 985) - M6
Surface:
Connector: Plain
Assembly set: Zinc plated
| Cantidad por Paquete: | 10 conjuntos |
|---|---|
| Model: | For tubular frame profiles |
| Peso (g): | 145.0 |
| ECLASS 6.0: | 23360302 |
| ECLASS 7.0: | 23360302 |
| ECLASS 8.0: | 23360302 |
| ECLASS 9.0: | 23360302 |
| ECLASS 10.0: | 23360302 |
| ECLASS 11.0: | 23360302 |
| ECLASS 12.0: | 23360302 |
| ECLASS 13.0: | 23360302 |
| Zolltarifnummer: | 76169910990 |
| Número de Arancel Aduanero de Exportación: | 76169910 |
| Numero de ERP: | 126787 |
