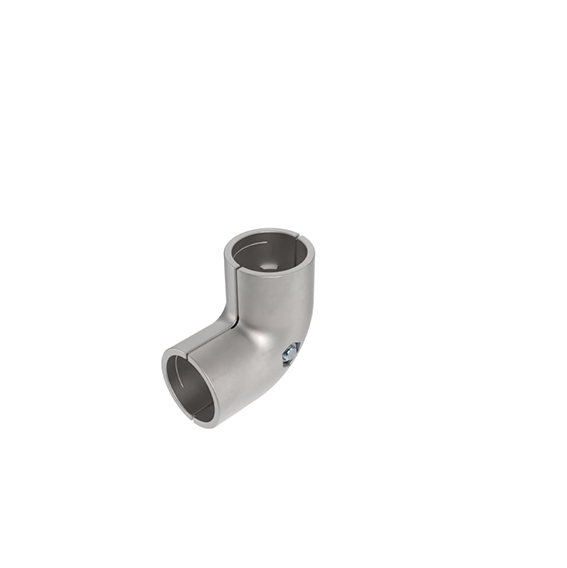

Corner Connector 2D28 (Set)
Precio normal:
0,00 €
Número de producto:
099RV28ES01
Cantidad por paquete:
10 piezas
Descripción:

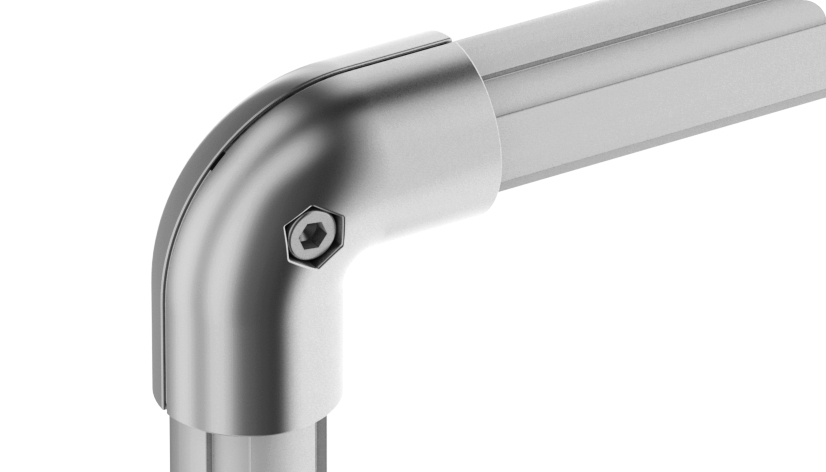

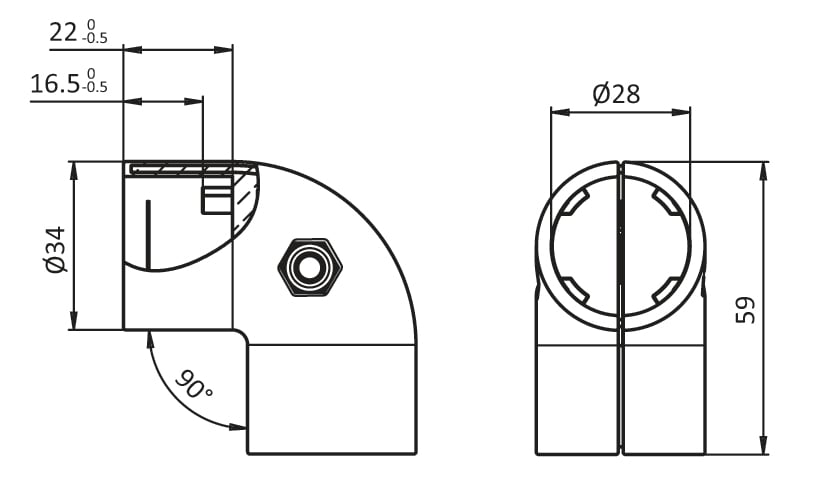

To connect two tubular frame profiles with Ø 28 mm outer diameterat right angles; with pre-centering; completely pre-assembled set
To connect two tubular frame profiles with Ø 28 mm outer diameterat right angles; with pre-centering; completely pre-assembled set
Material:
Connector: Aluminum die-cast
Assembly set: Steel
Surface:
Connector: Plain
Assembly set: Zinc plated
Set:
2 components for corner connector 2D28,
1 screw DIN EN ISO 4762 (DIN 912) - M6 x 25,
1 self-locking nut DIN EN ISO 10511 (DIN 985) - M6
Países de Entrega:
En todo el mundo
Connector: Aluminum die-cast
Assembly set: Steel
Surface:
Connector: Plain
Assembly set: Zinc plated
Set:
2 components for corner connector 2D28,
1 screw DIN EN ISO 4762 (DIN 912) - M6 x 25,
1 self-locking nut DIN EN ISO 10511 (DIN 985) - M6
Países de Entrega:
En todo el mundo
| Cantidad por paquete: | 10 piezas |
|---|---|
| Model: | For tubular frame profiles |
| Peso (g): | 98.0 |
| Numero de ERP: | 126782 |
Retratos de productos
Clasificación
- ECLASS 6.0
- 23360290
- ECLASS 7.0
- 23360290
- ECLASS 8.0
- 23360290
- ECLASS 9.0
- 23360290
- ECLASS 10.0
- 23360290
- ECLASS 11.0
- 23360290
- ECLASS 12.0
- 23360290
- ECLASS 13.0
- 23360290
- Zolltarifnummer
- 76169910990
- Número de Arancel Aduanero de Exportación
- 76169910
