New Products Engineering Components
Tuerca corredera giratoria 17.0 x 9.6 mm con bola de resorte
Color:Ball color code version: Yellow, red, blue, blackPaíses de Entrega:En todo el mundoDescription:Self-aligning roll-in T-slot nut with spring loaded ball Version with color code for visual identification of thread sizeMaterial:T-slot nut: Steel / stainless steel Ball standard version: Stainless steel Ball color code version: Plastic POM Spring: Spring steelEspeciales:Descarga electrostática ESD, diferentes longitudes con roscas múltiples en diferentes tamaños disponibles bajo pedidoSurface:T-slot nut: Zinc-plated / plain Ball standard version: Plain Spring: Plain

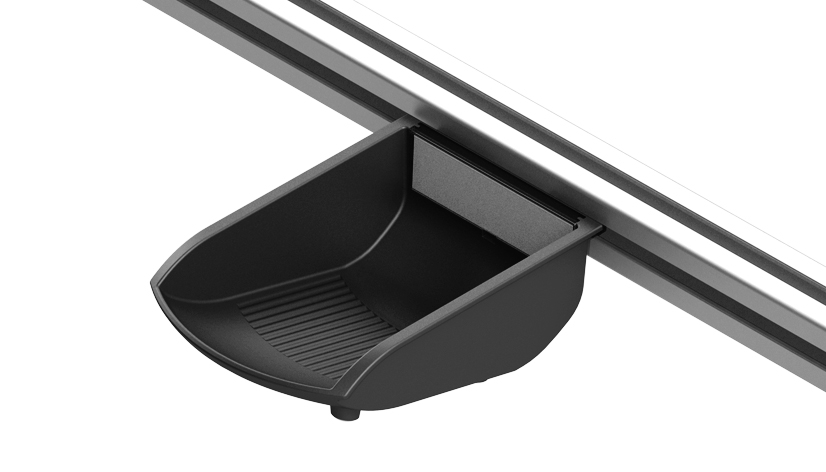

Grab Tray 105 x 130 x 50 for Profil Slot (Set)
Color:Grab tray: Black, yellow, red, blue, green, gray Label window: Transparent (colorless)Países de Entrega:En todo el mundoDescription:To provide hardware and small parts on sorting area for selective grabbing of smallest components; simple assembly by swiveling into the profile slot; the clearly visible label area enables secure part identificationMaterial:Grab tray standard version: Plastic PA, glass fiber reinforced Grab tray ESD electrostatical discharging version: Plastic PA, carbon fiber reinforced Label window: Plastic PC Label: Carton 250 g/m² Bumper: Plastic PU, ≈ 65-70 Shore ASet:1 grab tray, 1 label window, 1 label, 4 bumper, self-adhesiveEspeciales:Otros colores bajo pedido
Broom Holder FLEX FX 20 - 30 for Square Holes 9 x 9 (8.7 x 8.7)
Color:Holder: Black Broom holder: Black Retaining strap: BlackPaíses de Entrega:En todo el mundoDescription:Ready to use broom holder to hang up tools with Ø 20 up to 30 mm diameter, 360° turnable, for perforated metals up to 1.4 mm thick; To organize workstations, with labeling area for standard labelsMaterial:Holder: Plastic PA, carbon fiber reinforced Broom holder: Plastic PA, glass ball reinforced Retaining strap FLEX: Plastic TPE Bushings: Steel Screws for retaining strap: Steel Spring: Spring steel SS313 Screw: Steel Nut: SteelSpecials:Other colors on request, For other sheet metal thicknesses on requestSurface:Screw: Zinc plated Nut: Zinc platedTip:For profiles 40 / 45, slot 8 / 10 see 6TM840NX2030S01 For round tubes D28 / D30 see 6TM8D283X2030S01

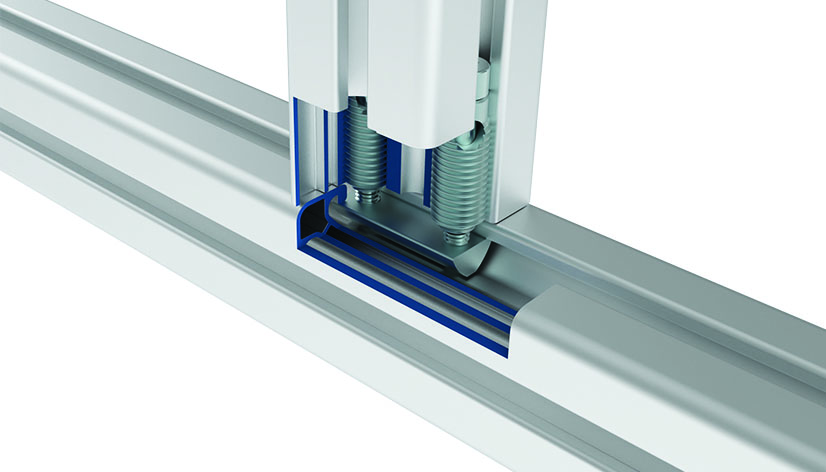

Roll-in Double T-slot Nut for Universal Connector I, Slot 8
Países de Entrega:En todo el mundoDescription:Roll-in double T-slot nutMaterial:Double T-slot nut: Steel Ball: Stainless steel Spring: Spring steelSpecials:Different lengths with multiple threads in different sizes available on requestSurface:Double T-slot nut: Zinc-plated Ball: Plain Spring: Plain
Tuerca corredera giratoria 13.7 x 7.0 mm con bola de resorte
Color:Ball color code version: Yellow, red, blue, green, blackPaíses de Entrega:En todo el mundo / NorteaméricaDescription:Roll-in T-slot nut with spring loaded ball Version with color code for visual identification of thread sizeMaterial:T-slot nut: Steel / stainless steel Ball standard version: Stainless steel Ball color code version: Plastic POM Spring: Spring steelEspeciales:Descarga electrostática ESD, diferentes longitudes con roscas múltiples en diferentes tamaños disponibles bajo pedidoSurface:T-slot nut: Zinc-plated / plain Ball standard version: Plain Spring: Plain

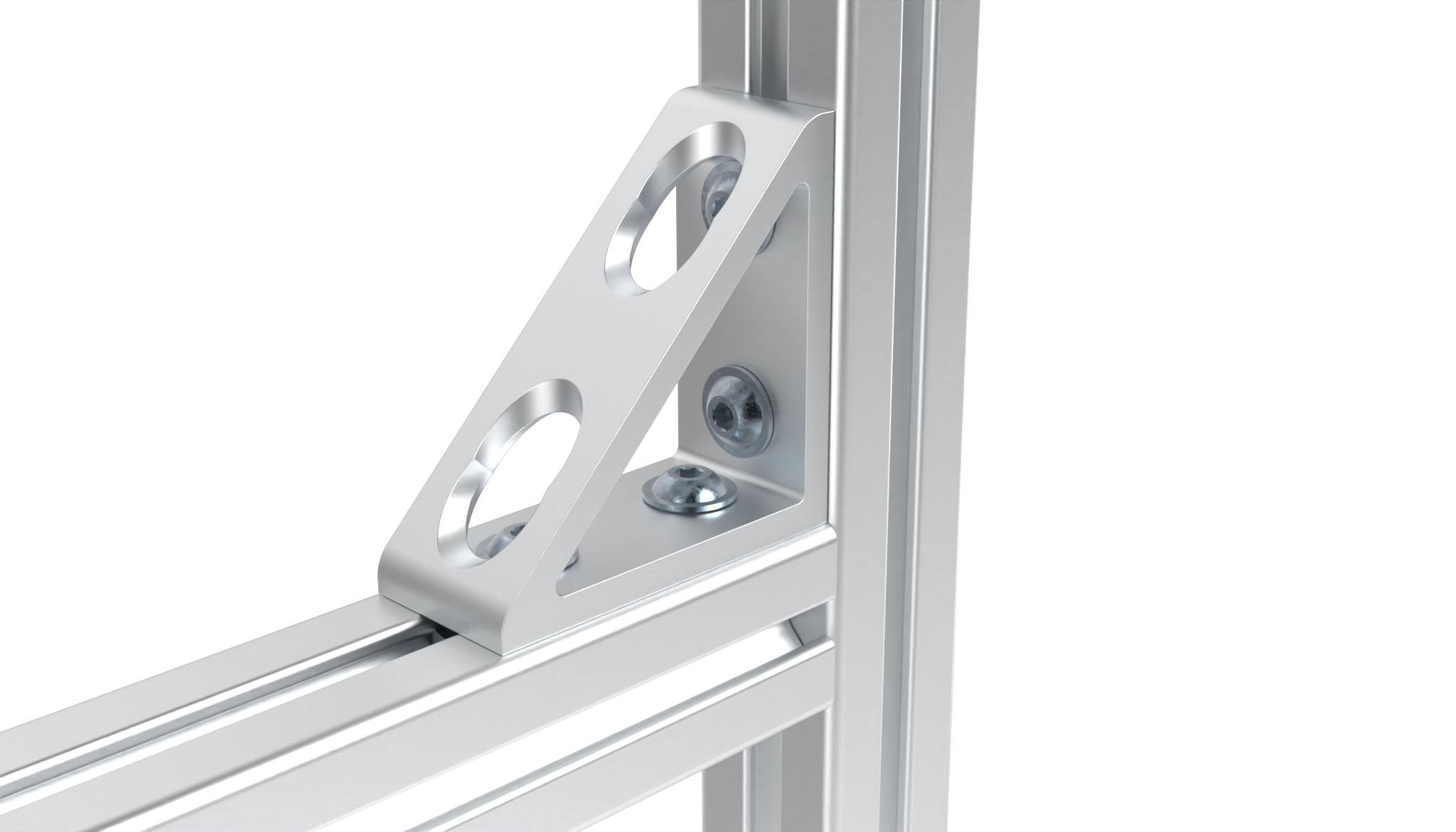

Angle Element T1 80 x 40, 45°
Color:Color aluPaíses de Entrega:En todo el mundoDescription:To mount a profile as bracing at a 45° angle without miter cutMaterial:AluminioSuperficie:AnodizadoTip:Compatible Cover Cap 40 x 40 45° see 091048 (black) / 091048S01 (gray)
Tool Holder FX D80 for Square Holes 9 x 9 (8.7 x 8.7)
Color:Rear mounting holder: Black Front locking holder: BlackPaíses de Entrega:En todo el mundoDescription:Ready to use tool holder ring with 80 mm diameter, 360° turnable, for perforated metals up to 1.4 mm thick; To organize workstations, with labeling area for standard labelsMaterial:Rear mounting holder ESD electrostatical discharging version: Plastic PA, carbon fiber reinforced Front locking holder ESD electrostatical discharging: Plastic PA, glass ball reinforced with carbon Wire: Stainless steel SS304 Spring: Spring steel SS313 Screw: Steel Nut: SteelSpecials:Other colors on request, For other sheet metal thicknesses on requestSurface:Screw: Zinc plated Nut: Zinc platedTip:For profiles 40 / 45, slot 8 / 10 see 6TH240ND80S01 For round tubes D28 / D30 see 6TH2D283D80ESDS01
Cover Cap for 40 mm Modular Dimension
Color:Negro, grisPaíses de Entrega:En todo el mundoDescription:To cover the end of the profileMaterial:Plastic PA, glass fiber reinforced, *glass ball reinforcedEspeciales:Descarga electrostática ESD, otros tamaños, otros colores bajo pedido
Pivot Joint 20 for M5
Color:Color aluPaíses de Entrega:En todo el mundoDescription:To make a pivoting connection between two profiles or panels; with separate locating pins for slot 5 and slot 6; by tightening or loosening the screws you can seamlessly regulate the functionality of the joint or you can fix it in one positionMaterial:Aluminio fundido a presiónSuperficie:Polvo cubierto

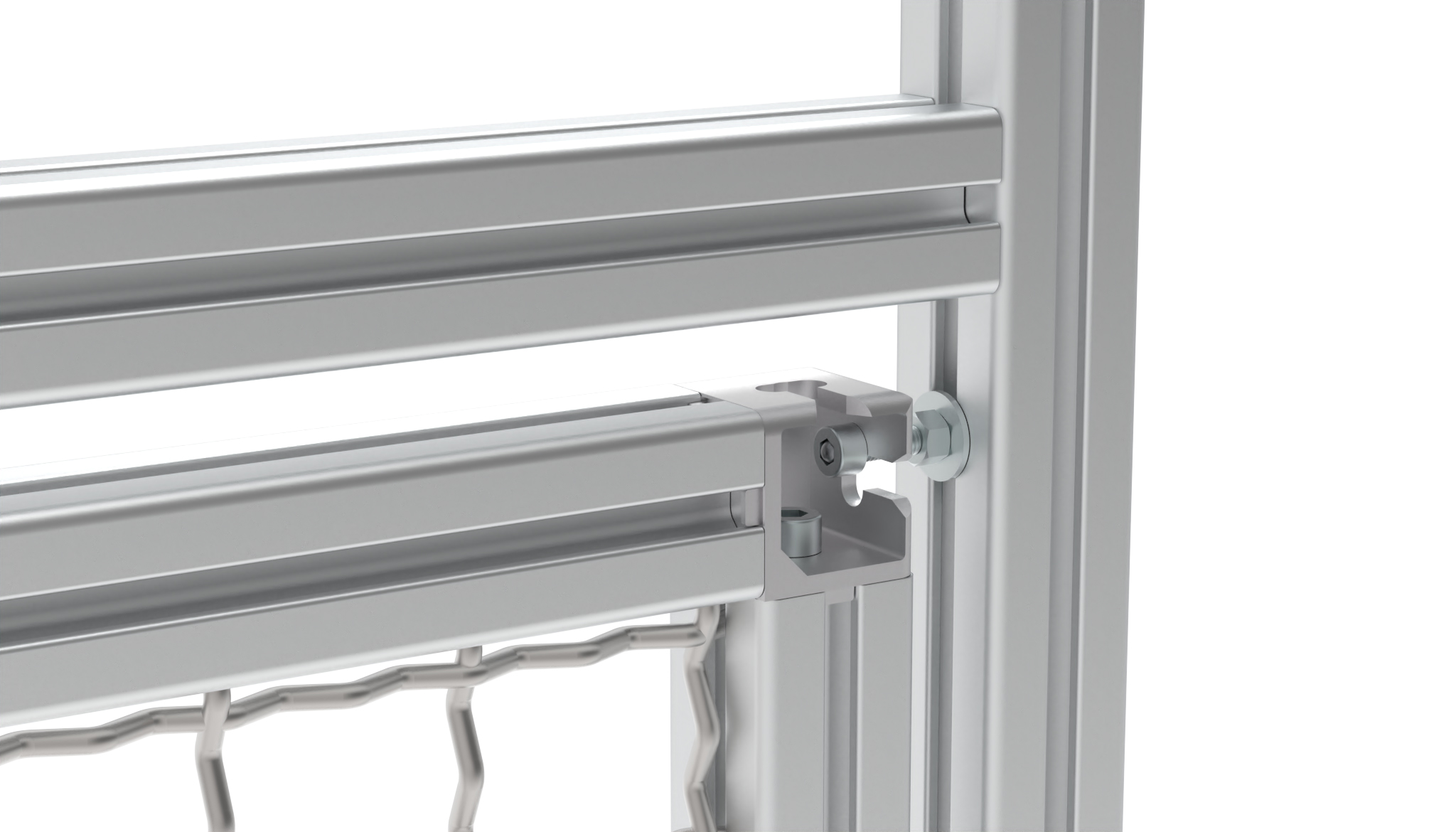

Montaje para conector abrazadera 30 (Juego)
Países de Entrega:En todo el mundoDescription:To attach frame elements to a frame structureby means of clamp profile connectors; completely preassembled, for lateral insertion into the profile slot, fixation by means of a nut; the upper monting defines the position in the structure, by shifting the lower mouting afterwards the frame can be fixed and locked; 12 mm gap between frame and structure, dimensional tolerances of +/- 3 mm can be compensatedMaterial:T-slot nut: Steel Shim: Steel Nut: Steel Screw: Steel Ball: Stainless steelSet:Mounting, completely preassembled: 1 T-slot nut - slot 6 - M5, 1 shim DIN EN ISO 7093 (DIN 9021) - 5.3, 1 nut DIN EN ISO 4032 (DIN 934) - M5, 1 screw DIN 7984 - M5 x 30, 1 ball Ø 4Surface:T-slot nut: Zinc plated Shim: Zinc plated Nut: Zinc plated Screw: Zinc plated Ball: PlainTip:Compatible Clamp Profile Connector 30 (Set) see 093WWC301N06S01
Tuerca corredera 18.0 x 6.8 mm con bola de resorte
Color:Ball color code version: Yellow, red, blackPaíses de Entrega:En todo el mundoDescription:Roll-in T-slot nut with spring loaded ball Version with color code for visual identification of thread sizeMaterial:T-slot nut: Steel Ball standard version: Stainless steel Ball color code version: Plastic POM Spring: Spring steelEspeciales:Descarga electrostática ESD, diferentes longitudes con roscas múltiples en diferentes tamaños disponibles bajo pedidoSurface:T-slot nut: Zinc-plated Ball standard version: Plain Spring: Plain
Power Strip Module F Line 370 4x, with Switch and Dimmer Button, for Series Connection
Color:Housing standard version: - Housing ESD electrostatical discharging version: Black End caps: Black Socket inserts: Black Switch and dimmer button standard version: Blue Switch and dimmer button ESD electrostatical discharging version: OrangePaíses de Entrega:En todo el mundoDescription:Switchable power strip with sockets for power supply at workstations; With remote dimmer for series-connected LED lamps Modul F Line; Combination on output side only possible with remote dimmable LED lamp module F Line; On the backside with slot 8 for mounting on aluminum profilesMaterial:Housing: Aluminum End caps: Plastic PA, carbon fiber reinforced Socket inserts: Plastic PA Switch / Button: Plastic ABS / PAPlug type countries:Type F: DE, AT, NL, ES, PT, GR, IS, HR, LV, LT, EE, LU, RU, HU, UA, BY, TR, RS, SI, RO, BG, ID, KR Type G: UK, MY, IE, IQ, AE, KE, KW, HK, MT, MU, MM, NG, OM, SG, QA, VN, CY Type E: FR, BE, CZ, SK, PL, MA, CM, TNSpecials:Further colors, individually configurated power strips on requestSurface:Housing standard version: Anodized Housing ESD electrostatical discharging version: Powder coatedTip:Compatible LED lamp see 6SL0040I.953 Compatible main power cable see 6SAME4J316B.2000 Compatible connection cable see 6SACP3J316B.2000 Compatible connection cable see 6SACP5J516B.2000 Compatible Connection Coupling see 6SAKP3J316BS01 Compatible direct connector I, slot 8 see 099DC084040N08 Compatible direct connector I / B, Slot 8 / 10 see 099DC084045N10Tip 2:Please note: Chaining of max. 6 modules (LED lamps / power strips), cable length max. 15 m for main power cable, connection cables and modules Connected load max. 3500 watts
Power Strip Module F Line 264 4x
Color:Housing standard version: - Housing ESD electrostatical discharging version: Black End caps: Black Socket inserts: BlackPaíses de Entrega:En todo el mundoDescription:Power strip with sockets for power supply at workstations; On the backside with slot 8 for mounting on aluminum profilesMaterial:Housing: Aluminum End caps: Plastic PA, carbon fiber reinforced Socket inserts: Plastic PAPlug type countries:Type F: DE, AT, NL, ES, PT, GR, IS, HR, LV, LT, EE, LU, RU, HU, UA, BY, TR, RS, SI, RO, BG, ID, KR Type G: UK, MY, IE, IQ, AE, KE, KW, HK, MT, MU, MM, NG, OM, SG, QA, VN, CY Type E: FR, BE, CZ, SK, PL, MA, CM, TNSpecials:Further colors, individually configurated power strips on requestSurface:Housing standard version: Anodized Housing ESD electrostatical discharging version: Powder coatedTip:Compatible LED Lamp see 6SL1040DI.953 Compatible Main Power Cable see 6SAME4J316B.2000 Compatible Connection Cable see 6SACP3J316B.2000 Compatible Connection Coupling see 6SAKP3J316BS01 Compatible Cover Cap for 3 pole female connector see 063SGF3S01 Compatible Direct Connector I, Slot 8 see 099DC084040N08 Compatible Direct Connector I / B, Slot 8 / 10 see 099DC084045N10Tip 2:Please note: Chaining of max. 6 modules (LED lamps / power strips), cable length max. 15 m for main power cable, connection cables and modules Connected load max. 3500 watts
Tuerca corredera giratoria 13.4 x 7.6 mm con gran bola de resorte
Países de Entrega:En todo el mundoDescription:Self-aligning roll-in T-slot nut with spring loaded ballMaterial:T-slot nut: Steel Ball: Stainless steel Spring: Spring steelEspeciales:Descarga electrostática ESD, diferentes longitudes con roscas múltiples en diferentes tamaños disponibles bajo pedidoSurface:T-slot nut: Zinc-plated Ball: Plain Spring: Plain
Roll-in Double T-slot Nut for Automatic Connector I, Slot 8
Países de Entrega:En todo el mundoDescription:Roll-in double T-slot nutMaterial:Double T-slot nut: Steel Ball: Stainless steel Spring: Spring steelSpecials:Different lengths with multiple threads in different sizes available on requestSurface:Double T-slot nut: Zinc-plated Ball: Plain Spring: Plain
Tuerca corredera giratoria 12.9 x 7.2 mm con bola de resorte
Color:Ball color code version: Yellow, red, blue, blackPaíses de Entrega:En todo el mundoDescription:Self-aligning roll-in T-slot nut with spring loaded ball Version with color code for visual identification of thread sizeMaterial:T-slot nut: Steel Ball standard version: Stainless steel Ball color code version: Plastic POM Spring: Spring steelEspeciales:Descarga electrostática ESD, diferentes longitudes con roscas múltiples en diferentes tamaños disponibles bajo pedidoSurface:T-slot nut: Zinc-plated Ball standard version: Plain Spring: Plain
Direct Connector I 90°, Slot 8
Países de Entrega:En todo el mundoDescription:To connect two aluminum profiles at right angles, before the application one core hole must be M8 threaded (min. 18 mm deep)Material:Acero inoxidable
LED Lamp Module F Line 476 Dimmable
Color:Housing standard version: - Housing ESD electrostatical discharging version: Black End caps: Black Diffusing screen: Transparent (colorless) Dimmer button standard version: Blue Dimmer button ESD electrostatical discharging version: OrangePaíses de Entrega:En todo el mundoDescription:Remote dimmable LED Lamp for power and light supply at work stations; Input side only compatible with power strip Modul F Line with dimmable exit; On the backside with slot 8 for mounting on aluminum profilesMaterial:Housing: Aluminum End caps: Plastic PA, carbon fiber reinforced Diffusing screen: Polycarbonate Dimmer button: Plastic ABS / PAEspeciales:Otras longitudes, otros colores bajo pedidoSurface:Housing standard version: Anodized Housing ESD electrostatical discharging version: Powder coatedTip:Compatible Power Strip Module F Line 370 4x, with Switch and Dimmer Button, for Series Connection see 6SBEU24DI.370 Compatible Connection Cable GST15i5 for 5-pole input connector see 6SACP5J516B.2000 Compatible Connection Cable GST18i3 for 3-pole output connector see 6SACP3J316B.2000 Compatible Connection Coupling GST18i3 for 3-pole output connector see 6SAKP3J316BS01 Compatible Cover Cap GST18i3 for 3-pole output connector see 063SGF3S01 Compatible Direct Connector I, slot 8 see 099DC084040N08 Compatible Direct Connector I / B, Slot 8 / 10 see 099DC084045N10Tip 2:Please note: Chaining of max. 6 modules (LED lamps / power strips), cable length max. 15 m for main power cable, connection cables and modules Connected load max. 3500 watts
Tool Tray PARABOL FX for Square Holes 9 x 9 (8.7 x 8.7)
Color:Rear mounting holder: Black Front locking adapter: Black Tool tray: Black Tool insert: BlackPaíses de Entrega:En todo el mundoDescription:Ready to use tool tray, 360° turnable, tilt-adjustable in 5 ways, for perforated metals up to 1.4 mm thick; Suitable for heavy tools or nutrunners; tool friendly surface; To organize workstations, with labeling area for standard labelsMaterial:Rear mounting holder ESD electrostatical discharging version: Plastic PA, carbon fiber reinforced Front locking adapter ESD electrostatical discharging: Plastic PA, glass ball reinforced with carbon Tool tray ESD electrostatical discharging version: Plastic PA, glass ball reinforced with carbon Tool insert ESD electrostatical discharging version: Plastic TPE, ≈ 80 Shore A, with carbon Spring: Spring steel SS313 Screw: Steel Nut: SteelSpecials:Other colors on request, For other sheet metal thicknesses on requestSurface:Screw: Zinc plated Nut: Zinc platedTip:For profiles 40 / 45, slot 8 / 10 see 6TM840NV12591S01 For round tubes D28 / D30 see 6TM8D283V12591ESDS01
Angle Element T1 40, 45°
Color:Color aluPaíses de Entrega:En todo el mundoDescription:To mount a profile as bracing at a 45° angle without miter cutMaterial:AluminioSuperficie:AnodizadoTip:Compatible Cover Cap 40 x 40 45° see 091048 (black) / 091048S01 (gray)
Double Bearing Unit 2 Rollers Centric Shaft Ø 14
Países de Entrega:En todo el mundoDescription:To build sliding carriages To linearly guide loads, steel roller with ball bearings runs directly on shaft Ø 14 mm Completely pre-assembled from roller profile I slot 8Material:Roller: Steel Screws: Steel Washers: Steel Tension pins: Steel Profile: AluminumSurface:Roller: Zinc plated Screws: Zinc plated Washers: Zinc plated Tension pins: Zinc plated Profile: AnodizedTip:Compatible Wiper and Lubricator Ø 14 for Roller Profile I Slot 8 (Set) see 091381S01

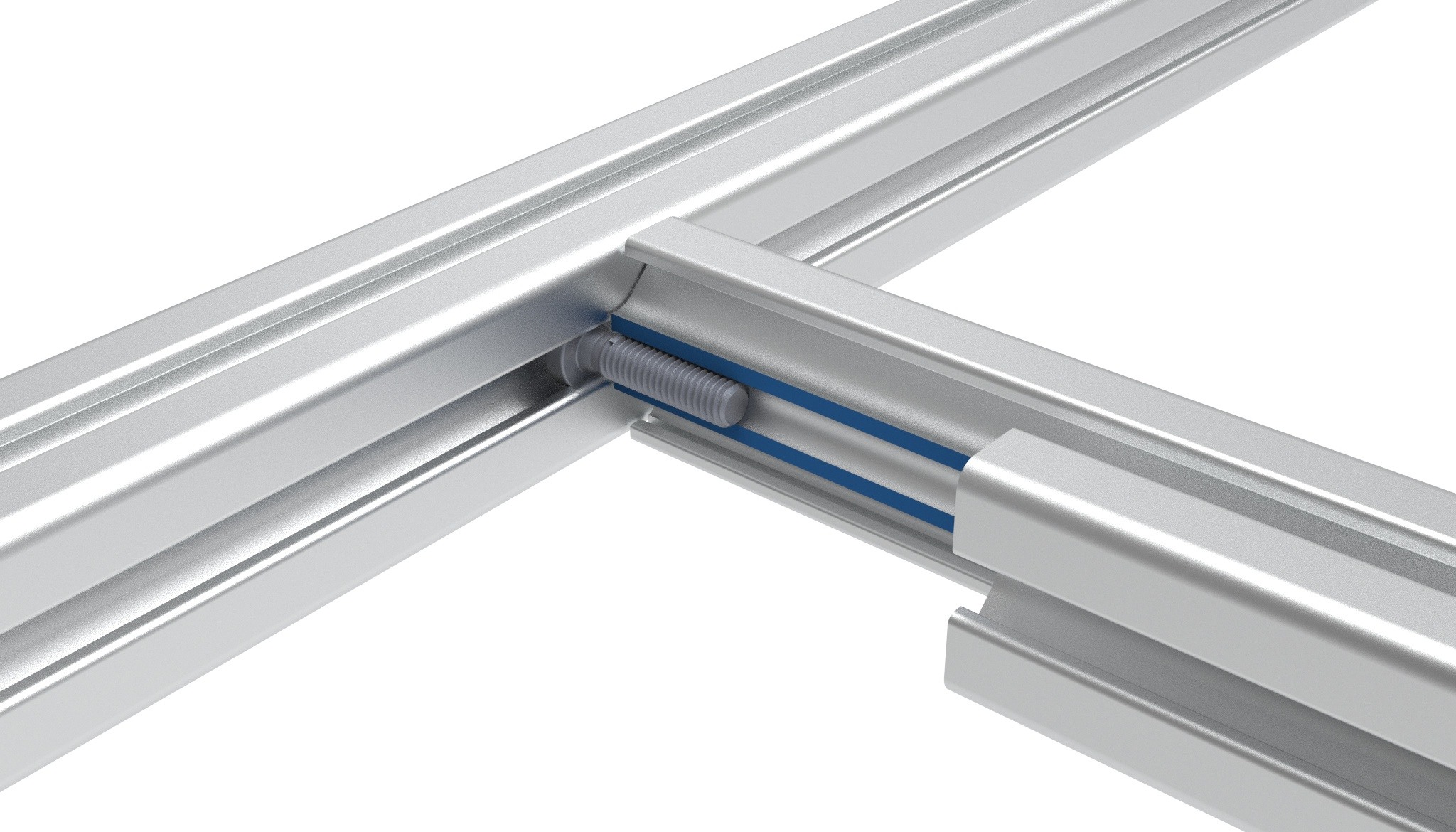

Automatic Connector Steel
Países de Entrega:En todo el mundoDescription:To connect two aluminum profiles fast and solid, assembly without machining; self-cutting threadMaterial:AceroSuperficie:GalvanizadoTip:*Compatible Cover Cap see 099GA081KTip 2:** Automatic connector with assembly set for profil B incl. hammer nut instead of T-slot nut *** Automatic connector with assembly set incl. screw and T-slot nut short
Cover Profile Slot 8 - 2.2
Color:Negro, amarillo, rojo, azul, gris, natural, color aluPaíses de Entrega:En todo el mundoDescription:To cover T-Slots with 8 width and a 2.2 mm profile webMaterial:Plástico PPEspeciales:Otros colores bajo pedidoTip:ESD electrostatical discharging version: Notch at the bottom side
Automatic Connector I, Slot 8 N
Color:* Cover cap: Gray ≈ RAL 7042Países de Entrega:En todo el mundoDescription:To connect two aluminum profiles with closed slot solid, assembly after machining to open the slot cover; self-cutting threadMaterial:Cutting sleeve: Steel Screw: Steel T-slot nut: SteelSurface:Cutting sleeve: Zinc plated Screw: Zinc plated T-slot nut: Zinc platedTip:Compatible Cover Cap D20 see 099GA085K
