RIBE® Aluform Bolt

Información sobre el producto "RIBE® Aluform Bolt"

Países de Entrega:
En todo el mundo

Description:

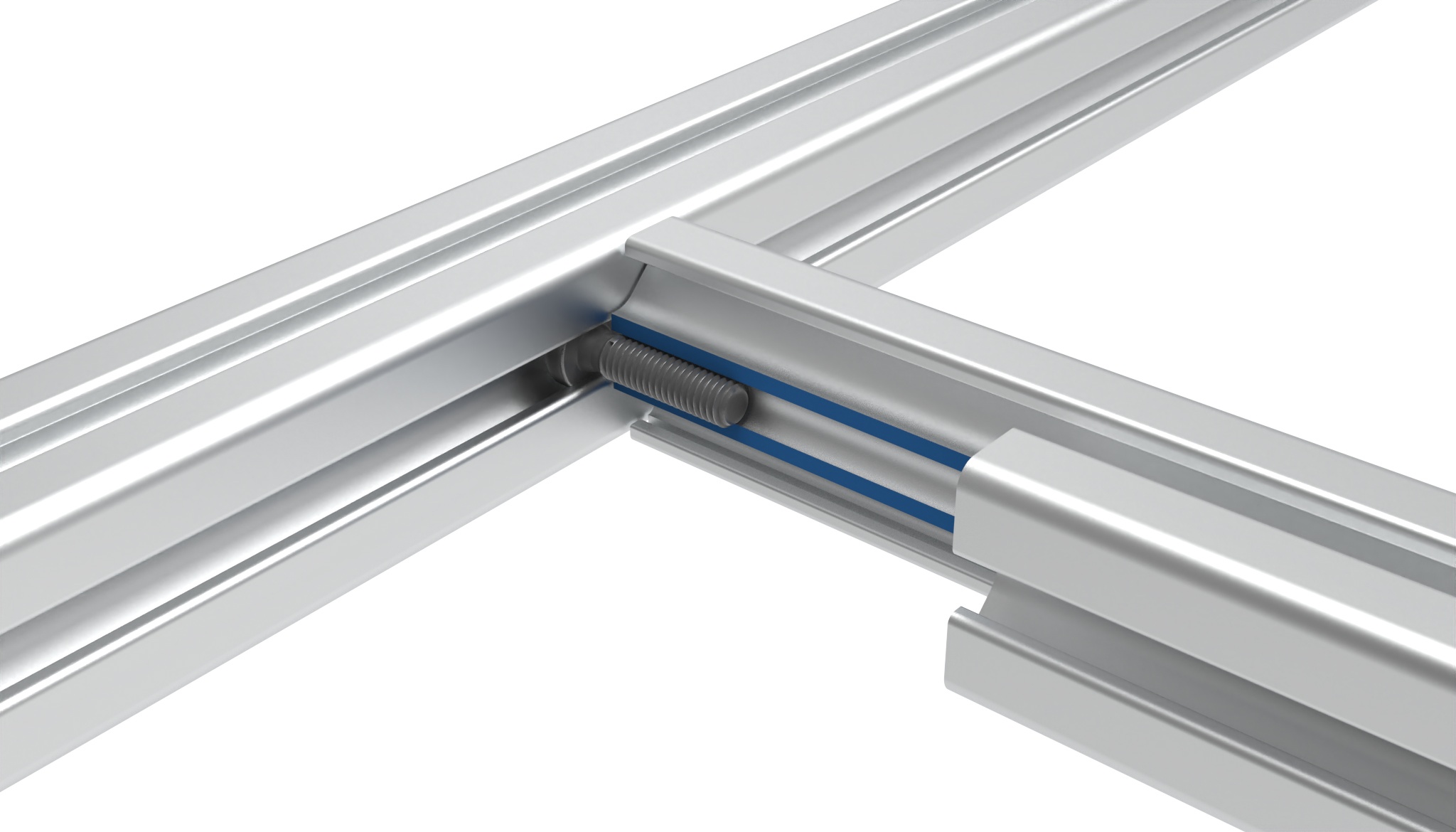

For the material-matched connection of aluminum componentsand for electrical contact screw connections;
Corrosion-resistant, easy to recycle, approx. 2/3 weight saving compared to similar steel screws;
Reduced electrical contact resistance

Material:
Aluminio

Surface:
With dry film lubrication

Cantidad por Paquete:	100 piezas
Model:	Con Torx
Peso (g):	0.9
Zolltarifnummer:	76161000990
Número de Arancel Aduanero de Exportación:	76161000
Numero de ERP:	170463

Variantes

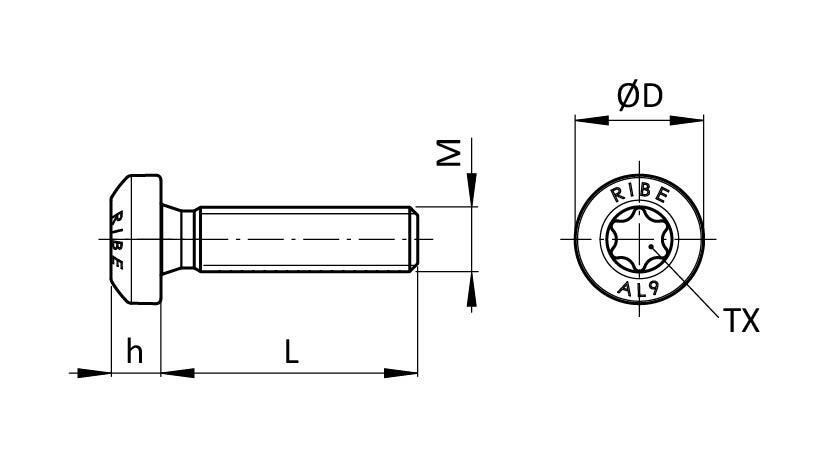

Número de producto	h (mm)	ØD (mm)	Size M x L (mm)	TX
097AS04016	3.1	8.0	M4 x 16	T20
097AS04020	3.1	8.0	M4 x 20	T20
097AS04025	3.1	8.0	M4 x 25	T20
097AS04030	3.1	8.0	M4 x 30	T20
097AS05020	3.7	10.0	M5 x 20	T25
097AS05025	3.7	10.0	M5 x 25	T25
097AS05030	3.7	10.0	M5 x 30	T25
097AS05035	3.7	10.0	M5 x 35	T25
097AS05040	3.7	10.0	M5 x 40	T25
097AS06020	4.6	12.0	M6 x 20	T30
097AS06025	4.6	12.0	M6 x 25	T30
097AS06030	4.6	12.0	M6 x 30	T30
097AS06035	4.6	12.0	M6 x 35	T30
097AS06040	4.6	12.0	M6 x 40	T30
097AS08020	6.0	16.0	M8 x 20	T45
097AS08025	6.0	16.0	M8 x 25	T45
097AS08030	6.0	16.0	M8 x 30	T45
097AS08035	6.0	16.0	M8 x 35	T45
097AS08040	6.0	16.0	M8 x 40	T45
097AS08045	6.0	16.0	M8 x 45	T45
097AS10020	7.5	20.0	M10 x 20	T50
097AS10030	7.5	20.0	M10 x 30	T50
097AS10040	7.5	20.0	M10 x 40	T50
097AS10050	7.5	20.0	M10 x 50	T50
097AS10060	7.5	20.0	M10 x 60	T50
