Bisagra de metálica 2D, solo ajustable horizontalmente

Descripción:

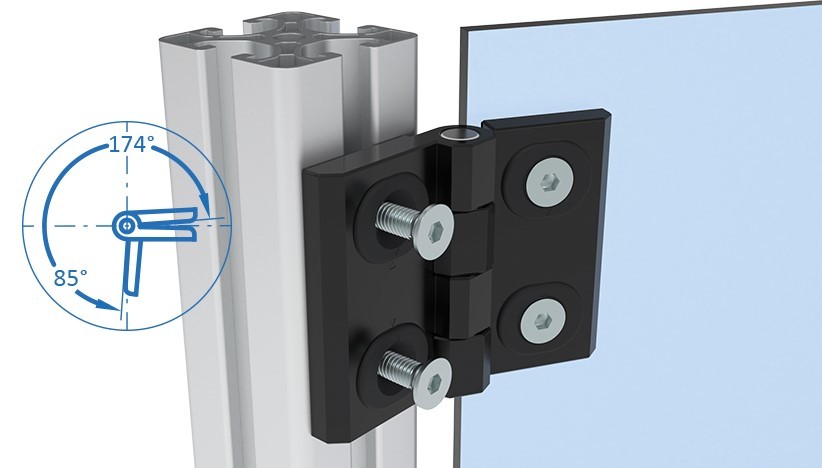

Sturdy hinge for right and left hand application, adjustable
Material:
Wings: Zinc die-cast
Axle: Stainless steel

Superficie:
Polvo cubierto

Color:
Negro

PFA_Fastening:

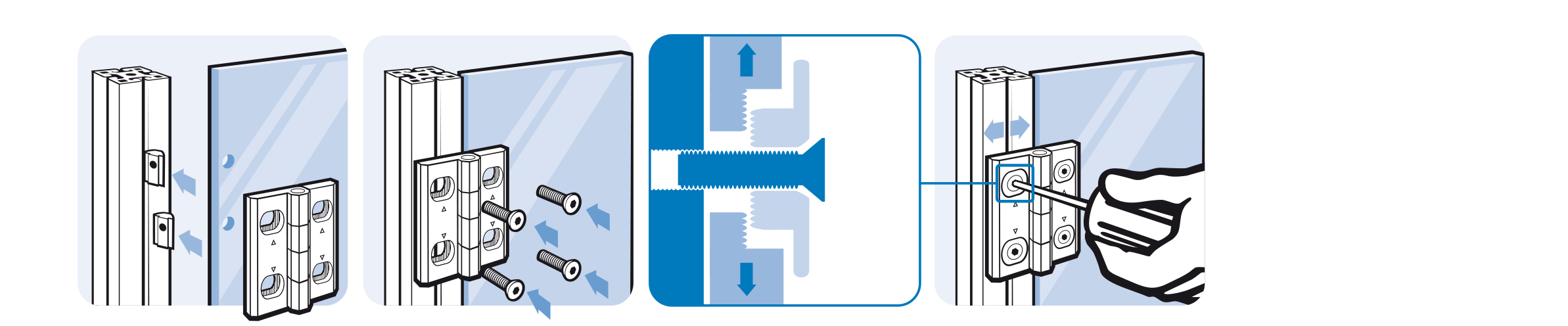

Por delante, con tornillos avellanados M6

Países de Entrega:
En todo el mundo
Cantidad por paquete: 10 piezas
Model: No desmontable
Peso (g): 190.0
Numero de ERP: 101517

Variantes

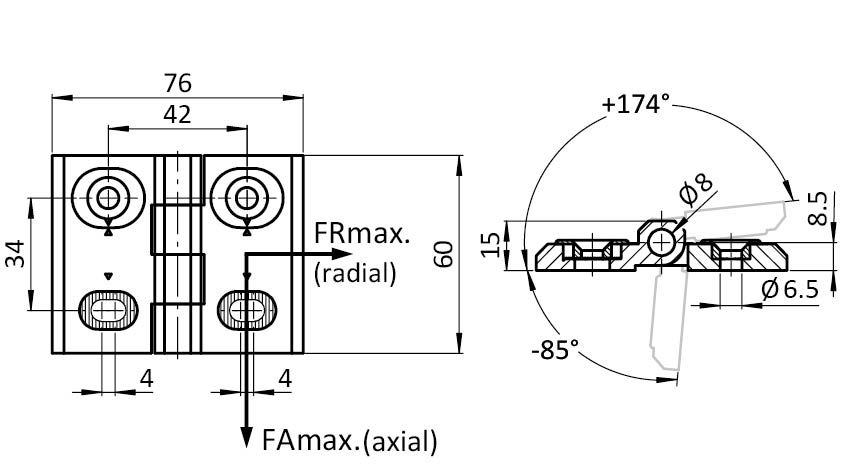

Número de producto Version FAmax (N) FRmax (N) CAD
Solo ajustable horizontalmente 1200 2200

Clasificación

ECLASS 6.0
23219090
ECLASS 7.0
23219090
ECLASS 8.0
23219090
ECLASS 9.0
23219090
ECLASS 10.0
23219090
ECLASS 11.0
23219090
ECLASS 12.0
23219090
ECLASS 13.0
23219090
Zolltarifnummer
83021000900
Número de Arancel Aduanero de Exportación
83021000

Certificados

Tags

Profile Type Profile Type B, Profile Type I
Profile Form T-slot Profiles
Application Area Machinery & Plant Engineering
