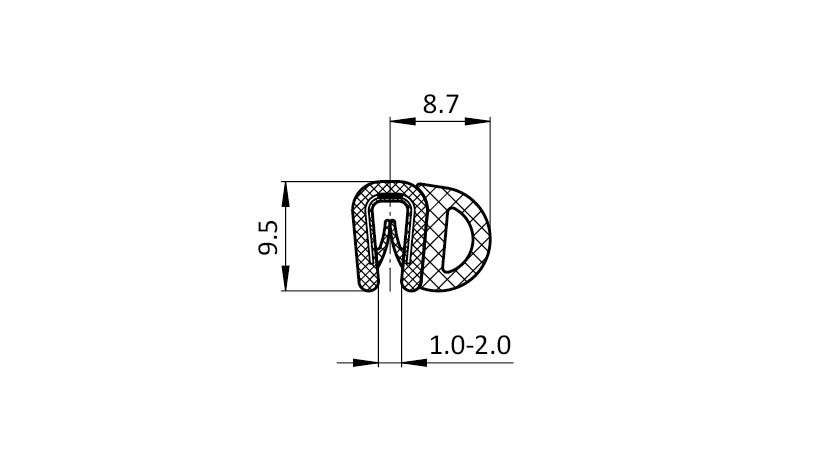

Perfil de junta para montaje a presión 8.7 x 9.5

Información sobre el producto "Perfil de junta para montaje a presión 8.7 x 9.5"

Color:
Edge protector: Black
Clamping lips: Transparent (colorless)

Países de Entrega:
North America, Central America, Caribbean, South America, China, United Kingdom, Ireland, Netherlands, Estonia, Latvia, Lithuania,Poland, Czechia, Slovakia, Hungary, Slovenia, Croatia, Serbia, Romania, Bulgaria

Description:

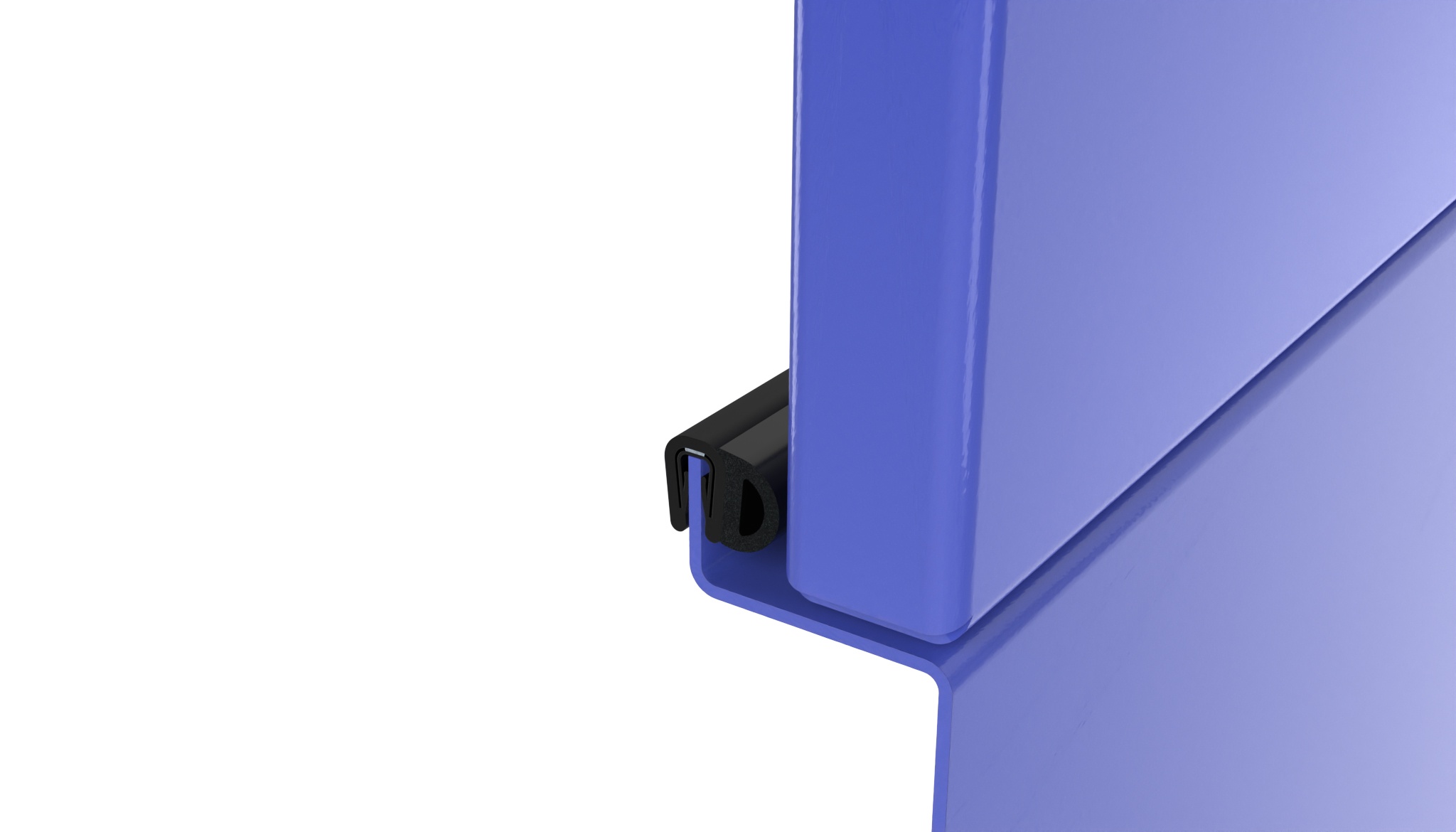

Combination of edge protector and sealing profile;
Self-clamping with split clamping band

Material:
Edge protector: Plastic PVC, 78 Shore A
Clamping lips: Plastic PVC, 57 Shore A
Sealing profile: Foam rubber EPDM
Clamping band: Steel

Specials:
Edge protector: Other colors, Butyl sealant on request
Sealing profile: Lubricant varnish, flocking, EMI film on request
Clamping band: Stainless steel, non-split on request
Other cross-sections on request
Cantidad por Paquete: 100 metros (rollo)
Numero de ERP: 124849
Número de Arancel Aduanero de Exportación: 39162000
Weight (g/m): 74.0
Zolltarifnummer: 39162000990

Variantes

Número de producto Rango de Sujeción (mm) Color Material
087SPES01911 1.0 - 2.0 Negro EPDM / PVC

Descargas CAD
