Gewindestopfen

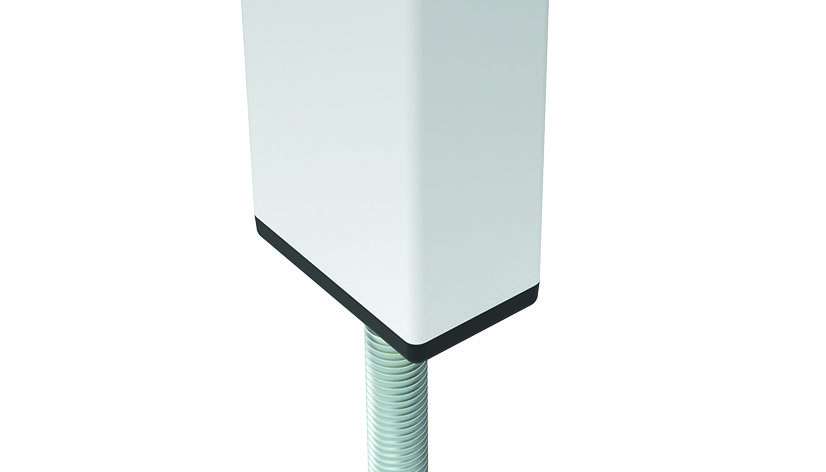

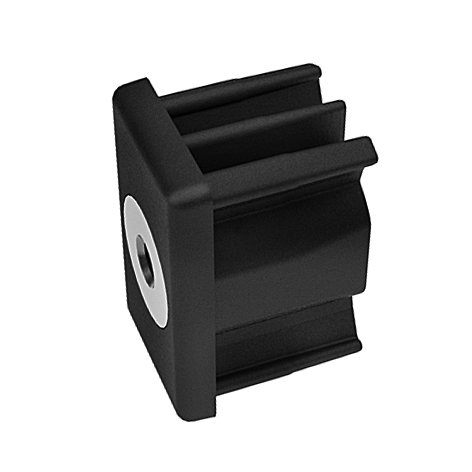

Ausführung: 50 x 30, R2.5 | Fmax (N): 4900 | B1 (mm): 50 | b1 (mm): 46.0 | B2 (mm): 30 | b2 (mm): 26.0 | L (mm): 33 | M: M14 | S (mm): 27 | Vierkantrohr (mm): 50 x 30 x 2.0

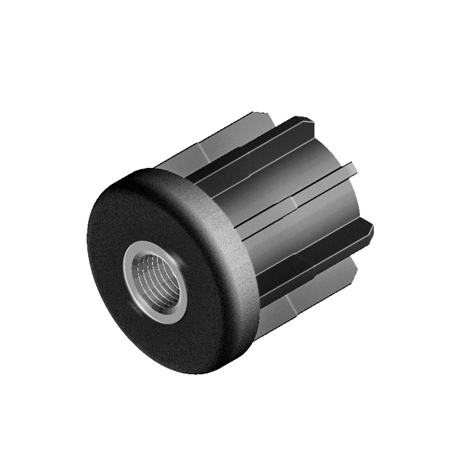

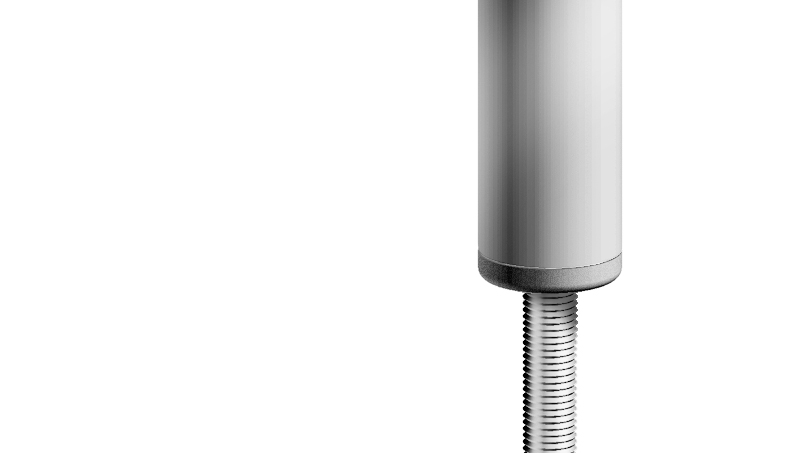

Fmax (N): 4900 | B (mm): 30.0 | b (mm): 25.5 | L (mm): 33 | M: M10 | S (mm): 27 | Rundrohr (mm): Ø 30 x 2.5

Fmax (N): 5880 | B (mm): 38.0 | b (mm): 35.5 | L (mm): 43 | M: M10 | S (mm): 35 | Rundrohr (mm): Ø 38 x 1.5

Fmax (N): 7840 | B (mm): 42.4 | b (mm): 39.9 | L (mm): 43 | M: M10 | S (mm): 35 | Rundrohr (mm): Ø 42.4 x 1.5

Fmax (N): 9800 | B (mm): 48.3 | b (mm): 45.8 | L (mm): 55 | M: M16 | S (mm): 44 | Rundrohr (mm): Ø 48.3 x 1.5

Fmax (N): 9800 | B (mm): 50.9 | b (mm): 48.8 | L (mm): 55 | M: M20 | S (mm): 44 | Rundrohr (mm): Ø 50.9 x 1.5

Fmax (N): 9800 | B (mm): 60.3 | b (mm): 56.8 | L (mm): 55 | M: M16 | S (mm): 44 | Rundrohr (mm): Ø 60.3 x 2.0

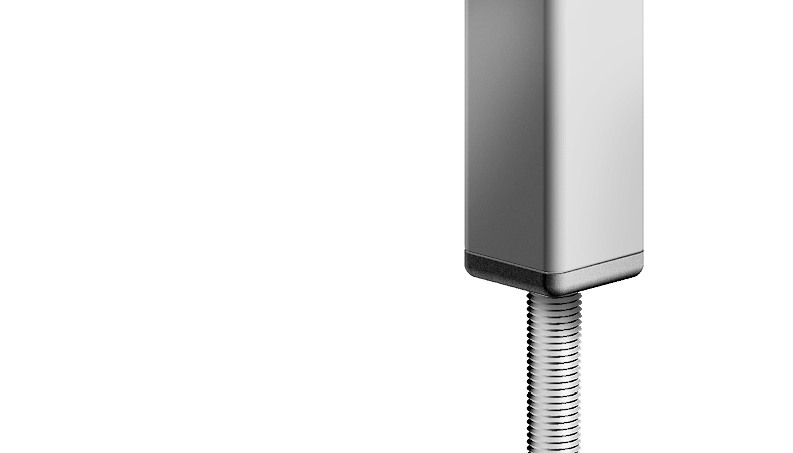

Ausführung: 30 x 30, R3 | Fmax (N): 4900 | B (mm): 30 | b (mm): 26.5 | L (mm): 33 | M: M10 | S (mm): 27 | Vierkantrohr (mm): 30 x 30 x 2.0

Ausführung: 40 x 40, R5 | Fmax (N): 9800 | B (mm): 40 | b (mm): 32.5 | L (mm): 43 | M: M20 | S (mm): 35 | Vierkantrohr (mm): 40 x 40 x 4.0

Ausführung: 50 x 50, R5 | Fmax (N): 11770 | B (mm): 50 | b (mm): 46.5 | L (mm): 55 | M: M20 | S (mm): 44 | Vierkantrohr (mm): 50 x 50 x 2.0

Ausführung: 60 x 60, R7 | Fmax (N): 11770 | B (mm): 60 | b (mm): 54.5 | L (mm): 55 | M: M10 | S (mm): 45 | Vierkantrohr (mm): 60 x 60 x 3.0
