Aluminum Die-cast Combi Hinge 45, Detachable, Alu Color
Número de producto:
095A4530L
Información sobre el producto "Aluminum Die-cast Combi Hinge 45, Detachable, Alu Color"
Color:
Wing: Alu color
Países de Entrega:
En todo el mundo
Description:

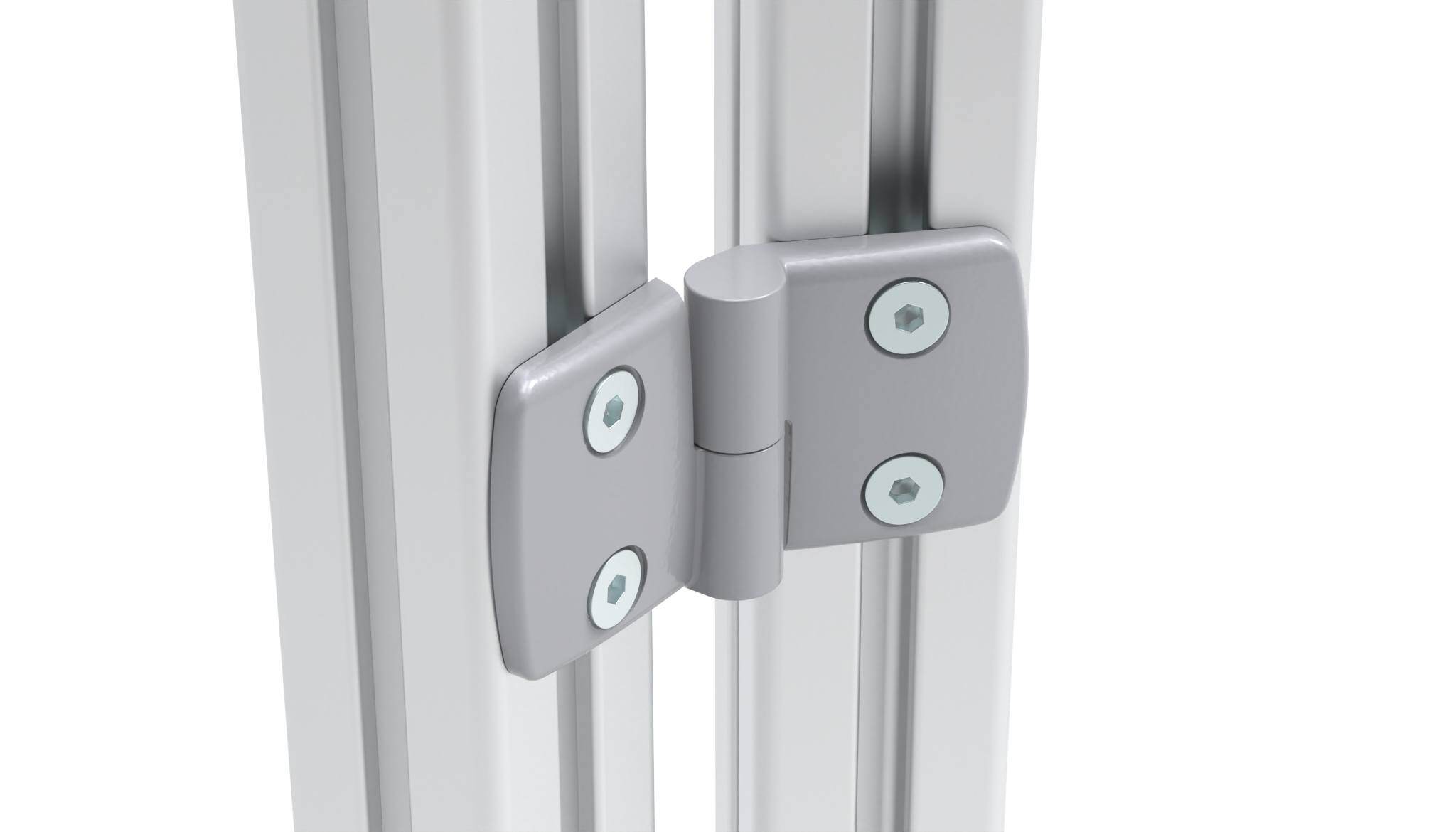

To hinge panels or aluminum profiles, each wing with a hole for centering bolts, with bearing system for pin
Material:
Wings: Die-cast aluminum
Pin: Stainless steel
Bearings: PTFE
Surface:
Wings: Powder coated
Pin: Plain
Tip:
Compatible Central Bolts see 095AN05
Wing: Alu color
Países de Entrega:
En todo el mundo
Description:
To hinge panels or aluminum profiles, each wing with a hole for centering bolts, with bearing system for pin
Material:
Wings: Die-cast aluminum
Pin: Stainless steel
Bearings: PTFE
Surface:
Wings: Powder coated
Pin: Plain
Tip:
Compatible Central Bolts see 095AN05
| (ECLASS 6.0): | 23219090 |
|---|---|
| (ECLASS 7.0): | 23219090 |
| (ECLASS 8.0): | 23219090 |
| (ECLASS 9.0): | 23219090 |
| (ECLASS 10.0): | 23219090 |
| (ECLASS 11.0): | 23219090 |
| (ECLASS 12.0): | 23219090 |
| (ECLASS 13.0): | 23219090 |
| Cantidad por Paquete: | 10 piezas |
| Fastening: | Por delante, con tornillos avellanados M6 |
| Model: | Desmontable |
| Numero de ERP: | 137458 |
| Número de Arancel Aduanero de Exportación: | 83021000 |
| Peso (g): | 68.0 |
| Zolltarifnummer: | 83021000900 |
