Clamp Profile Connector 30 (Set)

Información sobre el producto "Clamp Profile Connector 30 (Set)"

Color:
Clamp profile connector: Alu color

Países de Entrega:
En todo el mundo

Description:

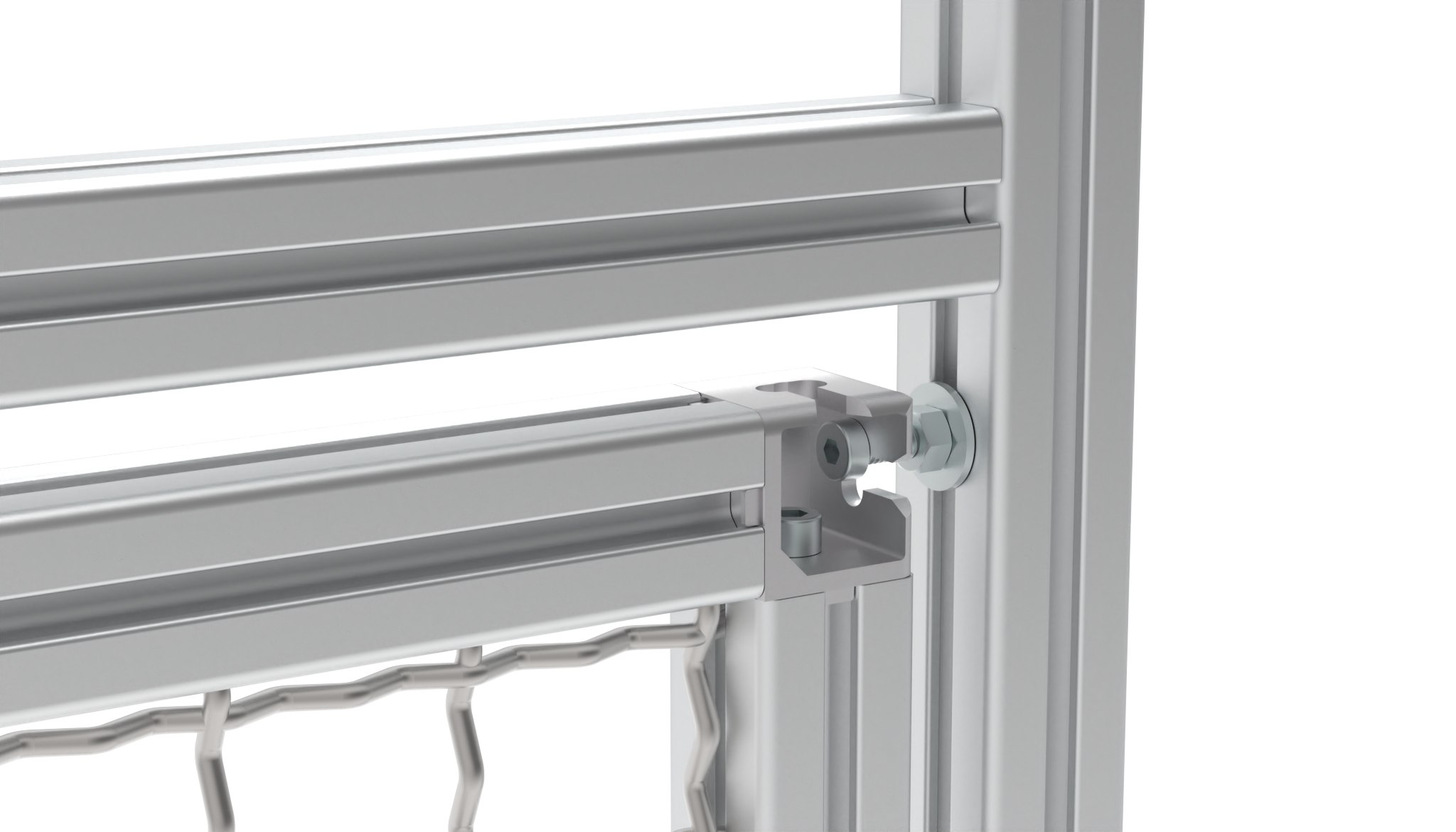

To connect two aluminum profiles at right angles and to attach a frame element to a frame structure by means of a suitable mounting; the upper monting defines the position in the structure, by shifting the lower mouting afterwards the frame can be fixed and locked

Material:
Clamp profile connector: Zinc die-cast
Screws: Steel

Set:
1 clamp profile connector,
2 screws DIN EN ISO 7380 (DIN 34805) - M6 x 16

Surface:
Clamp profile connector: Powder coated
Screws: Zinc plated

Tip:
Compatible Mounting for Clamp Profile Connector 30 (Set) see 093XWWC301N06

Zolltarifnummer:
76169910990
Cantidad por Paquete: 10 conjuntos
Model: Zinc die-cast, profile 30
Peso (g): 71.0

Variantes

ID de producto Profile Ranura N (mm)
093WWC301N06S01 I 6
