Clamp Profile Connector 40 (Set)

Información sobre el producto "Clamp Profile Connector 40 (Set)"

Color:
Clamp profile connector: Alu color

Países de Entrega:
En todo el mundo

Description:

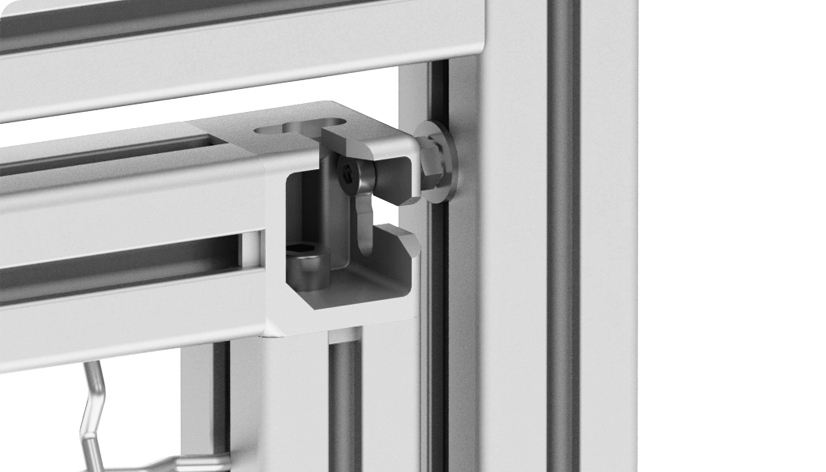

To connect two aluminum profiles at right angles and to attach a frame element to a frame structure by means of a suitable mounting; the upper monting defines the position in the structure, by shifting the lower mouting afterwards the frame can be fixed and locked

Material:
Clamp profile connector: Zinc die-cast
Screws: Steel

Set:
1 clamp profile connector,
2 screws DIN EN ISO 4762 (DIN 912) - M8 x 20

Surface:
Clamp profile connector: Powder coated
Screws: Zinc plated

Tip:
Compatible Mounting for Clamp Profile Connector 40 (Set) see 093XWWC401N08

Zolltarifnummer:
79070000900
(ECLASS 6.0): 23369290
(ECLASS 7.0): 23369290
(ECLASS 8.0): 23369290
(ECLASS 9.0): 23369290
(ECLASS 10.0): 23369290
(ECLASS 11.0): 23360492
(ECLASS 12.0): 23360492
(ECLASS 13.0): 23360492
Cantidad por Paquete: 10 conjuntos
Model: Fundición a presión de zinc, Perfil 40
Peso (g): 201.0

Variantes

ID de producto Profile Ranura N (mm)
093WWC401N08S01 I 8
