Door Latch (Set)

Información sobre el producto "Door Latch (Set)"

Color:
Negro

Counter Screw:
(not included in delivery) 1 cylinder head screw ISO 4762 / DIN EN ISO 4762 (DIN 912) - M6 - thread lengh depending on gap distance and slot depth, screw head dives competely into the door latch

Países de Entrega:
En todo el mundo

Description:

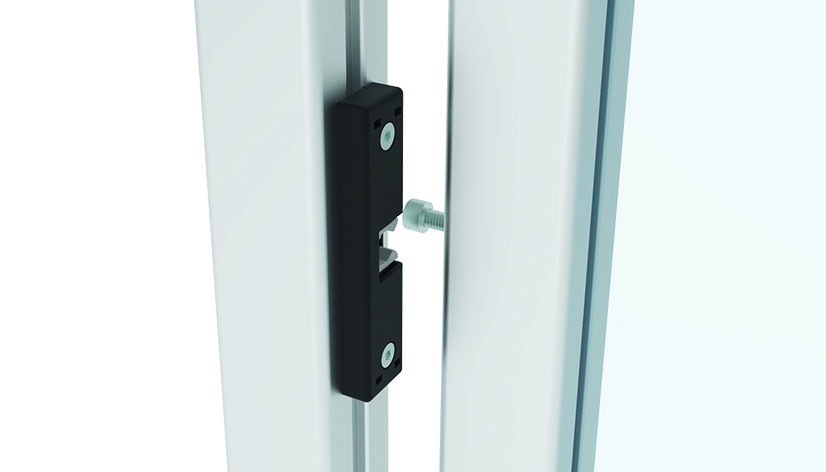

Quick fastener for swing doors, to be mountend in a min. 12 mm gap between door and post

Material:
Door latch: Zinc die-cast
Cover cap: Plastic PA, glass fiber reinforced
2 countersunk screws M4: Steel

Set:
1 door latch,
2 screws DIN 7991 (ISO 10642) - M4 x 16

Especiales:
Otros materiales, otros colores bajo pedido

Surface:
Door latch: Plain
2 countersunk screws M4: Zinc plated

Zolltarifnummer:
83024110000
(ECLASS 6.0): 23250190
(ECLASS 7.0): 23250190
(ECLASS 8.0): 23250190
(ECLASS 9.0): 23250190
(ECLASS 10.0): 23250190
(ECLASS 11.0): 23250190
(ECLASS 12.0): 23250190
(ECLASS 13.0): 23250190
Cantidad por Paquete: 10 conjuntos
Model: Fundición a presión de zinc
Peso (g): 51.0

Variantes

ID de producto Fuerza de cierre
093039 ≈ 50 N
