Heavy-duty Swivel Caster Ø 200 with System Brake and Mounting Plate 40 / 45

Información sobre el producto "Heavy-duty Swivel Caster Ø 200 with System Brake and Mounting Plate 40 / 45"

Color:
Housing: Alu color
Tread: See table
Wheel body: See table

Países de Entrega:
En todo el mundo

Description:
Reliable and quiet swivel caster, trackless
With ball bearings and thread guard integrated mounting plate for fixation to aluminum profiles with modular dimension 40 and 45 mm without overhang
No additional transport and base plate needed

Material:
Housing: Steel
Tread: See table
Wheel body: See table

Especiales:
Otros tipos de ruedas, otros colores, otras superficies bajo pedido

Surface:
Housing: Powder coated

Zolltarifnummer:
73269098900
Cantidad por Paquete: 1 pieza
Model: With bolt hole pattern and system brake
Peso (g): 2590.0

Variantes

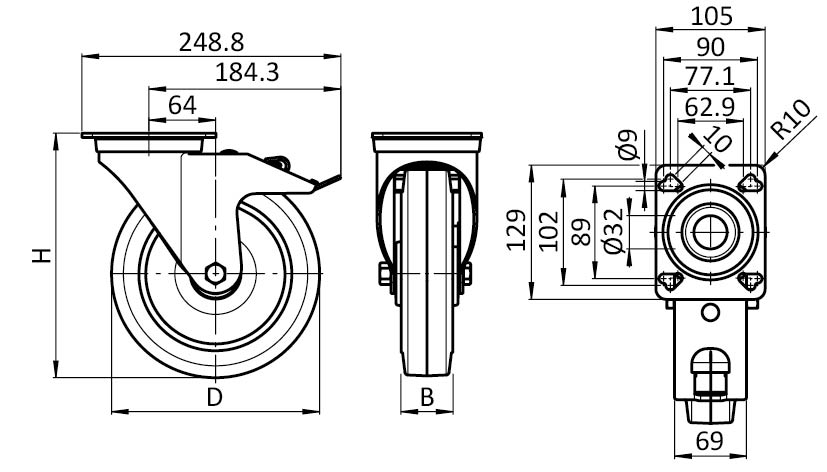

ID de producto H (mm) B (mm) Carga Máxima (N) ESD Cuerpo de Rueda D (mm) Roscado de rueda giratoria
098S200AHD129105 235 50 5800 PA, blanco 200 PA, blanco
098S200EHD129105 235 50 7800 Aluminio, gris 200 PU, amarillo
098S200EHD129105ESD 235 50 7800 ESD Aluminio, gris 200 PU, gris
098S200GHD129105 235 50 4900 PA, negro 200 Caucho macizo, negro
098S200UHD129105 235 40 4900 PA, gris 200 TPU, gris oscuro
098S200UHD129105ESD 235 40 3100 ESD PA, gris 200 TPU, gris oscuro
