Metal Hinge with Positioning Function

Información sobre el producto "Metal Hinge with Positioning Function"

Color:
Negro

Países de Entrega:
En todo el mundo

Description:

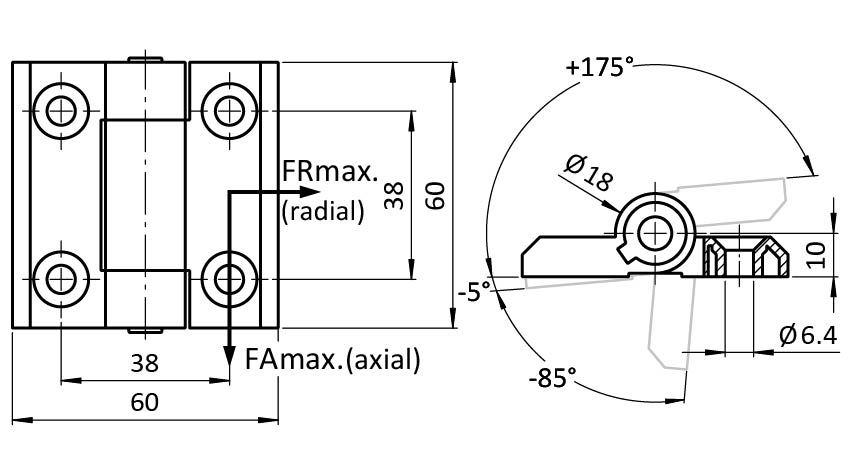

For panels and aluminum profiles; holds a door open at an angle of 85° or 175° or keeps it securely closed; also supports lightweight doors

Material:
Wings: Zinc die-cast
Axle: Stainless steel

Superficie:
Polvo cubierto

Consejo:
* +/- 20% del valor de ajuste

Zolltarifnummer:
83021000900
(ECLASS 6.0): 23219090
(ECLASS 7.0): 23219090
(ECLASS 8.0): 23219090
(ECLASS 9.0): 23219090
(ECLASS 10.0): 23219090
(ECLASS 11.0): 23219090
(ECLASS 12.0): 23219090
(ECLASS 13.0): 23219090
Arrancado de Torsión* (Nm): 1.1
Cantidad por Paquete: 10 piezas

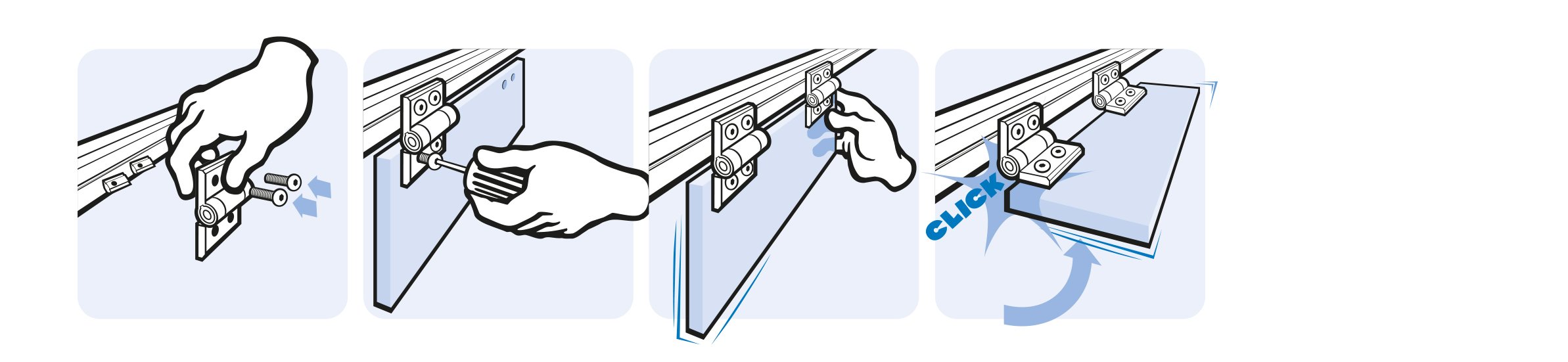

Fastening: Por delante, con tornillos avellanados M6
Model: No desmontable
Peso (g): 140.0

Variantes

ID de producto FRmax (N) FAmax (N)
095009F 1800 1000

Descargas CAD

Certificados
