Mounting for Clamp Profile Connector 30 (Set)
Número de producto:
093XWWC301N06
Información sobre el producto "Mounting for Clamp Profile Connector 30 (Set)"
Países de Entrega:
En todo el mundo
Description:
To attach frame elements to a frame structureby means of clamp profile connectors; completely preassembled, for lateral insertion into the profile slot, fixation by means of a nut; the upper monting defines the position in the structure, by shifting the lower mouting afterwards the frame can be fixed and locked; 12 mm gap between frame and structure, dimensional tolerances of +/- 3 mm can be compensated
Material:
T-slot nut: Steel
Shim: Steel
Nut: Steel
Screw: Steel
Ball: Stainless steel
Set:

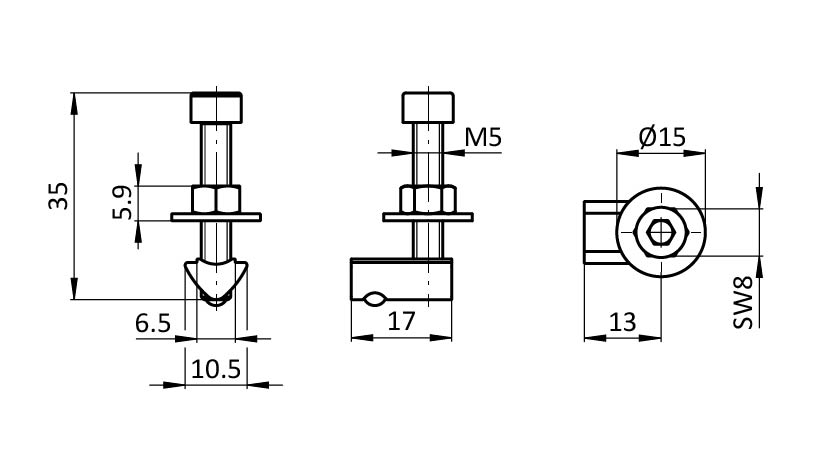

Mounting, completely preassembled:
1 T-slot nut - slot 6 - M5,
1 shim DIN EN ISO 7093 (DIN 9021) - 5.3,
1 nut DIN EN ISO 4032 (DIN 934) - M5,
1 screw DIN 7984 - M5 x 30,
1 ball Ø 4
Surface:
T-slot nut: Zinc plated
Shim: Zinc plated
Nut: Zinc plated
Screw: Zinc plated
Ball: Plain
Tip:
Compatible Clamp Profile Connector 30 (Set) see 093WWC301N06S01
En todo el mundo
Description:
To attach frame elements to a frame structureby means of clamp profile connectors; completely preassembled, for lateral insertion into the profile slot, fixation by means of a nut; the upper monting defines the position in the structure, by shifting the lower mouting afterwards the frame can be fixed and locked; 12 mm gap between frame and structure, dimensional tolerances of +/- 3 mm can be compensated
Material:
T-slot nut: Steel
Shim: Steel
Nut: Steel
Screw: Steel
Ball: Stainless steel
Set:
Mounting, completely preassembled:
1 T-slot nut - slot 6 - M5,
1 shim DIN EN ISO 7093 (DIN 9021) - 5.3,
1 nut DIN EN ISO 4032 (DIN 934) - M5,
1 screw DIN 7984 - M5 x 30,
1 ball Ø 4
Surface:
T-slot nut: Zinc plated
Shim: Zinc plated
Nut: Zinc plated
Screw: Zinc plated
Ball: Plain
Tip:
Compatible Clamp Profile Connector 30 (Set) see 093WWC301N06S01
| Cantidad por Paquete: | 10 piezas / juegos |
|---|---|
| Model: | Steel, slot 6 |
| Numero de ERP: | 172317 |
| Número de Arancel Aduanero de Exportación: | 73269098 |
| Peso (g): | 13.6 |
| Zolltarifnummer: | 73269098900 |
