Plate Connector B AL (Set)
Número de producto:
099EA30300808AS01 - 1
Información sobre el producto "Plate Connector B AL (Set)"
Assembly Set 1:
1 screw DIN 7984 - M8 x 30,
2 screws DIN 7984 - M5 x 16,
2 hammer nuts - slot 8 - M5
Assembly Set 2:
1 self forming screw S12 x 30 - hexalobular socket T50,
2 screws DIN 7984 - M6 x 20,
2 hammer nuts - slot 10 - M6
Color:
Color aluminio
Países de Entrega:
En todo el mundo
Description:

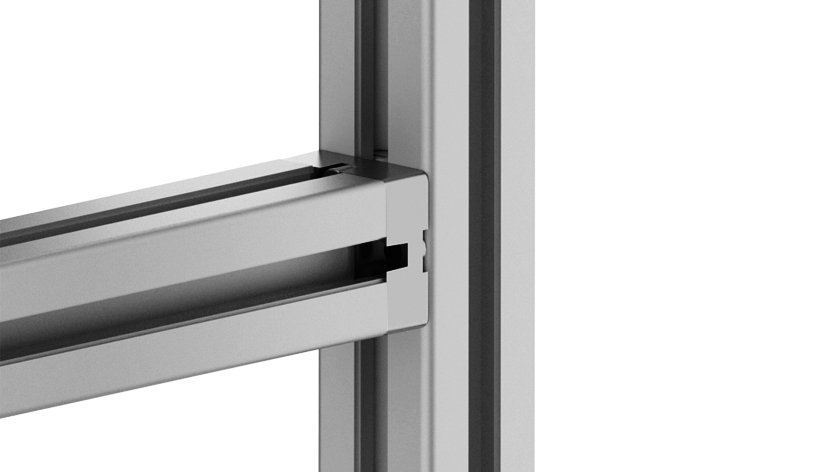

To tee connect two aluminum profiles
Material:
Plate connector: Aluminum die-cast
Assembly set: Steel
Especiales:
Otras superficies bajo pedido
Surface:
Plate connector: Plain / powder coated
Assembly set: Zinc plated
Zolltarifnummer:
76169910990
1 screw DIN 7984 - M8 x 30,
2 screws DIN 7984 - M5 x 16,
2 hammer nuts - slot 8 - M5
Assembly Set 2:
1 self forming screw S12 x 30 - hexalobular socket T50,
2 screws DIN 7984 - M6 x 20,
2 hammer nuts - slot 10 - M6
Color:
Color aluminio
Países de Entrega:
En todo el mundo
Description:
To tee connect two aluminum profiles
Material:
Plate connector: Aluminum die-cast
Assembly set: Steel
Especiales:
Otras superficies bajo pedido
Surface:
Plate connector: Plain / powder coated
Assembly set: Zinc plated
Zolltarifnummer:
76169910990
| (ECLASS 6.0): | 23360290 |
|---|---|
| (ECLASS 7.0): | 23360290 |
| (ECLASS 8.0): | 23360290 |
| (ECLASS 9.0): | 23360290 |
| (ECLASS 10.0): | 23360290 |
| (ECLASS 11.0): | 23360290 |
| (ECLASS 12.0): | 23360290 |
| (ECLASS 13.0): | 23360290 |
| Cantidad por Paquete: | 10 piezas / 10 jconjuntos |
| Model: | Aluminio fundido a presión |
| Peso (g): | 52.0 |
