FIFO Stations / Supermarkets
Connecting Strip 140 I, Slot 8 (Set)
Description:End-to-end connection of two aluminum profiles without machiningMaterial:AceroSuperficie:GalvanizadoSet:1 connecting strip 140 - slot 8 4 screws DIN EN ISO 4027 (DIN 914) - M8 x 10Países de Entrega:En todo el mundo

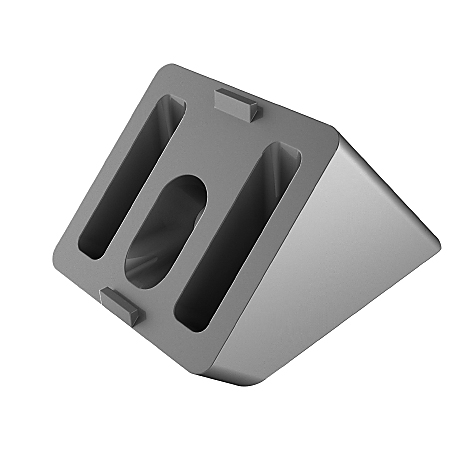

Angle Connector 40, 45°
Description:To mount a profile as bracing at a 45° angle without miter cutMaterial:Zinc fundido a presiónSuperficie:Liso / Recubierto de polvoColor:Color aluEspeciales:Otras superficies, otros colores bajo pedidoPaíses de Entrega:En todo el mundo

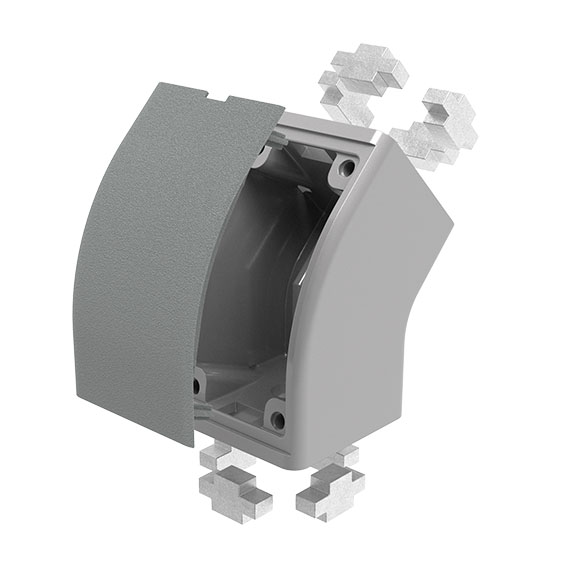

Angle Connector I 40, 45° (Set)
Description:To mount a profile as bracing at a 45° angle without miter cutMaterial:Angle connector: Aluminum die-cast Centering pieces: Zinc die-cast Cover cap: Plastic PA, glass fiber reinforcedSurface:Angle connector: Powder coatedColor:Angle connector: Alu color Cover cap: Gray ≈ RAL 7042Set:1x angle connector, 4x centering pieces, 1x cover capPaíses de Entrega:En todo el mundo

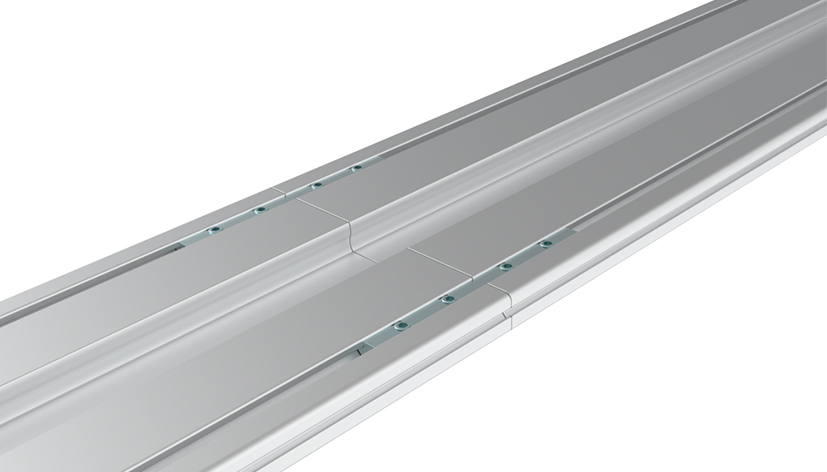

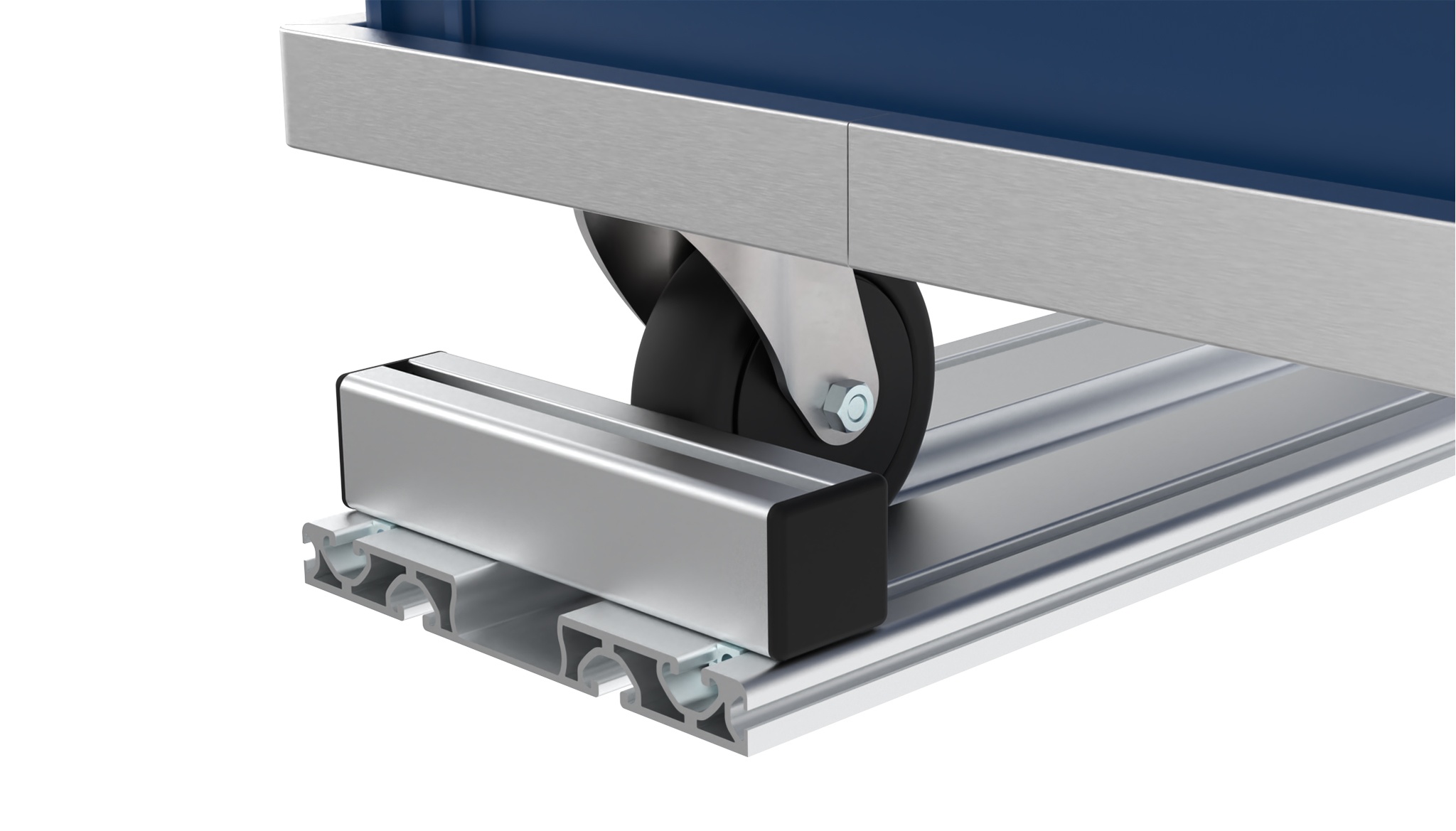

Guiding Rail FIFO (Set)
Description:For guiding floor dollys on one side in FIFO stations, with a wheel width of up to 40 mm with 2 slots at the top, bottom and sides; to extend two guiding rails, connect them face to face with connecting strip in the slots; sign posts can be mounted in the slot from aboveMaterial:AluminioSuperficie:AnodizadoTip:Other lengths on requestTip 2:Compatible connecting strip see 096060S02 Compatible infeed cap for FIFO monorail rail (set) see 2082CCS02 Compatible monorail angle connector for post see 093WS30145S01 Compatible mounting set for posts support struts see 93WS30145S02 Compatible cover profiles see 092080Países de Entrega:En todo el mundo
Infeed Cap for Guiding Rail FIFO (Set)
Description:For easier loading and unloading of a FIFO stations with floor dollys; Robust design, mounting directly in the slot of guiding rails FIFO with enclosed hexagon socket set screws Yellow screw cover with signal effect to indicate the infeed position for the wheels of floor dollysMaterial:Infeed caps: Aluminum die-cast Screw covers: Plastic PC Hexagon socket set screws: SteelSurface:Infeed caps: Alu color powder coated Hexagon socket set screws: Zinc platedColor:Screw Covers: Yellow ≈ RAL 1003PFA_Fastening:Por delante, con tornillos avellanados M6Set:8 infeed caps 16 screw covers 16 hexagon socket set screws DIN EN ISO 4027 (DIN 914) - M6 x 8Tip:Compatible Guiding Rails FIFO see 02082P.1200 Compatible Connecting Element for Guiding Rail FIFO see 02082D Compatible Fastening Set see 02082FS Compatible Screw Cover Infeed Cap for Guiding Rail FIFO as spare part see 02082S.15Países de Entrega:En todo el mundo
Screw Cover Infeed Cap for Guiding Rail FIFO
Description:To cover the screw holes of infeed caps for guiding rail FIFO; Yellow screw cover with signal effect to indicate the infeed position for the wheels of floor dollys; Included in the infeed cap set, here separately available as replacementMaterial:Plástico PCColor:Amarillo ≈ RAL 1003Fastening:Self-adhesive surface on the backsidePaíses de Entrega:En todo el mundo
Mounting Set Infeed Cap for Guiding Rail FIFO
Description:To mount infeed caps for guiding rails FIFO to the floorMaterial:Anchor: Plastic Screws: SteelSuperficie:Tornillos: GalvanizadoColor:Anchor: YellowSet:8 anchors 8 x 60 8 screws 5 x 60Países de Entrega:En todo el mundo

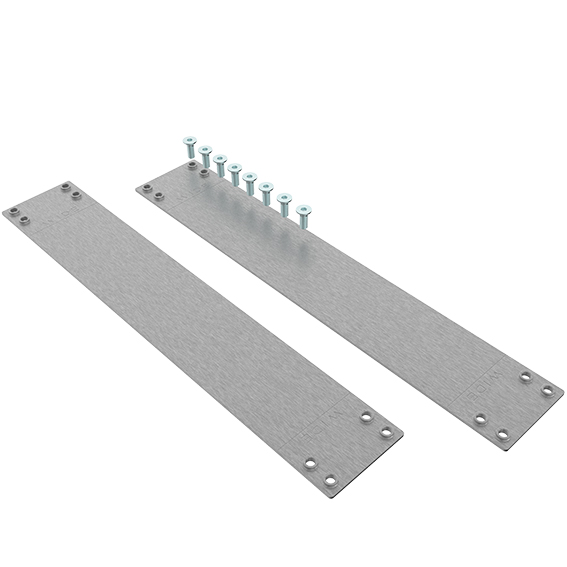

Connecting Element for Guiding Rail FIFO (Set)
Description:For parallel connection of two guiding rails FIFO, as spacer for aligning the track; To be screwed on infeed caps with enclosed screwsMaterial:Acero inoxidableSuperficie:LisoSet:2 connecting elements 8 screws DIN EN ISO 10642 (DIN 7991) - M6 x 16Tip:Compatible Guiding Rail FIFO see 02082P.1200 Compatible Infeed Cap for Guiding Rail FIFO (set) see 02082CCS01Países de Entrega:En todo el mundo
Floor Mounting for Guiding Rail FIFO (Set)
Description:To additionally mount guiding rails FIFO to the floorMaterial:Angle: Steel Screw: Steel T-slot nut: Steel Anchors: PlasticSurface:Angle: Powder coated Screws: Zinc plated T-slot nuts: Zinc platedColor:Angle: Alu color Anchors: YellowSet:2 steel connection angle 20, 2 screws DIN EN ISO 10642 (DIN 7991) - M5 x 8; 2 T-slot nuts - slot 5 - M5, 2 screws 5 x 60, 2 anchors 8 x 60Países de Entrega:En todo el mundo

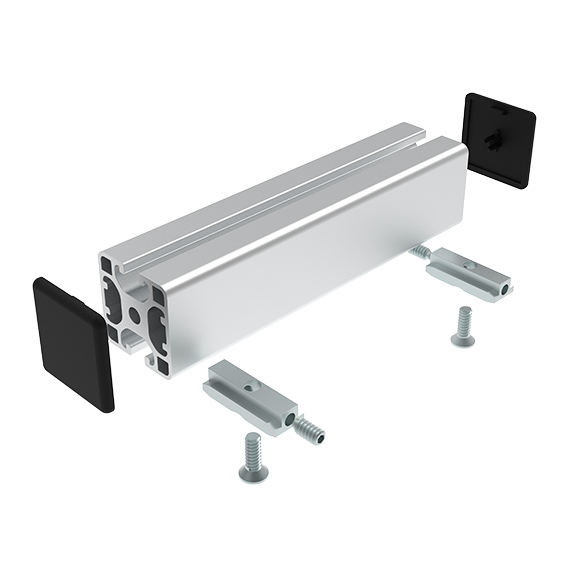

Adjustable Caster End Stop for Guiding Rail FIFO (Set)
Description:To stop dollies in guiding rails FIFO; Easy installation with enclosed connectorsMaterial:Profile: Aluminum Cover Cap: Plastic PA Connector: SteelSurface:Profile: Anodized Connector: Zinc platedColor:Cover caps: Gray ≈ RAL 7042Set:1 profile piece 2 cover caps 2 connectorsTip:Compatible Guiding Rail FIFO see 02082P.1200Países de Entrega:En todo el mundo

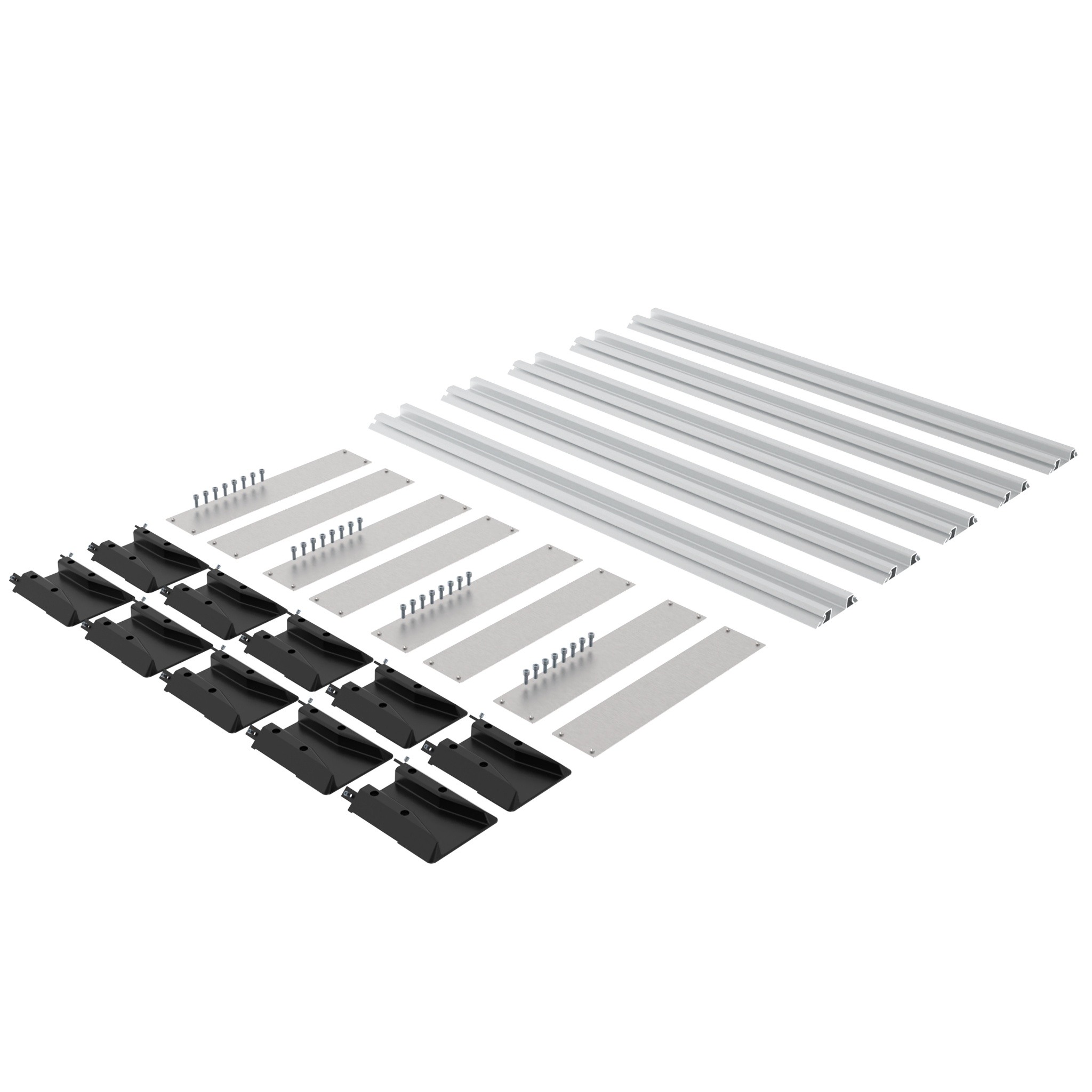

FIFO Monorail Station 40 (Set)
Description:Fast mounting FIFO station for guiding floor dollies on one side in FIFO stations, with a wheel width of up to 40 mm; To extend guiding rails, connect them face to face with connecting strip in the slots; To widen, connect further parallel guided guiding rails and end caps with connecting elements Posts can be mounted in the slot from above; To securely fix to the floor, use the optional mounting set; Mounting of a brush brake or an end stop with 2 optional mounting sets as a support baseMaterial:Rails: Aluminum Infeed caps: Aluminum die-cast Hexagon socket set screws: Steel Connecting elements: Stainless steel Screws: SteelSurface:Rails: Anodized Infeed caps: Powder coated Hexagon socket set screws: Zinc plated Screws: Zinc platedColor:Infeed caps: BlackSet:5 FIFO Monorail Rails 40, 10 infeed caps, 20 hexagon socket set screws DIN EN ISO 4027 (DIN 914) - M6 x 8, 8 connecting elements, 32 screws DIN EN ISO 10642 (DIN 7991) - M6 x 16Tip:Compatible Connecting Strip see 096010S61 Compatible Monorail Angle Connector for Post see 093WS30145S01 Compatible Mounting Set for Posts Support Struts see 093WS30145S02 Compatible Cover Profiles see 092050; Compatible Mounting for FIFO Monorail Rail 40 and 55 (Set) see 02082MBPaíses de Entrega:En todo el mundo

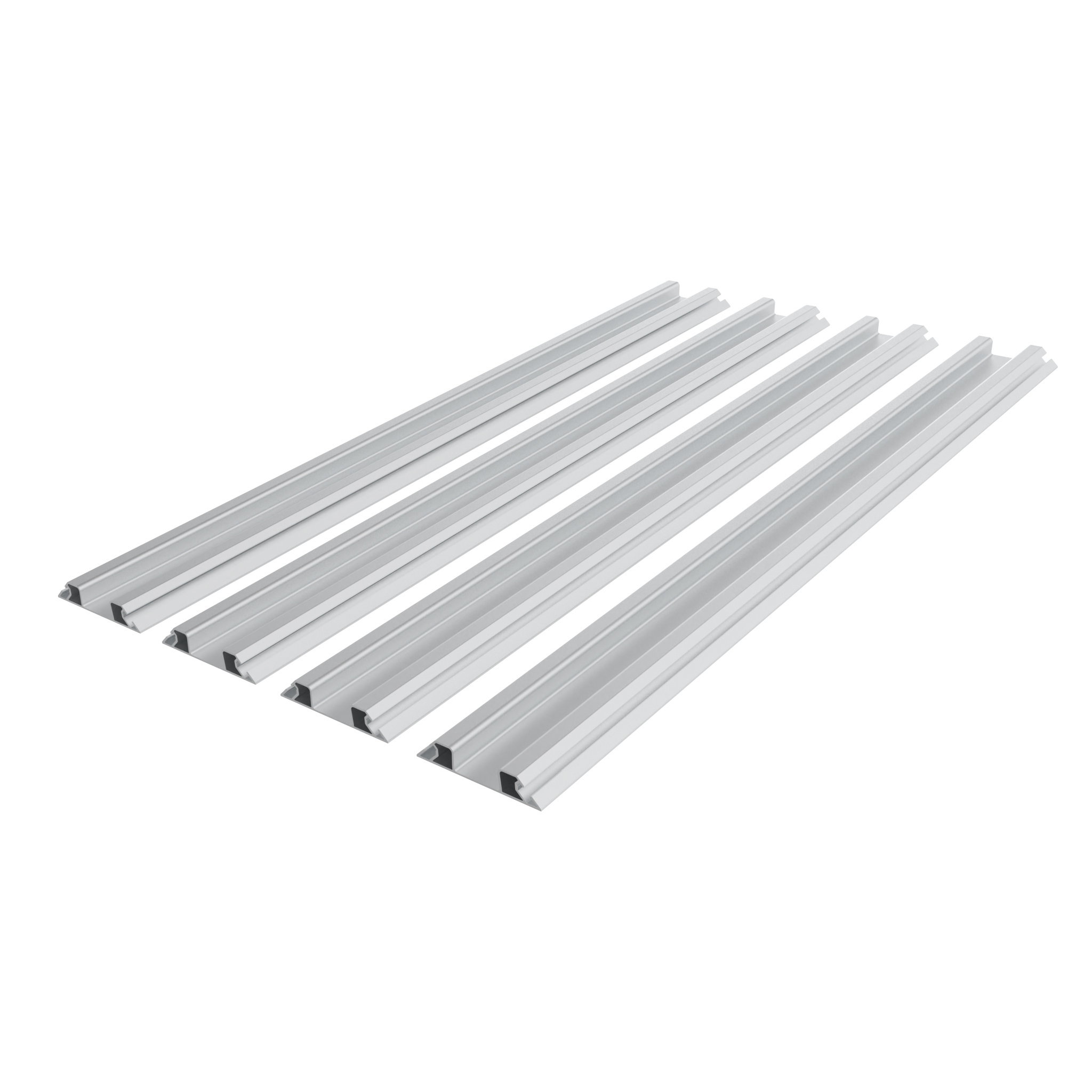

FIFO Monorail Rail 40
Description:For guiding floor dollies on one side in FIFO stations, with a wheel width of up to 40 mm 2 slots at the top, set at 45°; closed back side for optional full-surface adhesion to the floor To extend two guiding rails, connect them face to face with connecting strip in the slots; Posts can be mounted in the slot from above; To securely fix to the floor, use the optional mounting set; Mounting of a brush brake or an end stop with 2 optional mounting sets as a support baseMaterial:AluminioSuperficie:AnodizadoTip:Compatible Connecting Strip see 096010S61 Compatible Infeed Cap for FIFO Monorail Rail (Set) see 02082CCS02 Compatible Monorail Angle Connector for Post see 093WS30145S01 Compatible Mounting Set for Posts Support Struts see 093WS30145S02 Compatible Cover Profiles see 092050; Compatible Mounting for FIFO Monorail Rail 40 and 55 (Set) see 02082MBPaíses de Entrega:En todo el mundo
Infeed cap for FIFO Monorail Rail 40 (Set)
Description:For easier loading and unloading of FIFO stations with floor dollies; Robust design, mounting directly in the slot of FIFO monorail rail with enclosed hexagon socket set screwsMaterial:Infeed caps: Aluminum die-cast Hexagon socket set screws: SteelSurface:Infeed caps: Powder coated Hexagon socket set screws: Zinc platedColor:Infeed caps: BlackPFA_Fastening:Por delante, con tornillos avellanados M6Set:8 infeed caps 16 hexagon socket set screws DIN EN ISO 4027 (DIN 914) - M6 x 8Tip:Compatible FIFO Monorail Rail 40 see 02082PO.1200Países de Entrega:En todo el mundo

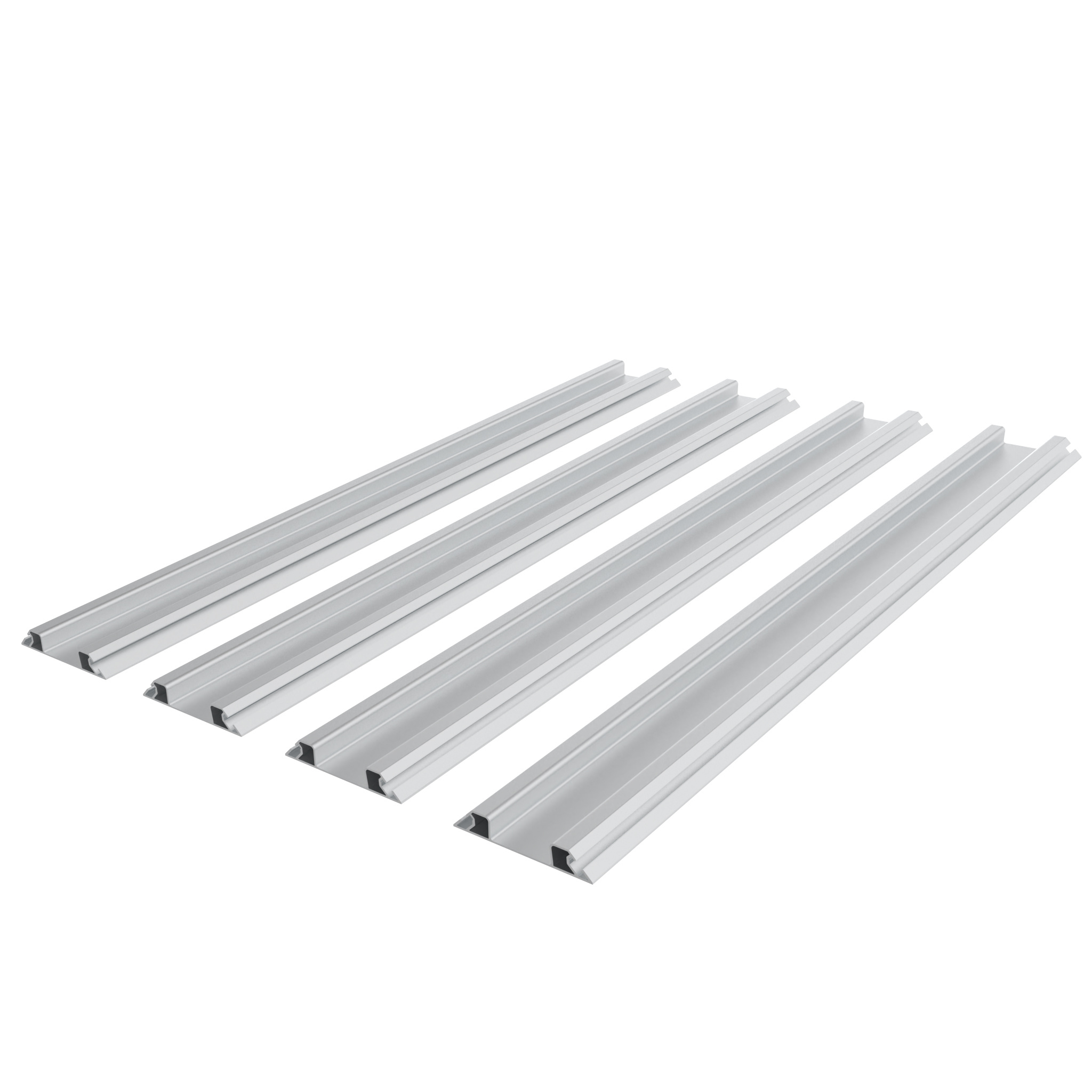

FIFO Monorail Rail 55
Description:For guiding floor dollies on one side in FIFO stations, with a wheel width of up to 55 mm 2 slots at the top, set at 45°; closed back side for optional full-surface adhesion to the floor To extend two guiding rails, connect them face to face with connecting strip in the slots; Posts can be mounted in the slot from above; To securely fix to the floor, use the optional mounting set; Mounting of a brush brake or an end stop with 2 optional mounting sets as a support baseMaterial:AluminioSuperficie:AnodizadoTip:Compatible Connecting Strip see 096010S61 Compatible Infeed Cap for FIFO Monorail Rail (Set) see 02082CCS02 Compatible Monorail Angle Connector for Post see 093WS30145S01 Compatible Mounting Set for Posts Support Struts see 093WS30145S02 Compatible Cover Profiles see 092050; Compatible Mounting for FIFO Monorail Rail 40 and 55 (Set) see 02082MBPaíses de Entrega:En todo el mundo
Infeed cap for FIFO Monorail Rail 55 (Set)
Description:For easier loading and unloading of FIFO stations with floor dollies; Robust design, mounting directly in the slot of FIFO monorail rail with enclosed hexagon socket set screwsMaterial:Infeed caps: Aluminum die-cast Hexagon socket set screws: SteelSurface:Infeed caps: Powder coated Hexagon socket set screws: Zinc platedColor:Infeed caps: BlackPFA_Fastening:Por delante, con tornillos avellanados M6Set:8 infeed caps 16 hexagon socket set screws DIN EN ISO 4027 (DIN 914) - M6 x 8Tip:Compatible FIFO monorail rail 55 see 02082PO55.1200Países de Entrega:En todo el mundo

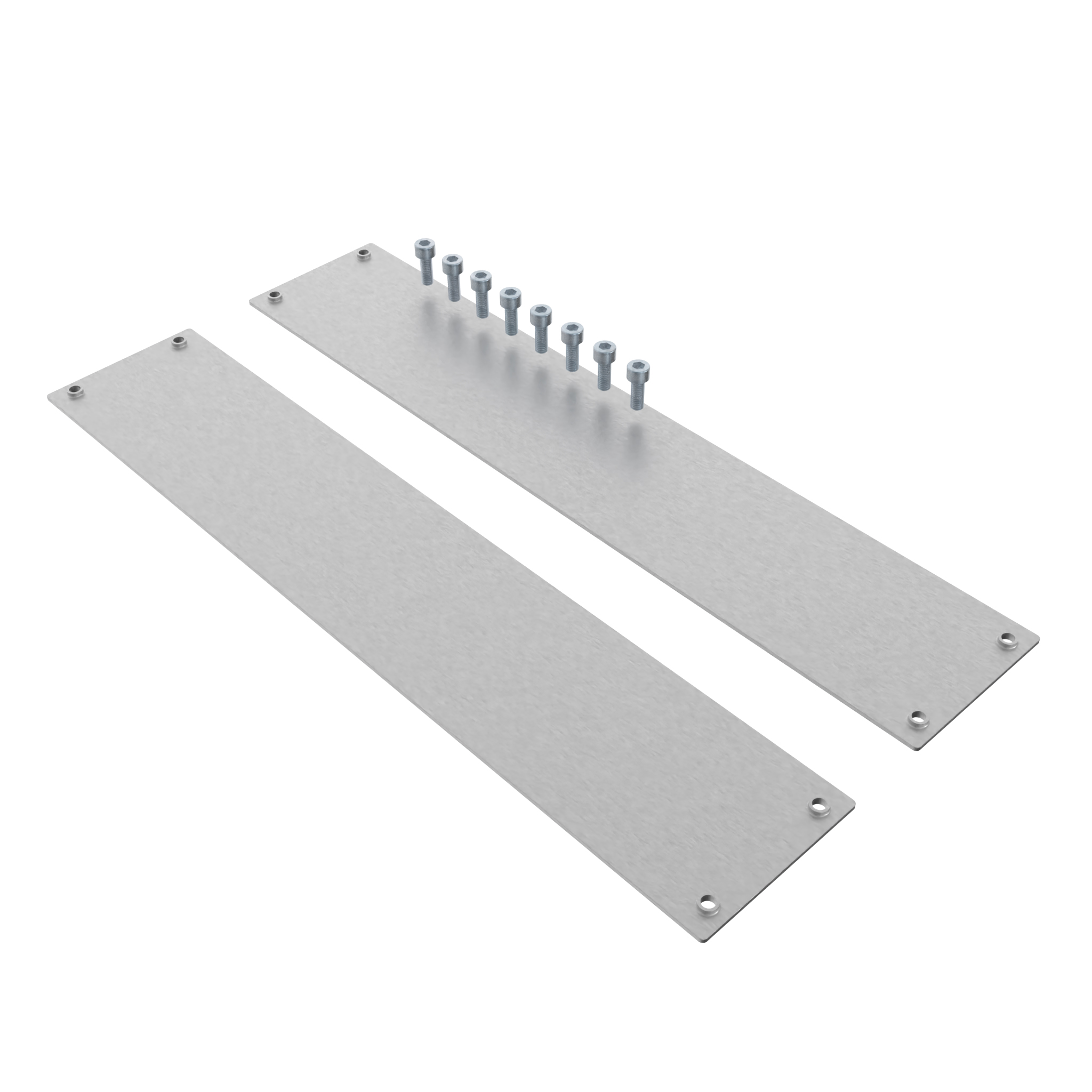

Connecting Element for FIFO Monorail Rail 40 and 55 (Set)
Description:For parallel connection of two FIFO Monorail rails, as spacer for aligning the track; To be screwed on infeed caps with enclosed screwsMaterial:Acero inoxidableSuperficie:LisoSet:2 connecting elements 8 screws DIN EN ISO 4762 (DIN 912) - M6 x 16Tip:Compatible FIFO Monorail Rail 40 see 02082PO.1200 Compatible FIFO Monorail Rail 55 see 02082PO55.1200 Compatible Infeed cap for FIFO Monorail Rail 40 (Set) see 02082CCS02 Compatible Infeed cap for FIFO Monorail Rail 55 (Set) see 02082CC55Países de Entrega:En todo el mundo
Mounting for FIFO Monorail Rail 40 and 55 (Set)
Description:To securely fix FIFO Monorail Rails to the floor; For use as a support base to mount a brush brake or an end stopMaterial:AceroSuperficie:GalvanizadoSet:2 Mounting, 4 T-slot nuts - slot 8 - M6, 6 screws DIN EN ISO 4762 (DIN 912) - M6 x 12, 2 screws DIN EN ISO 4762 (DIN 912) - M6 x 16Tip:Compatible Brush Brake see 02082BB Compatible variable End Stop for FIFO Monorail Rail 40 see 096030S52 Compatible variable End Stop for FIFO Monorail Rail 55 see 096030S12Países de Entrega:En todo el mundo
End Stop for FIFO Monorail Rail 40
Description:To stop dollies in FIFO monorail rails 40; Installation with mounting set for FIFO monorail rails (not included)Material:AceroSuperficie:GalvanizadoSpecials:Compatible Mounting for FIFO Monorail Rails 40 and 55 (Set) see 02082MBPaíses de Entrega:En todo el mundo
End Stop for FIFO Monorail Rail 55
Description:To stop dollies in FIFO monorail rails 55; Installation with mounting set for FIFO monorail rails (not included)Material:AceroSuperficie:GalvanizadoTip:Compatible Mounting for FIFO Monorail Rails 40 and 55 (Set) see 02082MBPaíses de Entrega:En todo el mundo
Cover Profile Slot 8 - 2.2
Description:To cover T-Slots with 8 width and a 2.2 mm profile webMaterial:Plástico PPColor:Negro, amarillo, rojo, azul, gris, natural, color aluTip:ESD electrostatical discharging version: Notch at the bottom sideEspeciales:Otros colores bajo pedidoPaíses de Entrega:En todo el mundo
Cover Profile Slot 8 - 4.5
Description:To cover T-Slots with 8 mm width and a 4.5 mm profile webMaterial:Plástico PPColor:Negro, amarillo, gris, natural, color aluEspeciales:Otros colores bajo pedidoPaíses de Entrega:En todo el mundo
Connecting Strip for FIFO Monorail Rail 40 and 55
Description:End-to-end connection of two FIFO Monorail rails without machiningMaterial:AceroSuperficie:GalvanizadoSet:1 connecting strip 180 - slot 8 4 screws DIN EN ISO 4027 (DIN 914) - M6 x 8Países de Entrega:En todo el mundo

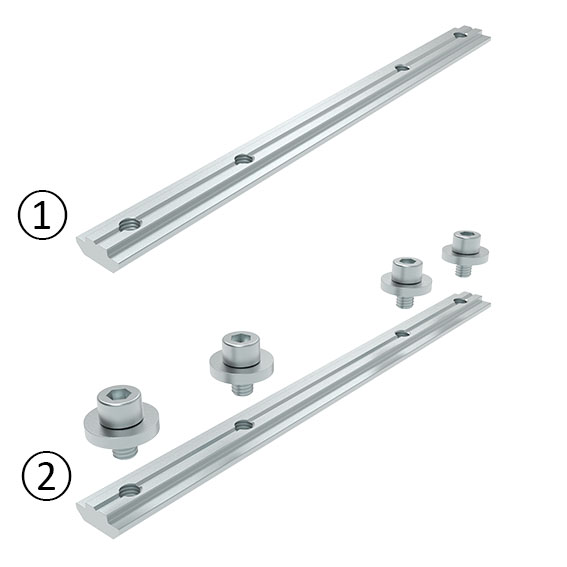

Connecting Strip 180 B, Slot 8
Description:End-to-end connection of two aluminum profiles without machiningMaterial:AceroSuperficie:GalvanizadoAssembly Set:4 screws DIN EN ISO 4762 (DIN 912) - M6 x 12, 4 washers DIN 7349 - 6.4Países de Entrega:En todo el mundo

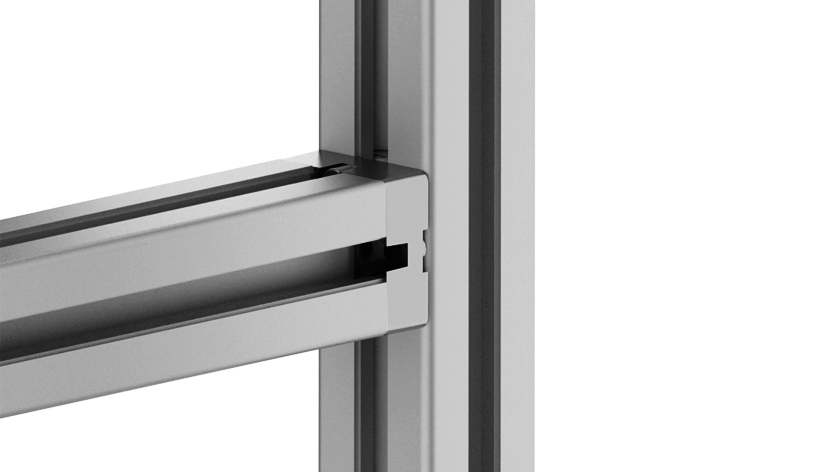

Monorail Angle Connector for Posts (Set)
Description:To mount posts in the upper slot of FIFO monorail rail 40Material:AluminioSet:2 angle connector 45° 30 x 30, 2 screw DIN EN ISO 4762 (DIN 912) - M8 x 12, 2 T-slot nuts - M8, 2 self-tapping screw - S8 x 25Tip:Compatible FIFO Monorail Rail see 02082PO.1200Países de Entrega:En todo el mundo
