FIFO Monorail Station 40 (Set)

Información sobre el producto "FIFO Monorail Station 40 (Set)"

Color:
Infeed caps: Black

Países de Entrega:
En todo el mundo

Description:

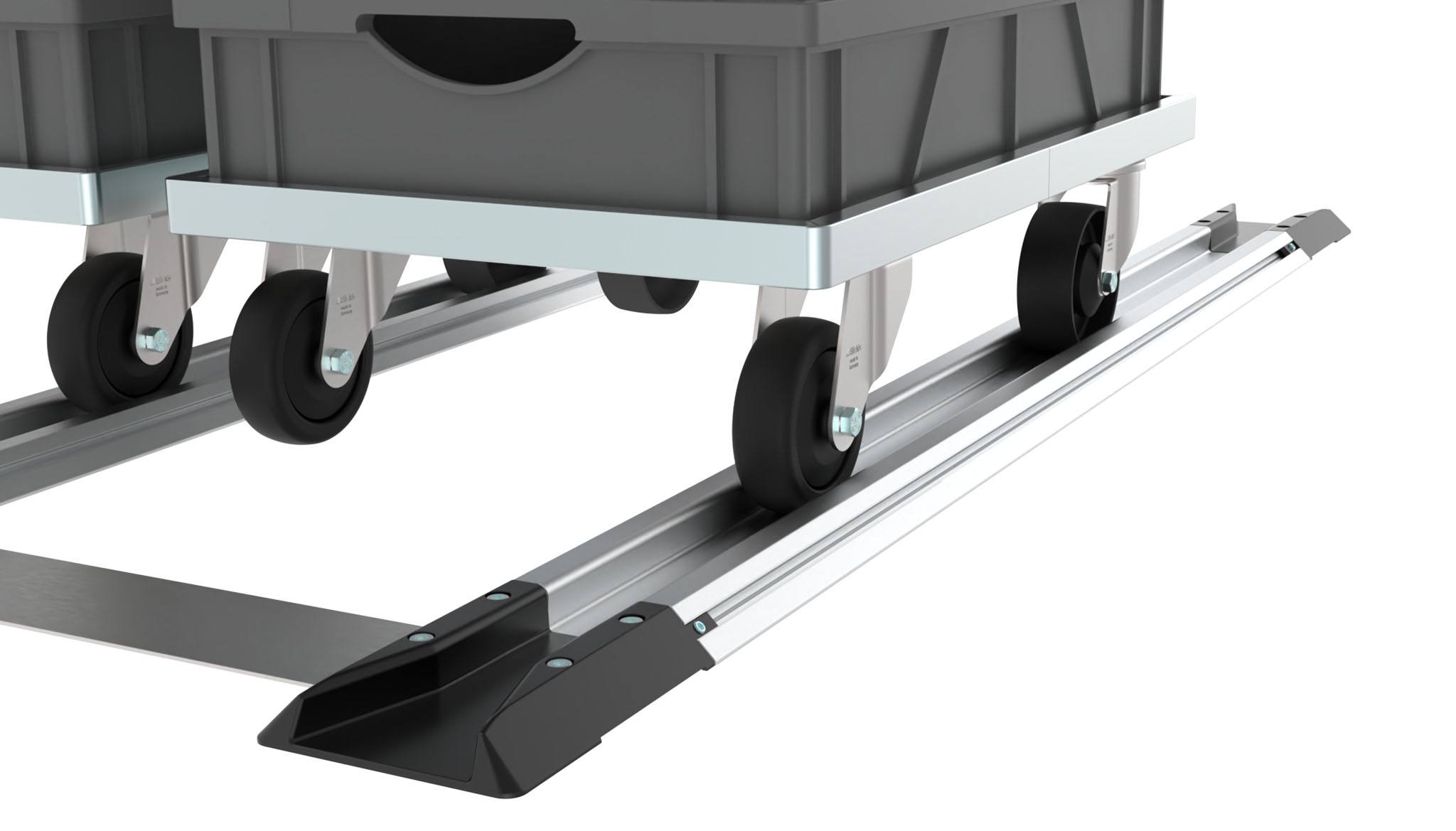

Fast mounting FIFO station for guiding floor dollys on one side in FIFO stations, with a wheel width of up to 40 mm;

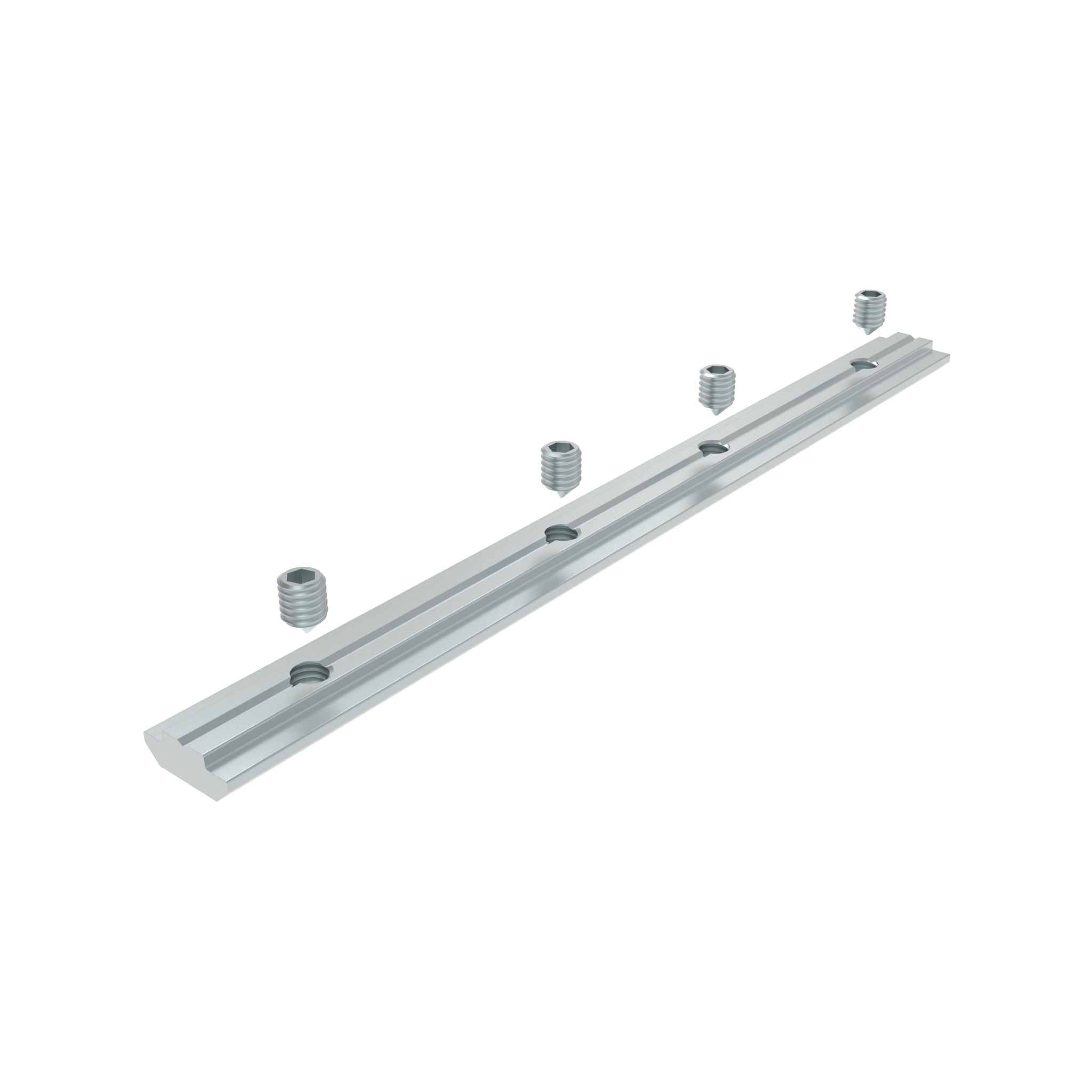

To extend guiding rails, connect them face to face with connecting strip in the slots;
To widen, connect further parallel guided guiding rails and end caps with connecting elements
Posts can be mounted in the slot from above

Material:
Rails: Aluminum
Infeed caps: Aluminum die-cast
Hexagon socket set screws: Steel
Connecting elements: Stainless steel
Screws: Steel

Set:
5 FIFO Monorail Rails 40,
10 infeed caps,
20 hexagon socket set screws ISO 4027 - M6 x 8,
8 connecting elements,
32 screws DIN 7991 (ISO 10642) - M6 x 16

Surface:
Rails: Anodized
Infeed caps: Powder coated
Hexagon socket set screws: Zinc plated
Screws: Zinc plated

Zolltarifnummer:
76169990990
Cantidad por Paquete: 1 juego
Model: Aluminio
Peso (g): 15519.0

Variantes

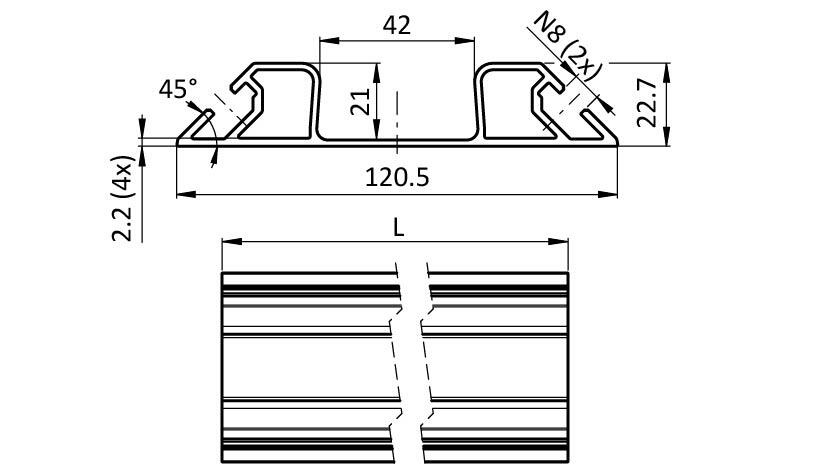

ID de producto Profile L (mm)
02082PO.1200S01 B 1200.0
02082PO.1800S01 B 1800.0
02082PO.2400S01 B 2400.0
