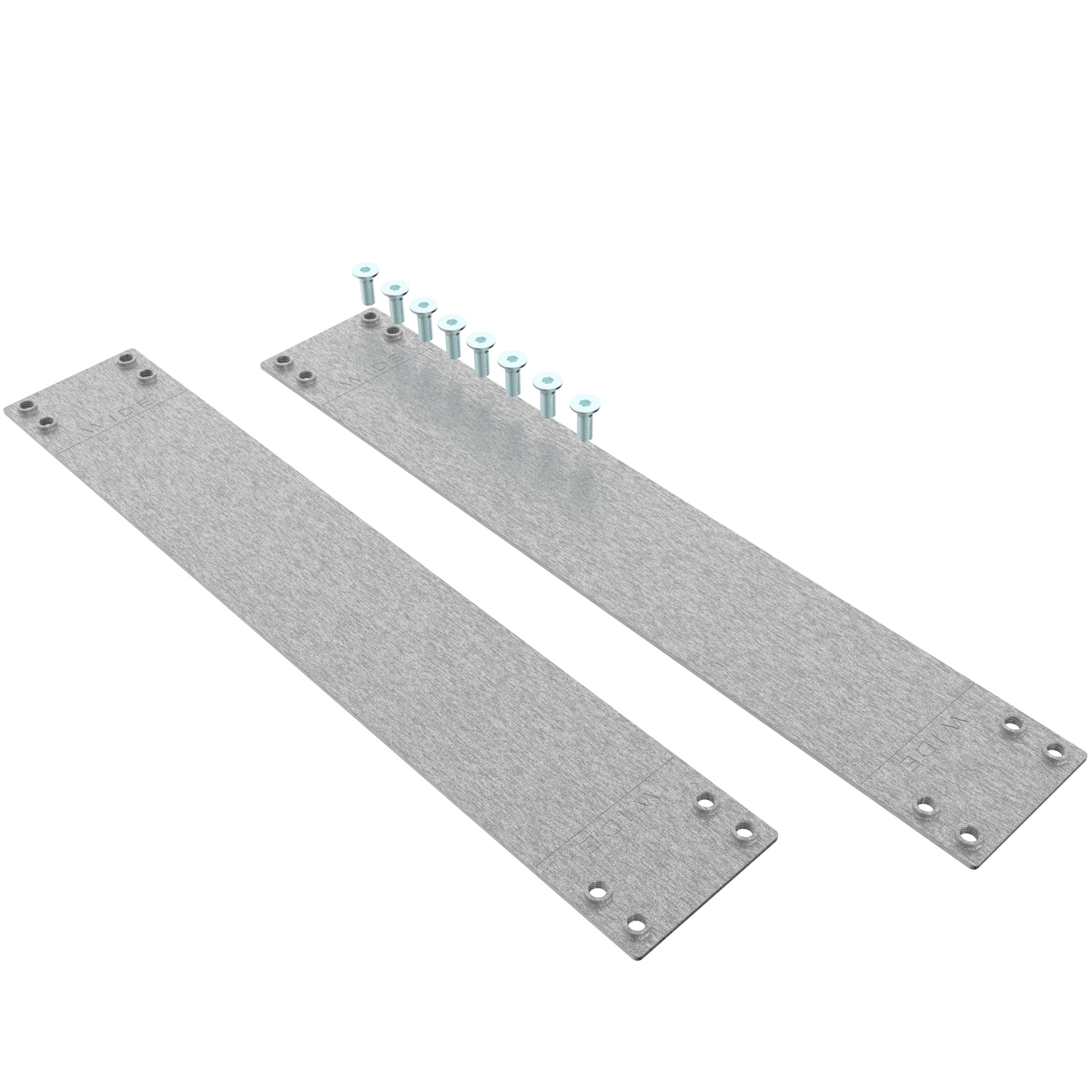

Connecting Element for Guiding Rail FIFO (Set)
0,00 €
For parallel connection of two guiding rails FIFO, as spacer for aligning the track;
To be screwed on infeed caps with enclosed screws
Acero inoxidable
Superficie:
Liso
Set:
2 connecting elements
8 screws DIN EN ISO 10642 (DIN 7991) - M6 x 16
Tip:
Compatible Guiding Rail FIFO see 02082P.1200
Compatible Infeed Cap for Guiding Rail FIFO (set) see 02082CCS01
Países de Entrega:
En todo el mundo
| Cantidad por paquete: | 1 pieza |
|---|---|
| Model: | Acero inoxidable |
| Peso (g): | 692.2 |
| Numero de ERP: | 148984 |
Clasificación
- ECLASS 6.0
- 21070390
- ECLASS 7.0
- 21079290
- ECLASS 8.0
- 21079290
- ECLASS 9.0
- 21070392
- ECLASS 10.0
- 21070392
- ECLASS 11.0
- 21070492
- ECLASS 12.0
- 21070492
- ECLASS 13.0
- 21070492
- Zolltarifnummer
- 73269098900
- Número de Arancel Aduanero de Exportación
- 73269098
Certificados
Accesorios adecuados
Description:For guiding floor dollys on one side in FIFO stations, with a wheel width of up to 40 mm with 2 slots at the top, bottom and sides; to extend two guiding rails, connect them face to face with connecting strip in the slots; sign posts can be mounted in the slot from aboveMaterial:AluminioSuperficie:AnodizadoTip:Other lengths on requestTip 2:Compatible connecting strip see 096060S02 Compatible infeed cap for FIFO monorail rail (set) see 2082CCS02 Compatible monorail angle connector for post see 093WS30145S01 Compatible mounting set for posts support struts see 93WS30145S02 Compatible cover profiles see 092080Países de Entrega:En todo el mundo
Description:For easier loading and unloading of a FIFO stations with floor dollys; Robust design, mounting directly in the slot of guiding rails FIFO with enclosed hexagon socket set screws Yellow screw cover with signal effect to indicate the infeed position for the wheels of floor dollysMaterial:Infeed caps: Aluminum die-cast Screw covers: Plastic PC Hexagon socket set screws: SteelSurface:Infeed caps: Alu color powder coated Hexagon socket set screws: Zinc platedColor:Screw Covers: Yellow ≈ RAL 1003PFA_Fastening:Por delante, con tornillos avellanados M6Set:8 infeed caps 16 screw covers 16 hexagon socket set screws DIN EN ISO 4027 (DIN 914) - M6 x 8Tip:Compatible Guiding Rails FIFO see 02082P.1200 Compatible Connecting Element for Guiding Rail FIFO see 02082D Compatible Fastening Set see 02082FS Compatible Screw Cover Infeed Cap for Guiding Rail FIFO as spare part see 02082S.15Países de Entrega:En todo el mundo
