FIFO Monorail Rails

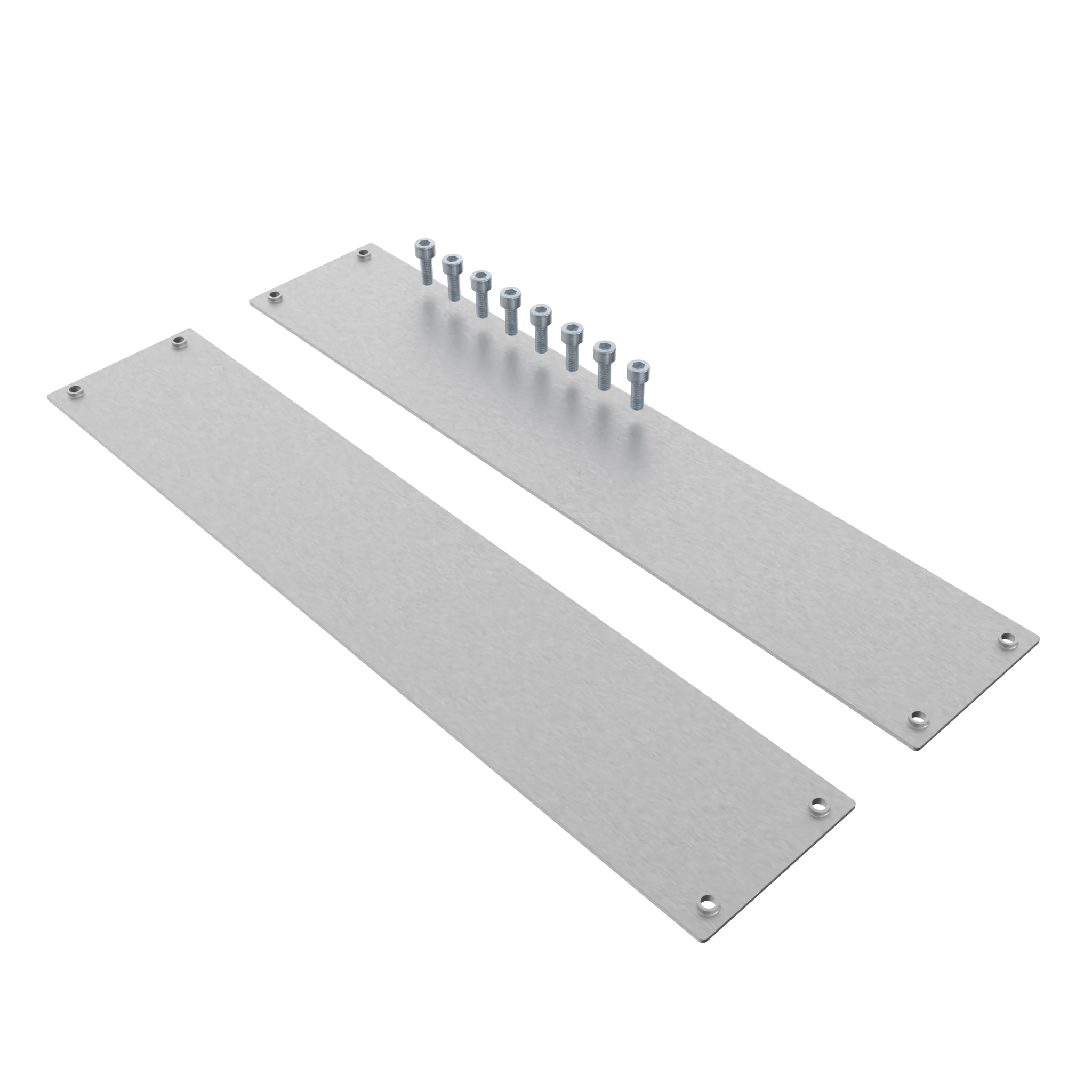

Connecting Element for FIFO Monorail Rail 40 and 55 (Set)
Países de Entrega:En todo el mundoDescription:For parallel connection of two FIFO Monorail rails, as spacer for aligning the track; To be screwed on infeed caps with enclosed screwsMaterial:Acero inoxidableSet:2 connecting elements 8 screws DIN EN ISO 4762 (DIN 912) - M6 x 16Superficie:LisoTip:Compatible FIFO Monorail Rail 40 see 02082PO.1200 Compatible FIFO Monorail Rail 55 see 02082PO55.1200 Compatible Infeed cap for FIFO Monorail Rail 40 (Set) see 02082CCS02 Compatible Infeed cap for FIFO Monorail Rail 55 (Set) see 02082CC55

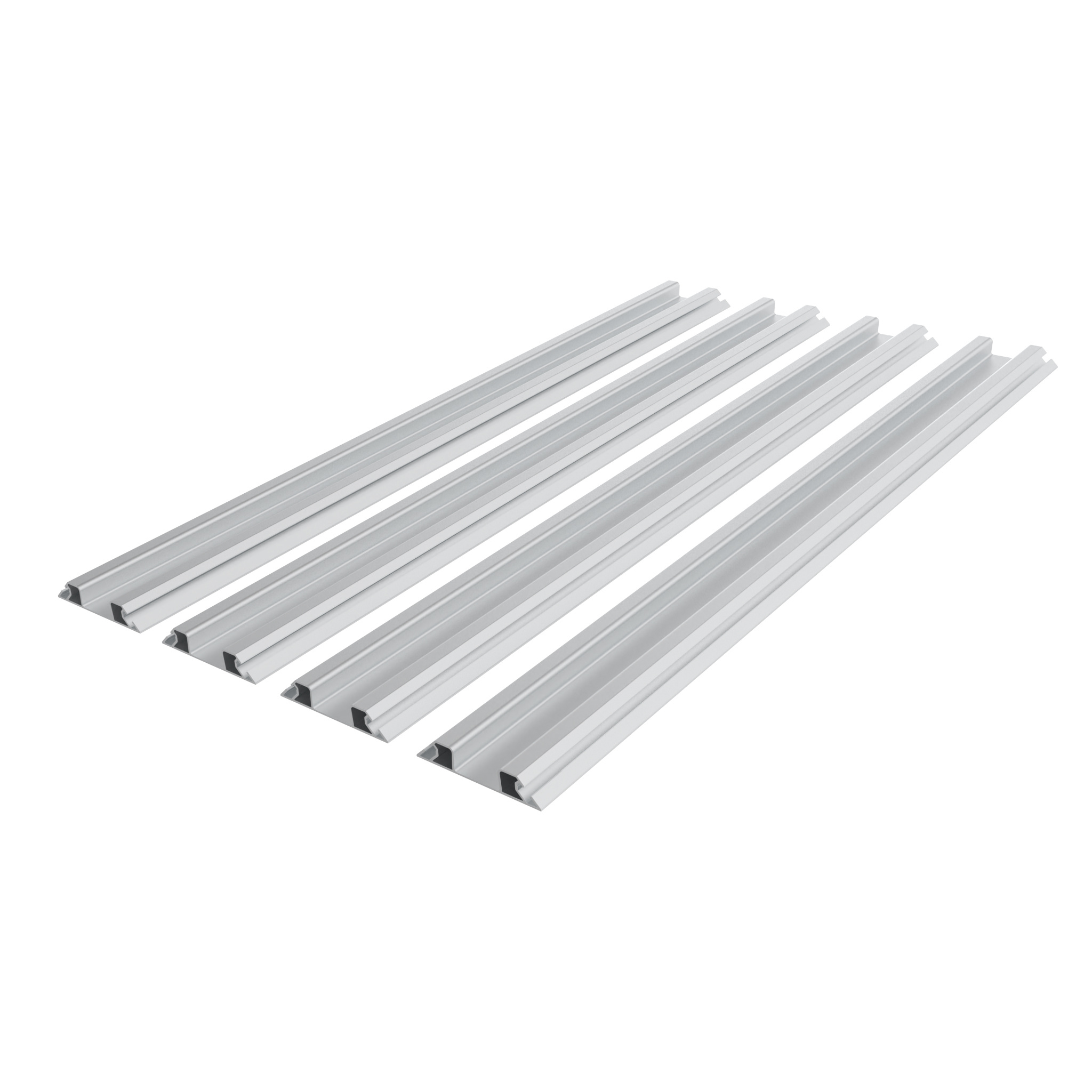

FIFO Monorail Rail 40
Países de Entrega:En todo el mundoDescription:For guiding floor dollies on one side in FIFO stations, with a wheel width of up to 40 mm 2 slots at the top, set at 45°; closed back side for optional full-surface adhesion to the floor To extend two guiding rails, connect them face to face with connecting strip in the slots; Posts can be mounted in the slot from above; To securely fix to the floor, use the optional mounting set; Mounting of a brush brake or an end stop with 2 optional mounting sets as a support baseMaterial:AluminioSuperficie:AnodizadoTip:Compatible Connecting Strip see 096010S61 Compatible Infeed Cap for FIFO Monorail Rail (Set) see 02082CCS02 Compatible Monorail Angle Connector for Post see 093WS30145S01 Compatible Mounting Set for Posts Support Struts see 093WS30145S02 Compatible Cover Profiles see 092050; Compatible Mounting for FIFO Monorail Rail 40 and 55 (Set) see 02082MB

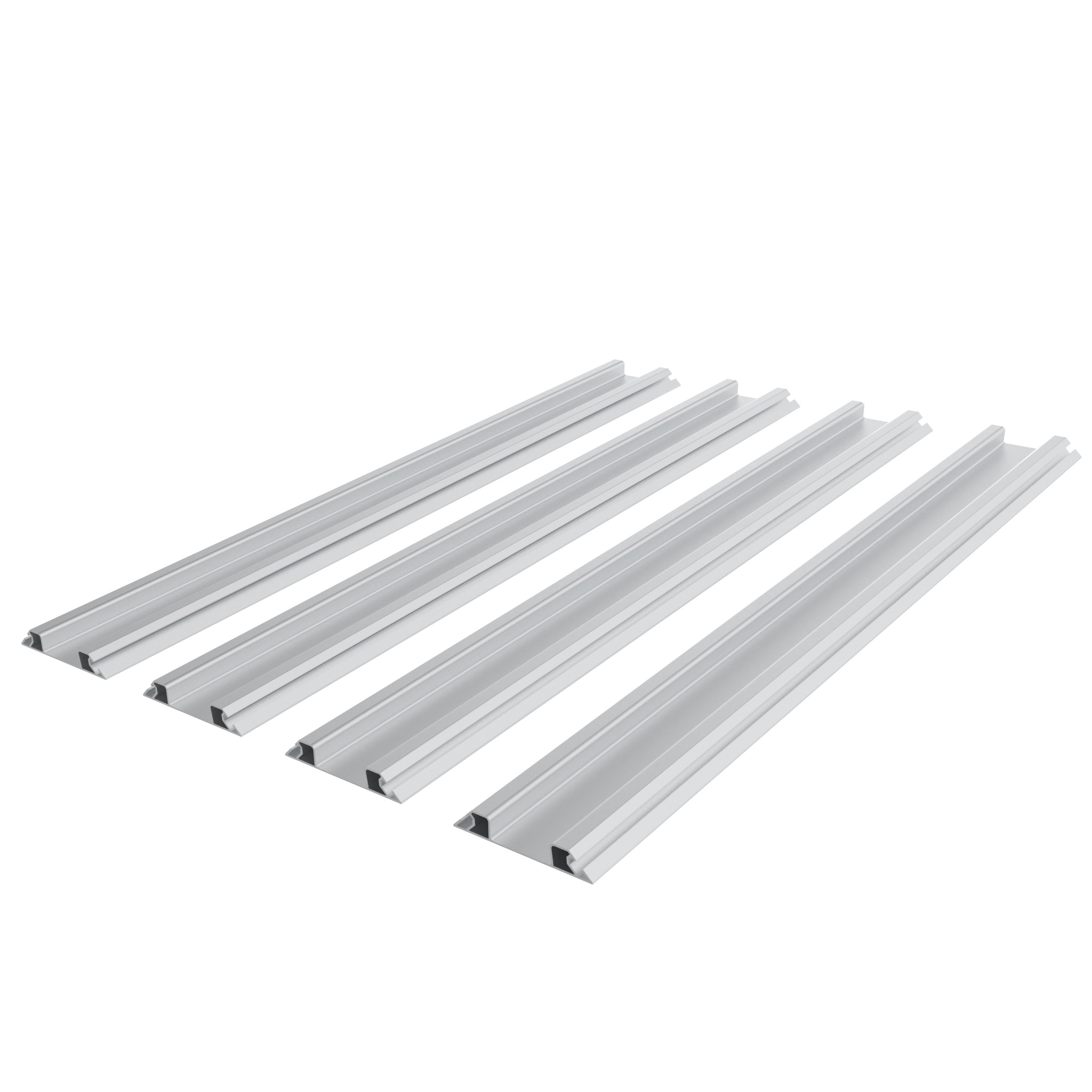

FIFO Monorail Rail 55
Países de Entrega:En todo el mundoDescription:For guiding floor dollies on one side in FIFO stations, with a wheel width of up to 55 mm 2 slots at the top, set at 45°; closed back side for optional full-surface adhesion to the floor To extend two guiding rails, connect them face to face with connecting strip in the slots; Posts can be mounted in the slot from above; To securely fix to the floor, use the optional mounting set; Mounting of a brush brake or an end stop with 2 optional mounting sets as a support baseMaterial:AluminioSuperficie:AnodizadoTip:Compatible Connecting Strip see 096010S61 Compatible Infeed Cap for FIFO Monorail Rail (Set) see 02082CCS02 Compatible Monorail Angle Connector for Post see 093WS30145S01 Compatible Mounting Set for Posts Support Struts see 093WS30145S02 Compatible Cover Profiles see 092050; Compatible Mounting for FIFO Monorail Rail 40 and 55 (Set) see 02082MB

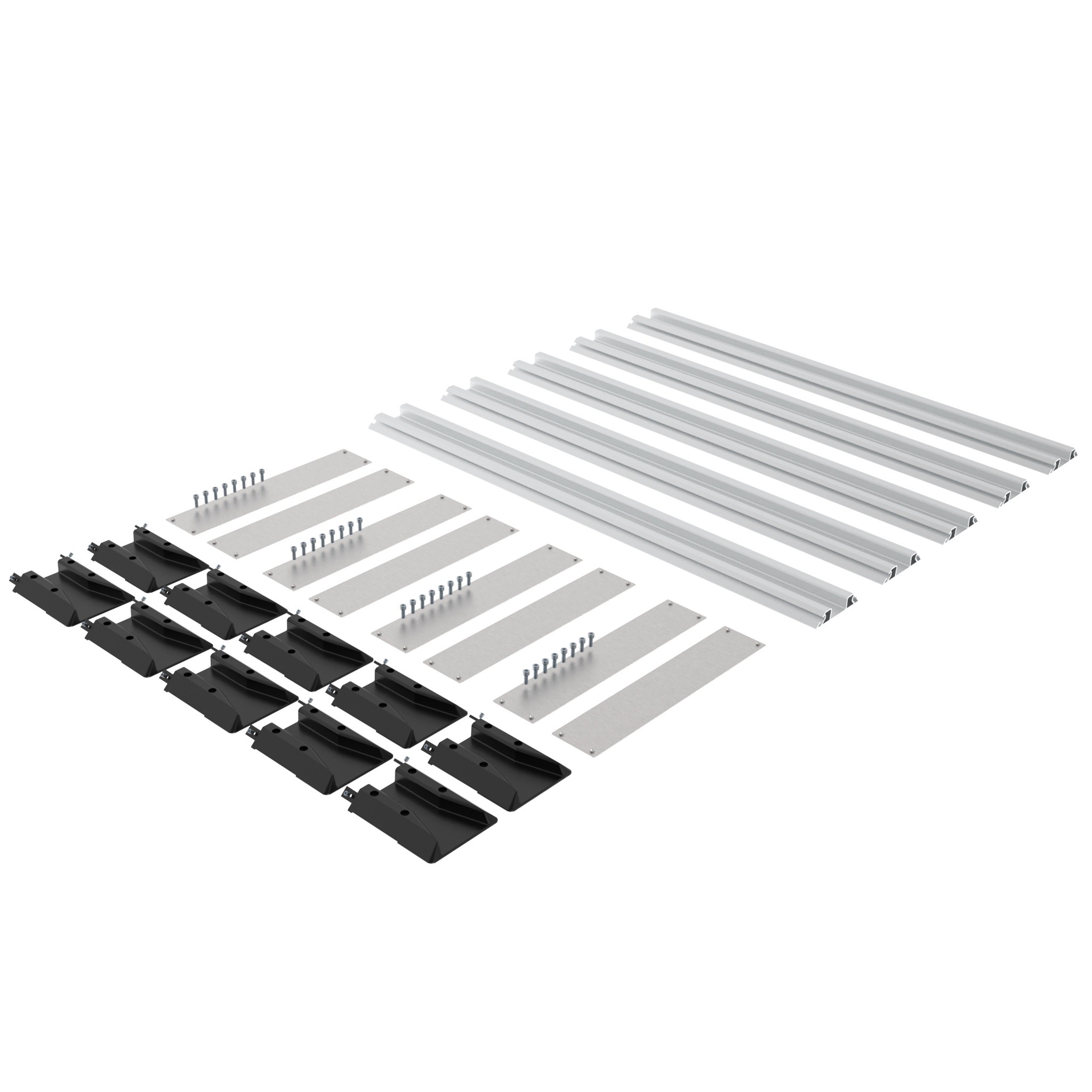

FIFO Monorail Station 40 (Set)
Color:Infeed caps: BlackPaíses de Entrega:En todo el mundoDescription:Fast mounting FIFO station for guiding floor dollies on one side in FIFO stations, with a wheel width of up to 40 mm; To extend guiding rails, connect them face to face with connecting strip in the slots; To widen, connect further parallel guided guiding rails and end caps with connecting elements Posts can be mounted in the slot from above; To securely fix to the floor, use the optional mounting set; Mounting of a brush brake or an end stop with 2 optional mounting sets as a support baseMaterial:Rails: Aluminum Infeed caps: Aluminum die-cast Hexagon socket set screws: Steel Connecting elements: Stainless steel Screws: SteelSet:5 FIFO Monorail Rails 40, 10 infeed caps, 20 hexagon socket set screws DIN EN ISO 4027 (DIN 914) - M6 x 8, 8 connecting elements, 32 screws DIN EN ISO 10642 (DIN 7991) - M6 x 16Surface:Rails: Anodized Infeed caps: Powder coated Hexagon socket set screws: Zinc plated Screws: Zinc platedTip:Compatible Connecting Strip see 096010S61 Compatible Monorail Angle Connector for Post see 093WS30145S01 Compatible Mounting Set for Posts Support Struts see 093WS30145S02 Compatible Cover Profiles see 092050; Compatible Mounting for FIFO Monorail Rail 40 and 55 (Set) see 02082MB

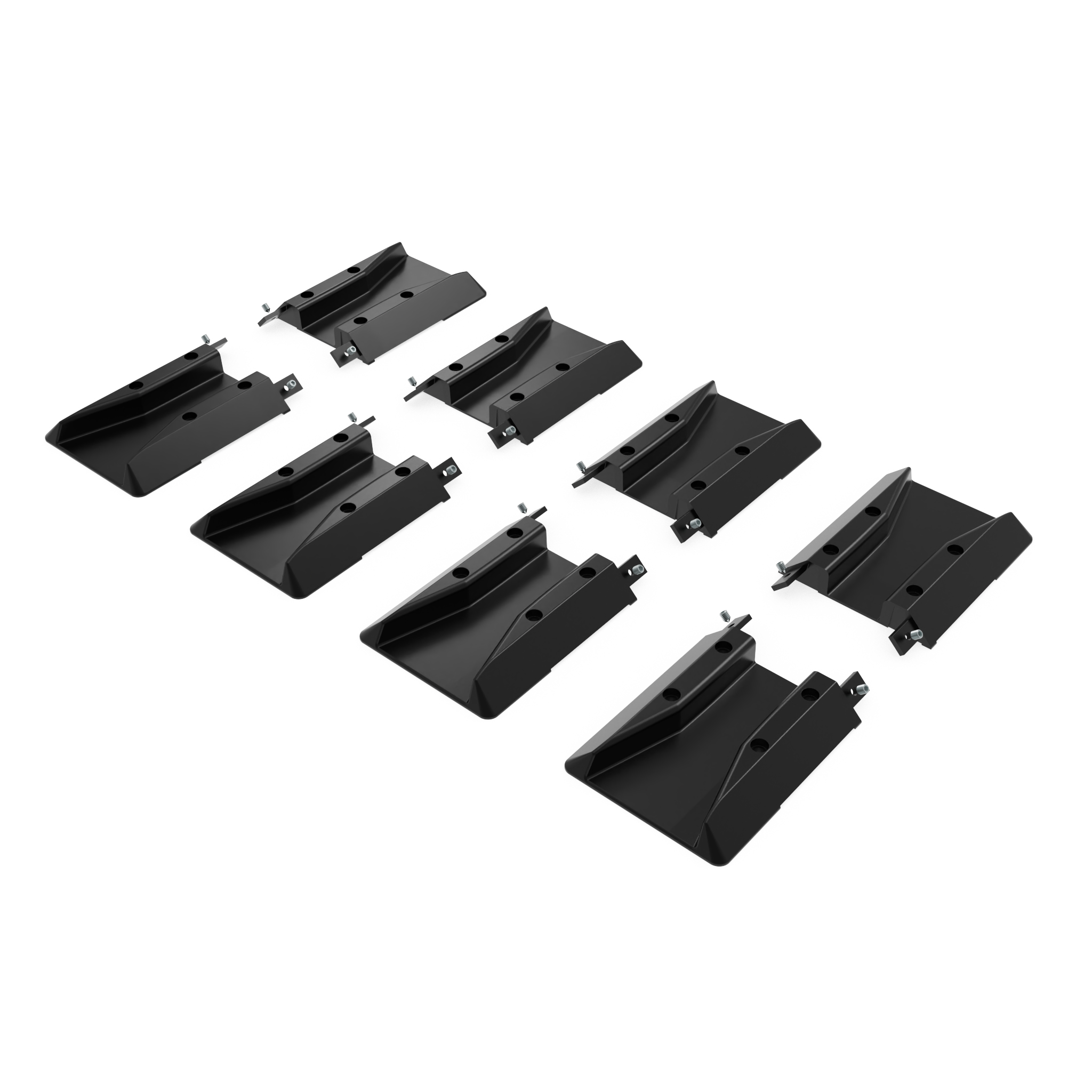

Infeed cap for FIFO Monorail Rail 40 (Set)
Color:Infeed caps: BlackPaíses de Entrega:En todo el mundoDescription:For easier loading and unloading of FIFO stations with floor dollies; Robust design, mounting directly in the slot of FIFO monorail rail with enclosed hexagon socket set screwsPFA_Fastening:Por delante, con tornillos avellanados M6Material:Infeed caps: Aluminum die-cast Hexagon socket set screws: SteelSet:8 infeed caps 16 hexagon socket set screws DIN EN ISO 4027 (DIN 914) - M6 x 8Surface:Infeed caps: Powder coated Hexagon socket set screws: Zinc platedTip:Compatible FIFO Monorail Rail 40 see 02082PO.1200
Infeed cap for FIFO Monorail Rail 55 (Set)
Color:Infeed caps: BlackPaíses de Entrega:En todo el mundoDescription:For easier loading and unloading of FIFO stations with floor dollies; Robust design, mounting directly in the slot of FIFO monorail rail with enclosed hexagon socket set screwsPFA_Fastening:Por delante, con tornillos avellanados M6Material:Infeed caps: Aluminum die-cast Hexagon socket set screws: SteelSet:8 infeed caps 16 hexagon socket set screws DIN EN ISO 4027 (DIN 914) - M6 x 8Surface:Infeed caps: Powder coated Hexagon socket set screws: Zinc platedTip:Compatible FIFO monorail rail 55 see 02082PO55.1200
