Supension Bracket (Set)

Información sobre el producto "Supension Bracket (Set)"

Países de Entrega:
En todo el mundo

Description:

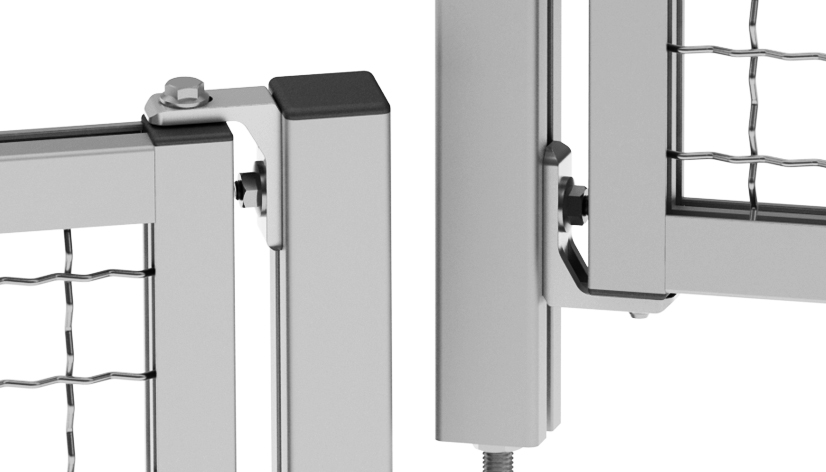

To attach a protective frame panel between two posts

Material:
Suspension Bracket: Zinc die-cast,
Assembly set: Steel

Set:
4 suspension brackets,
4 flange nuts M8,
4 hammer head screws M8 x 20,
2 locking screws - Verbus Ripp B - M8 x 16,
2 knurled pins Ø 8.6, for core hole

Surface:
Suspension Bracket: Plain,
Assembly set: Zinc plated

Zolltarifnummer:
79070000900
(ECLASS 6.0): 23369290
(ECLASS 7.0): 23369290
(ECLASS 8.0): 23369290
(ECLASS 9.0): 23369290
(ECLASS 10.0): 23369290
(ECLASS 11.0): 23360492
(ECLASS 12.0): 23360492
(ECLASS 13.0): 23360492
Cantidad por Paquete: 1 juego
Model: Zinc die-cast, slot 10
Peso (g): 106.0

Variantes

ID de producto Profile Ranura N (mm)
093WL201N10S01 B 10

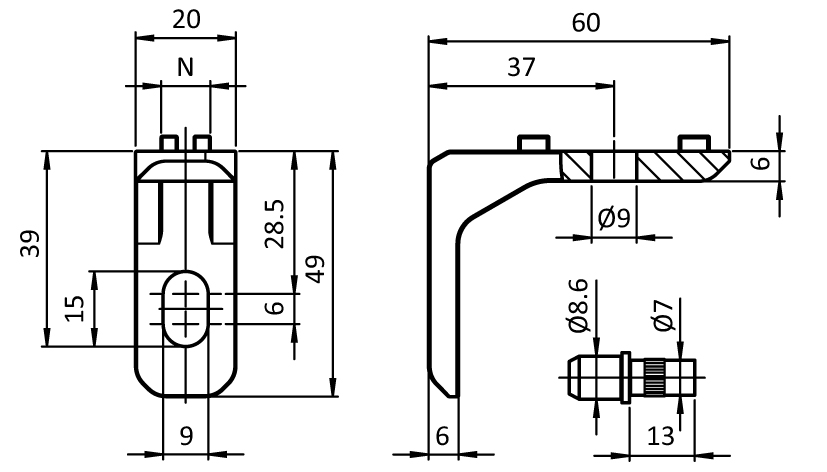

Descargas CAD

Certificados
