Swivel Caster Ø 80 / 100 / 125 with System Brake

Información sobre el producto "Swivel Caster Ø 80 / 100 / 125 with System Brake"

Color:
Housing: Alu color
Tread: See table
Wheel body: Black, gray

Países de Entrega:
En todo el mundo

Description:

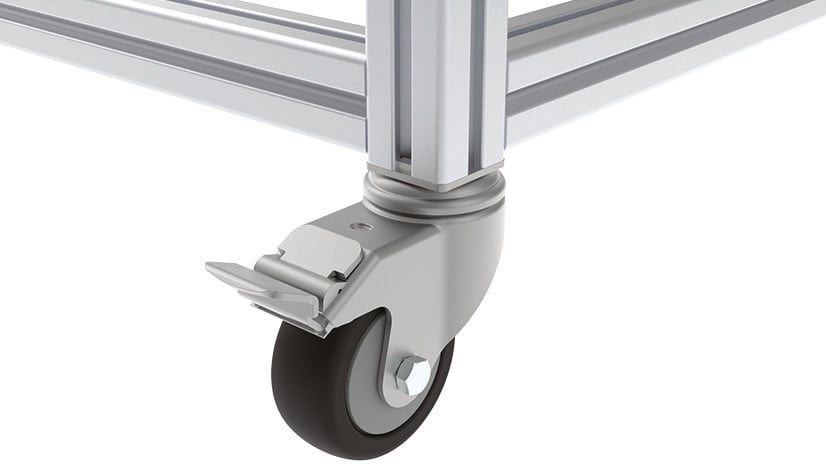

Reliable and quiet swivel caster, trackless (except solid rubber ESD electrostatical discharging), with ball bearings and thread guard; can be fixed to aluminum profiles; compatible with all swivel and fixed casters due to consistent height level with optional adapter plate S; no additional transport and base plate needed

Material:
Housing: Steel
Tread: See table
Wheel body: See table

Especiales:
Otros tipos de ruedas, otros colores, otras superficies bajo pedido

Surface:
Housing: Powder coated

Tip:
Compatible Adapter Plate for Swivel Casters Ø 80 / 100 / 125 see 098SA40N08

Zolltarifnummer:
73269098900
(ECLASS 6.0): 23370201
(ECLASS 7.0): 23370201
(ECLASS 8.0): 23370201
(ECLASS 9.0): 23370201
(ECLASS 10.0): 23370201
(ECLASS 11.0): 23370201
(ECLASS 12.0): 23370201
(ECLASS 13.0): 23370201
Cantidad por Paquete: 1 pieza
Model: With bolt hole and system brake; compatible with optional adapter plate S
Peso (g): 824.0

Variantes

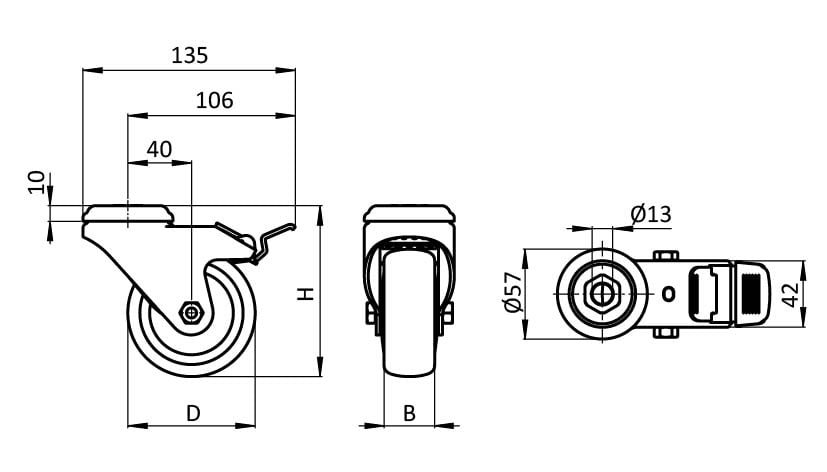

ID de producto D (mm) Cuerpo de Rueda H (mm) ESD Carga Máxima (N) Bearing Roscado de rueda giratoria
098S080ADN 80 PA, negro 108 1000 Slide bearing PA, negro; *con cojinetes deslizantes
098S080GDN 80 PA, negro 108 800 Rodamiento de bolas Caucho macizo, gris ≈ RAL 7001
098S080GDNESD 80 PA, negro 108 ESD 600 Rodamiento de bolas Caucho macizo, negro
098S080TDN 80 PP, gris 108 1000 Slide bearing TPE, gris ≈ RAL 7031
098S080TDNESD 80 PP, negro 108 ESD 650 Rodamiento de bolas TPE, gris ≈ RAL 7031
098S080UDN 80 PA, gris 108 1200 Rodamiento de bolas TPU, gris ≈ RAL 7024
098S080UDNESD 80 PA, negro 108 ESD 1000 Rodamiento de bolas TPU, gris ≈ RAL 7024
098S100ADN 100 PA, negro 133 1200 Slide bearing PA, negro; *con cojinetes deslizantes
098S100GDN 100 PA, negro 133 1100 Rodamiento de bolas Caucho macizo, gris ≈ RAL 7001
098S100GDNESD 100 PA, negro 133 ESD 800 Rodamiento de bolas Caucho macizo, negro
098S100TDN 100 PP, gris 133 1100 Rodamiento de bolas TPE, gris ≈ RAL 7031
098S100TDNESD 100 PP, negro 133 ESD 700 Rodamiento de bolas TPE, gris ≈ RAL 7031
098S100UDN 100 PA, gris 133 1200 Rodamiento de bolas TPU, gris ≈ RAL 7024
098S100UDNESD 100 PA, negro 133 ESD 1200 Rodamiento de bolas TPU, gris ≈ RAL 7024
098S125ADN 125 PA, negro 158 1200 Slide bearing PA, negro; *con cojinetes deslizantes
098S125GDN 125 PA, negro 158 1000 Rodamiento de bolas Caucho macizo, gris ≈ RAL 7001
098S125GDNESD 125 PA, negro 158 ESD 750 Rodamiento de bolas Caucho macizo, negro
098S125TDN 125 PP, gris 158 1200 Rodamiento de bolas TPE, gris ≈ RAL 7031
098S125TDNESD 125 PP, negro 158 ESD 800 Rodamiento de bolas TPE, gris ≈ RAL 7031
098S125UDN 125 PA, gris 158 1200 Rodamiento de bolas TPU, gris ≈ RAL 7024
098S125UDNESD 125 PA, negro 158 ESD 1200 Rodamiento de bolas TPU, gris ≈ RAL 7024
