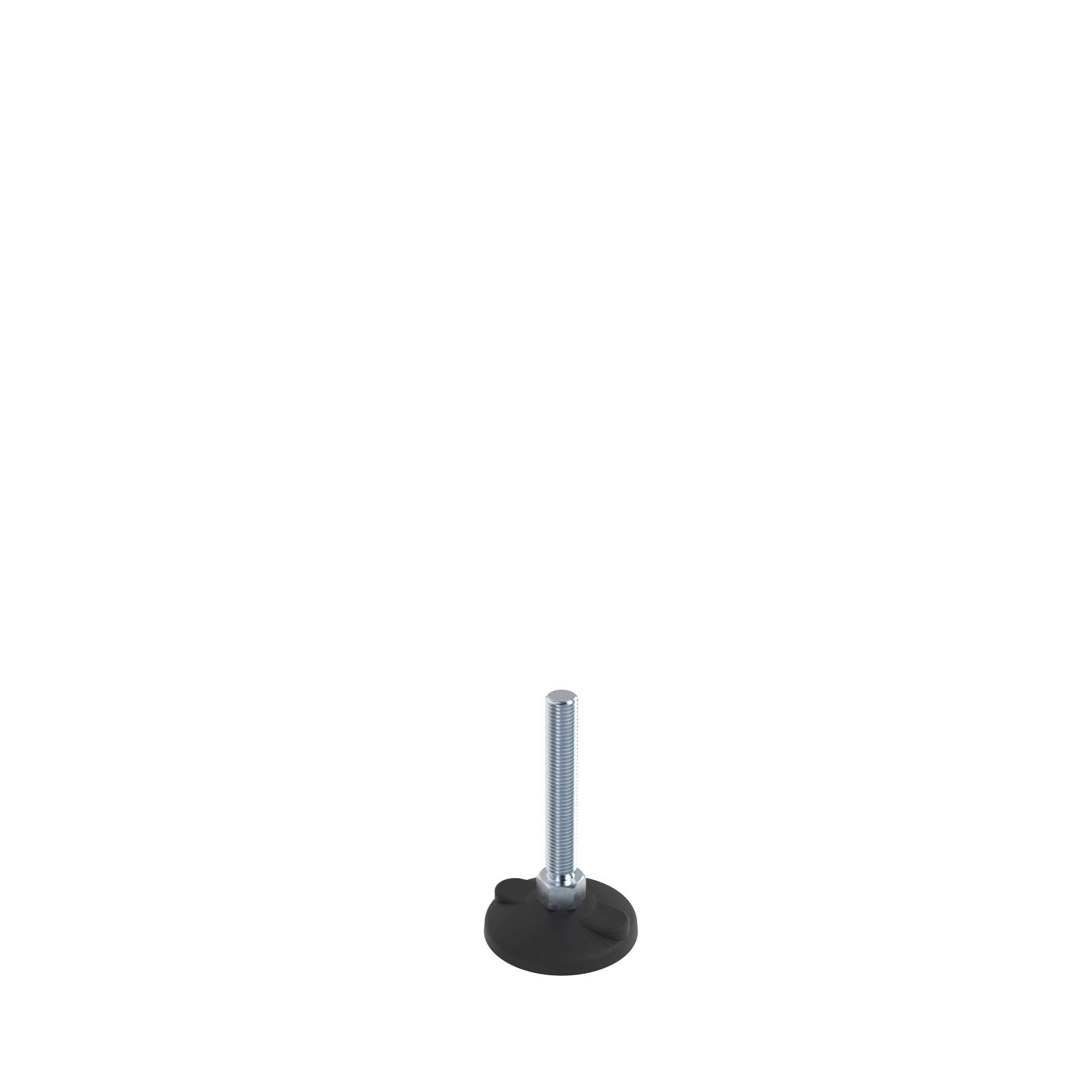

Fester Stellfuß, PA / ST - ASB

Produktinformationen "Fester Stellfuß, PA / ST - ASB"

Farbe:
Teller: schwarz

Lieferländer:
weltweit

Beschreibung:
fester, nivellierbarer Stellfuß zur Befestigung am Boden

Material:
Teller: Kunststoff PA, glaskugelverstärkt
Gewindestange: Stahl

Extras:
ESD elektrostatisch entladend, weitere Größen, weitere Farben, geklebte Anti-Slip-Platte auf Anfrage
Edelstahl, weitere Längen und Größen auf Anfrage

Oberfläche:
Gewindestange: verzinkt

Hinweis:
passende Mutter siehe 4DIN439BM5M f. und 4DIN934M5M f.,
passende Anti-Slip Platte siehe 098AG050 f.,
*Anschraubbohrungen geschlossen

Zolltarifnummer:
73269098900
Verbindung: Schwenkbereich ±4°
Gewicht (g): 218.8
Liefereinheit: 1 Stück
Modell: Kunststoff PA / Stahl, mit Anschraubbohrungen

Varianten

Produkt ID Ausführung Teller Fmax (N) LK (mm) D (mm) F (mm) M x L (mm) SW (mm)
9A080KB12066M ohne Anti-Slip-Platte 80 7550 55 79 31 M12 x 66 22
9A080KB12100M ohne Anti-Slip-Platte 80 7550 55 79 31 M12 x 100 22
9A080KB12150M ohne Anti-Slip-Platte 80 7550 55 79 31 M12 x 150 22
9A080KB16100M ohne Anti-Slip-Platte 80 11770 55 79 31 M16 x 100 22
9A080KBZ12066M ohne Anti-Slip-Platte *80 7550 55 79 31 M12 x 66 22
9A080KBZ12150M ohne Anti-Slip-Platte *80 7550 55 79 31 M12 x 150 22
9A080KBZ16100M ohne Anti-Slip-Platte *80 11770 55 79 31 M16 x 100 22
9A080KBZ16150M ohne Anti-Slip-Platte *80 11770 55 79 31 M16 x 150 22
9A080KBZ16200M ohne Anti-Slip-Platte *80 11770 55 79 31 M16 x 200 22
9A080KBZ20250M ohne Anti-Slip-Platte *80 11770 55 79 31 M20 x 250 22
9A100KB16100M ohne Anti-Slip-Platte 100 11770 74 99 31 M16 x 100 22
9A100KBZ16150M ohne Anti-Slip-Platte *100 11770 74 99 31 M16 x 150 22
9A100KBZ20150M ohne Anti-Slip-Platte *100 11770 74 99 31 M20 x 150 22
