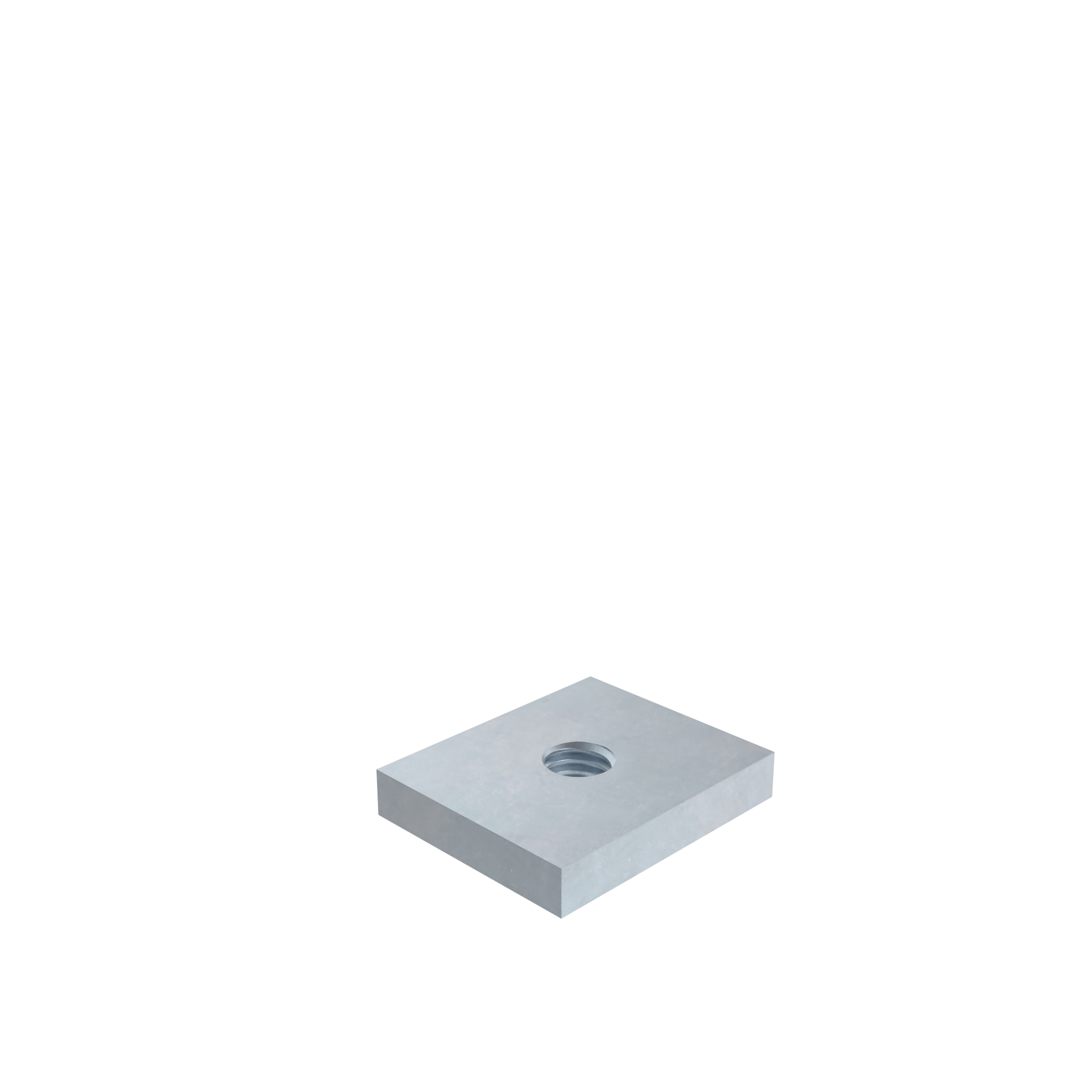

Gewindeplatte

Produktinformationen "Gewindeplatte"

Lieferländer:
weltweit

Beschreibung:
für jede Befestigung mittels Schraube

Material:
Stahl

Oberfläche:
verzinkt

Liefereinheit:	100 Stück
Modell:	individuelle Maße, ein oder mehrere Gewinde
Gewicht (g):	27.8
ERP-Nummer:	103165

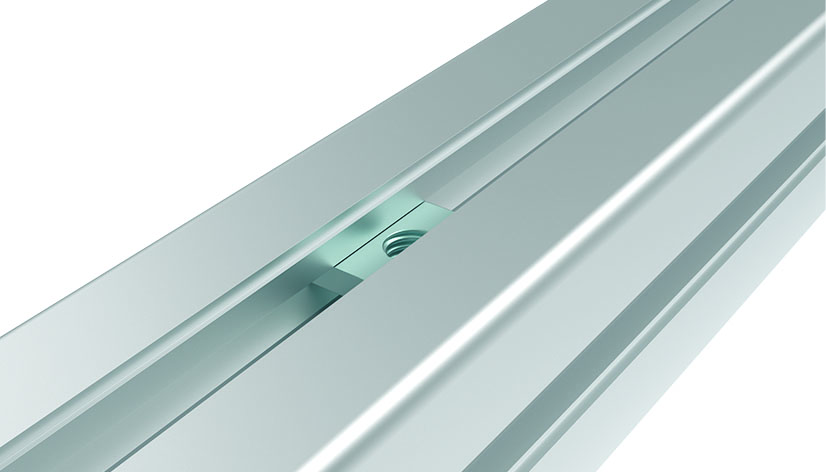

Profilform	T-Nutprofile

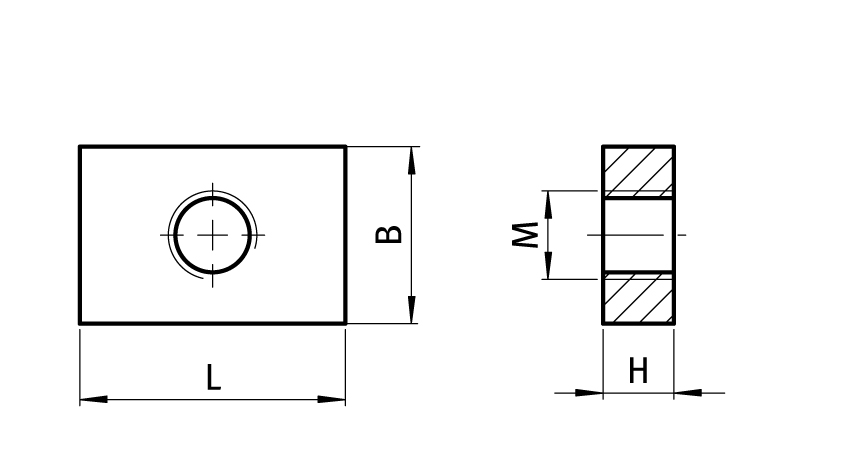

Teil-Nr.	Profil	M	Maße L x B x H (mm)
096P0090903M4	-	M4	9 x 9 x 3
096P0090903M5	-	M5	9 x 9 x 3
096P0090903M6	-	M6	9 x 9 x 3
096P01409025M4	-	M4	14 x 9 x 2.5
096P01409025M5	-	M5	14 x 9 x 2.5
096P0141203M4	-	M4	14 x 12 x 3
096P0141203M5	-	M5	14 x 12 x 3
096P0141203M6	-	M6	14 x 12 x 3
096P0151004M4	-	M4	15 x 10 x 4
096P0151004M5	-	M5	15 x 10 x 4
096P0151004M6	-	M6	15 x 10 x 4
096P0151005M6	-	M6	15 x 10 x 5
096P0191604M4	I	M4	19 x 16 x 4
096P0191604M5	I	M5	19 x 16 x 4
096P0191604M6	I	M6	19 x 16 x 4
096P0191604M8	I	M8	19 x 16 x 4
096P0191904M4	-	M4	19 x 19 x 4
096P0191904M5	-	M5	19 x 19 x 4
096P0191904M6	-	M6	19 x 19 x 4
096P0191904M8	-	M8	19 x 19 x 4
096P0201305M6	-	M6	20 x 13 x 5
096P0201305M8	-	M8	20 x 13 x 5
096P0201406M8	-	M8	20 x 14 x 6
096P0201806M8	-	M8	20 x 18 x 6
096P0202004M4	B	M4	20 x 20 x 4
096P0202004M5	B	M5	20 x 20 x 4
096P0202004M6	B	M6	20 x 20 x 4
096P0202006M5	B	M5	20 x 20 x 6
096P0202006M6	B	M6	20 x 20 x 6
096P0202006M8	B	M8	20 x 20 x 6
096P0221505M6	-	M6	22 x 15 x 5
096P0251205M6	-	M6	25 x 12 x 5
096P0301808M8	-	M8	30 x 18 x 8
096P0302006M10	-	M10	30 x 20 x 6
096P0302505M8	-	M8	30 x 25 x 5
096P0302506M8	-	M8	30 x 25 x 6
096P0323008M8	-	M8	32 x 30 x 8
096P0353005M6	-	M6	35 x 30 x 5
