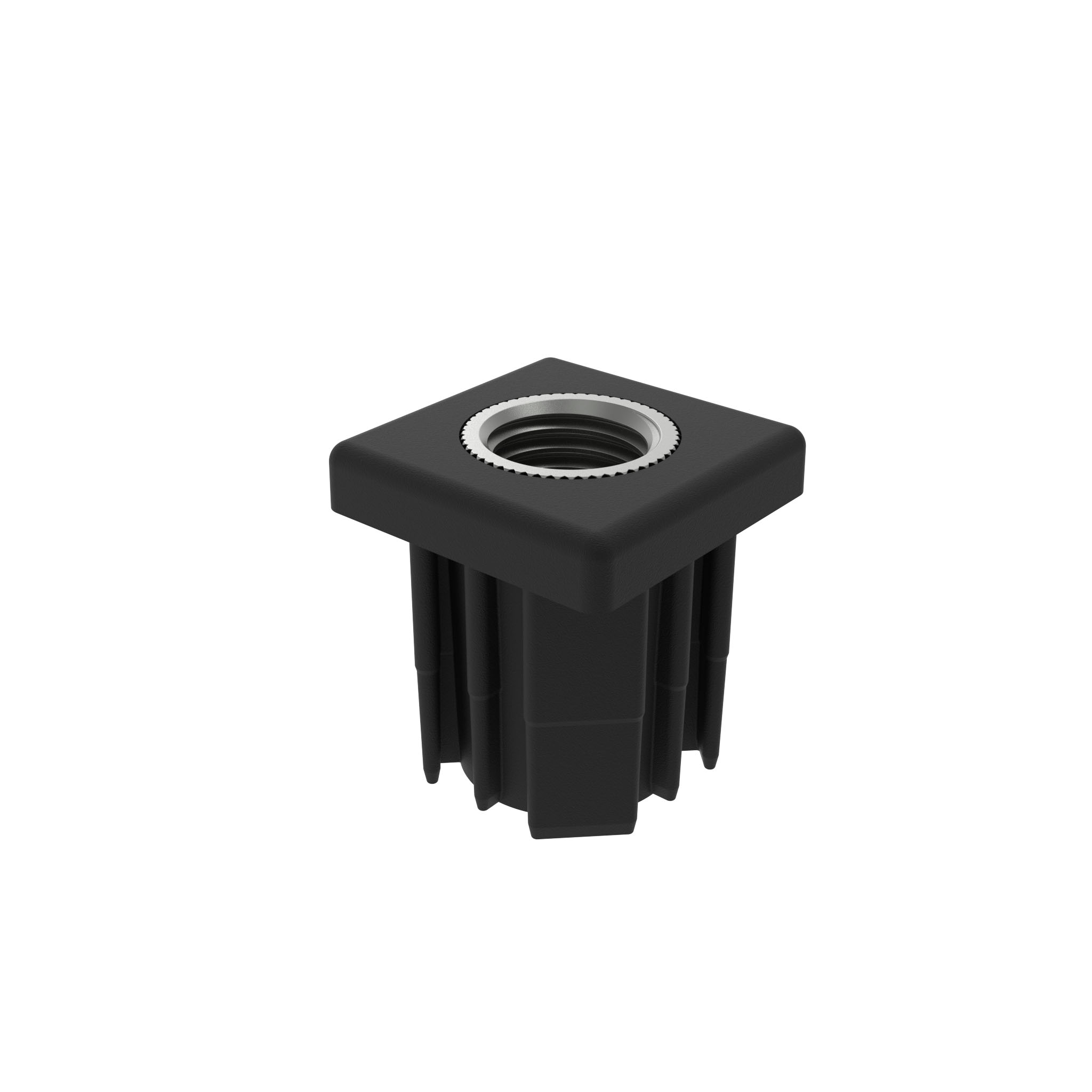

Gewindestopfen für Vierkantrohre 40 x 40

Produktinformationen "Gewindestopfen für Vierkantrohre 40 x 40"

Farbe:
schwarz

Lieferländer:
weltweit

Beschreibung:
zur Aufnahme von Stellfüßen an der Stirnseite von Vierkantrohren

Material:
Stopfen: Kunststoff PA, glasfaserverstärkt
Gewindeeinsatz: Messing vernickelt

Extras:
ESD elektrostatisch entladend, weitere Größen, weitere Farben auf Anfrage

Zolltarifnummer:
39269097900
Gewicht (g): 76.0
(ECLASS 6.0): 23111190
(ECLASS 7.0): 23111190
(ECLASS 8.0): 23111190
(ECLASS 9.0): 23111190
(ECLASS 10.0): 23111190
(ECLASS 11.0): 23111190
(ECLASS 12.0): 23111190
(ECLASS 13.0): 23111190
Liefereinheit: 10 Stück
Modell: Kunststoff PA, mit Messing-Gewindeeinsatz

Varianten

Produkt ID Ausführung Fmax (N) B (mm) b (mm) L (mm) M S (mm) Vierkantrohr (mm)
098V401508 40 x 40, R5 7840 40 37.5 43 - 35 40 x 40 x 1.5
098V401510 40 x 40, R5 7840 40 37.5 43 M10 35 40 x 40 x 1.5
098V401512 40 x 40, R5 7840 40 37.5 43 M12 35 40 x 40 x 1.5
098V401514 40 x 40, R5 7840 40 37.5 43 M14 35 40 x 40 x 1.5
098V401516 40 x 40, R5 7840 40 37.5 43 M16 35 40 x 40 x 1.5
098V401520 40 x 40, R5 7840 40 37.5 43 M20 35 40 x 40 x 1.5
098V402008 40 x 40, R5 9800 40 36.5 43 - 35 40 x 40 x 2.0
098V402010 40 x 40, R5 9800 40 36.5 43 M10 35 40 x 40 x 2.0
098V402012 40 x 40, R5 9800 40 36.5 43 M12 35 40 x 40 x 2.0
098V402014 40 x 40, R5 9800 40 36.5 43 M14 35 40 x 40 x 2.0
098V402016 40 x 40, R5 9800 40 36.5 43 M16 35 40 x 40 x 2.0
098V402020 40 x 40, R5 9800 40 36.5 43 M20 35 40 x 40 x 2.0
098V402508 40 x 40, R5 9800 40 35.5 43 - 35 40 x 40 x 2.5
098V402510 40 x 40, R5 9800 40 35.5 43 M10 35 40 x 40 x 2.5
098V402512 40 x 40, R5 9800 40 35.5 43 M12 35 40 x 40 x 2.5
098V402516 40 x 40, R5 9800 40 35.5 43 M16 35 40 x 40 x 2.5
098V402520 40 x 40, R5 9800 40 35.5 43 M20 35 40 x 40 x 2.5
098V403008 40 x 40, R5 9800 40 34.5 43 - 35 40 x 40 x 3.0
098V403010 40 x 40, R5 9800 40 34.5 43 M10 35 40 x 40 x 3.0
098V403012 40 x 40, R5 9800 40 34.5 43 M12 35 40 x 40 x 3.0
098V403014 40 x 40, R5 9800 40 34.5 43 M14 35 40 x 40 x 3.0
098V403016 40 x 40, R5 9800 40 34.5 43 M16 35 40 x 40 x 3.0
098V403020 40 x 40, R5 9800 40 34.5 43 M20 35 40 x 40 x 3.0
098V404008 40 x 40, R5 9800 40 32.5 43 - 35 40 x 40 x 4.0
098V404010 40 x 40, R5 9800 40 32.5 43 M10 35 40 x 40 x 4.0
098V404012 40 x 40, R5 9800 40 32.5 43 M12 35 40 x 40 x 4.0
098V404014 40 x 40, R5 9800 40 32.5 43 M14 35 40 x 40 x 4.0
098V404016 40 x 40, R5 9800 40 32.5 43 M16 35 40 x 40 x 4.0
098V404020 40 x 40, R5 9800 40 32.5 43 M20 35 40 x 40 x 4.0
