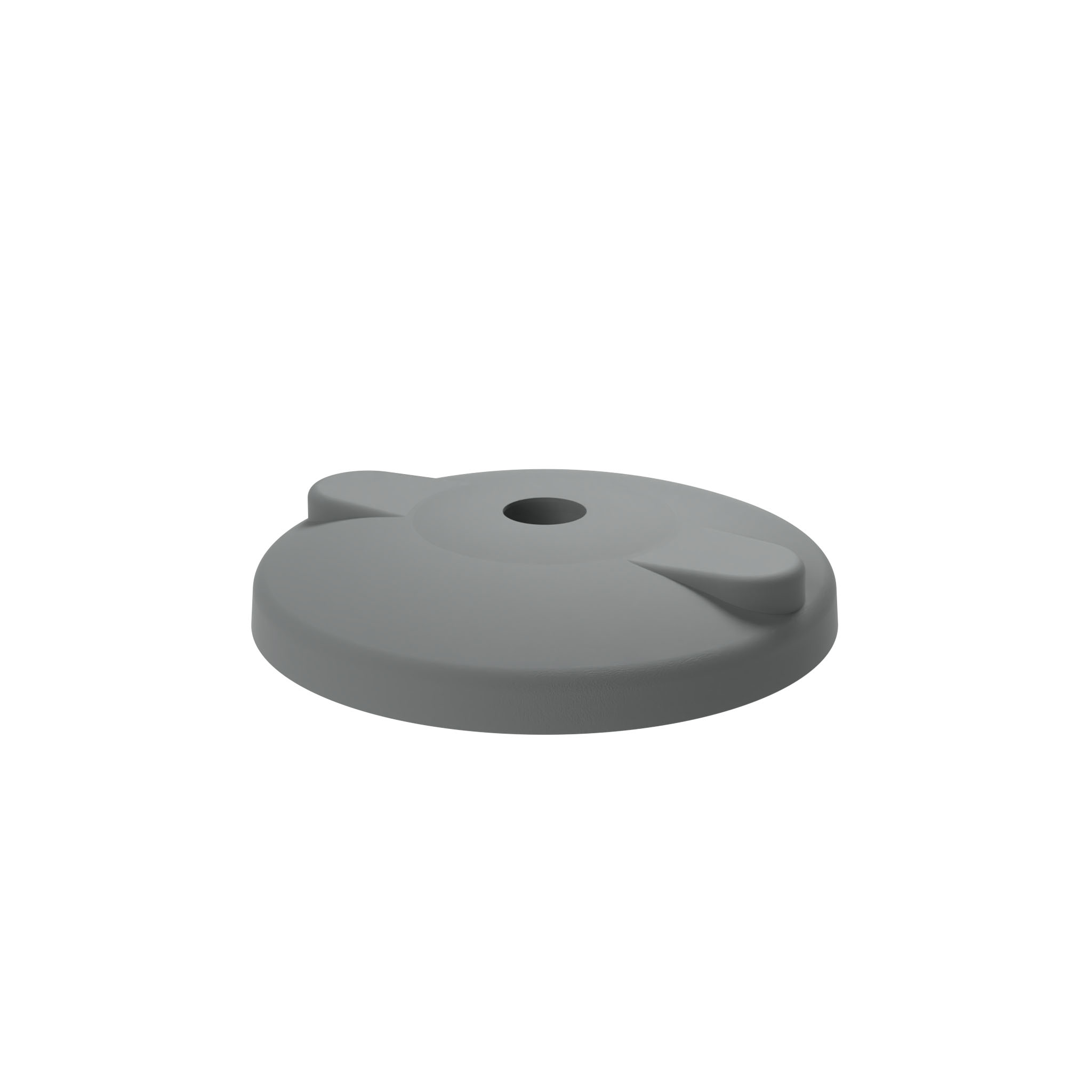

Teller PA ASB für Gelenkstellfüße, Kugel 15, grau

Produktinformationen "Teller PA ASB für Gelenkstellfüße, Kugel 15, grau"

Farbe:
grau ≈ RAL 7042

Lieferländer:
weltweit

Beschreibung:
schwenkbarer, nivellierbarer Stellfuß zur Befestigung am Boden

Material:
Kunststoff PA, glaskugelverstärkt

Hinweis:
passende Gewindestange siehe 098DM08025M f. und 098DM08025E f.,
passende Mutter siehe 4DIN439BM5M f. und 4DIN934M5M,
passende Anti-Slip Platte siehe 098DG030 f.;
* Anschraubbohrung geschlossen

Zolltarifnummer:
39269097900
Gewicht (g): 86.0
Liefereinheit: 10 Stück
Modell: Kunststoff PA, mit Anschraubbohrungen

Varianten

Produkt ID Ausführung Teller Fmax (N) LK (mm) D (mm) F1 (mm) F2 (mm) F3 (mm)
098D080KBS04 ohne Anti-Slip-Platte 80 8820 55 79 29.5 32.5 33.5
098D080KBZS04 ohne Anti-Slip-Platte *80 8820 55 79 29.5 32.5 33.5
098D100KBS03 ohne Anti-Slip-Platte 100 8820 74 99 29.5 32.5 33.5
098D100KBZS02 ohne Anti-Slip-Platte *100 8820 74 99 29.5 32.5 33.5
098D120KBS03 ohne Anti-Slip-Platte 120 8820 94 119 29.5 32.5 33.5
098D120KBZS01 ohne Anti-Slip-Platte *120 8820 94 119 29.5 32.5 33.5
