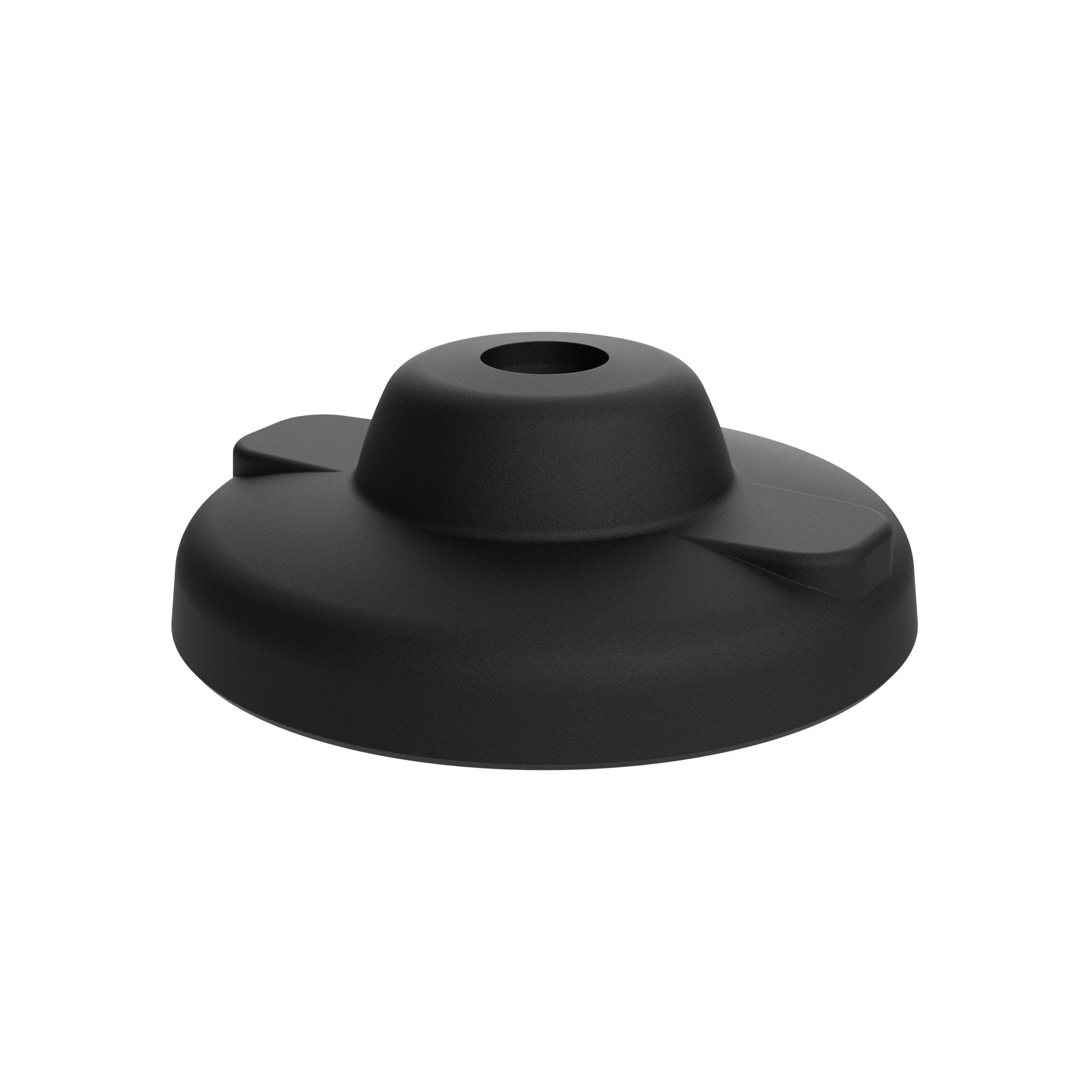

Teller PA ASB für Schwerlast-Gelenkstellfüße, Kugel 22

Produktinformationen "Teller PA ASB für Schwerlast-Gelenkstellfüße, Kugel 22"

Farbe:
schwarz

Lieferländer:
weltweit

Beschreibung:

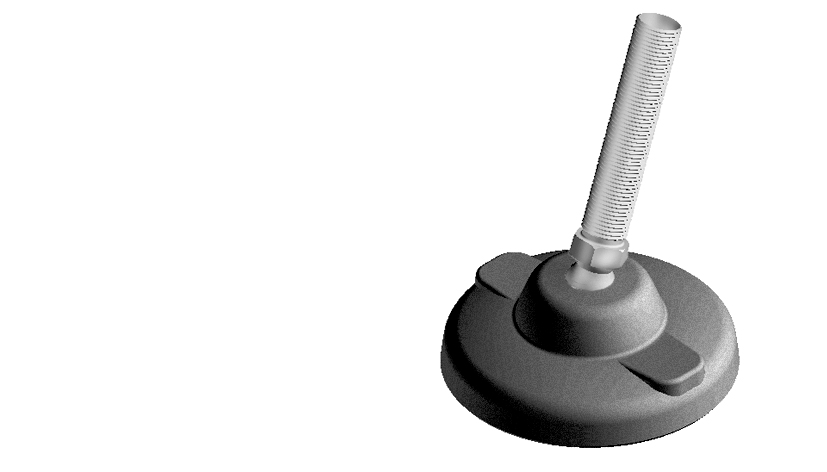

schwenkbarer, nivellierbarer Stellfuß für schwere Maschinen

Material:
Kunststoff PA, glaskugelverstärkt

Extras:
ESD elektrostatisch entladend, weitere Größen, weitere Farben, angeschraubte oder geklebte Anti-Slip-Platte auf Anfrage;

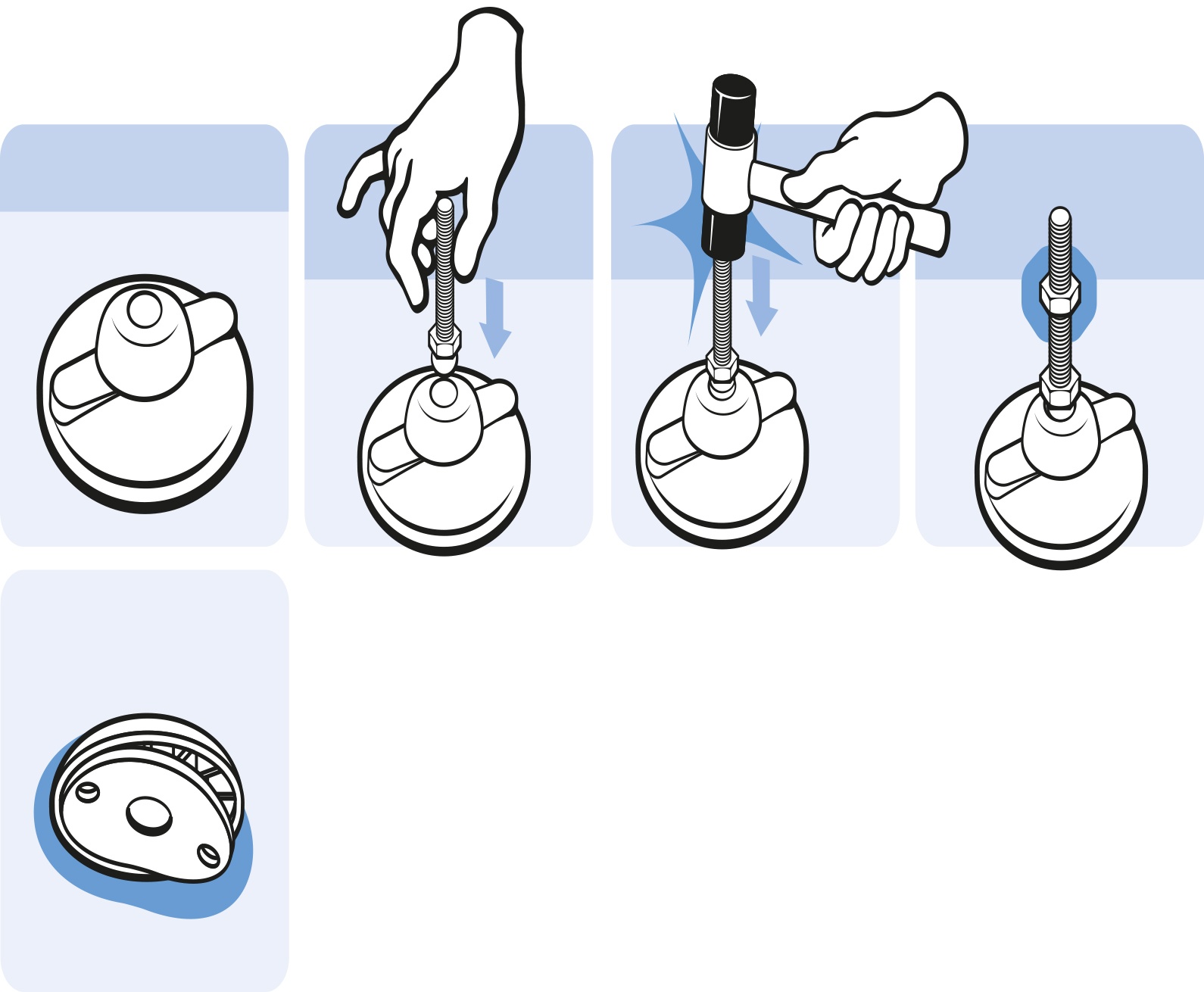

als montierter Stellfuß auf Anfrage

Hinweis:
passende Gewindestange siehe 098CM16066M f.,
passende Mutter siehe 4DIN439BM5M f.,
passende Anti-Slip Platte siehe 098AG125B

Zolltarifnummer:
39269097900
Gewicht (g): 239.0
Liefereinheit: 1 Stück
Modell: Kunststoff PA, mit Anschraubbohrungen

Varianten

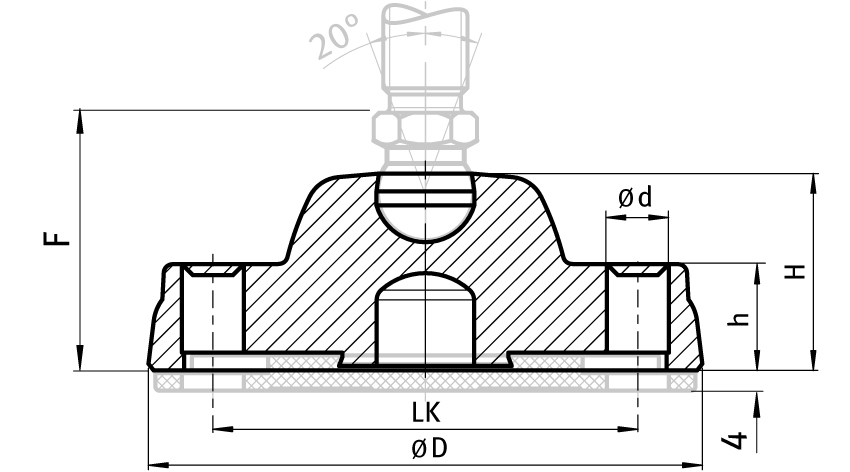

Produkt ID Ausführung Teller Fmax (N) LK (mm) D (mm) d (mm) F (mm) H (mm) h (mm)
098CK125KBZ ohne Anti-Slip-Platte 125 17650 96 125 13.4 61.5 44 24
098CK125KBZG mit Anti-Slip-Platte 125 17650 96 125 13.4 61.5 44 24
098CK175KBZ ohne Anti-Slip-Platte 175 24500 135 175 17.0 63.5 46 22
098CK175KBZG mit Anti-Slip-Platte 175 24500 135 175 17.0 63.5 46 22
