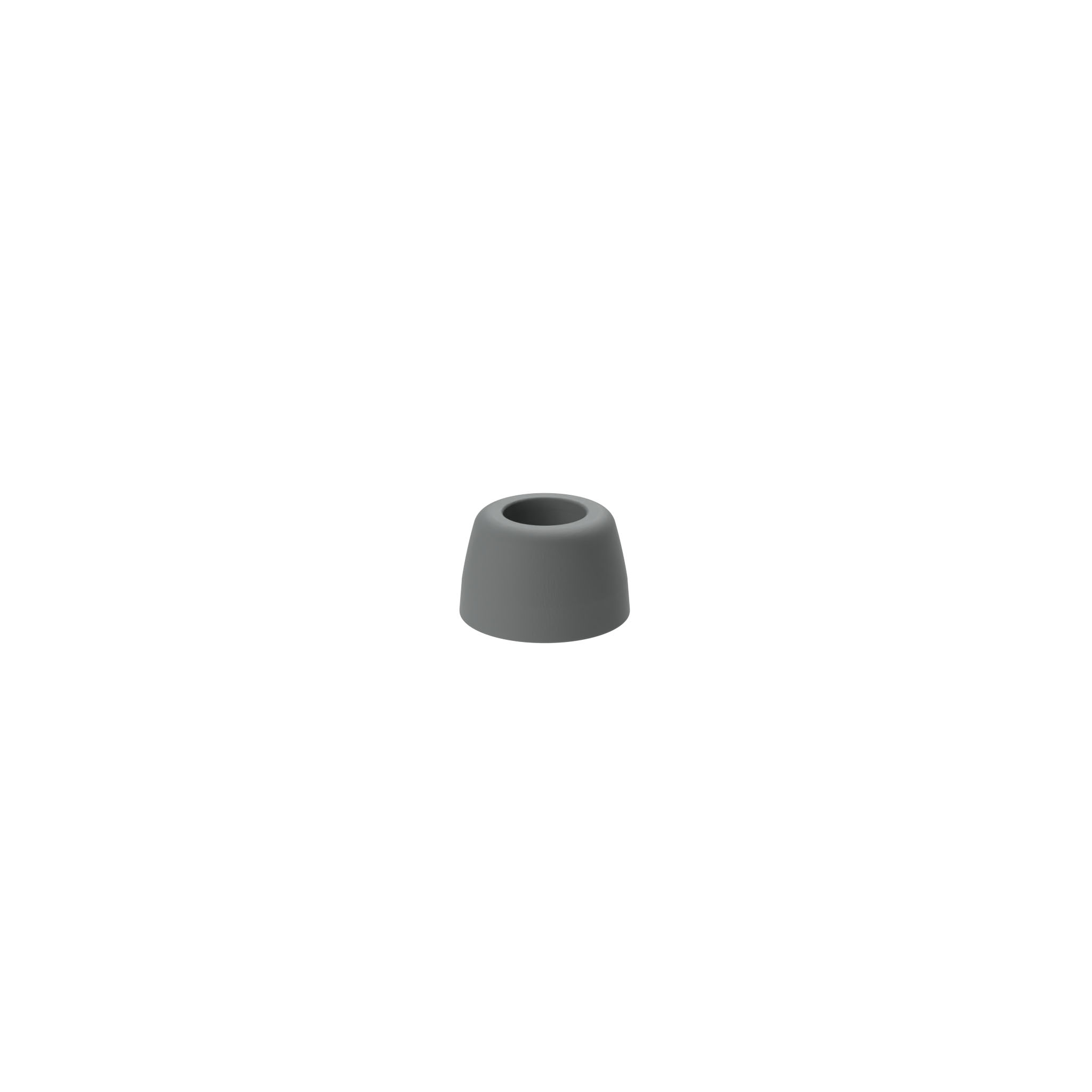

Teller PA für Gelenkstellfüße, Kugel 15, grau

Produktinformationen "Teller PA für Gelenkstellfüße, Kugel 15, grau"

Farbe:
grau ≈ RAL 7042

Lieferländer:
weltweit

Beschreibung:
schwenkbarer, nivellierbarer Stellfuß zum Ausgleich von Bodenunebenheiten

Material:
Kunststoff PA, glaskugelverstärkt

Extras:
ESD elektrostatisch entladend, weitere Größen, weitere Farben, angeschraubte oder geklebte Anti-Slip-Platte auf Anfrage;
als montierter Stellfuß auf Anfrage

Hinweis:

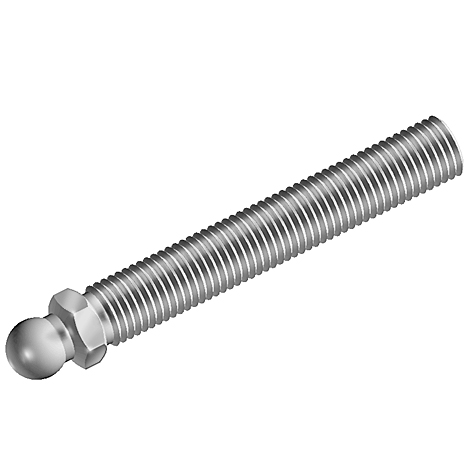

passende Gewindestange siehe 098DM08025M f. und 098DM08025E f.,
passende Mutter siehe 4DIN439BM5M f. und 4DIN934M5M f.,
passende Anti-Slip Platte siehe 098DG030 f.

Zolltarifnummer:
39269097900
Gewicht (g): 8.0
Liefereinheit: 10 Stück
Modell: Kunststoff PA, ohne Anschraubbohrungen

Varianten

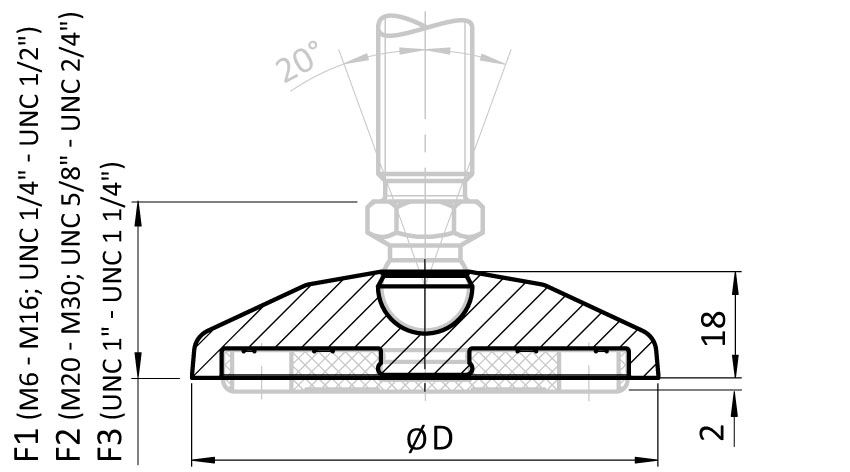

Produkt ID Ausführung Teller Fmax (N) D (mm) F1 (mm) F2 (mm) F3 (mm)
098D030KS04 ohne Anti-Slip-Platte 30 4900 29 29.5 32.5 33.5
098D040KS06 ohne Anti-Slip-Platte 40 8820 39 29.5 32.5 33.5
098D045KS03 ohne Anti-Slip-Platte 45 8820 44 29.5 32.5 33.5
098D050KS04 ohne Anti-Slip-Platte 50 8820 49 29.5 32.5 33.5
098D060KS04 ohne Anti-Slip-Platte 60 8820 59 29.5 32.5 33.5
098D080KS06 ohne Anti-Slip-Platte 80 8820 79 29.5 32.5 33.5
098D100KS03 ohne Anti-Slip-Platte 100 8820 99 29.5 32.5 33.5
