Brazo de rueda giratoria I 40 x 80 (Juego)
Precio normal:
0,00 €
Número de producto:
098SA170T4080S01
Cantidad por paquete:
10 piezas
Información sobre el producto "Brazo de rueda giratoria I 40 x 80 (Juego)"
Color:
Arm: Alu color
Bumper: Gray ≈ RAL 7042
Cover cap: Gray ≈ RAL 7042
Países de Entrega:
En todo el mundo
Description:

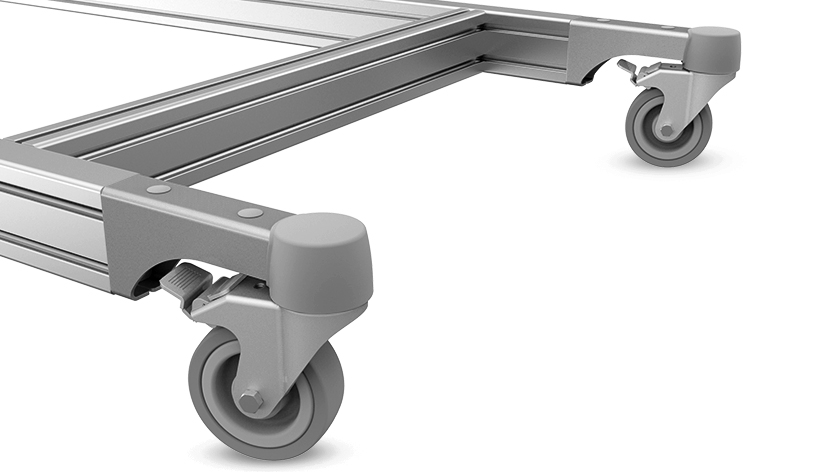

To mount 360° rotating swivel casters with bolt hole pattern in the back - also with double system brake;
higher stability against overturning due to lower center of gravity, icl. side impact protection;

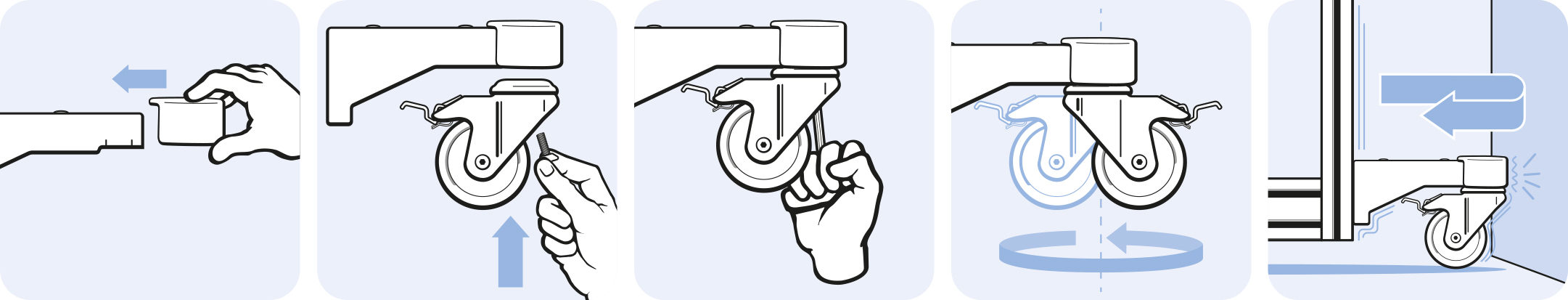

Swivel caster arm can be attached lateral, transverse, or on the face of the profile; if attached on the front face, the core hole of the respective profile must be M8 threaded (min. 15 mm deep)
Material:
Arm: Steel
Bumper: Plastic TPE, ≈ 70 Shore A
Screw: Steel
Cover cap: Plastic
Set:
1 caster arm,
1 bumper,
2 screw DIN EN ISO 7380 (DIN 34805) - M8 x 16,
1 screw DIN EN ISO 10642 (DIN 7991) - M10 x 25,
2 cover cap
Especiales:
Otras superficies, otros colores bajo pedido
Surface:
Arm: Powder coated
Screw: Zinc plated
Tip:
Compatible Swivel Caster D80, D100 or D125 see 098S080xxx, 098S100xxx or 098S125xxx
Arm: Alu color
Bumper: Gray ≈ RAL 7042
Cover cap: Gray ≈ RAL 7042
Países de Entrega:
En todo el mundo
Description:
To mount 360° rotating swivel casters with bolt hole pattern in the back - also with double system brake;
higher stability against overturning due to lower center of gravity, icl. side impact protection;
Swivel caster arm can be attached lateral, transverse, or on the face of the profile; if attached on the front face, the core hole of the respective profile must be M8 threaded (min. 15 mm deep)
Material:
Arm: Steel
Bumper: Plastic TPE, ≈ 70 Shore A
Screw: Steel
Cover cap: Plastic
Set:
1 caster arm,
1 bumper,
2 screw DIN EN ISO 7380 (DIN 34805) - M8 x 16,
1 screw DIN EN ISO 10642 (DIN 7991) - M10 x 25,
2 cover cap
Especiales:
Otras superficies, otros colores bajo pedido
Surface:
Arm: Powder coated
Screw: Zinc plated
Tip:
Compatible Swivel Caster D80, D100 or D125 see 098S080xxx, 098S100xxx or 098S125xxx
| Cantidad por paquete: | 10 piezas |
|---|---|
| Model: | Acero |
| Peso (g): | 746.0 |
| Numero de ERP: | 144122 |
Retratos de productos
Clasificación
- Zolltarifnummer
- 73269098900
Certificados
