ECO Foot, ZN / SS

Información sobre el producto "ECO Foot, ZN / SS"

Países de Entrega:
En todo el mundo

Description:

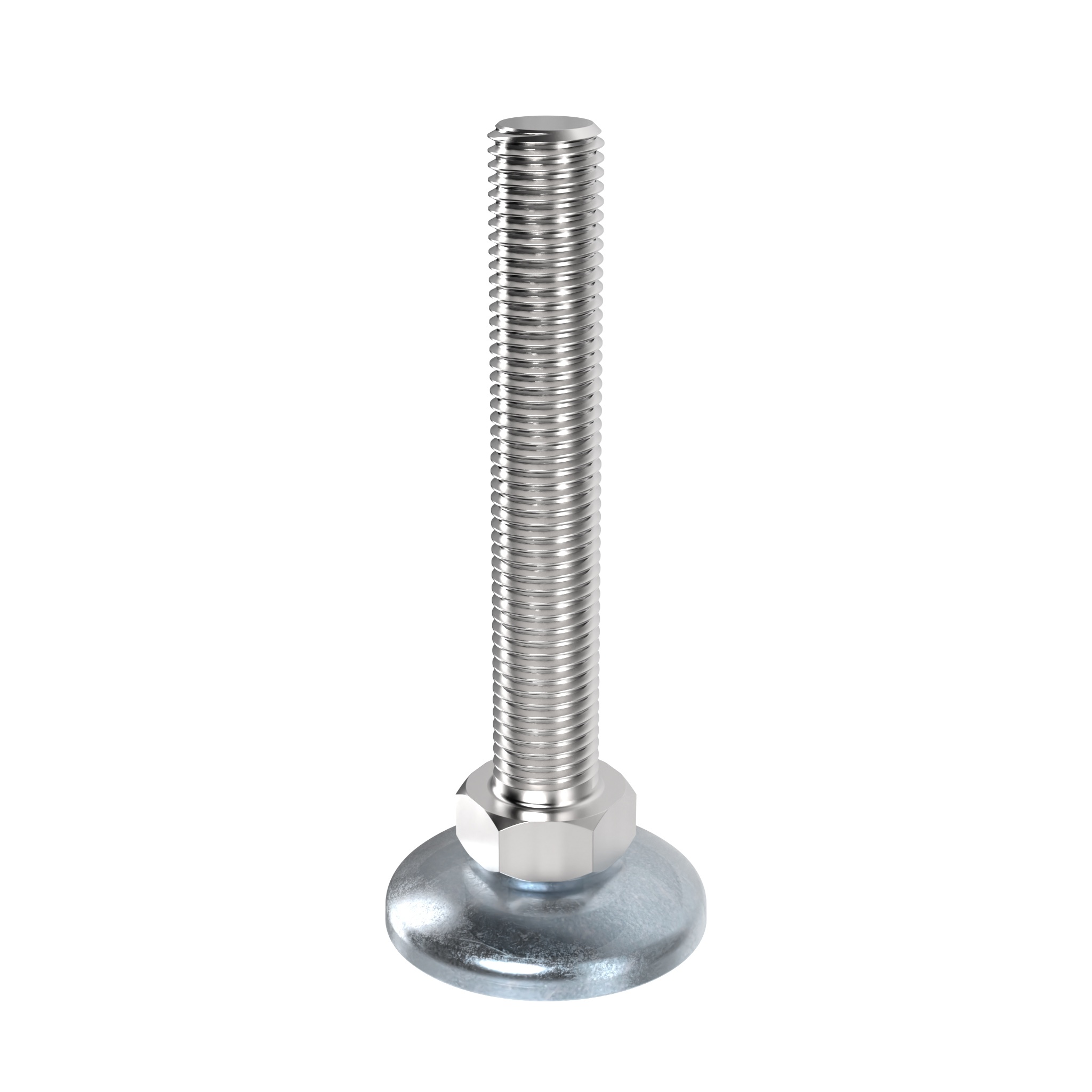

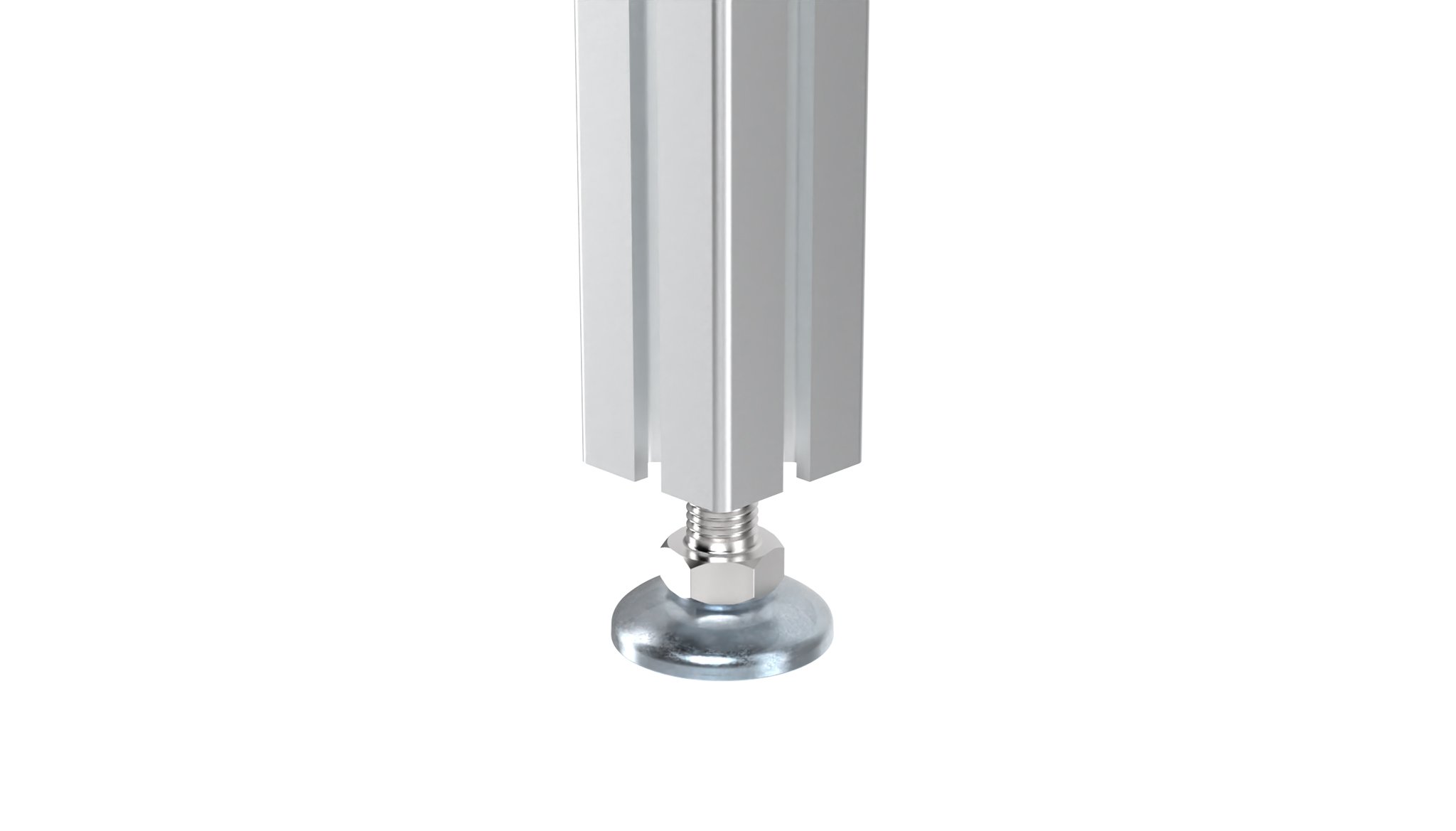

Economical leveling foot for strong positioning on slightly uneven floors

Material:
Base: Zinc die-cast
Threaded rod: Stainless steel

Specials:
ESD electrostatical discharging, other sizes, other colors, glued anti-slip plate on request
Other lengths and other sizes on request

Surface:
Base: Zinc plated
Threaded rod: Plain

Tip:
Compatible Nut see 4DIN439BM5M et sq. and 4DIN934M5M et sq.,

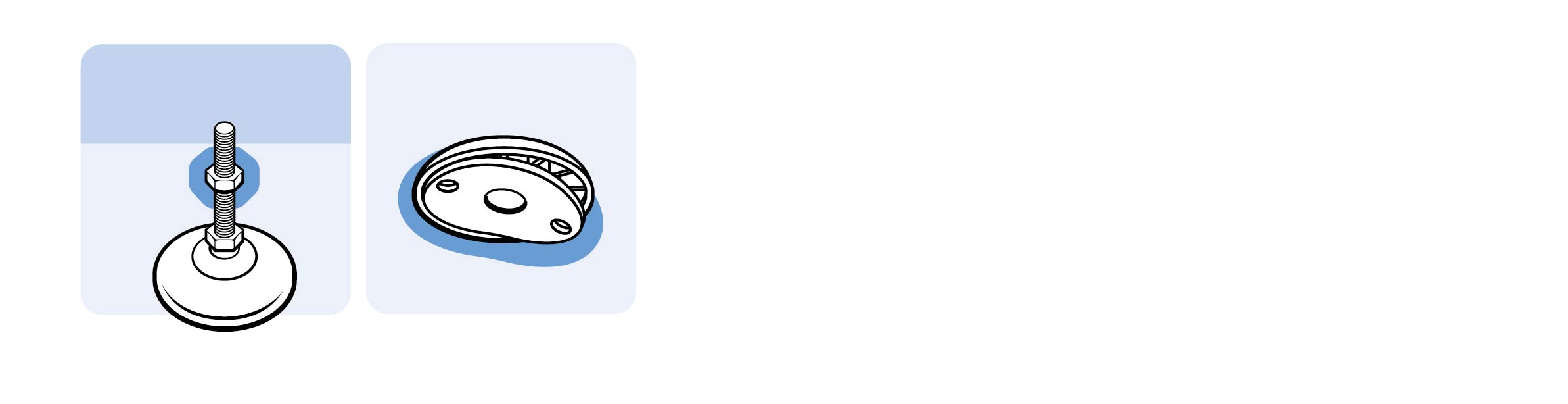

Compatible Anti-Slip Plate see 098EG030 et sq.

Zolltarifnummer:
73269098900
Cantidad por Paquete: 1 pieza
Model: Zinc die-cast / steel
Peso (g): 227.6
Screw Joint: Swiveling range ±5°

Variantes

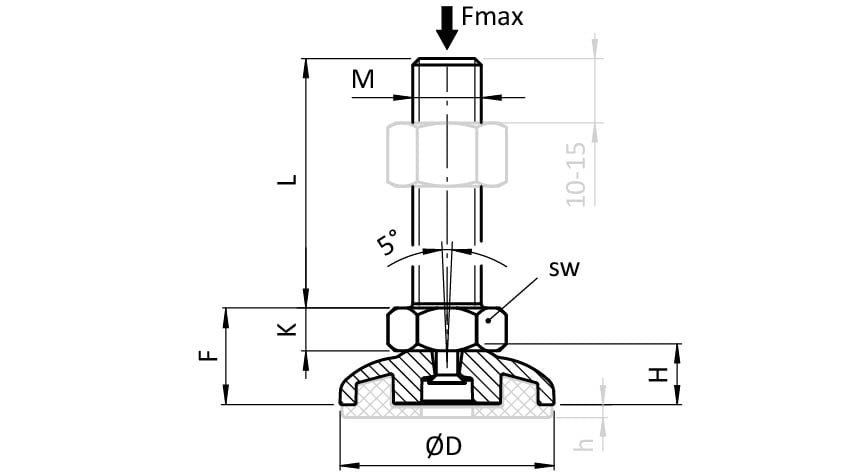

ID de producto Version F (mm) K (mm) SW (mm) h (mm) D (mm) M x L (mm) Fmax (N) H (mm) Base
9E050ZV16100E without anti-slip plate 23.8 10.0 24 3.0 50 M16 x 100 14200 15.3 50
