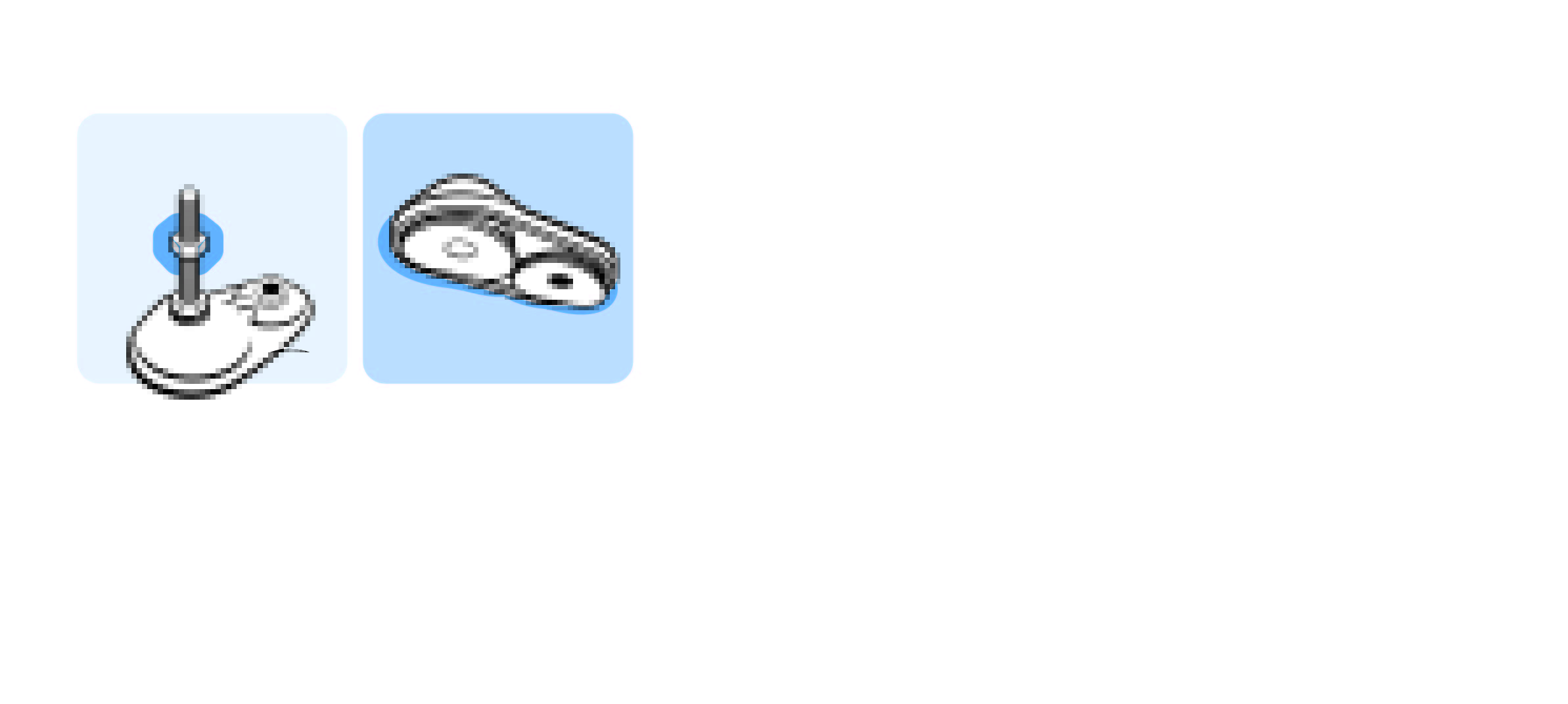

Extended Pivot Foot, PA / ST - Ball Joint 15

Información sobre el producto "Extended Pivot Foot, PA / ST - Ball Joint 15"

Color:
Base: Black

Países de Entrega:
En todo el mundo

Description:

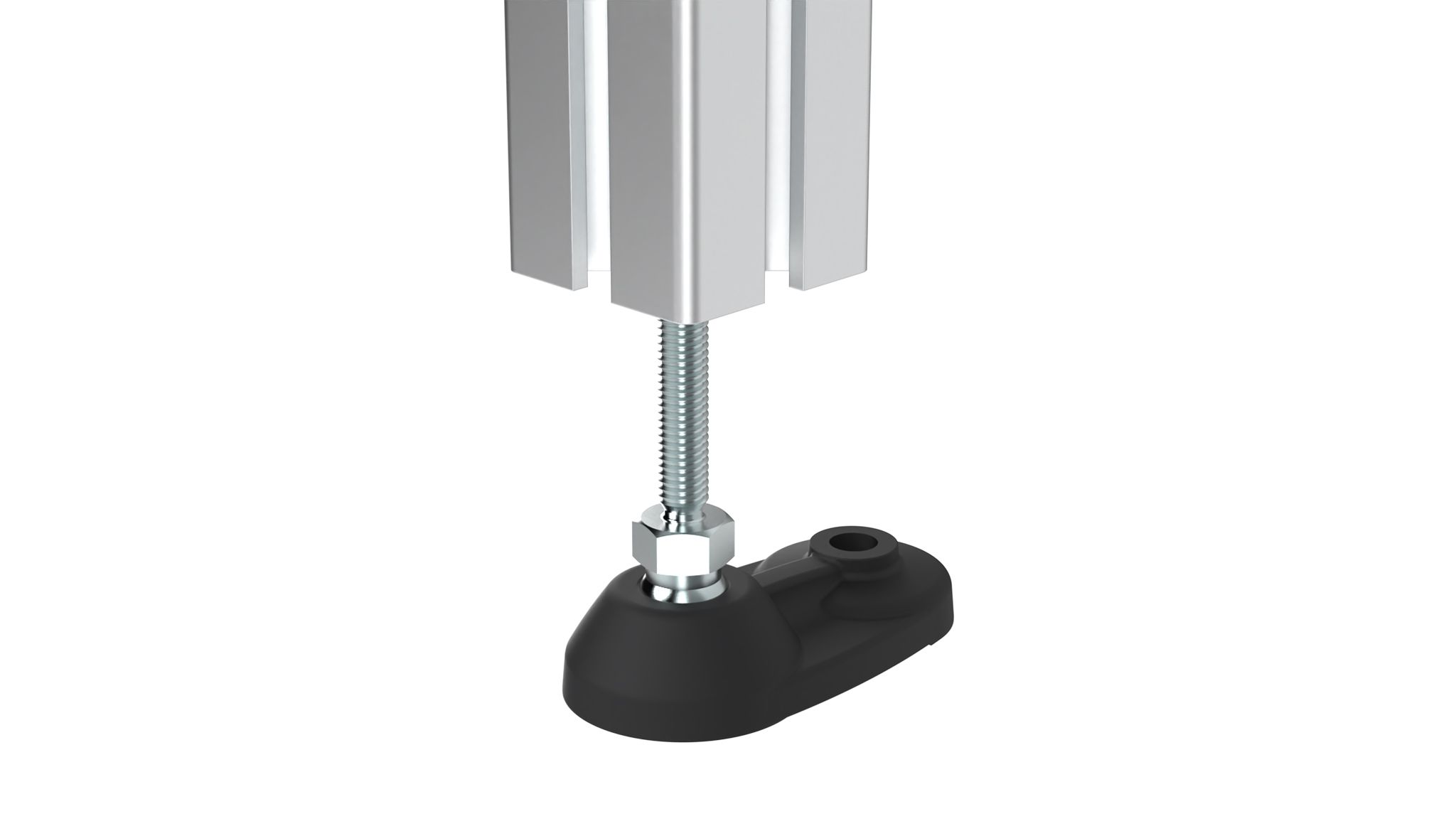

Extended swiveling leveling foot which can be fixed to the floor

Material:
Base: Plastic PA, glass ball reinforced
Threaded rod: Steel

Specials:
ESD electrostatical discharging, other sizes, other colors, glued anti-slip plate on request
Stainless steel, other lengths and other sizes on request

Surface:
Threaded rod: Zinc plated

Tip:
Compatible Nut see 4DIN439BM5M et sq. and 4DIN934M5M et sq.,
Compatible Anti-Slip Plate see 098DG030 et sq.

Zolltarifnummer:
73269098900
Ball Joint: Swiveling range ±20°
Cantidad por Paquete: 1 pieza
Model: Plástico PA / acero
Peso (g): 56.0

Variantes

ID de producto Fmax (N) Base F (mm) D (mm) Version SW (mm) M x L (mm)
9DA040K08040M 3430 40 29.5 39 without anti-slip plate 14 M8 x 40
